Technical Specifications
Basic Hardware Configuration
Display Specifications: 5.7-inch color display (the letter "C" in the model denotes Color), delivering a clear visual interaction interface for industrial sites. It meets the intuitive display requirements for equipment status, operation instructions and other information.
Input Method: Touch-only input (the letter "T" in the model denotes Touch). It enables easy operation and supports fast, accurate human-machine interaction in industrial environments.
Processor & Storage: Equipped with a 1.0 GHz ARM-based processor, 256 MB DDR2 on-board memory (peak transfer rate: 4264 MiB/s), and 512 MB non-volatile memory (approx. 73 MB available as user memory). It satisfies the requirements of industrial control program operation and data caching.
Operating System: Pre-installed with Windows CE 6.0 OS, featuring excellent stability and compatibility. It supports FactoryTalk View Machine Edition (ME) Runtime Software Version 6.10 and above, ensuring smooth operation of industrial control applications.
Communication Interfaces
Core Interface: RS-232 (DB9 port), supporting serial communication between industrial devices and enabling data exchange with peripherals such as controllers and sensors.
USB Ports: 1× USB-A port (USB 2.0 High-Speed) and 1× USB-B port (USB 2.0 High-Speed, 4-pin). It supports connection of external storage devices and programming equipment, facilitating program upload/download and data backup.
Ethernet Note: No built-in Ethernet interface; it is dedicated to serial communication scenarios. For Ethernet functionality, select other models in the same series with Ethernet ports (e.g., 2711P-T6C20A8).
Power Supply & Environmental Adaptability
Power Input: AC voltage supported (the letter "A" in the model denotes AC Power). Adopts a non-isolated power supply design, compatible with common power supply environments in industrial sites.
Industrial-Grade Design: Complies with industrial design standards and has strong anti-interference capability. It can adapt to complex industrial environments with electromagnetic interference and temperature fluctuations, ensuring stable equipment operation.
Software & Compatibility
Application Support: Compatible with FactoryTalk View ME applications (Version 3.2 and above) and mainstream applications of legacy PanelView Plus terminals, reducing migration and upgrade costs.
Built-in Standard Features: Includes FTP server, VNC client/server, ActiveX control support, third-party device compatibility, and PDF reader, meeting the needs of basic data transmission, remote control and document viewing in industrial scenarios.
Extended Function Option: For extended functions (e.g., web browser, remote desktop connection, media player, Office file viewer), select the extended version with suffix "9" (e.g., 2711P-T6C20A8).

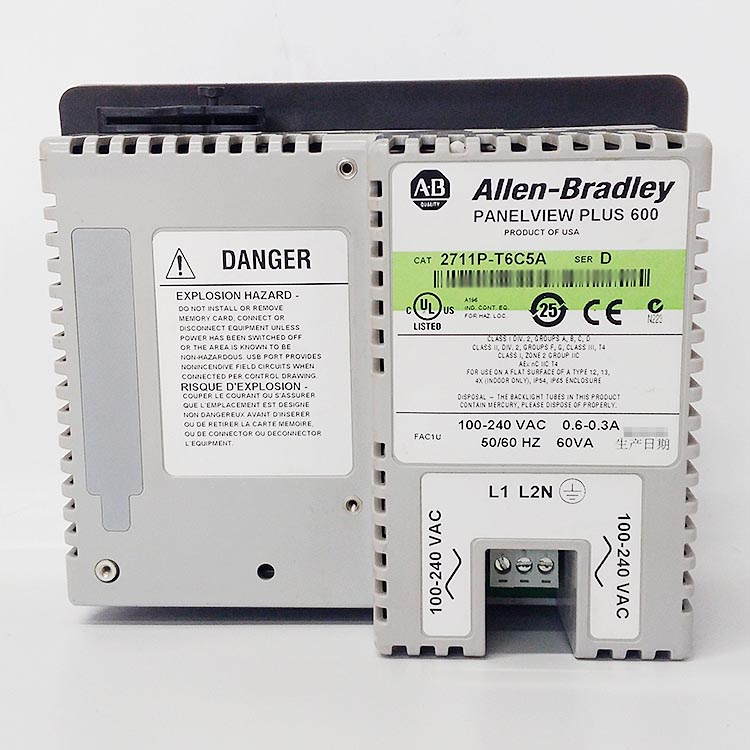

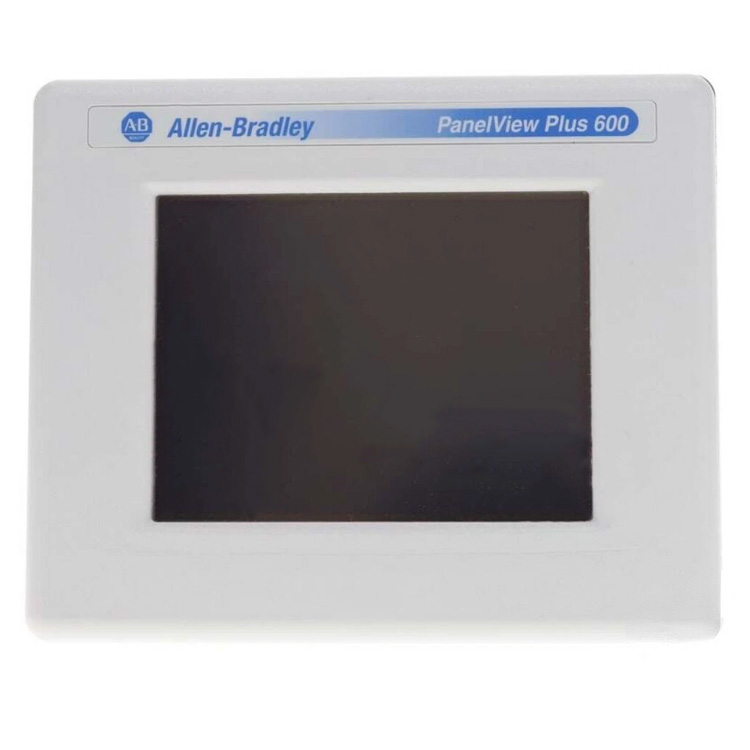

Advantages of A-B 2711P-T6C5A PanelView Plus 600 Touchscreen
Upgraded Hardware Performance & Enhanced Stability
Compared with the NEC VR5532A MIPS 350 MHz processor and 64 MB memory of legacy terminals, the new-generation product’s ARM 1.0 GHz processor and 256 MB memory significantly improve data processing speed and multi-tasking capability. It adopts the Datalight Reliance file system (supports FAT), which offers higher data storage stability than traditional FAT16/FAT32 systems, effectively avoiding the risk of data loss in industrial environments.Compatible Software Ecosystem & Low Migration Cost
Fully compatible with FactoryTalk View ME applications version 3.2 and above, existing projects from legacy terminals can be quickly migrated to this product without redevelopment. Compared with the old CE 4.1 version, the Windows CE 6.0 operating system provides more comprehensive system functions and security patches, while supporting .NET Compact Framework 3.5, facilitating subsequent function expansion.Strong Industrial Adaptability & Easy Operation
The touch-only input design meets the demand for quick operations in industrial sites, and the 5.7-inch color screen ensures clear information display. Compared with the old USB 1.1, the USB 2.0 high-speed interface greatly improves the efficiency of program transmission and data backup. The RS-232 interface provides stable support for serial communication of industrial equipment, adapting to most traditional industrial controllers.High Cost-Effectiveness & Flexible Selection
With a clear positioning, the product focuses on serial communication scenarios, avoiding unnecessary functional redundancy and featuring outstanding cost-effectiveness. Meanwhile, it offers two versions: standard function (suffix 8) and extended function (suffix 9). Users can flexibly select models according to whether they need extended functions such as web browsing and Office file viewing, reducing procurement costs.Customers who purchased this product are also browsing the following products:
