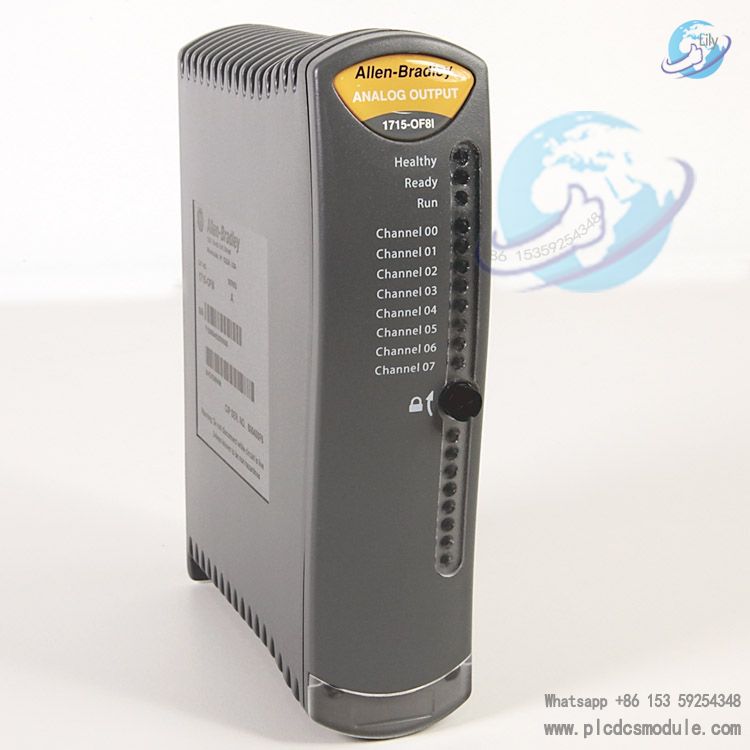

Allen‑Bradley 1715‑OF8I is an 8‑channel isolated analog output module belonging to Rockwell Automation 1715 Redundant I/O series. Designed specifically for critical process control applications, it provides standard 4‑20 mA current output, supports redundant architecture, electrical isolation between channels, and comprehensive diagnostics. It can seamlessly integrate into the ControlLogix/Logix platform and deliver highly reliable control via EtherNet/IP, meeting the high‑availability requirements of industrial scenarios such as petrochemical, power, and water treatment.
Core Functions & Features
- 8 Independently Isolated Channels: 8 isolated 4‑20 mA analog outputs with electrical isolation between channels and the backplane, delivering strong anti‑interference performance and protecting field devices.
- Redundant I/O Capability: Enables true redundant I/O operation with the 1715‑A310 base, supporting bumpless transfer to enhance continuous system operation.
- High Accuracy & Stability: Typical accuracy of 0.30 % + 10 μA, low temperature drift, and stable, reliable long‑term operation.
- Comprehensive Status Diagnostics: Real‑time indication of module health, channel status, faults, and loop anomalies for fast maintenance.
- Wide Temperature & Robust Protection: Operating temperature range of ‑25…+70 °C, open structure compatible with standard cabinets, suitable for harsh industrial environments.
- Standard Industrial Interfaces: Compatible with 22–16 AWG shielded cables for standardized wiring and easy installation.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Output Channels | 8 channels, independent electrical isolation |
| Output Signal | 4–20 mA current type |
| Supply Voltage | 18–32 VDC, typical 24 VDC |
| Operating Current | 260 mA @ 24 VDC |
| Maximum Power Consumption | 3.6 W |
| Power Consumption per Loop | 0.64 W per channel |
| Isolation Voltage | 50 V continuous (channel/backplane); 500 V AC for 60s test |
| Accuracy | 0.30 % + 10 μA |
| Temperature Range | ‑25…+70 °C |
| Wiring | 22–16 AWG shielded copper cable |
| Compatible Base | 1715‑A310 |
| Compatible Terminal Blocks | 1715‑TASOF8 / 1715‑TADOF8 |
| Dimensions | 166 × 42 × 118 mm |
| Weight | Approx. 340 g |
Applications
- Process Control: Precise actuation of control valves, regulating valves, and positioners
- Variable Frequency Drives: Speed/torque reference signals for inverters
- Instrument Control: Signal output for loop controllers, recorders, and display instruments
- Industrial Systems: Flue gas monitoring, water treatment, chemical, power, oil & gas, and other critical processes
V. Frequently Asked Questions (FAQ)
Q1: How many channels does the 1715‑OF8I module have?A1: It is an 8‑channel isolated analog output module.
Q2: What type of output signal does it provide?A2: Standard industrial 4–20 mA current signal.
Q3: Does it support redundancy?A3: Yes, it supports redundant I/O. A redundant architecture requires the 1715‑A310 base.
Q4: Is shielded wiring mandatory?A4: Shielded twisted‑pair cable with 22–16 AWG is recommended to improve anti‑interference performance and stability.
Q5: What are the power supply requirements?A5: 18–32 VDC, recommended 24 VDC, with a typical current of 260 mA.
Q6: What is the maximum power consumption?A6: Maximum module power consumption is 3.6 W, and maximum per‑loop power consumption is 0.64 W.
Q7: What is the applicable temperature range?A7: Operating temperature is ‑25 °C to +70 °C, suitable for harsh field environments.
Q8: Can it be installed directly?A8: The module must be used with the 1715‑A310 base and 1715‑TASOF8 / 1715‑TADOF8 terminal blocks.
Q9: Which control systems are supported?A9: Compatible with the ControlLogix/Logix platform and communicates via EtherNet/IP.
Q10: How to detect module/channel faults?A10: The module is equipped with status indicators. Combined with controller diagnostics, it can quickly identify channel abnormalities, wire breaks, overloads, and other faults.
