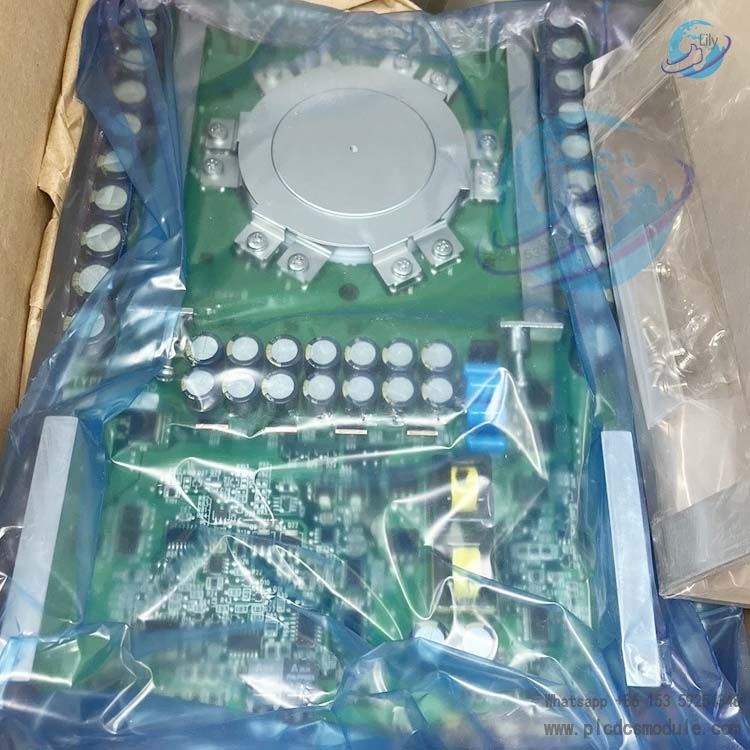

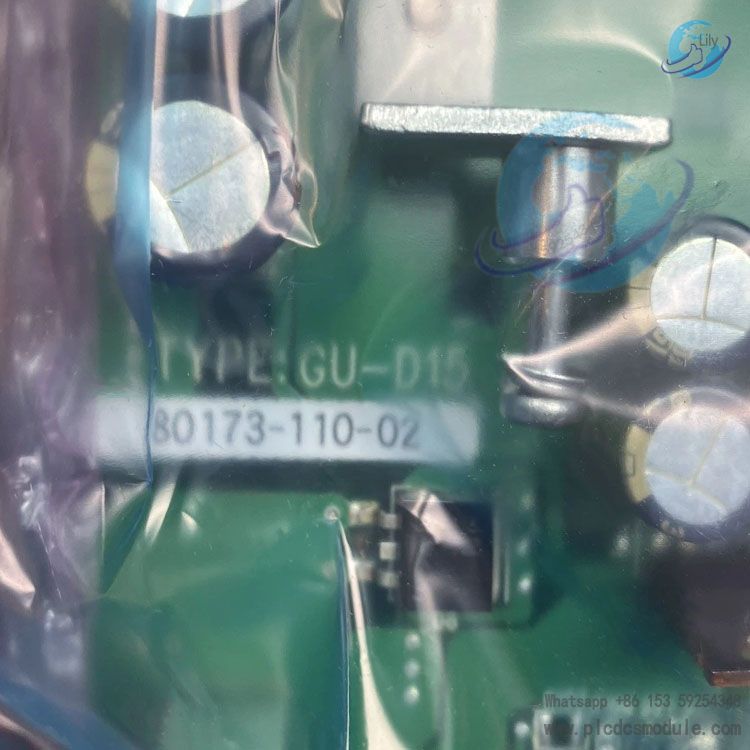

Allen‑Bradley 81001‑451‑62‑R is a dedicated 1500A Symmetrical Gate Commutated Thyristor (SGCT) matching module for Rockwell Automation PowerFlex 7000 medium-voltage variable frequency drives. It consists of two precisely matched SGCT devices and an integrated gate drive board, serving as the core power switching component on the inverter side of the drive. It is applicable to high-power transmission scenarios with voltage of 2.4～6.6kV and power range of 150～25350kW.
Adopting SGCT technology, the module features low loss and high efficiency. Its on-state loss is reduced by approximately 30% compared with traditional GTOs, with lower switching loss. No complex snubber circuit is required, and the system efficiency exceeds 98%, making it ideal for large motor drives that operate continuously for long periods, such as power plant induced draft fans and mining ball mills.
With a press-pack double-sided cooling design, it delivers low thermal stress, high operational reliability and long service life. It adopts non-explosive and non-arcing failure mode, and single-device failure will not spread, ensuring equipment and personal safety, which perfectly meets the demand of 24/7 uninterrupted operating conditions in petrochemical, metallurgical rolling mill and other industries.
It also boasts high power density. Equipped with integrated gate drive and low-inductance connection design, it achieves a switching frequency of 420～540Hz, 5 to 10 times higher than that of conventional GTOs. This greatly reduces the filter size, making it suitable for space-constrained applications such as offshore platforms and containerized frequency conversion stations.
Custom engineered for PowerFlex 7000 Air-Cooled Frame B and Liquid-Cooled Frame C, the module supports plug-and-play installation. It is compatible with standard asynchronous and synchronous motors, as well as Direct‑to‑Drive™ and AFE rectification technology, offering excellent adaptability and compatibility.
Key Features and Application Scenarios
| Feature | Technical Parameters | Typical Application Scenarios |
|---|---|---|
| Rated Current | 1500A (per module) | 6.6kV, 10～15MW compressors, mine hoists |
| Blocking Voltage | 4160V (matched for 6.6kV systems) | Main drive for metallurgical steel rolling mills, cement kiln drives |
| Topology | Two-unit series matched pair | Power plant desulfurization pumps, large blower units |
| Cooling Method | Air-cooled (Frame B) / Liquid-cooled (Frame C) | Desert/high-temperature environments (air-cooled), high power density applications (liquid-cooled) |
| Protection Mechanism | Overcurrent / Overvoltage / Overheating / Gate fault self-diagnosis | Chemical explosion-proof areas, offshore drilling platforms |
| Switching Frequency | 420～540Hz | High-precision speed control, low harmonic requirement scenarios |
Installation and Operation Guide
1. Safety Preconditions
Operations must be performed by certified high-voltage electricians. Cut off power and implement lockout-tagout throughout the process; verify zero voltage before starting work.Anti-static protection: Wear an anti-static wristband, and keep the module in the anti-static bag when taking it out.
2. Installation Steps
Module positioning: Align the module with the PowerCage slot, and ensure the contact surface between the device and heat sink is clean and free of foreign matter.Pressure fastening: Tighten the crimping bolts at a torque of 3.4N·m (30lb·in) to ensure even fitting of double-sided heat dissipation.Electrical connection: Align the optical fiber connector with the drive board interface, and confirm the gate drive power supply (24VDC) works normally.Snubber circuit inspection: Verify correct connection of snubber capacitors/resistors with no looseness or aging.
3. Commissioning Procedure
Power-on self-test: After the medium-voltage drive is powered on, all LED indicators on the drive board shall light up (green for normal, red for fault).Parameter configuration: Set module current to 1500A and voltage to 4160V on the PowerFlex 7000 panel, and enable the SGCT matching mode.No-load test: Run under no-load condition for 30 minutes; monitor module temperature ≤ 85℃ with no abnormal noise.Load commissioning: Apply load gradually from 25% → 50% → 100%, run continuously for 2 hours, and confirm no overheating and no tripping faults.
Competitor Comparison
| Comparison Item | Allen‑Bradley 81001‑451‑62‑R (SGCT) | ABB IGCT (5SHY Series) |
|---|---|---|
| Technical Route | Symmetrical Gate Commutated Thyristor (SGCT) | Integrated Gate Commutated Thyristor (IGCT) |
| Rated Current | 1500A (matched pair) | 2000～3000A (single unit) |
| Switching Frequency | 420～540Hz | 200～400Hz |
| Loss Level | Low (90% simplified snubber circuit) | Medium‑low (snubber-free) |
| Fault Safety | Non-explosive, non-arcing type | Limited arcing type |
| Compatible VFD | PowerFlex 7000 | ACS1000/6000 |
| Price Range | Medium-high (cost-effective) | High (import premium) |
| Maintenance Cost | Low (5-year maintenance-free) | High (requires special tools) |
Frequently Asked Questions
Q1: VFD reports “Gate Drive Fault” after module replacement?A: ① Ensure the module and drive board are matched in the same batch; do not replace individual devices or circuit boards separately.② Check if optical fibers are fully inserted without bending, and verify normal operation of the gate drive power supply (24VDC).③ Re-download VFD parameters and perform SGCT matching calibration.
Q2: Excessively high module temperature during operation (>95℃)?A: ① Clean the radiator air duct; check the cooling fan/water pump. Ambient temperature ≤40℃ for air cooling, liquid cooling temperature ≤35℃.② Confirm crimping bolt torque reaches standard (3.4N·m), with no oxidation or foreign matter on contact surfaces.③ Reduce load to 80% and observe temperature drop; check for long-term overload operation.
**Q3: Short module service life (<3 years) with frequent damage?**A: ① Operating condition issue: Excessive dust or corrosive gas in the environment; enhance dustproof sealing or switch to liquid-cooled model.② Grid fluctuation: Install input reactor to suppress overvoltage and surge impact.③ Improper parameters: Excessively high switching frequency (>540Hz); adjust down to 420～480Hz range.
Q4: Can ABB IGCT modules be used for direct replacement?A: Direct replacement is not feasible. The two differ in drive logic, optical fiber protocol and installation dimensions. Forced replacement will cause VFD burnout. Full cabinet replacement with ABB ACS6000 series is required with high cost; original factory spare parts are recommended first.
Q5: Can a single device be replaced after module damage?A: It is strictly prohibited to replace a single SGCT device alone. The 81001‑451‑62‑R adopts a matched pair design with strictly consistent parameters for the two units. Individual replacement will cause current sharing imbalance and overheating burnout; the module must be replaced in pairs.
