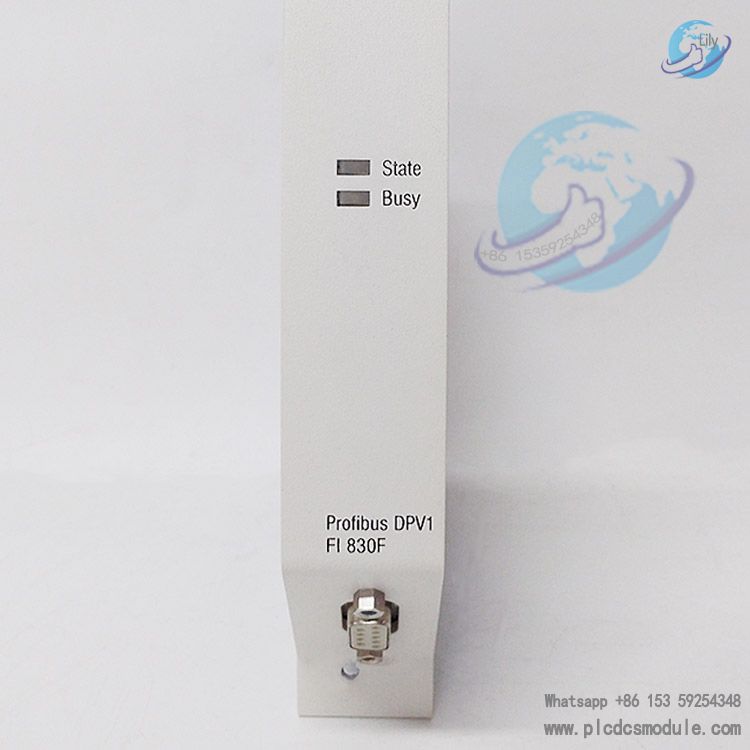

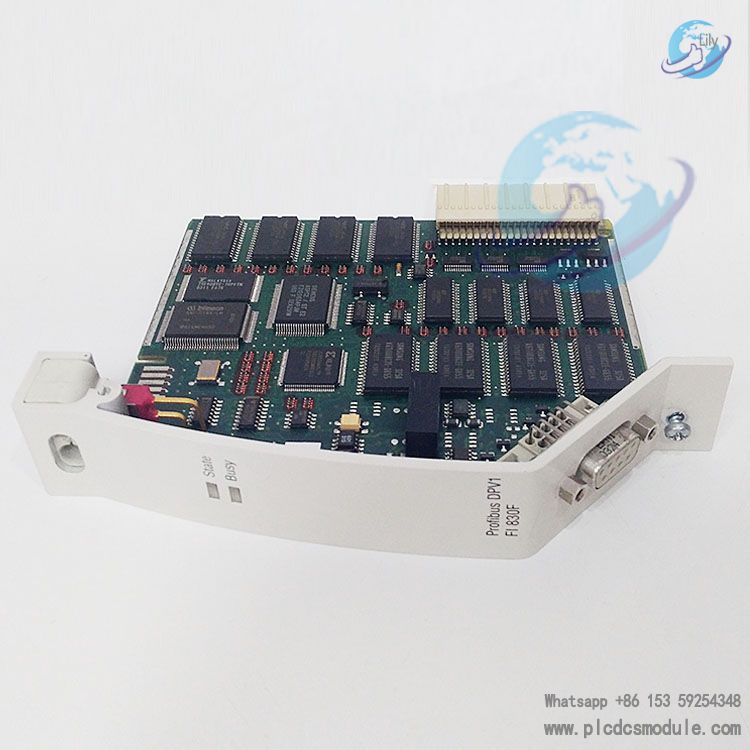

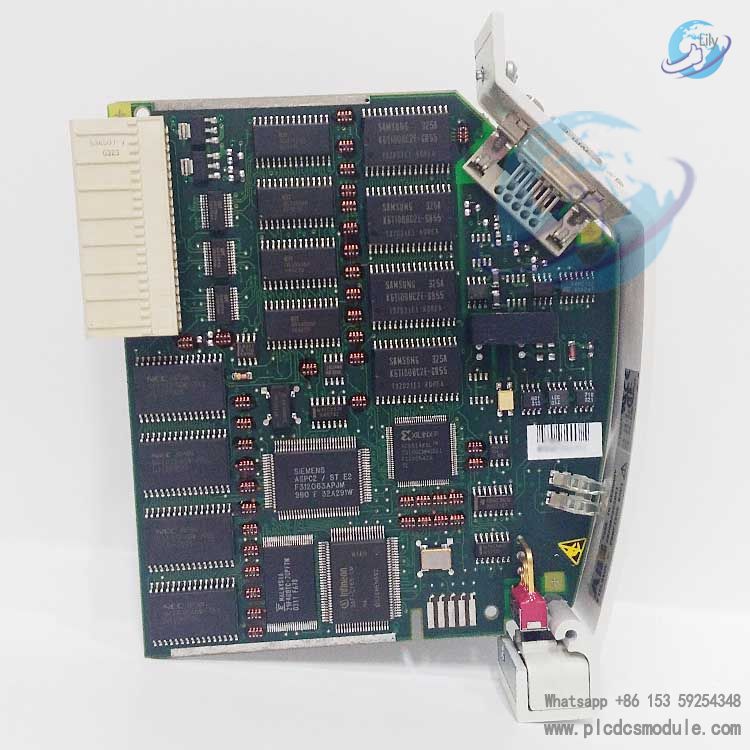

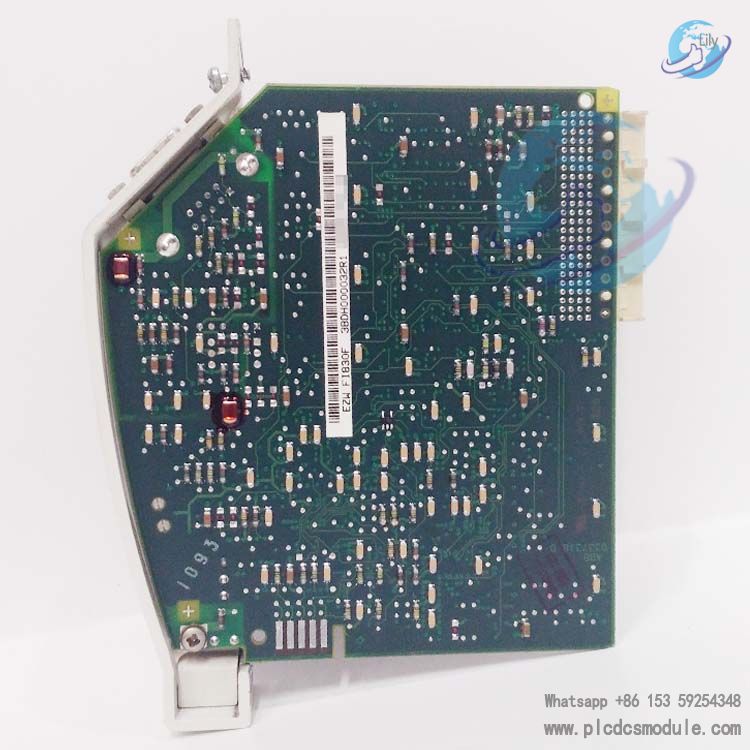

ABB FI830F 3BDH000032R1 AC 800F Fieldbus Module PROFIBUS-DP FI 830F

With the PROFIBUS-DP V1 protocol at its core, it features a high-speed transmission capability of 12 Mbps. Its bus design incorporates electrical isolation and short-circuit protection functions, along with diagnostic indicator lights. This module balances data exchange efficiency, system safety, and operational maintenance convenience, enabling flexible construction of industrial automation communication networks and facilitating efficient, stable device interconnection as well as data acquisition and control.

related documents

FI830F 3BDH000032R1.pdf

Technical Specifications

Communication Characteristics

• Bus Protocol: Supports PROFIBUS-DP V1 (compliant with DIN 19245 standard), enabling efficient data exchange between master and slave stations. It is compatible with DP slave devices to meet the requirements of real-time control and diagnostics.
• Transmission Rate: Up to 12 Mbps. The rate can be flexibly configured according to on-site network conditions, suitable for scenarios with different distance and real-time performance requirements.
• Interfaces & Connections: Equipped with a 9-pin D-sub connector and features an electrically isolated PROFIBUS-DP bus design to ensure communication stability and device safety. A single module can connect to multiple DP slave stations, and the system supports a maximum of 126 slave nodes, making it suitable for large-scale network deployment.

Physical & Compatibility Parameters

• Dimensions & Weight: 28 mm in width, 155 mm in height, 125 mm in depth, with a weight of approximately 0.26 kg. It is suitable for standard cabinet installation, saving mounting space.
• Compatible Controllers: Exclusively paired with PM 802F or PM 803F controllers. Software version V7.1SP2a or higher is required to ensure the compatible operation of hardware and software.
• Power Supply & Power Consumption: Powered by 24 VDC with low typical power consumption. It is compatible with the universal DC power supply system in industrial sites, reducing energy consumption.

Environmental Adaptability

• Operating Temperature: -25°C to +60°C; Storage Temperature: -40°C to +85°C, capable of adapting to most harsh temperature environments in industrial settings.
• Humidity Resistance: 5% - 95% (non-condensing), preventing the adverse impact of humid environments on module operation.
• Protection Class: IP20, designed for cabinet installation with basic dust-proof capability.

Functions & Advantages

Stable Data Exchange: Based on the PROFIBUS-DP V1 protocol, it supports both high-speed transmission of real-time control data and upload of diagnostic information from slave devices. This helps users keep abreast of equipment operating status in a timely manner and improves system operation and maintenance efficiency.
Flexible Network Expansion: It supports multi-slave station connections and allows flexible configuration of network topology according to project scale, making it suitable for industrial automation scenarios of varying sizes. In addition, its high-speed transmission capability can meet the requirements of large-scale concurrent data exchange.
Highly Reliable Operation Guarantee: The electrical isolation design prevents external electrical interference and fault propagation. The short-circuit protection function reduces the risk of equipment damage caused by on-site line faults. With wide temperature and humidity adaptability, the module is guaranteed to operate stably for a long time in complex industrial environments.
Convenient Operation & Maintenance Management: The intuitive LED diagnostic indicator lights enable quick troubleshooting of basic faults such as power supply and bus communication without complex testing tools, shortening downtime for maintenance and reducing operation and maintenance costs.

Application Scenarios

The FI830F 3BDH000032R1 PROFIBUS-DP V1 Fieldbus Module is widely used in process industries, manufacturing automation production lines, and other fields.For example, in chemical production lines, it can connect various sensors for pressure and temperature detection as well as actuators for valve control, enabling the controller to achieve real-time acquisition of production parameters and precise control of valve opening and closing. In automobile manufacturing assembly lines, it can connect servo drives, robotic arms, and other equipment, ensuring the coordinated operation of each execution unit. It helps build an efficient and unified automation control network, improving production efficiency and product quality stability.
