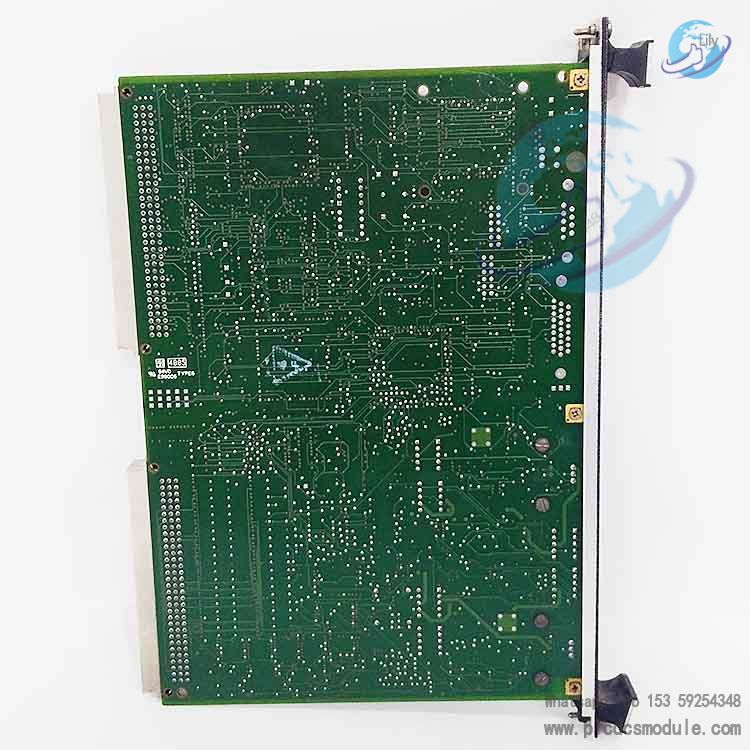

Note; All products on this site are special products, the market price has been fluctuating, the specific customer service offer shall prevail, because the product is a new product, the picture is not a real shot, please confirm with customer service before placing an order model and product, price and other details, the site used, new are for sale, please contact customer service communication. The IS200VAICH1DAB is a VME bus Analog Input/Output Board (VAIC) designed for the GE Mark VI control system. It supports 20-channel analog input acquisition and 4-channel analog output control, integrating A/D conversion, D/A conversion, signal conditioning, and analog multiplexers (MUX). Compatible with both Simplex and Triple Modular Redundancy (TMR) architectures, it is widely used for high-precision process monitoring and closed-loop control in industrial applications such as gas/steam turbines, petrochemicals, and power generation. Featuring high reliability, strong anti-interference performance, and easy maintenance, it provides a flexible and stable analog signal interface for the Mark VI system.
Specification Parameters
Model: IS200VAICH1DAB (VAIC for functional abbreviation)System affiliation: GE Mark VI control system, VME bus moduleInput channels: 20 channels in total, including 16 channels compatible with ±10V DC/±5V DC/4-20mA, and 4 channels compatible with 4-20mA/±1mAOutput channels: 4 channels in total, including 2 channels for 0-20mA/0-200mA signals, and 2 channels for 0-20mA signals (configurable as 4-20mA standard signals)Conversion accuracy: Equipped with 16-bit A/D and D/A converters, featuring an input accuracy of ±0.1% FS and an output accuracy of ±0.2% FSRedundancy support: Compatible with Simplex and TMR architectures; in TMR mode, signals are fanned out to 3 VAIC modules with automatic switchover upon hardware failureCommunication interface: Compatible with the VME bus of Mark VI system, supporting high-speed data interaction via system backplanePower consumption: ≤31mW; adopts Surface Mount Technology (SMT), realizing low power consumption and vibration resistanceDiagnostic function: On-board LED indicators for real-time display of channel status, power supply, communication and fault alarmsPhysical characteristics: Compliant with VME standard slot size, equipped with J3/J4 latch connectors, suitable for industrial cabinet installation
Key Features
High-precision measurement: 16-bit resolution and ±0.1% FS input accuracy, suitable for high-precision monitoring requirements in industrial field applications, such as the acquisition of key parameters including turbine speed and steam pressure.
High-reliability design: Adopts industrial-grade components, SMT process and redundant architecture; withstands a wide temperature range of -40℃~+85℃ and 5-95% RH (non-condensing) environment, enabling long-term stable operation.
Flexible configuration capability: Input and output channels support software configuration of signal types and ranges without the need for hardware jumpers; compatible with different sensors and actuators, reducing the complexity of system integration.
Convenient diagnostic maintenance: LED indicators provide real-time feedback on channel status, facilitating online fault location; the modular design allows hot swapping (subject to compliance with system specifications), minimizing downtime for maintenance.
