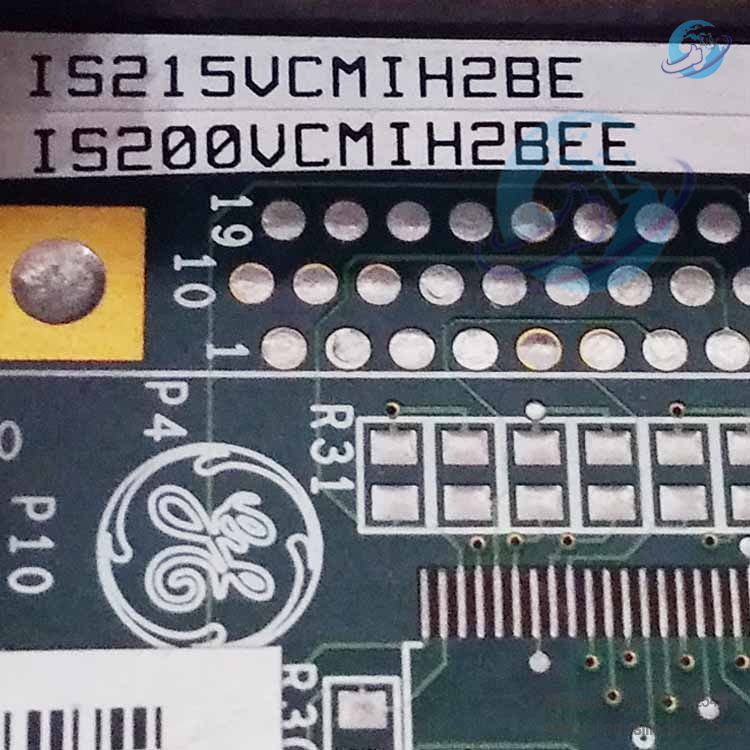

GE IS215VCMIH2BE Mark V IS200VCMIH2BEE VME Bus Master Controller Board

VME Bus ManagementAs a VME bus master device, it is responsible for address decoding, bus arbitration and data transmission control, coordinating the bus access timing of all boards within the chassis to avoid data conflicts. It also features error detection and fault isolation capabilities to ensure the stability and integrity of bus communication.

Communication Interface BridgingOn the one hand, it performs high-speed data interaction with controllers and I/O boards (e.g., analog input/output boards, digital I/O boards, etc.) via backplane connectors. On the other hand, it connects to the system control network through 3 IONet interfaces, enabling cross-network communication between controllers and distributed I/O chassis. Additionally, it provides 1 RS-232C serial port for diagnostic and configuration operations.

Chassis ID ManagementIt assigns unique identifiers to all boards and their associated terminal boards within the chassis, enabling precise addressing and management of the boards. It supports connection of multiple I/O chassis to the same IONet network, with each chassis requiring a dedicated VCMI board to meet system expansion requirements.

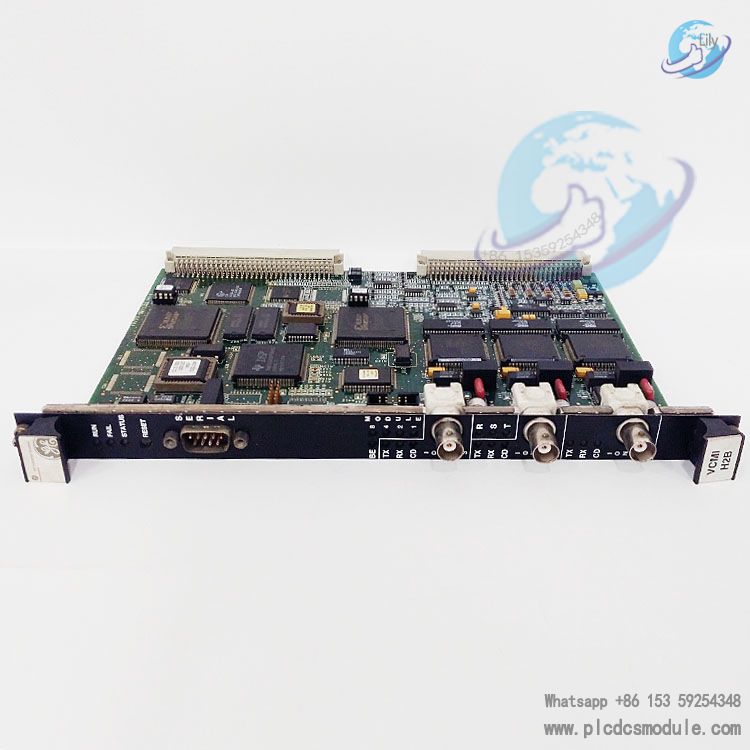

Status Monitoring and DiagnosticsIt is equipped with Run, Fail, Status indicator lights, as well as communication status lights including TX (Transmit), RX (Receive) and CD (Carrier Detect). There are also 4 binary-coded indicator lights (1, 2, 4, 8) for fault code display, which, together with a manual reset button, facilitate quick fault location and troubleshooting. It receives analog and digital feedback on power supply status via the J301 backplane connector to realize power supply monitoring and abnormal alarm functions.

System Integration and AdaptationIt is compatible with the simplex configuration of the Mark V system and supports local and remote I/O deployment. It enables transmission and conditioning of various industrial signals such as LVDT input, servo valve output, thermocouple input and 4-20mA signals, meeting the complex signal processing requirements of gas turbine control systems.

Board Form Factor: 6U-high VME board with a width of 0.787 inches. Compliant with VME bus standards and suitable for installation in standard VME chassis.Processor: 32-bit digital signal processor (e.g., TI TMS320C32). Ensures high-speed data computation and real-time control.Memory Configuration: Dual-port memory with 32-bit transmission configuration SRAM (256k×32). Supports parallel access by multiple devices to improve data interaction efficiency.Communication Interfaces: 3 IONet interfaces and 1 RS-232C serial port. IONet is used for system network communication, while the serial port is dedicated to diagnostics and configuration.Indicator Lights: Run/Fail/Status lights, TX/RX/CD lights (for each IONet interface), and 4 binary-coded indicator lights. Display operating and communication status in real time and support fault code reading.Power Supply Specifications: 24V DC power supply. Compatible with standard power supplies of industrial control systems and equipped with power supply monitoring function.Operating Environment: Operating temperature range: 0°C to 60°C; storage temperature range: -40°C to 85°C. Adapts to harsh industrial field environments to ensure stable operation.Physical Dimensions: Approximately 17.8cm × 33.02cm. Standard 6U board size for easy chassis installation.Weight: Approximately 0.9kg. Lightweight design to reduce the load-bearing pressure of the chassis.Technical Process: Surface Mount Technology (SMT). Enhances board integration and vibration resistance, and extends service life.

Applicable Systems: GE Speedtronic Mark V gas turbine control system. It is suitable for the full-process control of gas turbines, including startup, speed regulation, shutdown and protection. It can also be applied to distributed control systems of other large rotating machinery such as steam turbines.

Compatible Boards: It is compatible with various I/O boards of the Mark V series, such as analog I/O boards (e.g., TCQA), digital I/O boards, relay driver boards and pulse input boards. It realizes unified signal management and transmission via backplane connectors.

Applicable Industries: Widely used in industries relying on gas turbine power generation or drive, such as electric power, petrochemicals and metallurgy. It serves as a critical component to ensure the safe, efficient and stable operation of large-scale power equipment.

Version Description: It belongs to the VCMIH2 version (H2 denotes a function-revised version). Distinguished from the VCMIH1 version, it has undergone optimization and upgrading in terms of interface performance and fault diagnosis capability. IS215VCMIH2BE is the complete model number, where "BE" represents a specific configuration identifier.

Reference Documentation: The core technical document is GEH-6421M, which covers detailed content including board installation, configuration and troubleshooting, and can be used as a technical basis for on-site maintenance and system integration.
