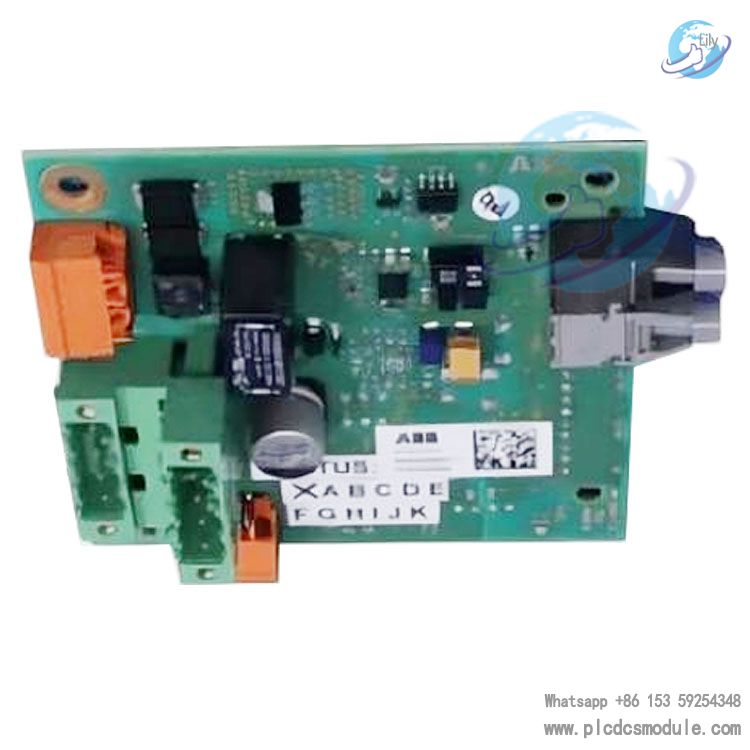

ABB UFC912A111 3BHE039426R0111 Emitter Output Interface (EOI) Board
ABB UFC912A111 3BHE039426R0111 is a dedicated Protection/Drive Interface Board (EOI, Emitter Output Interface) designed exclusively for the ACS6000 series medium-voltage frequency converters, serving as a core safety and control component of the converter power unit.
Its core function is to isolate and amplify the digital trigger signals from the control system to drive the gates of power devices such as IGCT/IGBT, while real-time collecting fault feedback signals (overcurrent, short circuit, overheating, overvoltage, etc.) of power devices. It achieves nanosecond-level fault latching and system protection, ensuring stable and safe operation of high-power variable frequency drive systems under harsh working conditions in metallurgy, power, industrial compressor and other industries.
With industrial-grade modular design, this board features strong electromagnetic compatibility, high reliability and fast fault response characteristics, making it a key hardware for ACS6000 converters to achieve safe control of power units.
UFC912A111 3BHE039426R0111.pdf
2. Core Technical Parameters
2.1 Electrical Specifications
| Parameter | Specification |
|---|---|
| Compatible System | ABB ACS6000 series medium-voltage frequency converter power units |
| Signal Type | Digital trigger signal input, fault feedback signal output |
| Isolation Method | Industrial-grade photoelectric isolation with strong electromagnetic interference (EMI) resistance |
| Fault Detection Circuit | Input impedance ≥10kΩ |
| Protection Response | Short circuit protection response time ≤5μs; fast latching for overcurrent/overvoltage/overheating faults |
| Protection Threshold | Overcurrent protection threshold adaptable to rated current of power unit, supporting parameter configuration |
| Auxiliary Power Supply | Compatible with ACS6000 system control power supply (110/220VDC or 110–240VAC 50/60Hz) |
2.2 Physical & Environmental Parameters
| Parameter | Specification |
|---|---|
| Dimensions | Approx. 160mm (L) × 100mm (W) × 50mm (H) |
| Weight | Approx. 0.4kg |
| Mounting Method | Standard rail/card slot mounting, compatible with ACS6000 control cabinet internal layout |
| Operating Temperature | 0–55℃ (horizontal mounting); 0–40℃ (vertical mounting) |
| Storage Temperature | -25℃ to +70℃ |
| Protection Grade | Industrial-grade design, compatible with IP20 and above protection environment in control cabinet |
| Insulation Class | Class F, resistant to high voltage and electrical stress |
2.3 Functional & Performance Parameters
| Parameter | Specification |
|---|---|
| Core Functions | IGCT/IGBT gate driving, fault signal collection, fast fault latching, fault code output |
| Fault Types | Supports multiple fault detection including overvoltage, overcurrent, short circuit, open circuit, power device overheating, etc. |
| Communication & Diagnostics | Supports uploading fault codes to converter control system for remote monitoring and maintenance |
| Switching Characteristics | Adapted to IGCT/IGBT high-frequency switching requirements, ensuring stable modulation of power units |
3. Detailed Product Functions
Gate Driving & Signal Isolation
▼Comprehensive Fault Monitoring
▼Fast Fault Protection
▼Fault Diagnosis & Feedback
▼Industrial-Grade Reliability Design
▼4. Typical Application Scenarios
High-power motor variable frequency drive systems for mill main drive, coiler, continuous caster, etc.
Medium-voltage variable frequency speed regulation of large fans, water pumps, compressors, and control of power grid auxiliary equipment
High-power load driving for petrochemical compressors, mine crushers, cement kiln main motors, etc.
Medium-voltage high-power variable frequency drive scenarios requiring high reliability and fast protection
5. Product Positioning & Advantages
Specialization
Customized for ACS6000 series, deeply adapted to converter system with optimal compatibility and matching degree.
Safety
Multiple fault detection + nanosecond-level latching, building a "safety barrier" for power units and reducing equipment failure risks.
Reliability
Industrial-grade design, wide-temperature operation, strong anti-interference, adapted to harsh industrial environments and reducing shutdown maintenance.
Maintainability
Modular structure + fault code diagnosis, facilitating quick replacement and fault troubleshooting, reducing operation and maintenance costs.
