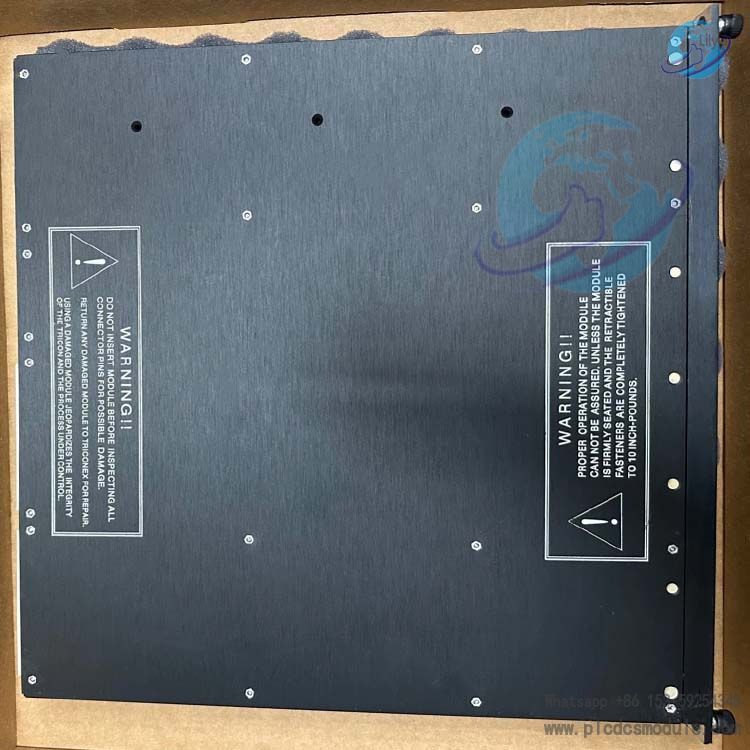

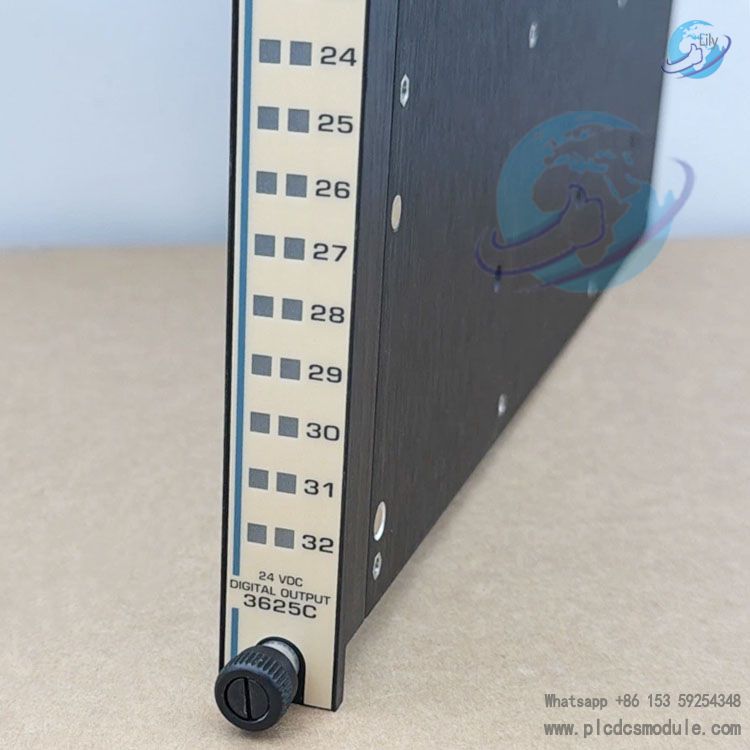

TRICONEX 3625C 24VDC TMR Digital Output Module (Part No. 7400247-020C) is a highly reliable triple modular redundant (TMR) digital output module from Schneider Electric TRICONEX brand.Designed specifically for industrial automation safety instrumented systems (SIS) and critical process control applications, it provides stable 24VDC digital output for driving field actuators, solenoid valves, control valves and other critical equipment.

Built on TRICONEX proven TMR redundant architecture and strict industrial-grade design standards, the module features core advantages including self-diagnostics, high anti-interference capability, and hot-swappability.It is fully certified to SIL 3 safety integrity level and widely used in industries with extremely high requirements for system reliability and safety, such as petrochemical, power generation, nuclear power, and pharmaceuticals.

Core Product Features

• Triple Modular Redundant (TMR) ArchitectureAdopting proven triple modular redundancy, the module integrates three independent sets of output circuits, logic processing units, and isolation units. All three sets operate synchronously and compare output signals in real time. If one channel fails, the other two take over seamlessly to ensure uninterrupted, error-free output. This eliminates system downtime caused by single-point failures at the hardware level, greatly improving fault tolerance and reliability to meet the core demands of safety-critical control applications.
• Compliant Safety RatingsFully compliant with IEC 6108 and certified for SIL 3 safety integrity level. It also supports international safety standards including ATEX, IECEx, and UL 913. The module can be directly deployed in safety interlock systems within high-risk industrial environments, effectively reducing potential hazards and protecting personnel, equipment, and production processes.
• Comprehensive Self-Diagnostic CapabilitiesEquipped with advanced fault-diagnostic circuits and loop-back detection, the module continuously monitors the status of internal circuits, output channels, power supplies, and other critical components. It promptly detects and reports channel faults, power abnormalities, communication errors, and other issues. Fault data is transmitted to the main control system, enabling maintenance staff to quickly locate and resolve problems, reducing downtime and improving operational efficiency.
• Industrial-Grade Environmental AdaptabilityConstructed with industrial-grade high-temperature and anti-interference components, the module features excellent dustproof, moisture-proof, and electromagnetic immunity. It operates reliably within a temperature range of -20°C to +60°C (extendable to -40°C to 85°C for certain applications) and a humidity range of 5% to 95% RH (non-condensing). It can operate stably long-term in harsh industrial environments, suitable for complex conditions in petrochemical, nuclear power, and similar industries.
• Hot-Swappable FunctionalitySupports online hot-swapping, allowing maintenance and replacement without shutting down the entire control system. This significantly improves system availability and maintainability, avoiding production interruptions and reducing financial losses.
• Flexible Output ConfigurationSupports both supervised and unsupervised output modes, configurable flexibly based on field requirements. Output channels use a grouped design compatible with various load types to meet diverse control needs. High channel isolation effectively prevents cross-channel interference, ensuring stable and accurate output signals.

Detailed Technical Specifications

Functional Advantages and Core Value

1. Functional Advantages

• Stable signal output: Adopts high-precision output drive circuit combined with channel isolation design, effectively suppressing the influence of electromagnetic interference, voltage fluctuation and other factors on output signals, ensuring the accuracy and stability of digital output, avoiding equipment maloperation caused by signal distortion, and guaranteeing smooth production operation.

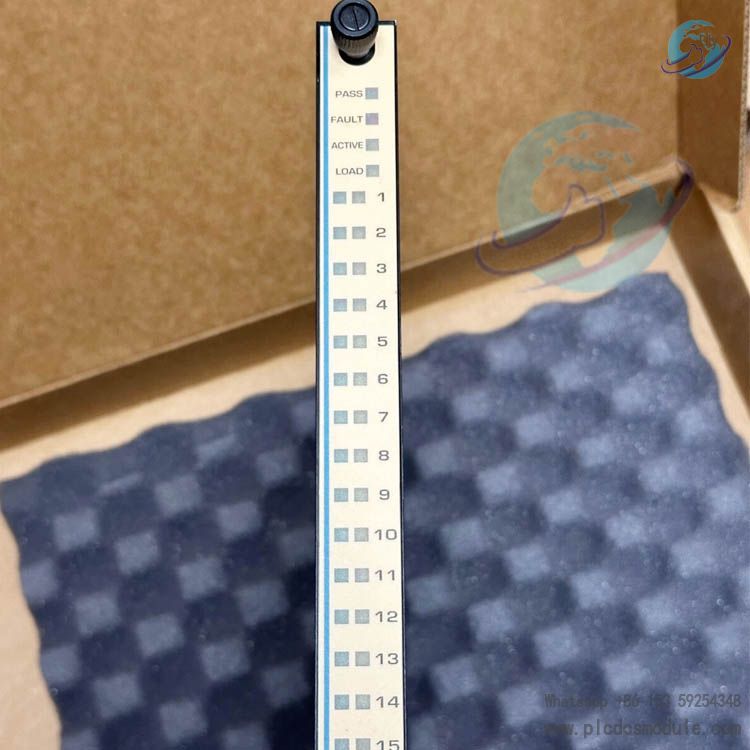

• Convenient and efficient operation and maintenance: In addition to hot-swappable function, the module is equipped with LED status indicators, which can intuitively display power status, running status, fault status and channel output status. Maintenance personnel can quickly judge the module operation through indicators. Combined with self-diagnosis function, it greatly shortens troubleshooting and maintenance time and reduces O&M costs.
• Flexible and diverse configuration: Supports switching between supervised and unsupervised output modes. Output parameters can be flexibly configured according to field load types (solenoid valves, motors, indicators, etc.). It is also compatible with 16-point shared field terminal boards, adapting to various wiring requirements with strong universality for wide industrial applications.
• Strong long-term stability: Uses high-quality industrial-grade components and has passed strict environmental and reliability tests. It features vibration resistance, shock resistance and electromagnetic interference resistance, with industry-leading MTBF. It can operate stably for a long time on industrial sites, reducing module replacement frequency and equipment maintenance costs.

2. Core Value

• Safety assurance: With TMR architecture and SIL 3 certification, it eliminates single-point failures at both hardware and software levels, effectively preventing maloperation or shutdown of key equipment and safety accidents. It protects personnel, equipment and production, especially suitable for high-hazard and high-risk industrial scenarios.
• Efficiency improvement: Hot-swapping and self-diagnosis greatly shorten maintenance time; stable output reduces production interruptions and improves continuity; flexible configuration adapts to diverse production needs, lowers system upgrade and reconstruction costs, and enhances overall production efficiency.
• Risk reduction: High reliability and environmental adaptability effectively cope with complex working conditions and reduce production losses caused by module failures. Meanwhile, compliance with international safety standards meets industry regulatory requirements and reduces corporate compliance and safety liability risks.

Compatible Systems and Wiring Instructions

1. Compatible Systems

• TRICONEX 3005 Terminal Base: For module installation and wiring, providing stable power supply and signal transmission interfaces.
• TRICONEX 3101 Logic Controller: As the system core, it receives output signals and issues control commands to implement logic control.
• TRICONEX 3501E DC/DC Power Module: Provides stable 24VDC power to ensure normal operation.
• TRICONEX 3604E Network Communication Module: Enables communication between the module, host and other devices, transmitting fault and control signals.

2. Wiring Instructions

• Power wiring: The module uses 24VDC input, requiring a stable DC power supply. Polarity must follow module markings to avoid damage. A proper fuse should be installed in the power circuit to prevent overcurrent damage.
• Output wiring: 32 output channels are shared, each with an independent terminal for direct connection to field actuators (solenoid valves, valves, indicators, etc.). Load current must not exceed the maximum 1.7A per channel to avoid overload damage.
• Communication wiring: Connect to the control host or other modules via built-in communication ports, supporting Modbus TCP/IP, PROFIBUS-DP and other protocols. Wiring shall comply with protocol requirements, and shielded cables shall be used to reduce electromagnetic interference.
• Grounding wiring: The module must be reliably grounded with grounding resistance ≤ 4Ω to ensure anti-interference performance and safe operation, avoiding signal distortion or module failure caused by poor grounding.

Application Scenarios

• Petrochemical industry: Used in safety interlock and emergency shutdown systems for oil refining and chemical production, controlling solenoid valves, emergency shut-off valves and other key equipment to prevent leaks, explosions and other accidents, ensuring safe and stable operation in catalytic cracking, hydrogenation units and other scenarios.
• Power industry: Applied to safety protection systems in thermal, hydropower and nuclear power plants, controlling circuit breakers, motors and valves to realize safe startup/shutdown and emergency tripping, ensuring continuity and safety of power generation, especially meeting high safety requirements in nuclear power.
• Pharmaceutical industry: Used for safety control in pharmaceutical production, controlling reactors, transfer pumps and other equipment to comply with GMP standards, avoiding production interruptions or quality issues caused by equipment failures, ensuring safe and stable manufacturing.
• Other industries: Also applied to safety and critical process control in metallurgy, coal mining, papermaking, printing, textile printing and dyeing, automobile manufacturing, water treatment and other industries, such as blast furnace interlocks in metallurgy and valve control in water treatment, providing reliable digital output control for various key industrial processes.
