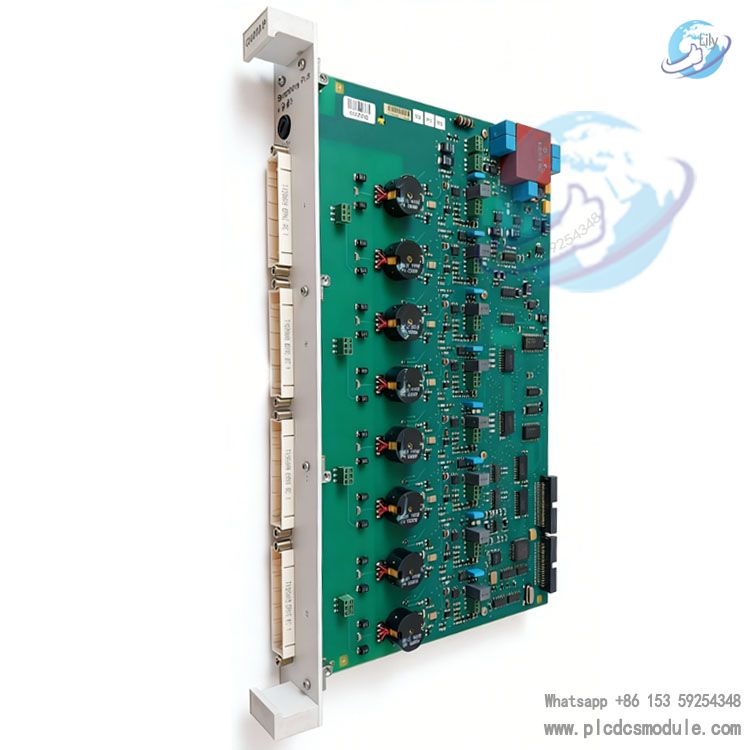

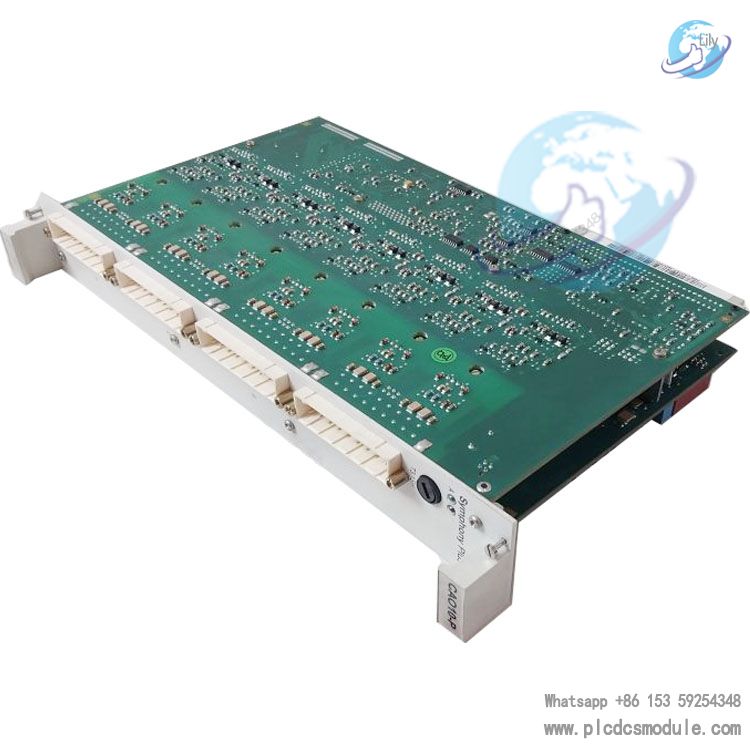

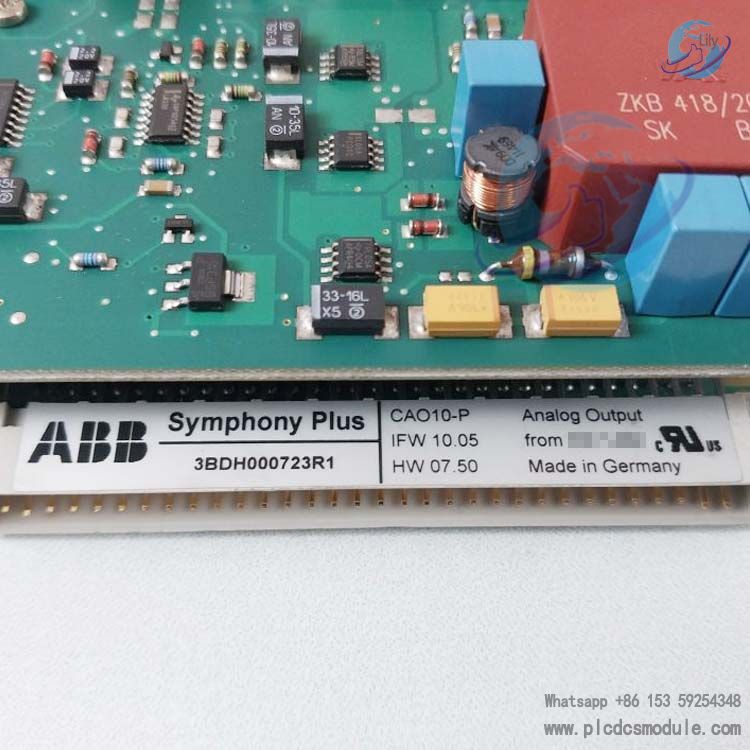

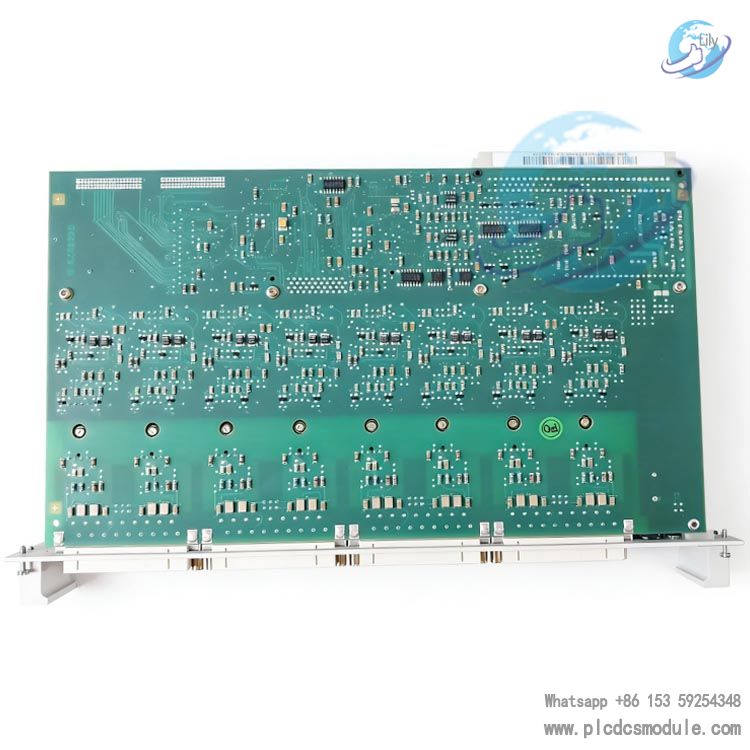

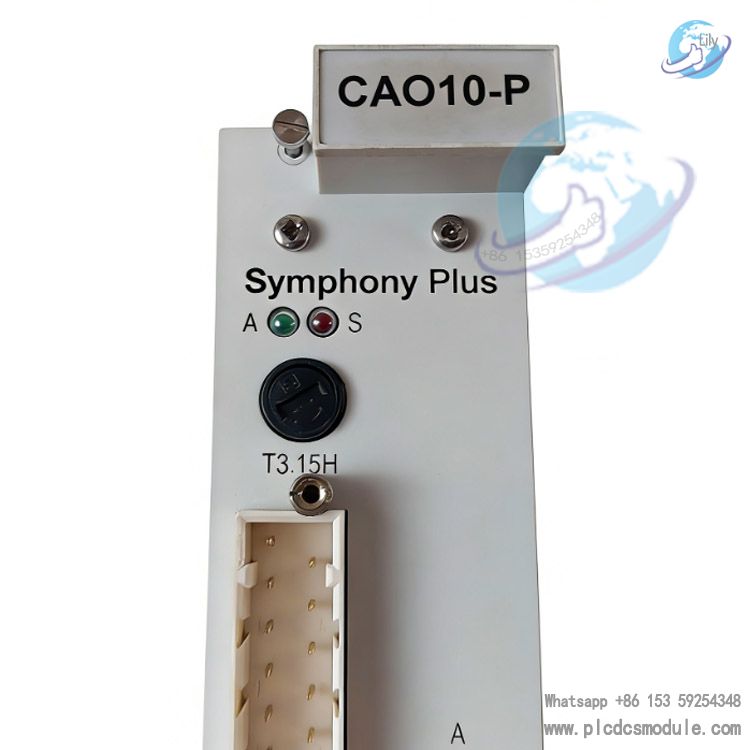

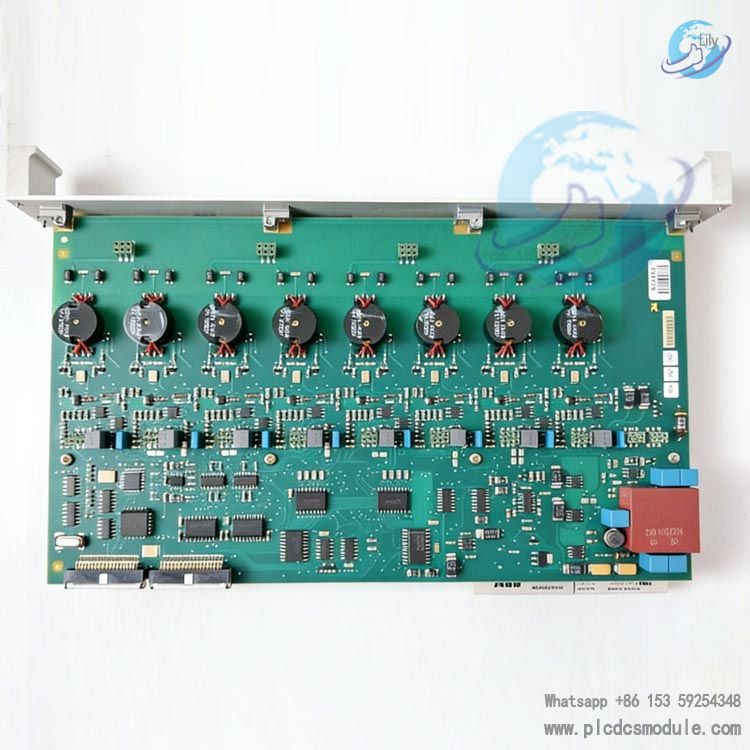

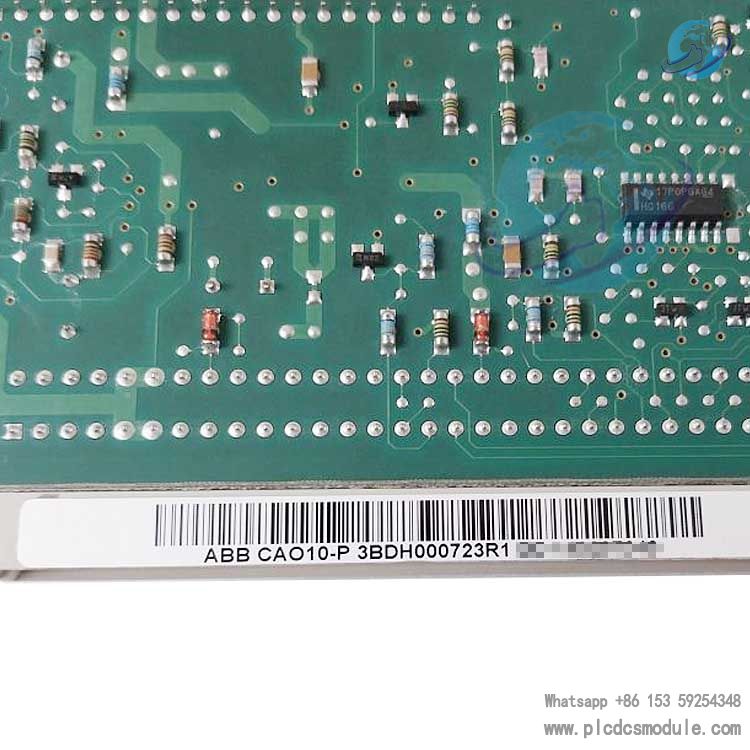

ABB CAO10‑P 3BDH000723R1  is a 16-channel HART-compatible analog output module for the Symphony Melody system, with order number 72123‑4‑0788723.

It features high precision and reliability for signal driving in industrial process control applications, supports redundant operation, channel-to-channel isolation, as well as wire break and load monitoring.

It outputs standard 0/4–20mA signals and can directly drive smart or conventional actuators, recorders, indicators and other field devices, serving as a core I/O unit in process automation systems.

Technical Specifications

• Number of Channels: 16 analog output channels
• Signal Type: 0–20mA / 4–20mA, independently configurable per channel
• Load Capacity: ≤ 700Ω (including line resistance)
• Load Voltage: 0–15V
• Communication: HART 5.0 / 5.1 (communicable at ≥ 3mA)
• DA Conversion: 12-bit, unsigned
• Response: Update rate < 40ms, typical 10ms; PT1 filter T1 = 10ms
• Isolation: Galvanic isolation between channels, withstand voltage 50Veff, test voltage 500Veff
• Power Supply: 20–33VDC, typical 24VDC, maximum power consumption 13W
• Ambient Temperature: 0–50℃
• Protection: Module monitoring, wire break / load monitoring, redundancy capability

Installation and Maintenance

Installation Notes

• Rack Mounting: Suitable for standard Symphony Melody rails; ensure proper ventilation and heat dissipation.
• Wiring Unit: Standard CI100 basic type; CI101 for redundant applications; equipped with cable clamp 72199‑4‑0789441.
• Wiring Specifications:
• Strictly separate channels to avoid cross-connection.
• Single-end grounding of shielded cables to reduce interference.
• Do not exceed 700Ω load to ensure current accuracy.
• Power Supply: Dual redundant 24VDC with 3.15A slow-blow fuse.
• Grounding: Comply with VDE 0110, equipotential bonding required.

Routine Maintenance

• Regular dust cleaning to maintain ventilation.
• Check terminal tightness and fuse status.
• Verify output current with multimeter; calibration required if deviation exceeds ±0.3%.
• Perform periodic switchover tests on redundant modules to ensure bumpless transfer.
• Keep firmware and configuration up to date with proper backup.

Calibration

• Zero point: ≤ ±30µA
• Span: ≤ ±0.2% at 300Ω load
• Temperature drift: Zero ≤ 20µA/10K; Gain ≤ 0.08%/10K
• Full-channel calibration is recommended annually; shorten interval in harsh environments.

Frequently Asked Questions (FAQ)

• Check if the load exceeds 700Ω or if there is excessive voltage drop in the line.
• Ensure stable 24VDC power supply with no spike interference.
• Check shielding grounding, loose terminals, and electromagnetic interference.
• Recalibrate zero point and span.

• Ensure output current is ≥ 3mA.
• Verify HART version 5.0/5.1 and host compatibility.
• Check loop impedance, terminal matching, and avoid excessively long branches.
• Replace HART modem or module.

• Verify load wiring and eliminate poor connections or broken wires.
• Dead zero mode: Iact > Inom and > 40µA; Live zero mode: full-range judgment.
• Disable unused channels to avoid false alarms.

• Confirm CI101 wiring unit and redundant configuration.
• Check dual power supplies, synchronization cables, and module status.
• Restart the redundant link and resynchronize.

• Maintain control cabinet temperature within 0–50℃ and improve ventilation.
• Increase calibration frequency in large temperature-difference environments.
• Keep away from heat sources, frequency converters, and other strong interference sources.

• Check rack address and bus communication.
• Reinsert the module to ensure firm connection.
• Verify firmware version and system compatibility.
• Replace slots to locate the fault.
