UAC318AE (Material Code: HIEE300744R0001) is a distributed control unit supporting the ABB AC31 automation control platform. Serving as the core signal processing board for coil processing, metallurgical tension measurement & control, and weight data acquisition applications, it integrates multi-channel analog input acquisition, digital logic output and bus communication circuits. The unit can independently complete on-site sensor signal filtering, threshold judgment and closed-loop regulation, and execute basic process control logic without relying on an upper-level main controller.

Powered by industrial 24 VDC supply, this device is compatible with tension pillow block sensors, weight transmitters and variable frequency drive actuators. It interfaces with AC31-series PLCs and DCS systems via RS485 and ARCNET buses. Built on a six-layer lead-free FR4 PCB with a full conformal coating protective layer, the board delivers long-term stable operation in industrial cabinets with heavy dust and drastic temperature fluctuations. It is widely deployed for legacy production line retrofits and complete sets of high-precision tension closed-loop control equipment.

Model Code Decoding

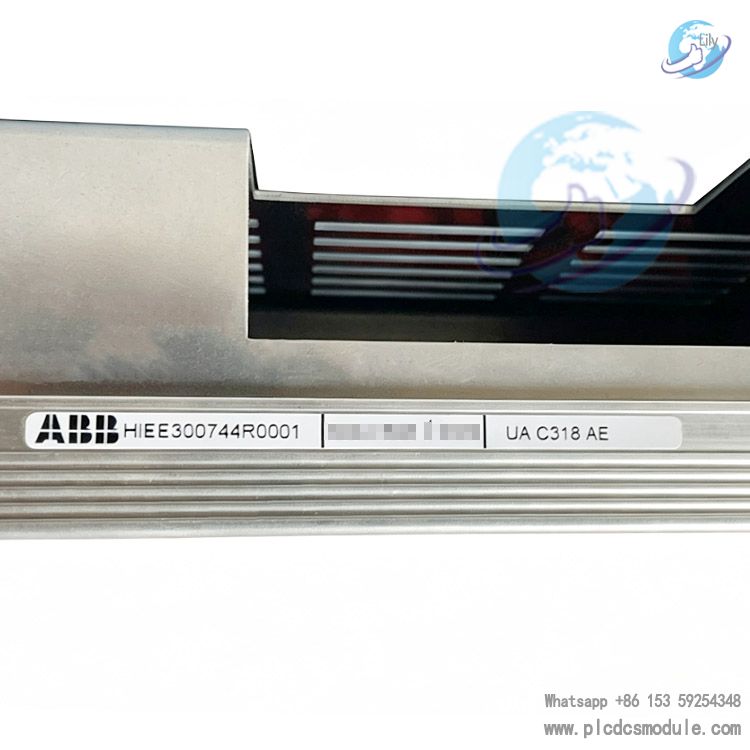

Full Part Identifier: UAC318AE HIEE300744R0001

1. UAC: Main product category code, standing for distributed signal control units for the AC31 platform
2. 318: Hardware form factor serial number, corresponding to standard channel configuration of 6 analog input channels plus mixed digital outputs
3. AE: Hardware revision suffix, denoting the enhanced version with advanced signal filtering and wide-temperature protection
4. HIEE300744: Base material code, the unique identifier for ABB internal inventory and engineering drawings
5. R0001: Revision number, representing the original mass-production hardware circuit design with full backward compatibility and no hardware modification conflicts

Product Features

1. Electrical Specifications

Operating supply: 24 VDC with permissible voltage range of 20.4 V ~ 27.6 V. Analog signal inputs accept standard industrial signals of 0–10 V and 4–20 mA. Digital outputs adopt passive isolated contacts with a single-channel load capacity of 0.5 A. Storage temperature ranges from -40 ℃ to +85 ℃; operating relative humidity is 5%–95% non-condensing.

2. Hardware Construction

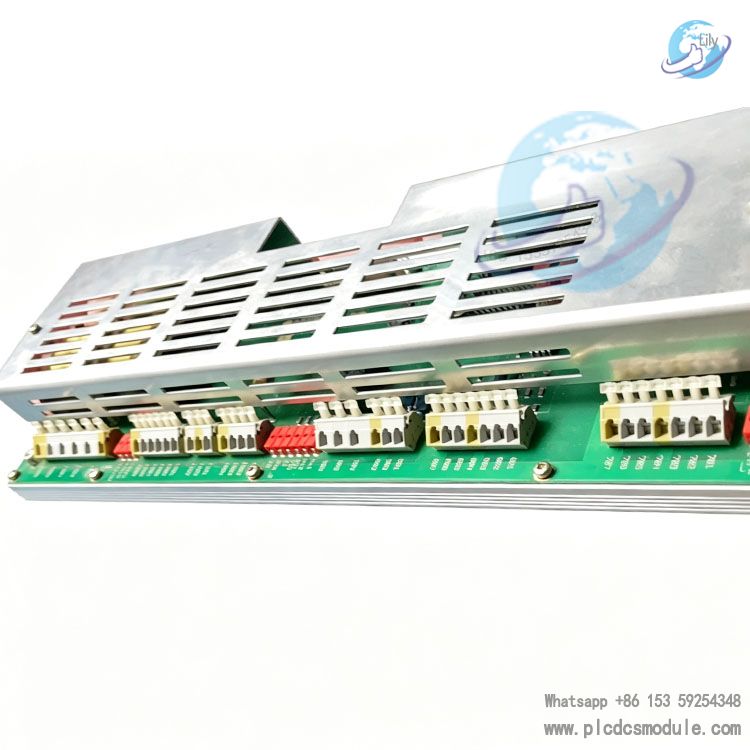

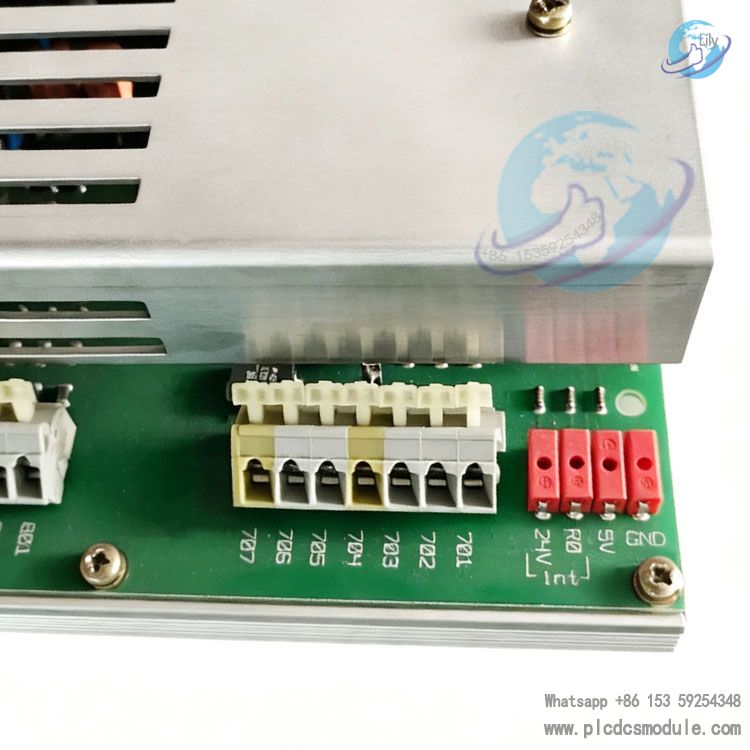

Dimensions: 260×180×25 mm, net weight: 0.75 kg. Constructed with six-layer flame-retardant lead-free FR4 PCB fully coated with three-proof conformal coating. Two miniature signal transformers are integrated to isolate high-voltage power circuits from low-voltage signal circuits. Equipped with DB9 bus connector and partitioned spring terminal blocks, each channel protected by an independent fuse.

3. Communication Performance

Dual on-board bus interfaces including RS485 and ARCNET support a maximum baud rate of 1 Mbps. Hardware-based PWM output is available for closed-loop speed regulation of drive systems. The data refresh cycle is ≤10 ms, meeting the dynamic tension control requirements of high-speed coil processing lines.

4. Functional Capabilities

Built-in hardware threshold comparator circuits enable customizable upper and lower limit alarm outputs. Multi-stage software filtering for input signals delivers stable readings from high-jitter weight transducers. Local parameter data is retained upon power loss, eliminating repeated configuration during equipment replacement. Full-channel self-test is triggered automatically at power-on, with dedicated LED indicators highlighting faulty channels.

Product Advantages

1. Integrated all-in-one signal conditioning circuit eliminates external signal isolation and conversion modules, saving cabinet wiring space and reducing hardware procurement quantities.
2. Wide temperature and wide voltage adaptability: it maintains stable acquisition accuracy without drift under ±15% power supply fluctuation and ambient temperatures ranging from -20 ℃ to +70 ℃.
3. Multi-protocol bus compatibility with native ARCNET and Modbus RTU support. Direct connection to the full range of AC31 controllers is available without additional communication adapter cards.
4. Triple hardware-level protection against overvoltage, ESD and surge interference, lowering the frequency of board damage caused by sensor short circuits and power grid noise.
5. Independent local logic calculation capability sustains closed-loop tension and weight control even during network disconnection, preventing production line downtime.
6. Standard DIN rail embedded mounting with partitioned terminal blocks and separate labeling for faulty channels, streamlining maintenance and replacement procedures.
7. Reusable design with six analog input channels plus multi-way digital outputs enables one single board to connect multiple groups of tension detection points for flexible system expansion.
8. Standardized self-diagnosis fault registers allow upper-level software to directly read status including channel short circuit, over-range and communication errors, greatly shortening troubleshooting time.

Application Industries

1. Metallurgical Sheet Processing: Closed-loop tension control for cold-rolled strip steel, aluminum foil and copper foil production lines to avoid strip breakage and sheet shape deviation.
2. Paper & Nonwoven Industry: Tension acquisition and speed matching regulation for winding and unwinding of paper rolls and nonwoven fabrics.
3. Rubber, Plastic & Film Manufacturing: Weight and tension measurement & control for slitting and coating processes of plastic films and lithium battery separators.
4. Metal Wire Processing: Stable tension control for copper and steel wire drawing equipment.
5. Packaging & Printing Industry: Coil tension monitoring for web printing and laminating machinery.
6. Building Material & Glass Fiber Production: Process parameter collection during winding and unwinding of fiberglass cloth and glass fiber rolls.
7. Legacy Industrial Control System Retrofit: Replacement of discontinued obsolete functional-equivalent control boards of the AC31 series, compatible with original cabinet wiring.
8. Material Weighing Management: Signal acquisition and threshold alarm output for continuous weighing sensors on production lines.

Product Comparison

1. UAC318AE: Equipped with 6 analog input channels and multiple digital output channels. Designed for combined tension and weighing applications. It features dual bus interfaces and enhanced wide-temperature protection, ideal for high-precision control of coil materials.
2. UAC315AE: Only 4 analog acquisition channels with a single RS485 communication port and basic protection performance. Applied to simple temperature and pressure signal collection scenarios with a lower cost.
3. UAC320AE: High-density model with 12 analog channels. It has no local logic operation function and merely performs signal acquisition. Closed-loop control must be realized by the upper controller, suitable for centralized monitoring of numerous measuring points.

FAQ

Q1: Can this module directly replace equivalent acquisition boards of other brands?

A1: Direct replacement is not available. The hardware terminal definition, bus communication protocol and register addresses are exclusive to the AC31 platform, and it is only compatible with complete ABB AC31 series systems.

Q2: Is it necessary to distinguish hardware revision R0001 from other revision numbers during procurement?

A2: Yes. Circuits of different R revisions have minor discrepancies and incompatible program register addresses. The full part number HIEE300744R0001 must be matched when placing orders.

Q3: How to troubleshoot continuous drift of collected values on the module?

A3: Step 1: Verify stable power supply to sensors; Step 2: Extend the software filtering time; Step 3: Re-perform zero point and full-span calibration; Step 4: Inspect terminals for oxidation and poor contact.

Q4: What is the maximum number of tension sensors connectable to one single module?

A4: The hardware supports 6 independent analog input channels, allowing connection of up to 6 sets of tension/weighing sensors simultaneously. Each channel features isolated signals without mutual interference.

Q5: Are extra protective measures required for the module under heavily dusty on-site conditions?

A5: The board is coated with three-proof conformal coating, so extra protection is unnecessary under ordinary dusty environments. A separate sealed cabinet is recommended for highly corrosive or high-humidity sites.

Q6: Will the production line shut down immediately once communication is lost?

A6: No. The module features independent local closed-loop calculation logic to sustain preset tension control even with disconnected communication. Only real-time data viewing on the upper system will be unavailable; historical records will synchronize automatically after communication resumes.

Q7: Are there any differences in program compatibility between brand-new and used modules?

A7: The hardware circuits are identical with no disparities in programs, parameters or communication protocols. Differences only lie in warranty period and physical appearance condition.

Q8: Can the digital output contacts of the module drive AC contactors directly?

A8: Direct driving is not recommended. The contact rated load is 0.5 A DC. An intermediate relay shall be installed for transition when driving AC contactors to prevent contact burnout.
