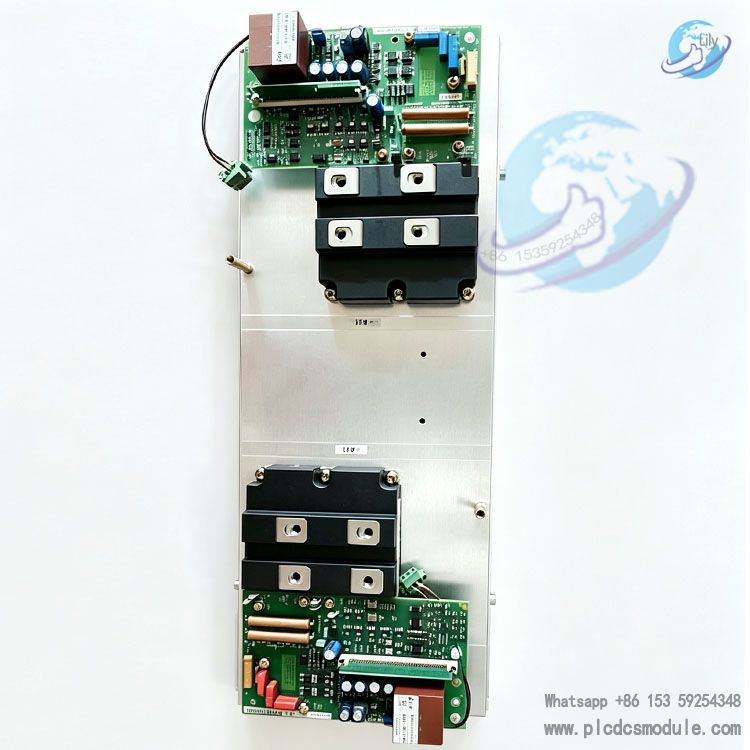

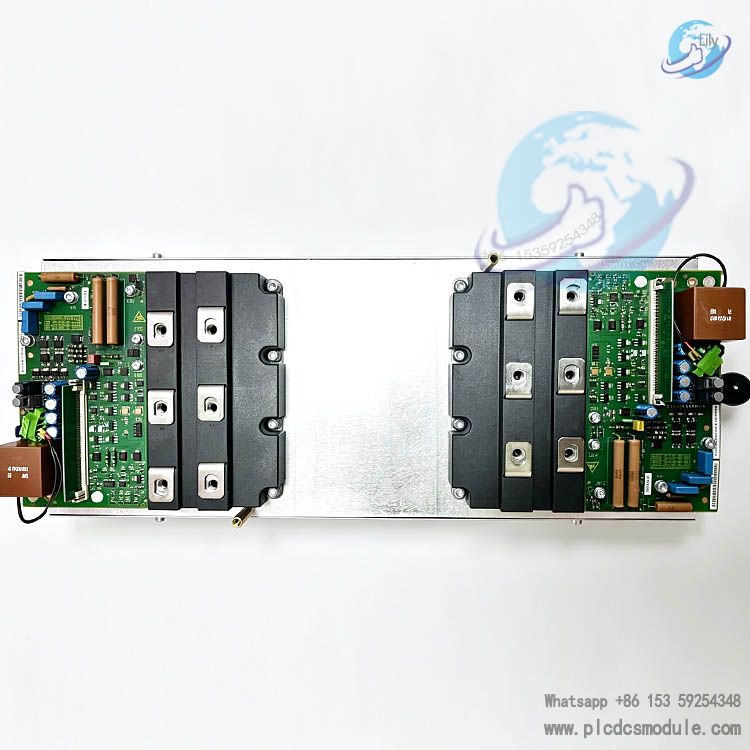

6SL3912-0AM36-0AA0 SIEMENS IGBT Power Card
Overview
6SL3912-0AM36-0AA0 is the SIEMENS IGBT Power Card developed for SINAMICS GM150 medium voltage variable frequency drives. It refers to air-cooled FZ1200 power card supporting 2.3kV voltage class with maximum continuous current of 600A. 6SL3912-0AM36-0AA0 integrates IGBT chips, driving circuits and temperature detection modules, undertaking core power conversion tasks inside medium voltage drive systems. As a frequently replaced spare component, 6SL3912-0AM36-0AA0 converts DC power from DC bus into adjustable AC power to drive medium voltage motors inside power cells.
Technical Specifications
Model: 6SL3912-0AM36-0AA0
Designation: IGBT Power Card (FZ1200)
Applicable Equipment: SINAMICS GM150 IGBT medium voltage converter
Cooling Method: Air cooling
Max Operating Voltage: 2.3kV
Rated Maximum Current: 600A
Composition: Integrated IGBT power semiconductor, drive PCB, NTC temperature sensor circuit, high power terminals
Mounting: Modular drawer type installation
Ambient Temperature: 0℃ ~ +55℃, non-condensing
Compliance: IEC60068 industrial environmental standards
Insulation: Reinforced insulation for high voltage power circuit
Core Functions & Advantages
6SL3912-0AM36-0AA0 adopts integrated monolithic design, combining power semiconductors and drive circuits on single power card, simplifying assembly of power cells. Built-in real-time temperature monitoring supports over-temperature pre-warning and overload protection together with main control system, reducing risks of IGBT breakdown. Optimized switching characteristics lower power loss and heat generation under PWM modulation. Standardized mechanical interface enables direct interchange of identical power cards and minimizes equipment downtime. EMC optimized layout suppresses electromagnetic interference under high voltage operation to guarantee stable performance of GM150 systems equipped with 6SL3912-0AM36-0AA0.
Product Features
Integrated modular structure supporting convenient maintenance replacement
Embedded temperature acquisition circuit to transmit semiconductor temperature data in real time
Optimized IGBT switching performance to cut energy consumption and thermal load
Extended creepage distance on high voltage circuits for improved operational safety
Air cooling structure matching GM150 cabinet air duct layout
Unified terminal definition; no wiring modification required during hardware replacement
Reserved fault feedback channel for system diagnostic functions
Fully matched hardware topology of SINAMICS GM150 without compatibility conflicts
Application Fields
Medium voltage drives for large fans & pumps in metallurgical industry
Variable frequency equipment for auxiliary machines in thermal & hydropower plants
Compressor and process fan drive systems for petrochemical facilities
Main ventilation fans and belt conveyors for mining industry
Large water pump inverters for municipal water supply and wastewater treatment
Kiln fans and circulation fans in cement manufacturing plants
Operation Guide
1. Power off: Cut off all power supply for GM150 unit, complete high voltage discharging and maintain waiting period.
2. Pull out power cell: Unlock safety handle and slide out faulty power cell steadily.
3. Dismount power card: Loosen fasteners of 6SL3912-0AM36-0AA0, disconnect signal cables and power terminals sequentially.
4. Inspect spare part: Verify part number 6SL3912-0AM36-0AA0, check PCB and terminals for physical damage.
5. Installation: Align positioning slots and install 6SL3912-0AM36-0AA0, tighten screws and reconnect all wiring.
6. Restore power cell: Push power cell back into cabinet and lock mechanical latch.
7. Power on test: Energize without load first, check temperature feedback and hardware status through control system, confirm no alarms before loaded trial run.
8. Continuous inspection: Monitor temperature rise and output waveform, save debugging records.
Notice: Only certified high voltage electricians are allowed to perform disassembly and assembly.
Working Principle
Main control unit transmits PWM driving pulses to the built-in driver circuit on 6SL3912-0AM36-0AA0. The driver circuit controls sequential turn-on and turn-off of onboard IGBT devices. The power card receives DC energy from DC bus and converts direct current into three-phase AC power with adjustable voltage and frequency via high-frequency IGBT switching. Onboard NTC sensor continuously collects IGBT junction temperature and sends analog signals to main controller. When overcurrent or overtemperature occurs, driver circuit immediately blocks driving pulses to cut power output and protect semiconductors from permanent damage. Multiple 6SL3912-0AM36-0AA0 operate coordinatively to form power cell topology of GM150 and realize energy conversion.
Model Comparison
6SL3912-0AM36-0AA0: Air cooled, 2.3kV, 600A, standard power card for GM150
6SL3912-0AP36-0AA0: Air cooled, 2.3kV, 600A, similar mechanical structure, different firmware, not directly interchangeable
6SL3912-5AP36-0AA0: Water cooled, max 4.16kV, 800A, incompatible cooling structure and dimension with 6SL3912-0AM36-0AA0
6SL3912-0EM38-0AA0: Midpoint diode power card for rectifier loop, cannot replace IGBT power card
Important distinction: Suffix defines cooling type, voltage rating and semiconductor type. Different MLFB numbers have incompatible interface and control logic; always order exactly matching part number.
Matching Product
Compatible Inverter: SINAMICS GM150 2.3kV IGBT power cell
Unit Control Board: 6SL3982-5CX00-0AA0
DC Link Capacitor: 6SL3913-0AX32-0AA0
Current Transducer: 6SL3972-0AX01-0AA0
Air Cooling Heatsink: 6SL3992-0AM36-0AA0
Signal Flat Cable: 6SL3993-0AX10-0AA0
Our Supply Advantages
Ready stock of 6SL3912-0AM36-0AA0 supports fast delivery to reduce customer equipment downtime. Every unit undergoes power-on inspection before shipment to guarantee signal circuit and temperature sensing function intact. Professional technical support is available for on-site 6SL3912-0AM36-0AA0 replacement, commissioning and troubleshooting. Long-term bulk supply service can be arranged for engineering projects. Stable global logistics and customs declaration service are provided for worldwide clients. We offer document support to confirm hardware compatibility for each inquiry about 6SL3912-0AM36-0AA0.
FAQ
Q: Can 6SL3912-0AP36-0AA0 replace 6SL3912-0AM36-0AA0 directly?
A: Direct replacement is forbidden due to different firmware and pin definition. Identical part number 6SL3912-0AM36-0AA0 must be ordered.
Q: Can 6SL3912-0AM36-0AA0 be installed in water-cooled GM150 drives?
A: No. This variant is designed for air cooling. Water-cooled systems require corresponding water-cooled power cards with different mechanical air duct design.
Q: Is parameter download required after replacing 6SL3912-0AM36-0AA0?
A: Drive parameters are stored in main control unit, re-download is unnecessary. Power cell self-test is recommended after replacement.
Q: Does overtemperature alarm always mean defective 6SL3912-0AM36-0AA0?
A: Not necessarily. Inspect blocked air duct, cooling fan failure and loose wiring first. Confirm external conditions normal before judging power card failure.
Q: How many pieces of 6SL3912-0AM36-0AA0 are needed inside one GM150 power cell?
A: Standard single-phase cell requires two pieces used as pair, follow original equipment drawing for assembly.
Q: What are storage requirements for 6SL3912-0AM36-0AA0?
A: Store under dry environment, avoid dust and humidity. Anti-moisture protection is required for long-term storage to prevent PCB oxidation.
Q: What information is needed to order 6SL3912-0AM36-0AA0?
A: Inverter nameplate, complete original power card MLFB, system voltage class and cooling type for compatibility verification.
Q: Will vibration during transport damage internal IGBT chips on 6SL3912-0AM36-0AA0?

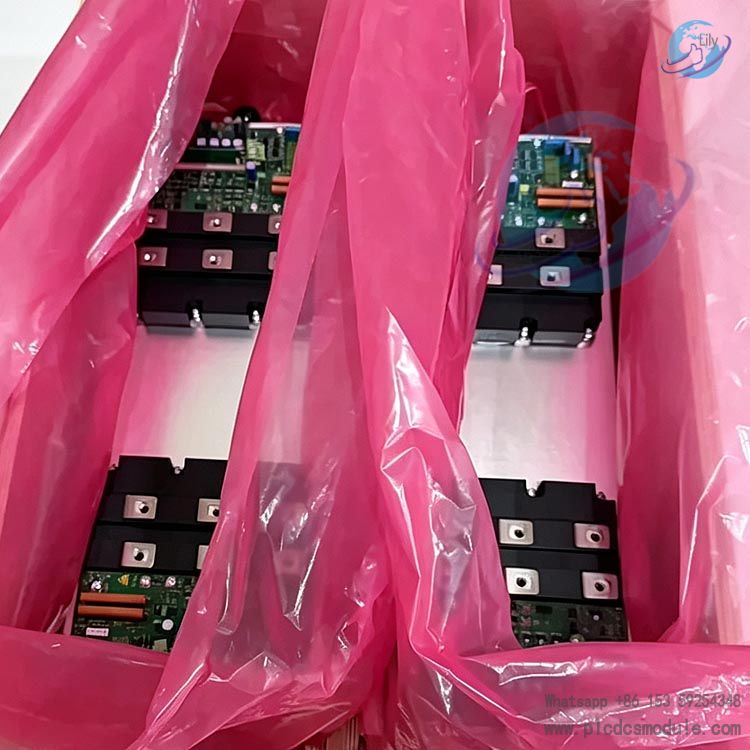

A: Severe vibration may cause solder detachment of power semiconductors. Shock-resistant package is adopted. Visual inspection before power-on after receiving goods.
Recommended SIEMENS Series Models
6SL3912-0AM36-0AA0 IGBT Power Card
6SL3912-0AP36-0AA0 IGBT Power Card
6SL3912-5AP36-0AA0 IGBT Power Card
6SL3912-0EM38-0AA0 Midpoint Diode Power Card
6SL3982-5CX00-0AA0 Unit Control Board
6SL3913-0AX32-0AA0 DC Link Capacitor Module
6SL3972-0AX01-0AA0 Current Sensor
6SL3992-0AM36-0AA0 Air Cooling Heatsink
6SL3912-0AM38-0AA0 IGBT Power Card
6SL3912-5AM36-0AA0 IGBT Power Card
6SL3993-0AX10-0AA0 Signal Cable Assembly
6SL3983-0AX02-0AA0 Gate Drive Accessory
6SL3914-0AX20-0AA0 Snubber Module
6SL3973-0AX03-0AA0 Voltage Sensor
6SL3915-0AX15-0AA0 Discharge Resistor Module
Technical Document Remarks
Check official SINAMICS GM150 manual and spare part MLFB catalog to verify full specification of 6SL3912-0AM36-0AA0. Installation and maintenance rules follow SIEMENS medium voltage drive service guideline. Internal hardware modification on power card is prohibited and will lead to unstable operation. Use complete MLFB 6SL3912-0AM36-0AA0 during order process, character symbols cannot be omitted.
