Triconex 5101 (3101+2101) Main processor Module TriPak
Product Overview

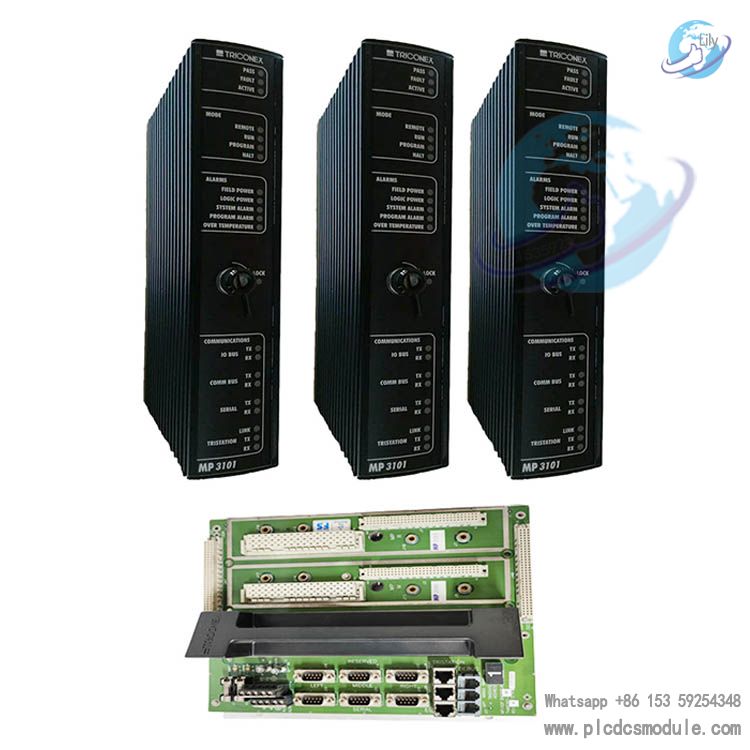

Triconex 5101 TriPak is a complete main processor assembly for Trident Safety Instrumented System. Its hardware combination consists of 3 pieces of 3101 main processor boards and 1 piece of 2101 base unit. The complete set forms a TMR (Triple Modular Redundancy) main control unit, responsible for logic operation, I/O bus scheduling, fault voting and program execution of the whole SIS system. Adopting 2‑out‑of‑3 voting mechanism, Triconex 5101 keeps system running without interruption under single‑channel fault, and is widely applied in critical industrial conditions requiring SIL3 safety level. The complete Triconex 5101 TriPak assembly is directly inserted into standard Trident rack without backplane modification, and can interface with full‑range Trident I/O modules to realize field signal acquisition and safety interlock logic output. For project retrofitting and spare‑part replacement scenarios, the integrated delivery of complete TriPak reduces on‑site configuration and commissioning workload.
Technical Specifications
- Architecture: Triple Modular Redundancy TMR, 2oo3 voting logic, configured with 3×3101 processor boards and 1×2101 processor baseplate
- Safety Certification: TÜV certified SIL3, compliant with IEC61508, IEC61131‑3 standards
- Internal Bus: TriBus backplane bus for high‑speed data exchange between processors and I/O modules
- Supported Programming Languages: LD Ladder Diagram, FBD Function Block Diagram, ST Structured Text
- Scan Cycle: Minimum 10ms, dynamically changed according to control logic scale
- Ambient Temperature: ‑40℃ ~ +70℃
- Relative Humidity: 5%‑95%, non‑condensing
- Vibration Resistance: 5g, 10‑2000Hz
- Installation: Standard Trident rack slot mounting, supports module hot‑swap
- Fault Detection: On‑board hardware self‑diagnosis, rapid location and reporting of channel faults
- Physical Form: Complete TriPak assembly, rack‑mounted card structure
Core Advantages
- Complete TMR integrated delivery. Triconex 5101 TriPak is supplied with three 3101 processors plus 2101 baseplate, eliminating separate procurement of scattered parts and lowering risk of component mismatch.
- Hardware‑based 2‑out‑of‑3 voting. System continues normal calculation upon single‑processor‑channel fault to avoid unplanned shutdown and guarantee production continuity.
- Online hot‑swap maintenance supported. Faulty single 3101 board can be replaced with power on while system keeps running, shortening maintenance downtime window.
- Comprehensive hardware diagnosis. Triconex 5101 continuously monitors status of processors, bus links and baseplate connections. Fault information is uploaded to TriStation software for fast fault location.
- Excellent compatibility. Compatible with full series Trident I/O cards, multi‑rack expansion available, suitable for small‑to‑medium and large‑scale SIS projects.
Product Features
- Integrated TriPak package. 3101 processors and 2101 baseplate are strictly matched to ensure stable backplane signal transmission.
- Hardware‑level voting independent of software for fault filtering, effectively suppressing signal anomalies caused by on‑site electromagnetic interference.
- Physically isolated independent channels, preventing single‑point fault from spreading to other channels.
- Automatic isolation of faulty channels. Defective channel is cut off by system while remaining two channels complete voting calculation.
- Independent program & data storage, realizing power‑fail protection for logic program and quick recovery after power‑on.
- Front‑mounted status LED indicators for direct viewing of processor running, fault and communication status at cabinet side.
- Compatible with TriStation 1131 programming software, supporting logic download, online monitoring and SOE event log collection.
Application Fields
- Oil & Gas: ESD emergency shutdown system, offshore platform F&G fire & gas system, wellhead safety protection.
- Petrochemical: Reactor interlock protection, HIPPS high‑pressure protection, safety control for catalytic units.
- Power Industry: Boiler protection, turbine safety interlock, auxiliary equipment safety instrumented system.
- Coal Chemical: Gasifier safety interlock, unit emergency shutdown control.
- Pharmaceutical: Safety interlock for high‑risk processes.
- Water Treatment: Safety control for high‑risk conditions of large‑scale chemical water treatment.
Same‑brand Product Comparison
| Model | Product Positioning | Architecture | Applicable System | Core Difference |
|---|---|---|---|---|
| Triconex 5101 TriPak | Complete main processor for Trident | TMR (3101*3 + 2101 baseplate) | Trident System | Complete TriPak assembly; 3101 processors matched with 2101 baseplate for Trident platform |
| Triconex 3008 | Stand‑alone main processor for Tricon series | TMR | Tricon System | Processor for legacy Tricon platform; incompatible with Trident rack; no complete baseplate assembly |
| Triconex 3007 | Main processor for Tricon series | TMR | Tricon System | Lower computing performance versus 3008, for small‑to‑medium point‑count Tricon projects |
Related Matching Products
- Main Processor Baseplate: 2101
- Digital Input Module: 3301, 5301 TriPak
- Digital Output Module: 3401, 5401 TriPak
- Analog Input Module: 3351, 5352 TriPak
- Analog Output Module: 3481, 5381 TriPak
- Communication Module: 3700T
- I/O Bus Extender Kit: 2281
- Rack End Cap Accessories: 2910, 2911, 2912, 2913
FAQ
Q: Can Triconex 5101 TriPak split 3101 boards to mix with other baseplates?
A: Not recommended. Triconex 5101 full set consists of 3×3101 matched with 2101 baseplate as TriPak. Baseplate backplane signal definition is specially adapted for Trident. Mixing with other baseplates will cause communication abnormality and voting error.
Q: When single 3101 of Triconex 5101 generates alarm, is full‑set replacement required?
A: Not required. When single 3101 fails, only the faulty 3101 board can be hot‑swapped and replaced. The other two 3101 boards together with 2101 baseplate keep working.
Q: Is Triconex 5101 compatible with legacy Tricon rack?
A: Incompatible. Triconex 5101 TriPak is only for Trident rack and cannot be installed directly on old‑generation Tricon rack.
Q: Does complete TriPak of Triconex 5101 include TriStation software license upon purchase?
A: Hardware assembly does not contain software license. Programming software license shall be purchased separately.
Q: What factors affect scan cycle of Triconex 5101 system?
A: Logic program size, I/O point quantity, communication task load. Minimum scan cycle reaches 10ms; scan cycle will extend automatically for complex logic.
Q: Which components shall be prioritized for troubleshooting when frequent bus faults occur on Triconex 5101 site?
A: First check contact condition of 2101 baseplate, rack backplane and I/O bus extension cables; then inspect status of individual 3101 boards.
Q: Can logic program be modified and downloaded online for Triconex 5101 TriPak?
A: Incremental online download is supported. Full download under shutdown is suggested for major program changes to avoid process risks on site.
Q: What inspections shall be performed before installation after arrival of Triconex 5101 spare parts?
A: Verify complete components: three 3101 boards plus one 2101 baseplate; check boards for physical damage; confirm hardware version matches units running on‑site.
Recommended Same‑brand Models
3008 Main Processor Module,
3007 Main Processor Module,
3301 Digital Input Module,
3401 Digital Output Module,
3351 Analog Input Module,
3481 Analog Output Module,
3700T Communication Module,
5301 Digital Input TriPak,
5352 Analog Input TriPak,
5381 Analog Output TriPak,
5401 Digital Output TriPak,
2281 I/O Bus Extender Module,
2910 Top End Cap‑I/O,
2911 Bottom End Cap‑MP,
2101 Main Processor Baseplate
Notes
- The complete Triconex 5101 TriPak assembly requires consistent hardware versions for all three 3101 boards; inconsistent versions will trigger voting exceptions.
- Follow ESD anti‑static operation during card disassembly and assembly. Static electricity may damage internal circuits of 3101 processor boards.
- 2101 baseplate shall be fully seated in physical slots; poor contact will lead to TriBus communication interruption.
- For project spare‑part inventory, it is recommended to stock complete TriPak plus individual 3101 board, covering both full‑unit replacement and single‑channel fault maintenance.
- Cross‑platform mixing of Trident and Tricon cards is prohibited. Though physical interfaces look similar, internal bus protocols are incompatible.
- After hardware replacement, confirm three‑way processor full synchronization and no alarms via TriStation software before putting back into online operation.
