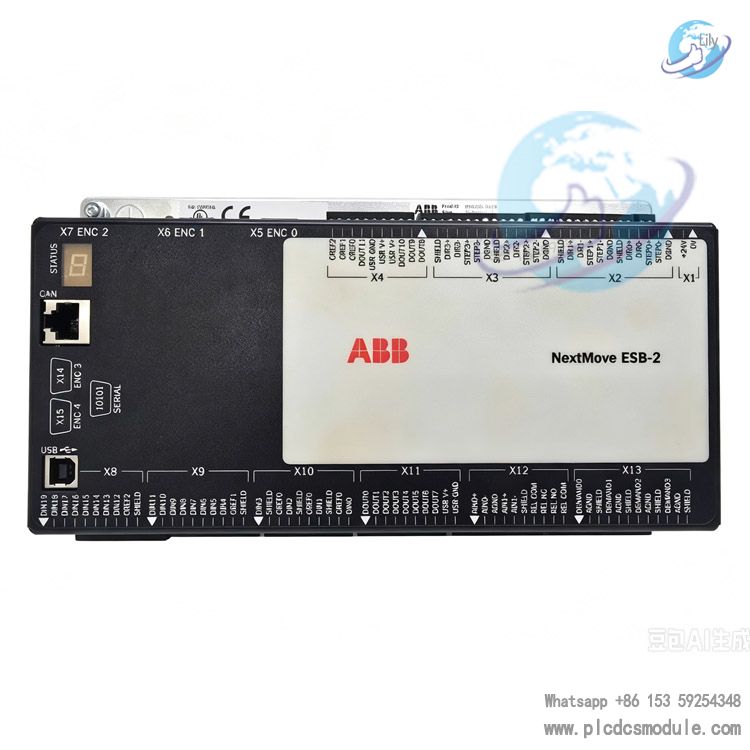

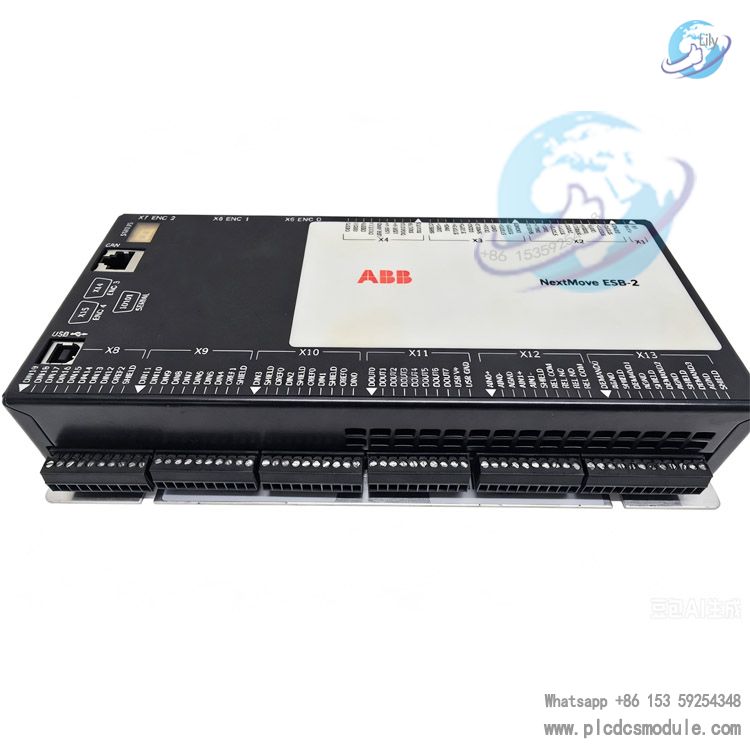

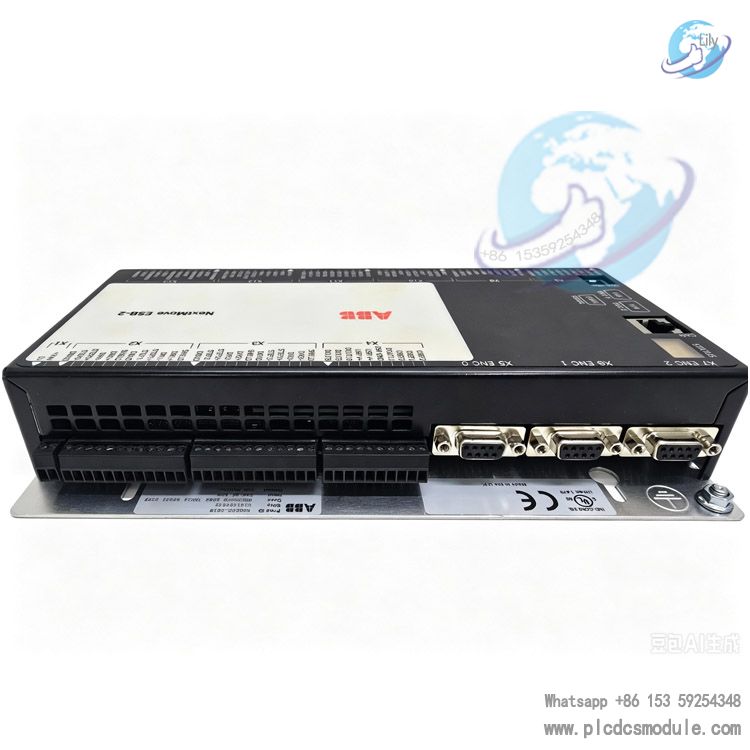

ABB NSB202‑501W (NextMove ESB‑2) Multi‑Axis Motion Controller
Product Overview

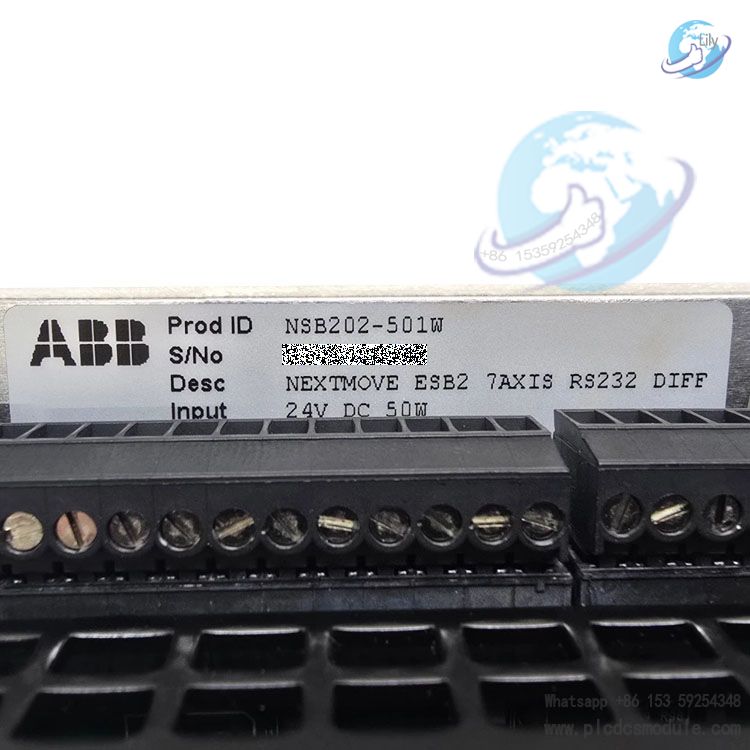

Product ID: 3AXD50000032683. It belongs to the ABB Legacy Servo product line: NextMove ESB‑2 panel‑mount motion controller. The suffix W of the model stands for spare‑part version, and its hardware body is identical to NSB202‑501.
NextMove ESB‑2 is ABB compact panel‑mount multi‑axis motion controller. NSB202‑501W is a sub‑model of this series, designed for hybrid servo + stepper motion control scenarios. It supports complex synchronous motion, electronic cam and electronic gear. Program development is available via Mint multi‑task BASIC language as well as embedded C. On‑board I/O is integrated, and I/O & HMI devices can be expanded through CAN bus. It is widely applied in positioning, following, cutting and sorting of automated equipment. As a discontinued legacy spare part, it is mainly used for repair and replacement of existing machines.
Model Definition (NSB202‑501W)
- 202: 3‑axis servo + 4‑axis open‑loop stepper, 2 additional encoder master‑following inputs
- 501: RS232 serial port, differential‑signal stepper outputs
- W: Spare‑part material revision, identical hardware specifications and functions to NSB202‑501
Core Hardware Specifications
- Axis Capacity: 3‑axis servo control; 4‑axis open‑loop stepper motor control; 2 additional encoder inputs for master‑slave following and synchronous flying shear
- On‑board I/O: 20 general‑purpose digital inputs; 12 general‑purpose digital outputs; 2‑channel 12‑bit resolution analog inputs; 4 high‑speed latch inputs for high‑precision trigger positioning
- Communication Interfaces: RS232 serial port; CAN bus (compatible with CANopen DS401 standard I/O devices and ABB CAN I/O module expansion); Ethernet port for PC debugging and ActiveX host computer interaction
- Programming System: Mint multi‑task BASIC (native motion instruction library including point‑to‑point positioning, electronic cam, electronic gear, synchronous following); Supports embedded C language development; Free supporting ActiveX components for PC host system; Compatible with MintNC 2.5‑axis CAD‑to‑motion‑path tool
- Mechanical & Environmental: Mounting: DIN‑rail / panel mounting; Protection class: IP20; Power supply: 24VDC; Operating temperature: 0～+55℃
Key Motion Functions
- Point‑to‑point positioning and interpolation motion
- Software electronic gear and electronic cam
- Encoder master‑slave following, flying shear and cut‑to‑length process
- Multi‑task parallel execution, independent operation for motion logic and equipment I/O logic
- High‑speed latch input for precise positioning triggered by external signals
Application Industries
Packaging machinery, printing equipment, cutting machinery, textile machinery, special automated assembly equipment. This series is legacy product and no longer recommended for new projects; it is procured mainly as replacement spare parts for existing equipment maintenance.
Cross‑Series Model Comparison
| Model | Servo Axes | Stepper Axes | Additional Encoder | Serial Port | Stepper Output |
| NSB202‑501(W) | 3 | 4 | 2 | RS232 | Differential |
| NSB202‑502 | 3 | 4 | 2 | RS485 | Differential |
| NSB203‑501 | 3 | 4 | 2 | RS232 | Open‑collector |
| NSB204‑501 | 4 | 4 | 1 | RS232 | Differential |
Frequently Asked Questions
Q: Is NSB202‑501W hardware compatible with NSB202‑501?
A: Yes. The W suffix only represents spare‑part version, hardware and performance are fully identical for direct replacement.
Q: Can this controller be used for new project development?
A: This is a discontinued legacy product. It is suggested for maintenance replacement only instead of new machine design.
Q: What programming languages are supported?
A: Native Mint multi‑task BASIC, and embedded C development is supported additionally.
Q: Does it support flying shear & cut‑to‑length application?
A: Yes, it supports electronic cam and master‑encoder following to realize flying‑shear and cut‑to‑length process.
