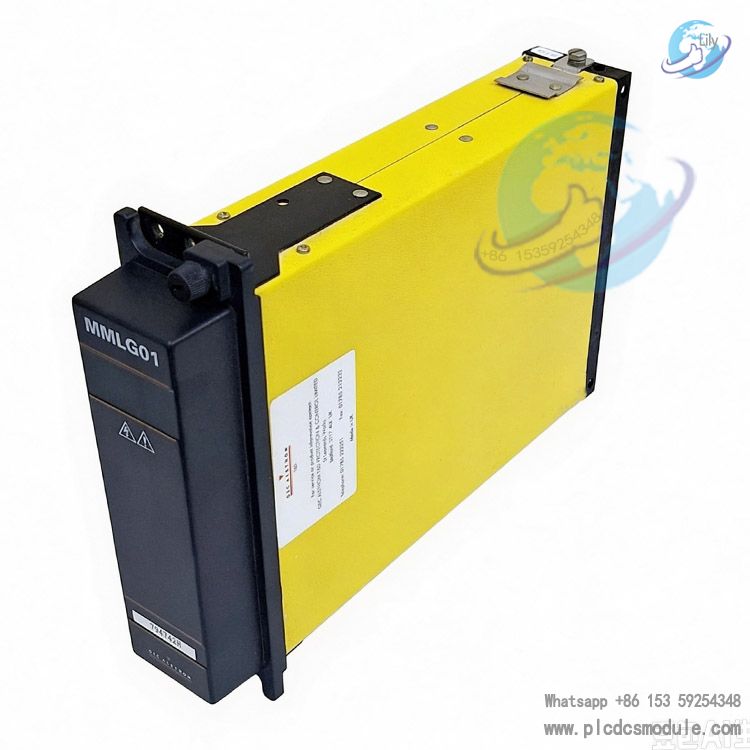

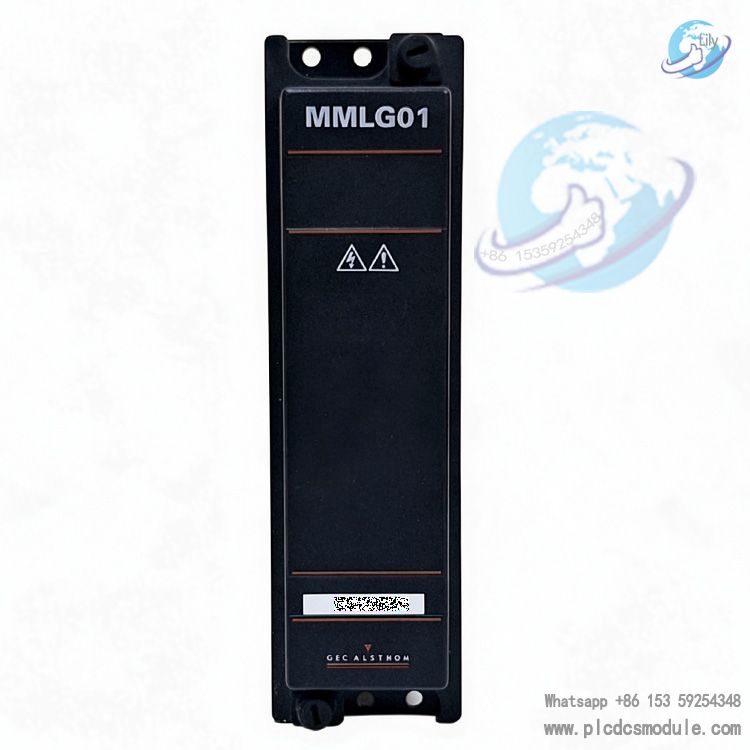

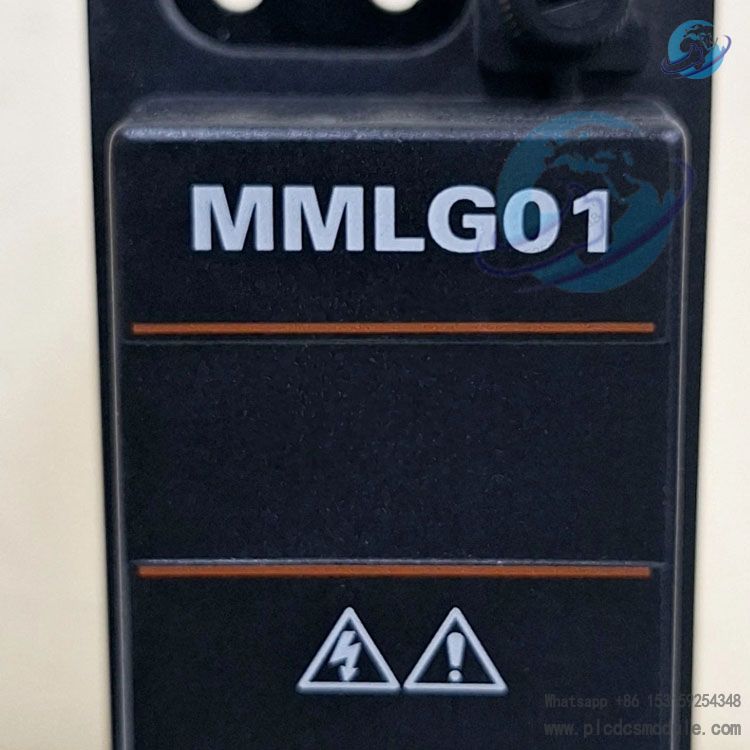

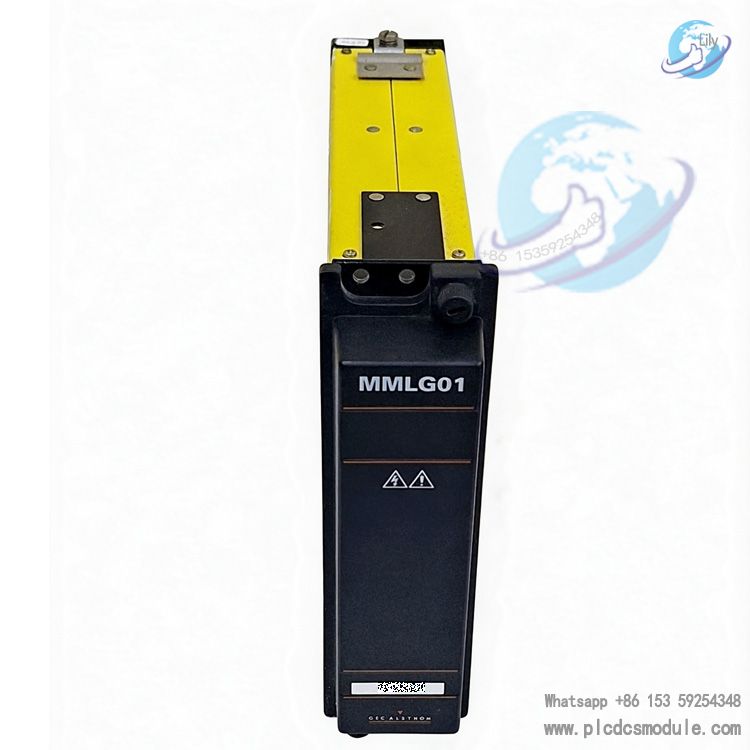

GEC Alstom / GE MMLG01B1AA0001C Test Block
Note: The MMLG01 body itself is not a protection relay. It is a standard test block for the GE Vernova (formerly GEC Alstom, Alstom Grid) Midos series protection system. In protection cabinet assembly scenarios, it is commonly marked together with protection relays. It is used for secondary circuit isolation, safe CT/PT short-circuiting and secondary injection test interfaces in relay protection.
Product Overview
MMLG01B1AA0001C belongs to the MMLG series standard test block. It originated from GEC Alstom in the UK. Later its assets were integrated into GE Grid Solutions and now belong to GE Vernova. Mounted beside protection relays, it acts as a permanent wiring interface between protection devices and field secondary cables. Used with the matching MMLB01 multi-finger test plug, it can safely isolate protection circuits, short CT secondary windings and perform relay protection calibration, secondary injection tests and circuit monitoring without removing the original fixed cabinet wiring. It is a classic safety test component for protection panels in power substations and power plants.
Normal operating status: Built-in spring normally closed contacts remain closed, and secondary current/voltage signals pass directly to the back-end protection relay. Test operating status: After inserting the MMLB01 test plug, internal contacts automatically disconnect the circuit on the protection device side. The CT circuit can achieve safe short-circuiting to eliminate the severe risk of high voltage injury and equipment damage caused by open CT secondary circuits. MMLG01 has a built-in safety interlock: The terminals 13 and 14 circuit interlocks with the cover plate. Opening the cover automatically cuts off the DC auxiliary power supply of the protection device to prevent accidental tripping during testing.
Core Technical Specifications
Model: MMLG01B1AA0001C (MMLG01 standard test block)
Number of circuits: 14 independent circuits (28 wiring terminals)
Continuous rated current: 20A (CT/PT secondary circuit)
Rated voltage: 300V AC/DC
Insulation resistance: >100MΩ @500V DC
Housing material: Flame-retardant phenolic moulded insulation material
Mounting type: Panel flush mounting, compatible with Midos modular relay cabinets
Matching accessory: MMLB01 multi-finger test plug (special use)
Compliant standard: IEC 60255
Operating temperature: -25℃ ~ +55℃
Brand evolution: GEC Alstom → Alstom Grid → GE Grid Solutions → GE Vernova
Main Features
- Priority safety design: Make-before-break structure to short circuits before disconnection, preventing high voltage from CT open circuits. The cover plate mechanical interlock cuts off protection DC power supply to avoid accidental operation risks during testing.
- Testing without wire removal: No need to disassemble secondary cables inside the cabinet. It reduces wiring errors caused by wire removal and restoration, and greatly shortens the construction period of protection calibration and maintenance.
- Modular cabinet compatibility: Installed side by side with Midos series Alstom/GE protection relays, delivering unified cabinet layout and compact space saving.
- Stable low contact resistance: Spring-loaded contacts with ultra-low contact resistance and no impact on CT and PT secondary measurement accuracy.
- Series model differentiation: MMLG01 is the universal standard model; MMLG02 is specially designed for busbar protection circuits.
Typical Application Scenarios
Relay protection panels in power plants and substations: Secondary test interfaces for line protection, transformer protection and generator protection cabinets. Periodic calibration, commissioning and troubleshooting of protection devices (secondary current / voltage injection tests). Protection circuit maintenance for petrochemical, rail transit and other self-owned high-voltage power systems.
FAQ
Q1: What is MMLG01B1AA0001C used for?A: The MMLG01B1AA0001C is a 14-circuit modular test block designed for GE / GEC Alstom Midos protection relay systems. It is installed on protection panels to provide a safe interface for secondary injection testing, relay commissioning, and routine maintenance without cutting permanent wiring.
Q2: Is MMLG01B1AA0001C a protection relay?A: No. It is a test block / test socket, not a protective relay. It works alongside GE and Alstom protection relays to isolate circuits, short CT loops, and enable safe on-site testing.
Q3: What are the key safety features of the MMLG01 test block?A: It adopts a make-before-break contact structure to avoid dangerous CT open-circuit high voltage. It also comes with a built-in mechanical interlock system that cuts off the DC auxiliary power when opened, preventing accidental relay tripping during testing.
Q4: What is the electrical rating of MMLG01B1AA0001C?A: The standard rating is 20A continuous current and 300V AC/DC. It features ultra-low contact resistance and high insulation performance, ensuring no interference with CT/PT measurement accuracy and relay operation.
Q5: What plug matches the MMLG01 test block?A: It is fully compatible with the MMLB01 multi-finger test plug. The matched plug enables one-step circuit isolation, automatic CT shorting and fast secondary injection test connection.
Q6: What applications is the MMLG01B1AA0001C suitable for?A: It is widely used in power substations, thermal power plants, hydropower stations and industrial power systems. It serves line protection, transformer protection and generator protection panel testing and daily maintenance scenarios.
Q7: Is MMLG01B1AA0001C an obsolete or legacy product?A: Yes, it is a legacy GEC Alstom / GE Vernova product with LTB (Last Time Buy) announced. Although discontinued for new projects, it is still in huge demand for replacement and spare parts of existing power grid and plant equipment.
Q8: What is the modern replacement for MMLG01 test block?A: The updated modern alternatives are P991 Test Block and P992 Test Plug, which support the same panel installation standards while providing upgraded safety performance and longer service life for new power projects.
