ABB S-093H | 3BHB030478R0009 PHASE MODULE (ACS6000 Medium Voltage Drive Phase Module)
Basic Product Information
Model: S-093H

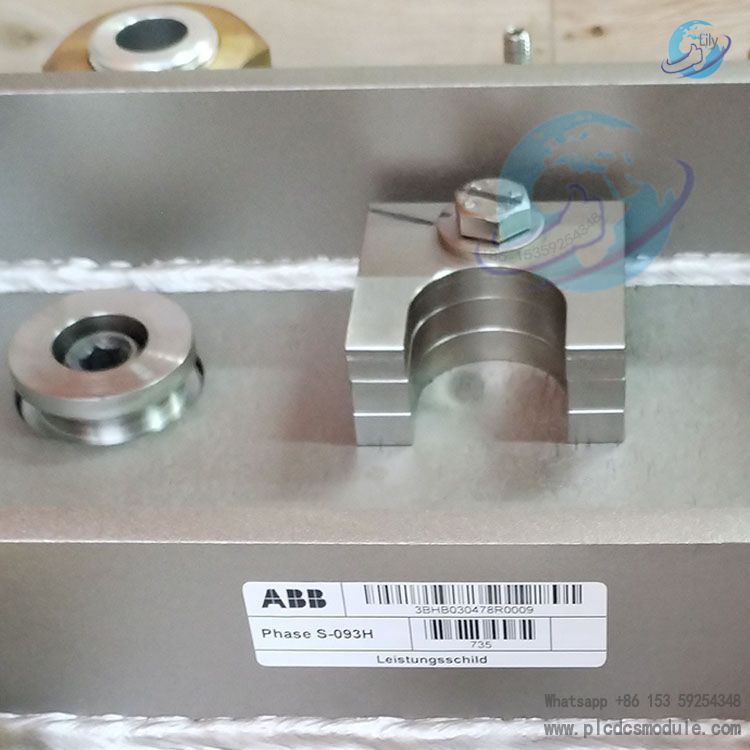

Part Number: 3BHB030478R0009
Full Name: IGCT Phase Module
Compatible Drive: ABB ACS6000 medium voltage high-power AC drive (legacy medium voltage drive, categorized as legacy product on ABB official website)

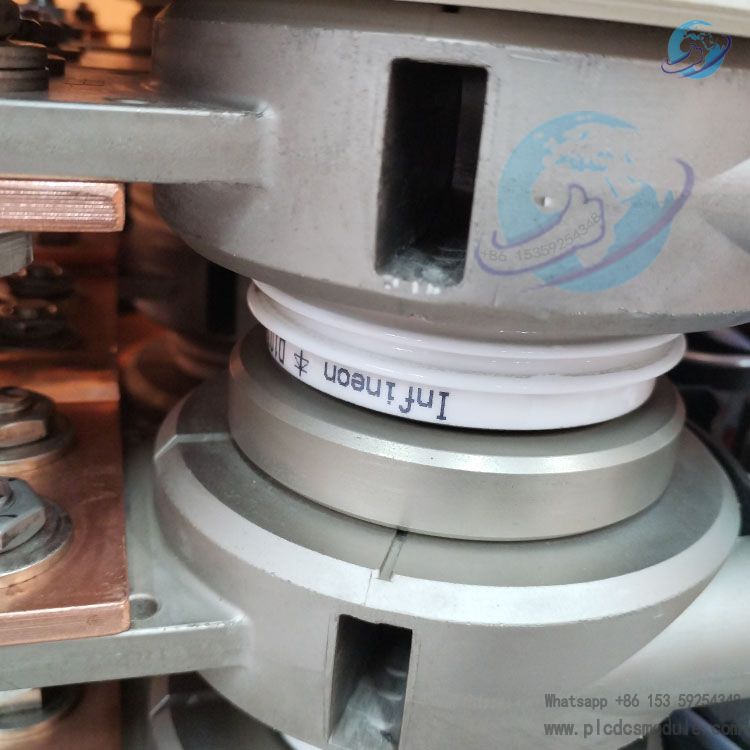

Core Power Device: IGCT Integrated Gate Commutated Thyristor, the signature power semiconductor for ACS6000, different from IGBT modules.
Product Positioning: It serves as the core power unit on the inverter side of ACS6000. One single module functions as one phase power leg. Three identical phase modules are assembled to form a 3-phase inverter, performing DC to AC inversion to supply medium voltage motors.
The ACS6000 adopts a modular building-block architecture. The complete system consists of ARU/DRU rectifier unit, DC bus, phase modules and control unit. The S-093H is the power building block of the inverter. It supports parallel capacity expansion and works for single motor or multi-motor common DC bus solutions.

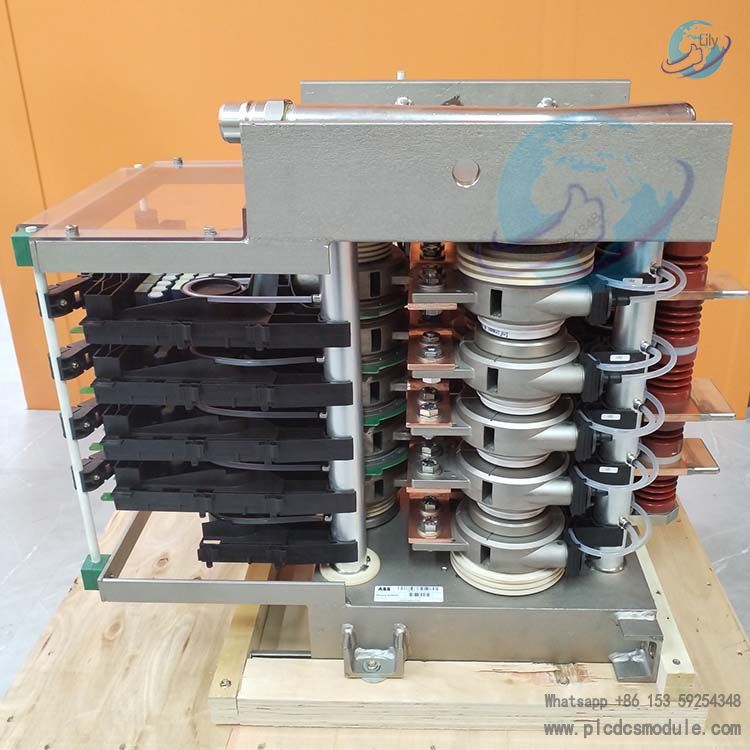

Appearance and Structure

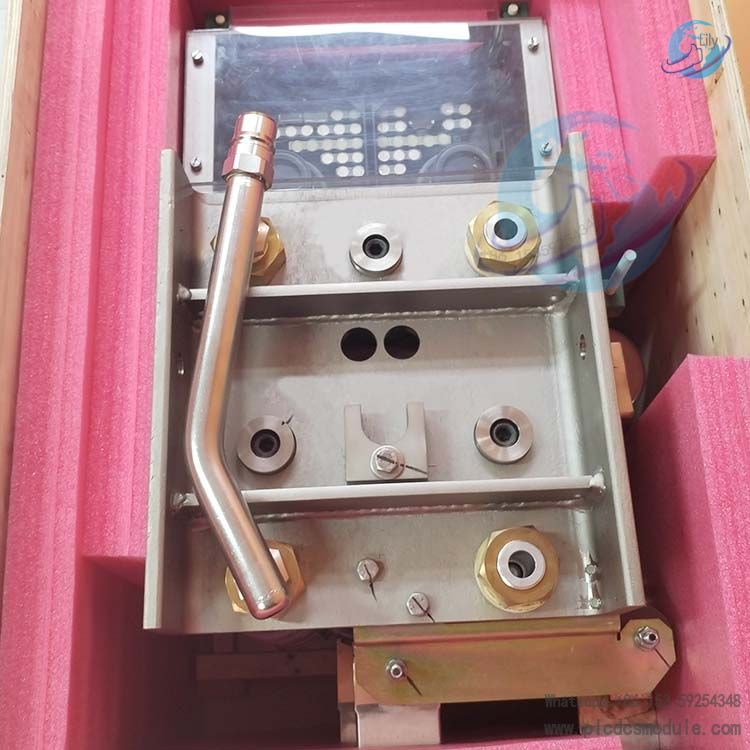

Integrated Water-Cooled Design: The module comes with built-in water pipe connectors with bent metal inlet and outlet ports. Water cooling is standard for high-power ACS6000 units. An integrated water-cooled heat sink dissipates heavy heat loss generated by IGCT, which is the most recognizable visual feature of S-093H.
Power Terminals: High voltage DC bus terminals and AC output terminals with large copper high-voltage posts for connecting the DC bus and motor side.
Gate Driver & Monitoring Board: The bottom of the module integrates IGCT gate driver PCB, voltage/current sampling circuits and fault monitoring loops. It continuously collects operating status and sends alarms to the ACS6000 controller for overcurrent, overtemperature, IGCT failure and abnormal cooling water flow.
Mechanical Frame: Reinforced metal frame with epoxy insulation supports. It applies fuseless design as specified by ABB official documentation. Short-circuit protection is realized through fast IGCT turn-off instead of power fuses.
Installation: Drawer-style pluggable modular design mounted on cabinet rails. Individual phase module can be replaced independently during faults to reduce downtime and maintenance duration.
Core Technical Principle
IGCT Power Conversion: The S-093H consists of IGCT devices plus freewheeling diodes to form a single-phase inverter leg. DC bus voltage feeds into the module. With ABB DTC Direct Torque Control algorithm, the IGCT switches rapidly to convert DC power into adjustable amplitude and frequency 3-phase medium voltage AC for motor drive. The ACS6000 uses DTC instead of conventional V/F control, delivering ultra-fast torque response suitable for dynamic heavy-load applications such as metallurgical rolling mills.
Four-Quadrant Operation (with ARU Active Rectifier Unit): When paired with ARU active rectifier, the S-093H phase module supports four-quadrant operation. Regenerative braking energy from motors can be fed back to the grid. Systems with diode rectifiers only support motoring mode.
Built-in Protection Functions
- IGCT gate drive protection and power device overtemperature monitoring
- Phase current and DC link voltage sampling
- Fast short-circuit turn-off (fuseless protection). IGCT provides nanosecond-level hard turn-off capability, which is the core safety feature of ACS6000
- Cooling water flow and temperature monitoring; automatic lockout upon water shortage or overtemperature
Electrical Specifications
The S-093H is one power rating phase module for the ABB ACS6000 series. The full ACS6000 drive covers 3MW ~ 36MW, output voltage 2.3kV / 3.3kV, output frequency 0–75Hz, with overall efficiency ≥98%.
- Topology: IGCT single-phase inverter leg
- Cooling Method: Water cooling (all S-series phase modules are water-cooled)
- Compatible Motors: Induction motor, synchronous motor, permanent magnet synchronous motor
- Harmonic Compliance: IEC61000-2-4, IEEE519
- Power Factor: Close to unity across full speed range when equipped with active rectifier
- Operating Environment: Cabinet temperature 0~40°C, altitude ≤2000m. Derating is required for high temperature or high altitude conditions.
Typical Industries & Applications
The ACS6000 is designed for heavy-duty high-power industrial drives. As the core inverter unit, the S-093H is widely deployed in:
- Metallurgy: Main rolling mill drives, reel drives
- Mining: Main hoists, crushers, long-distance belt conveyors
- Marine & Offshore: Vessel main propulsion, offshore platform high-power drives
- Oil & Gas: Large compressors, heavy-duty process pumps
Application characteristics: Capable of shock loads, fast dynamic response, continuous long-run operation and short-time overload.
Product Lifecycle & Spare Part Information
The ABB ACS6000 is a legacy medium voltage drive. ABB has stopped manufacturing new complete units, while spare parts remain available for stock sales. S-093H (3BHB030478R0009) is the official spare part number. Other phase modules in the same family include S-123H for different MVA power ratings. These models are not directly interchangeable. Always verify the exact part number 3BHB030478R0009 before replacement. Commissioning requirements after S-093H replacement: Run device verification inside ACS6000 control software, calibrate gate drive parameters and carry out cooling water circuit leak test.
Common Fault Points
- Clogged or leaking cooling water circuit → module overtemperature trip
- Aging IGCT gate driver board and fiber communication faults
- Drift of internal current sampling board triggering false overcurrent alarms
- High voltage creepage alarms caused by dust accumulation or condensation on insulation components
Frequently Asked Questions
Q1: What is the function of ABB S-093H 3BHB030478R0009 phase module?
A: It is the IGCT power phase arm of ACS6000 medium voltage inverter, responsible for DC to AC power conversion. Three phase modules form a complete three-phase inverter to drive medium voltage motors.
Q2: Which drive model does S-093H 3BHB030478R0009 match?
A: Exclusively designed for ABB ACS6000 medium voltage drive. It cannot be used for ACS5000, ACS2000 or other ABB MV drives.
Q3: Can S-093H be replaced with S-123H directly?
A: No. S-093H and S-123H belong to different power grades. Internal IGCT and drive parameters are different. Must use the exact part number 3BHB030478R0009.
Q4: What cooling method does S-093H phase module adopt?
A: Water cooling. The module integrates water cooling radiator and water pipe connectors. Water flow and temperature monitoring are built inside the module.
Q5: Does S-093H support four-quadrant operation?
A: Four-quadrant function depends on the front-end rectifier unit. When matched with ARU active rectifier, four-quadrant regenerative braking is available.
Q6: What are the common faults of S-093H phase module?
A: Typical faults include water circuit blockage/leakage, over-temperature alarm, IGCT gate drive failure, fiber communication error and current sampling drift.
Q7: Is ACS6000 still available for new projects?
A: ACS6000 is a legacy medium voltage drive. ABB stops new unit sales, only spare parts and maintenance service are provided.
Q8: What commissioning work is required after replacing S-093H?
A: After replacement, perform water circuit leak test, IGCT drive parameter calibration, device verification and high voltage test before putting into operation.
