Overview

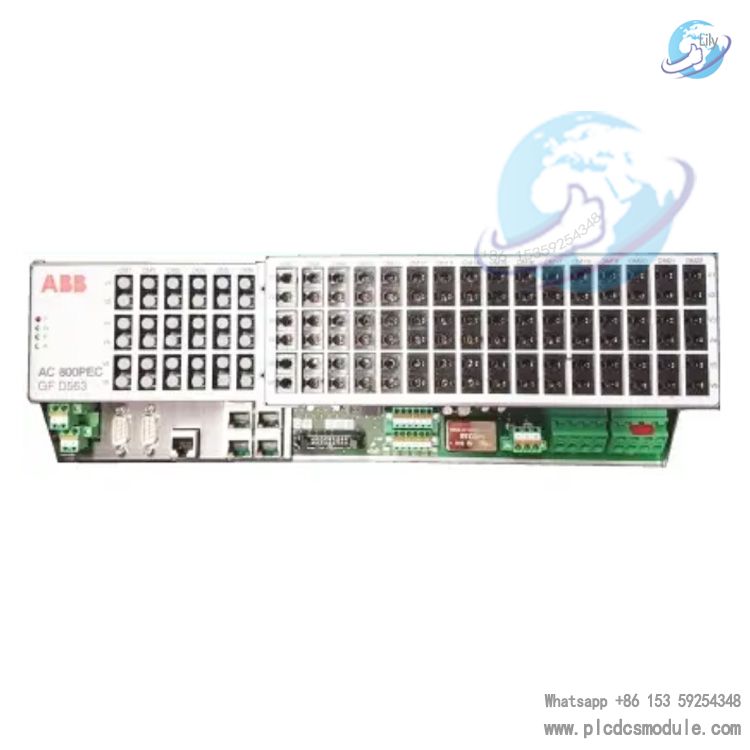

GF D563 A103 3BHE046836R0103 is the LCl Converter Control Module within the ABB AC 800PEC series. GF D563 A103 3BHE046836R0103 is engineered for high-speed closed-loop control of power electronics equipment. It executes converter algorithm computation, signal sampling and protection logic. Built on the AC 800PEC platform, GF D563 A103 3BHE046836R0103 combines CPU and FPGA parallel computing power. It connects via high-speed fiber links for multi-channel analog and digital signal processing. The module delivers reliable control for high-power converters in wind power, hydropower and excitation applications.
Technical Specifications
Processor: Dual-core CPU with FPGA co-processing
Minimum control cycle: down to 100μs, ultra-fast task down to 25ns
Communication: Fiber PowerLink bus, CEX expansion bus, support multiple fieldbus extensions
Programming tool: Control Builder, compatible with MATLAB/Simulink model-based design
Operating temperature: 0℃ to 60℃, no forced cooling required
Mounting: Backplane slot modular installation, DIN rail or direct cabinet mounting
Signal expansion: Extend analog and digital channels with AC800PEC I/O submodules
System integration: Compatible with ABB 800xA distributed control system
Environmental rating: G3 industrial grade, resistant to dust and mild corrosive gas
Core Advantages
GF D563 A103 3BHE046836R0103 provides ultra-fast real-time calculation for high-power converter sub-millisecond closed-loop regulation. FPGA handles low-level signal processing independently, reducing main CPU load and improving control consistency. Fiber communication isolates electromagnetic interference on industrial sites and stabilizes control signal transmission. Model-based auto code generation cuts down algorithm development and site commissioning time. Modular hardware supports flexible pairing with AC 800PEC I/O submodules for customized signal count. Long lifecycle hardware supports retrofit and upgrade projects for legacy high-power converter systems.
Product Features
Onboard basic converter protection logic, monitors voltage and current signals and triggers fault protection. Multi-module fiber synchronization supports parallel coordinated control of multiple high-power converters. Hardware watchdog auto resets during abnormal events to prevent converter runaway. Supports IEC61131-3 standard programming languages for easier engineering deployment. No moving mechanical parts to reduce maintenance failure points. GF D563 A103 3BHE046836R0103 supports hot swap of matched submodules for maintenance without full system shutdown.
Application Fields
Wind turbine converter control, closed-loop regulation for DFIG and full-conversion wind turbines Hydropower excitation control, real-time regulation for hydro generator excitation systems Heavy-duty industrial drives, metallurgy rolling mills and mine hoist converters Energy storage PCS control, grid-tied power conversion and power regulation Railway traction converters, traction power unit control Marine electric propulsion systems, onboard high-power power conditioning
Same Brand Product Comparison
GF D563 A103 3BHE046836R0103 is a dedicated LCl converter control module under AC 800PEC series, optimized for high-speed power electronic closed-loop control. AC 800M controller targets conventional DCS process control with longer control cycles, not suitable for high-speed converter algorithms. AC 800F is built for Freelance DCS, designed for slow continuous process control and lacks high-speed fiber PowerLink interface. GF D563 A103 3BHE046836R0103 has FPGA hardware acceleration, making it the only one among these three supporting 100μs high-speed converter control. AC 800M and AC 800F do not support direct code download from MATLAB/Simulink models, differing greatly in development workflow.
Compatible Matching Part Numbers
UA D149 Combi IO high speed mixed I/O module
UA D141 Combi IO base board
UA D142 high speed analog & digital I/O subcard
DA D143 traction dedicated I/O submodule
GD D160 PEBB power electronic building block interface board
GD D165 PEBB 4-channel IGBT driver interface board
UF D128 fiber optic expansion module PECMI
UA D140 measurement interface module
FAQ
Q: Can GF D563 A103 3BHE046836R0103 run independently?
A: No. GF D563 A103 3BHE046836R0103 needs AC800PEC backplane and matched I/O submodules to form a complete control unit. The standalone module cannot collect field signals or drive converters.
Q: Does GF D563 A103 3BHE046836R0103 support redundant configuration?
A: Yes. Dual-module hot standby via fiber synchronization is available for non-stop critical equipment such as power generation and energy storage systems.
Q: What software is used for programming the AC800PEC system?
A: Control Builder for basic engineering. MATLAB/Simulink is used for power control modeling, and generated codes can be downloaded to GF D563 A103 3BHE046836R0103.
Q: What type of converters is GF D563 A103 3BHE046836R0103 compatible with?
A: It works with IGBT high power converters including wind converters, excitation rectifiers, energy storage PCS and heavy-duty industrial drive converters.
Q: What humidity limits apply to the module?
A: Non-condensing environment, relative humidity from 5% to 95%. Cabinet dehumidification is required to avoid condensation damage to the circuit board.
Q: How many slave modules can be connected via fiber PowerLink?
A: One controller supports up to 36 bidirectional fiber PowerLink links to connect multiple high-speed I/O and PEBB interface boards.
Q: Can GF D563 A103 3BHE046836R0103 connect to 800xA system?
A: Yes. The AC800PEC platform natively integrates with ABB 800xA for data exchange between upper monitoring and lower converter control.
Q: What parameters should be confirmed before purchasing?
A: Confirm backplane model, matched I/O subcard type, firmware revision, converter topology and fiber interface specs to match existing cabinet hardware.
Recommended Same Series Part Numbers
GF D563 A101 3BHE046836R0101
GF D563 A102 3BHE046836R0102
PP D539 A102 3BHE039770R0102
UA D149 Combi IO Module
UA D141 Combi IO Base Board
UA D142 High Speed I/O Subcard
DA D143 Traction I/O Submodule
GD D160 PEBB Interface Board
GD D165 PEBB Interface Board
UF D128 Fiber Expansion Module
UA D140 PECMI Measurement Interface Module
PP D113 B01 AC800PEC Controller
Notes
The module is precision industrial PCB. ESD protection must be applied during handling and storage. Operators should wear anti-static wristbands. Keep fiber port dust caps mounted when unused. Dust buildup causes optical attenuation and communication dropouts. Install away from strong electromagnetic sources. High voltage busbars and large contactors require sufficient separation from the control cabinet. Firmware revision must match all other modules in the AC800PEC rack. Mismatched firmware triggers communication failures. Verify backplane supply voltage before powering on. Incorrect voltage will permanently damage the board. Keep storage environment dry during long idle periods and monitor cabinet temperature and humidity regularly.
