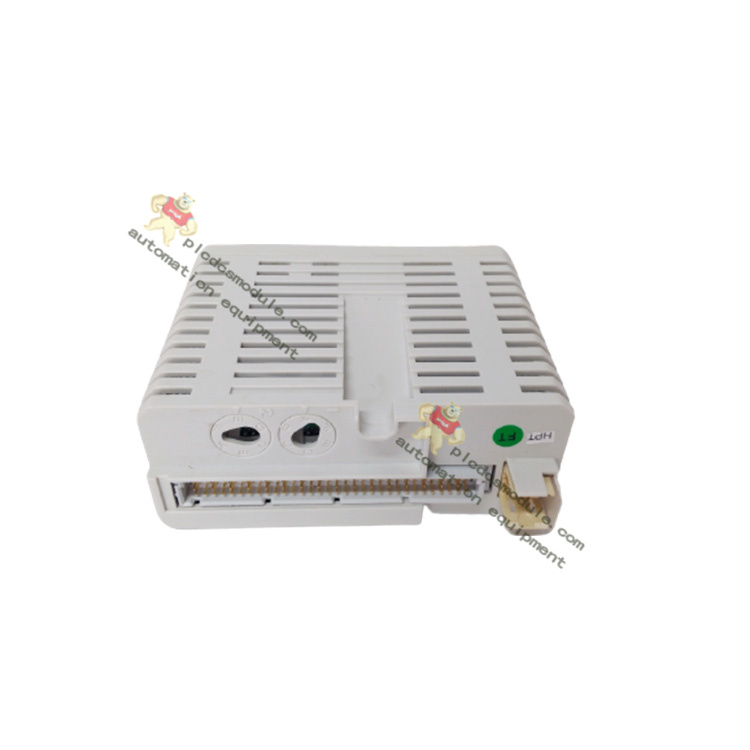

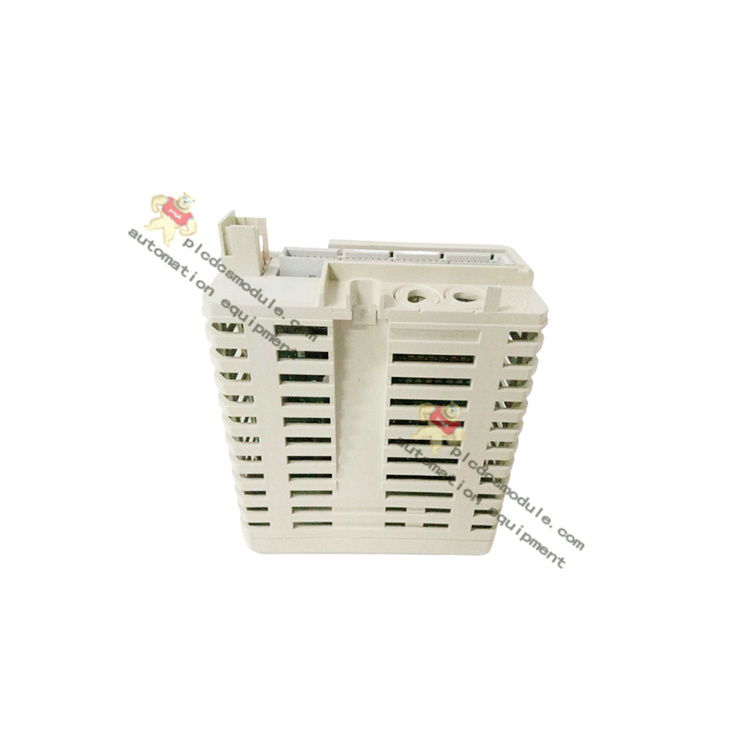

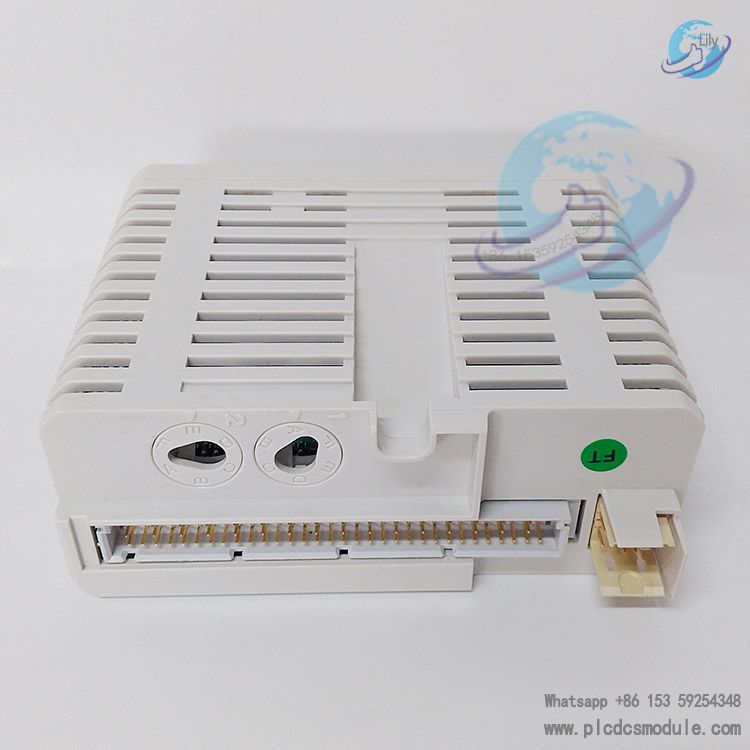

The ABB AI810 3BSE008516R1 is a high-performance 8-channel analog input module designed for industrial automation and control systems, featuring flexible signal compatibility and robust protection mechanisms. It supports multiple unipolar single-ended input signals including 0-20 mA, 4-20 mA, 0-10 V, and 2-10 V DC, making it suitable for connecting various industrial sensors and transmitters. With groupwise isolation from ground, 12-bit resolution, and reliable diagnostic functions, the module ensures accurate data acquisition and stable operation in harsh industrial environments, widely used in process control, manufacturing automation, and energy management systems.
related documents:
Core Technical Specifications
Signal Specifications: Supports 8 unipolar single-ended analog input channels, compatible with 0-20 mA, 4-20 mA current signals, and 0-10 V, 2-10 V DC voltage signals, meeting the connection requirements of most industrial sensors.
Accuracy & Resolution: Features 12-bit resolution and a maximum error of 0.1%, ensuring high-precision data acquisition. The voltage input has a typical temperature drift of 70 ppm/°C (maximum 100 ppm/°C), while the current input has a typical temperature drift of 50 ppm/°C (maximum 80 ppm/°C), maintaining stable performance across temperature fluctuations.
Input Characteristics: The voltage input offers an impedance of 290 kΩ, and the current input provides an impedance of 230-275 kΩ (including PTC resistor). Both input types are equipped with overvoltage/undervoltage protection and short-circuit protection, capable of withstanding up to 30 V DC without damage.
Response & Filtering: Incorporates an input filter with a 0-90% rise time of 140 ms and an update cycle of 8 ms, achieving a balance between signal stability and real-time performance. It delivers a Normal-Mode Rejection Ratio (NMRR) of over 40 dB at 50 Hz and 60 Hz, effectively suppressing electromagnetic interference (EMI).
Electrical Safety: Boasts a rated insulation voltage of 50 V and a dielectric test voltage of 500 V AC, complying with multiple electrical safety standards. It supports HART communication and features groupwise isolation from ground, preventing cross-interference between channels.
Power Consumption & Supply: Consumes 1.5 W of power, with a current draw of 70 mA for the +5 V Modulebus and 40 mA for the +24 V Modulebus, eliminating the need for an external +24 V power supply.
Physical & Environmental Parameters
Dimensions: Measures 45 mm in width, 102 mm in depth (111 mm including the connector), and 119 mm in height, weighing 0.2 kg (0.44 lbs.). Its compact design is suitable for dense installation in industrial control cabinets.
Operating Temperature: Operates within a range of 0 to +55 °C (+32 to +131 °F), with approved operation from +5 to +55 °C. The storage temperature ranges from -40 to +70 °C (-40 to +158 °F).
Environmental Adaptability: Functions in relative humidity of 5 to 95% (non-condensing) and pollution degree 2 (per IEC 60664-1), with ISA-S71.04 G3 corrosion protection. It holds an IP20 protection rating per IEC 60529, making it ideal for installation in industrial control cabinets.
Certifications: Bears the CE mark and complies with electrical safety standards such as EN 61010-1 and UL 61010-1. It is certified for hazardous locations including C1 Div 2 cULus, C1 Zone 2 cULus, and ATEX Zone 2, as well as marine certifications including ABS, BV, DNV, and LR.
