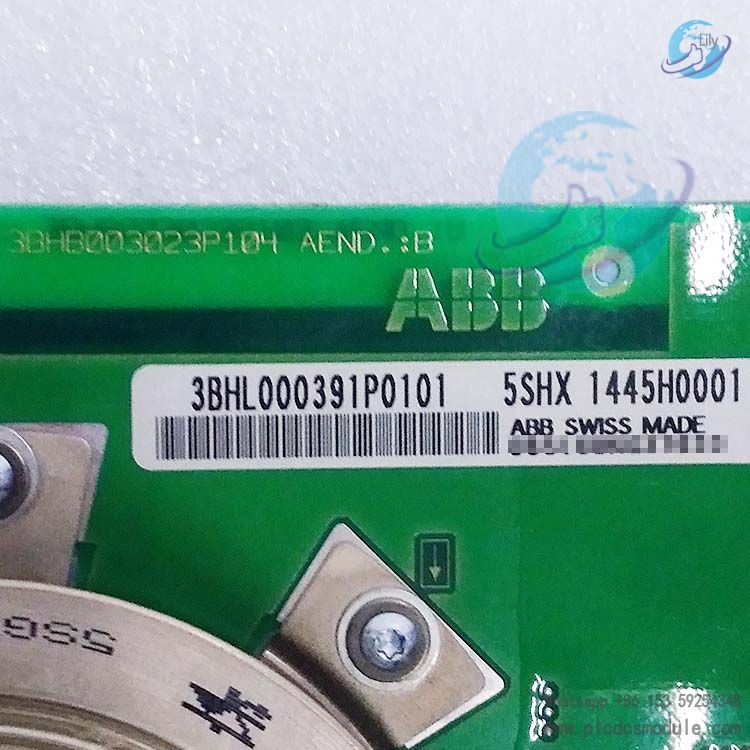

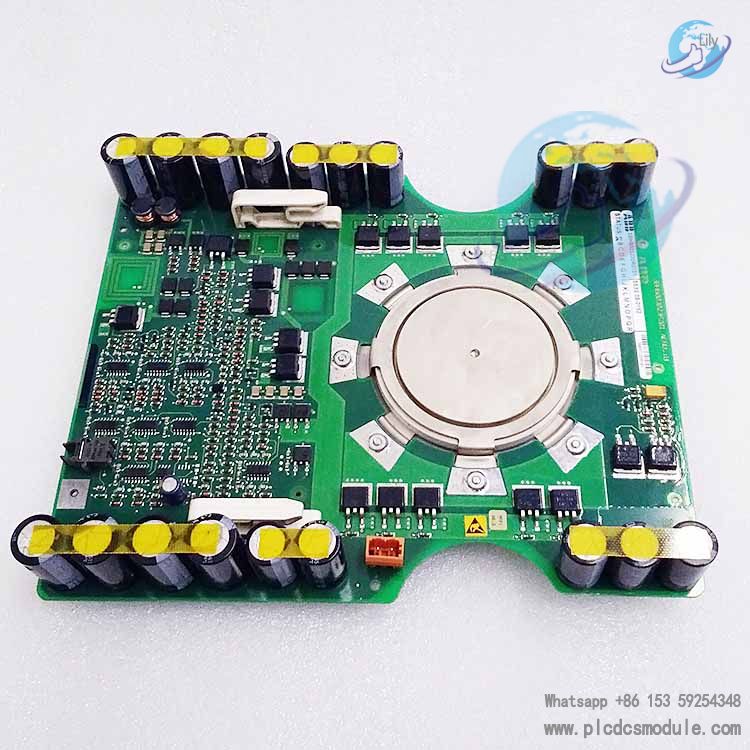

Note; All products on this site are special products, the market price has been fluctuating, the specific customer service offer shall prevail, because the product is a new product, the picture is not a real shot, please confirm with customer service before placing an order model and product, price and other details, the site used, new are for sale, please contact customer service communication. The ABB 5SHX1445H0001 is an integrated Gate Commutated Thyristor (IGCT) power module custom-built exclusively for the ACS1000 series high-voltage frequency converters. It combines the high-voltage and large-current carrying capacity of thyristors with the fast-switching characteristics of transistors, and integrates GTO chips, anti-parallel diodes, and gate drive circuits. Boasting a rated voltage of 4500V and a rated current of 1400A, this module is suitable for high-voltage and high-power industrial drive and power conversion applications. Featuring low power loss, high reliability, and a compact modular design, it serves as the core power component that enables the ACS1000 system to achieve efficient power conversion and precise motor control.
Technical Specifications
Basic SpecificationsModel: 5SHX1445H0001; Compatible System: ACS1000; Device Type: Reverse-Conducting IGCT Module. Internal Part Number: 3BHL000391P0101.
Electrical SpecificationsRated Voltage: 4500V; Rated Current: 1400A; On-state Voltage Drop: < 1.8V; Isolation Voltage: ≥ 10kV; Switching Frequency: 500Hz–2kHz; di/dt Capability: ≥ 5–6kA/μs (at 20V gate voltage). It supports four-quadrant energy feedback.
Thermal PerformanceOperating Junction Temperature: -40℃–125℃; Cooling Method: Compatible with liquid cooling/forced air cooling. It is suitable for harsh industrial temperature environments.
Physical & Protection SpecificationsPackage: Compact Modular Package; Protection Class: IP20; Mounting: Standardized Mechanical Interface. It is suitable for ACS1000 cabinet installation and maintenance.
Safety & EMCProtection Functions: Overcurrent, Overvoltage, Overheating; EMC Standard: EN 61000-6-2; Safety Standard: IEC 61800-5-1. Protection response time is < 5ms.
Performance Advantages
High Efficiency & Low Power ConsumptionAdopting reverse-conducting technology, it features low on-state power loss and achieves approximately 25% higher efficiency compared with conventional thyristors. The snubberless design reduces switching losses, while the gate drive realizes low-inductance connection via coaxial gates and feedthrough PCBs. It completes the mode transition from thyristor to transistor within 1μs, eliminates latch-up risks, and extends the safe operating area (SOA) to the dynamic avalanche region.
Intelligence & High ReliabilityEquipped with a built-in multi-layer protection mechanism, it monitors parameters such as current and temperature in real time. Fault pre-warning can reduce unplanned downtime by 60%. Utilizing industrial-grade components and dual isolation design, it delivers excellent resistance to EMI/RFI, making it suitable for complex industrial electromagnetic environments such as metallurgy and mining.
Flexible AdaptabilityIts compact modular structure facilitates installation, maintenance and capacity expansion through multi-module parallel connection, catering to the power scaling requirements of the ACS1000 system. It is fully compatible with system control and communication protocols, supporting rapid integration and upgrading.
Application Scenarios
Industrial DrivesIt is used for variable-speed drives of high-voltage motors in applications such as metallurgical rolling mills, large-scale fans and water pumps. It provides stable and continuous current output, and supports four-quadrant operation as well as braking energy feedback.
Power ConversionIt is applicable to grid dynamic reactive power compensation, new energy grid-connected conversion, etc., realizing efficient high-voltage power conversion and power quality management.
Specialized IndustriesIt drives high-voltage equipment under high-temperature and high-humidity operating conditions in industries such as chemical engineering and mining. Its wide temperature range and IP20 protection rating ensure stable operation.
Key Installation & Maintenance Requirements
- Installation must comply with the mechanical and electrical specifications of the ACS1000 system. Ensure the cooling circuit is unobstructed, and the insulation distance between modules meets the 10kV isolation requirement.
- The gate drive must be matched with ABB-specified drive units. Strictly control the gate voltage and drive timing to avoid over-driving, thus reducing energy consumption.
- Regularly monitor the module current, temperature and voltage waveforms via the diagnostic function of the ACS1000 system to predict potential faults and extend service life.
