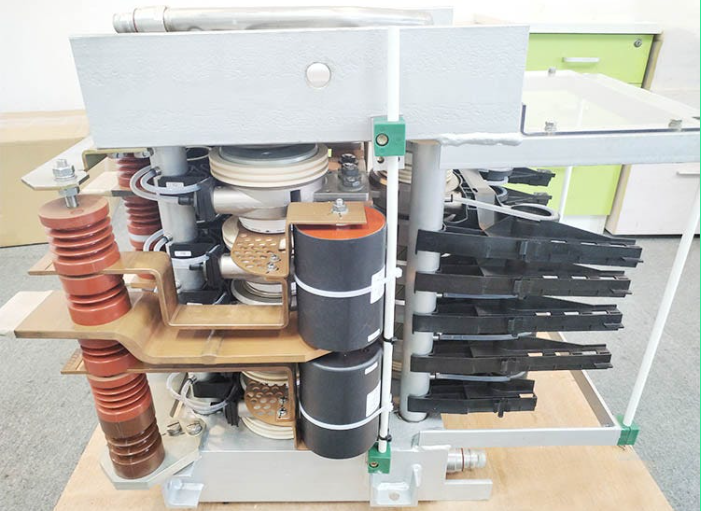

S-073N Phase Module 3BHB009884R5211 Rack overview
The photo of S-073N 3BHB009884R5211 in the picture was taken when the product was released from the warehouse, and the situation of the product can be clearly seen from the picture. Given that the model S-073N 3BHB009884R5211 is relatively old and the product is aged, and it is manufactured with special materials, which leads to its heavy weight and large volume. When the product is released from the warehouse, the supplier will connect the wires and conduct a simple product test. Only after confirming that there are no problems with all functions of the product will the shipment be arranged. In addition, considering the particularity of this product, many enterprises lack professional technical wiring engineers. To avoid problems in the installation of the junction box, the junction box part has been pre-placed on the rack as a reference for installation.
2.Thyristor Module Configuration of ABB S-073N 3BHB009884R5211 Phase Module

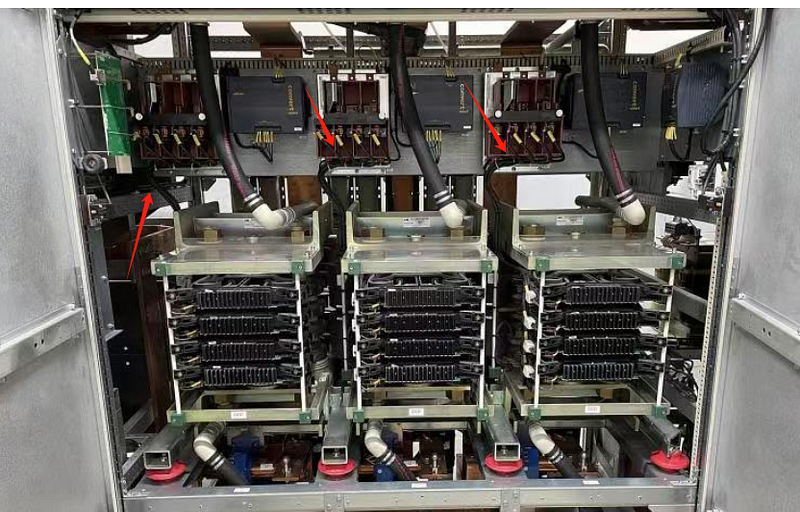

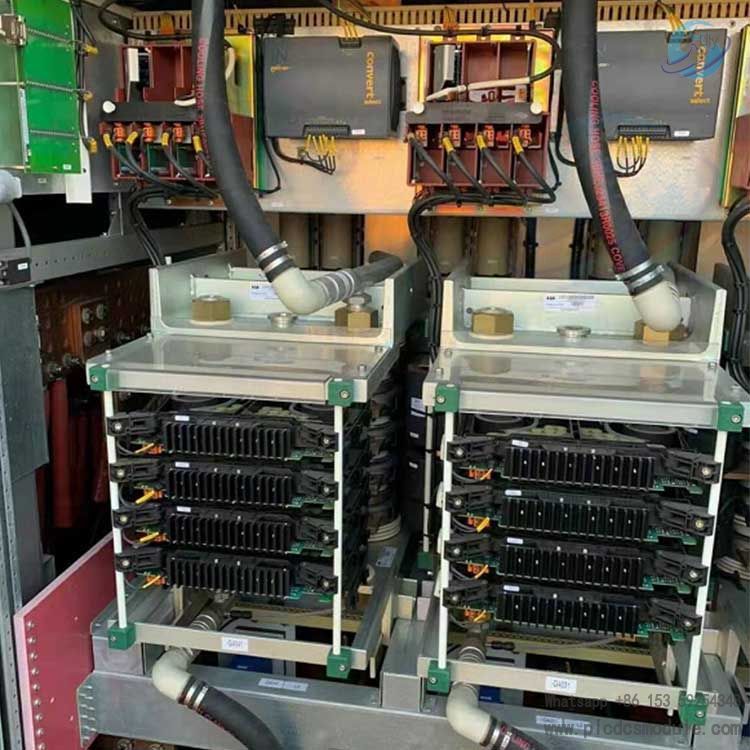

Regarding the thyristor modules, the same rack to which this product belongs can be adapted to various types of thyristor modules. Due to the differences in usage requirements across different industries, generally, when enterprises purchase the rack, they will additionally propose the model of the thyristor modules to be configured according to their actual needs. Each rack can be configured with a maximum of 4 thyristor modules.

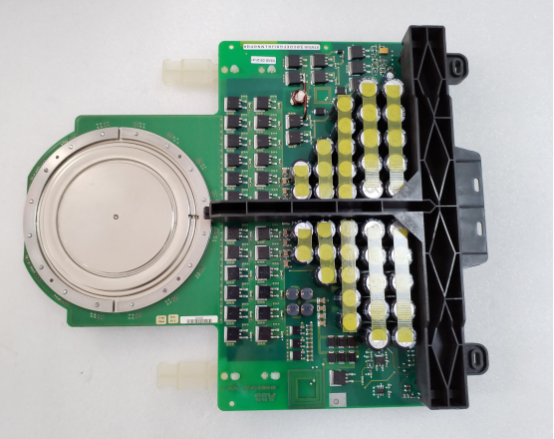

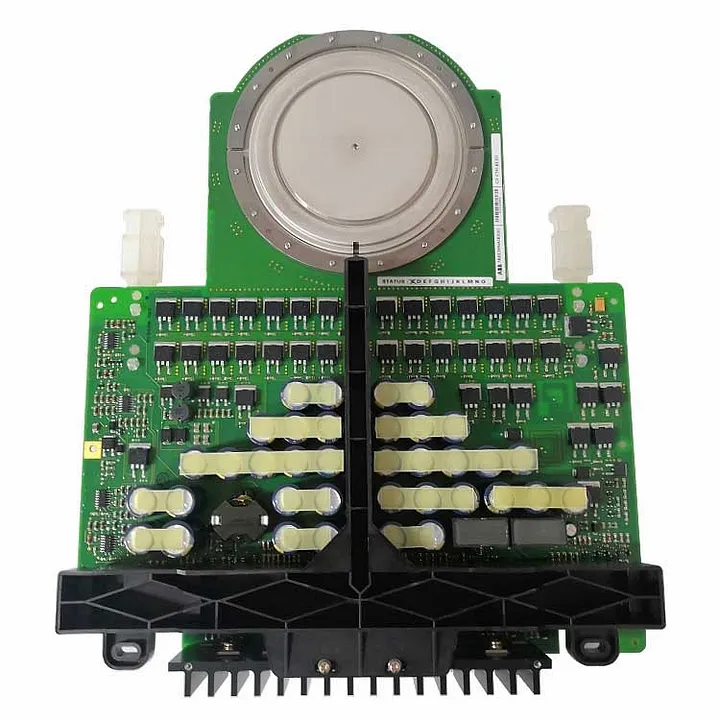

3.The thyristor module models for the rack are selected and procured based on individual customer requirements. Different customers may opt for various models according to their specific operational needs. Common models include:
5SHY4045L0006
5SHY3545L0010
5SHY3545L0011
5SHY4045L0001
5SHY3545L0020
5SHY3545L0016
5SHY3545L0014

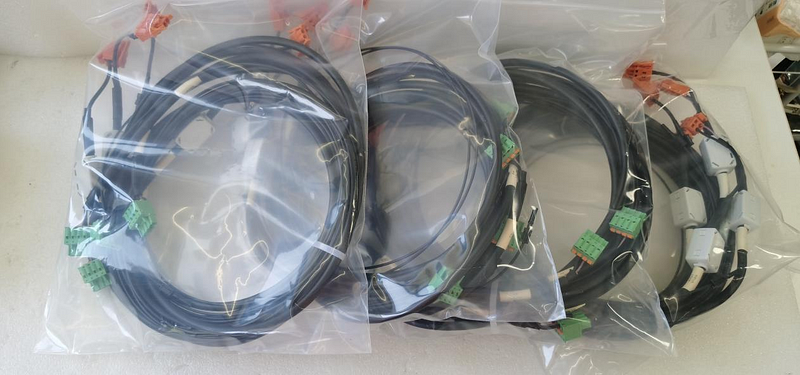

4.As shown in the figure, due to the diverse usage environments of customers, the specifications of the cables required for this product also vary. They include cables with lengths of 1.1 meters, 1.2 meters, 1.4 meters, 1.7 meters, etc., which can flexibly meet specific application requirements.
The application fields of ABB Phase Module are extensive, covering the power generation and transmission and distribution in the power industry, industrial fields such as metal processing, petrochemical industry, paper-making and printing, transportation fields such as electric vehicle charging and rail transit, as well as other fields such as heating, ventilation, air conditioning and water treatment.
If you have requirements for the selection of the S-073N 3BHB009884R5211 phase module rack, or need to pair it with other ABB products to optimize the system configuration, you are welcome to click here to contact us and obtain one-on-one product and technical consultation.
