In the maintenance and spare parts procurement of ABB medium and high voltage variable frequency drives (VFDs), model identification and capacity matching of IGCT phase modules for the ACS6000 series are frequent pain points prone to errors. Phase modules under the same 3BHB009884 material family feature highly similar physical appearances, yet variants with different suffix codes cannot be interchanged for VFDs of different power ratings. Additionally, they offer zero compatibility with other series of ABB high voltage VFDs.
Numerous equipment malfunctions, unnecessary spare part waste and unit startup failures stem from mismatched or incorrectly mixed modules. This article provides a professional breakdown of the applicable scope, model differentiation logic, core incompatibility causes and standardized model selection & replacement rules for the ABB ACS6000 S-073H phase module, delivering accurate references for industrial equipment maintenance, spare parts purchasing and equipment overhaul.
1. Basic Application Definition of S-073H Phase Module
This module has two equivalent official part numbers: 3BHB009884R0004 and 3BHB009884R0002. The two versions share identical hardware structures, IGCT power semiconductors, water cooling systems, drive firmware parameters and insulation ratings. They only differ in production batches and order serial numbers, and are fully interchangeable as spare parts.
This module features highly exclusive application limits: it is not compatible with ACS6000 units rated 3MV, 5MV, 9MV or 11MV, nor can it be used with all ABB high voltage VFD series including ACS1000, ACS5000 and ACS8000. No modification or parameter adjustment can enable cross-series adaptability.
2. Full Model & Capacity Comparison Table for the 3BHB009884 Series
ABB develops dedicated phase modules under the 3BHB009884 material family for ACS6000 medium voltage drives of distinct power ratings. Each model adopts independent hardware configurations and parameter standards without interchangeability, representing a differentiated supporting design from the original manufacturer. Full specifications are listed below:
| Module Model | Part Number | Exclusive ACS6000 Power Rating | Core Configuration Description |
|---|---|---|---|
| S-073N | 3BHB009884R0001 | 3MVA / 5MVA medium & low power units | Designed for low-power operating conditions, fitted with low-current IGCT chips, compact water cooling channels and basic insulation structures to meet operational demands of medium and low-capacity units |
| S-073H | 3BHB009884R0002 / 3BHB009884R0004 | 7MVA (7MV) medium-high power units only | Custom configuration for medium-high power applications, equipped with upgraded high-current IGCT chips, widened conductive busbars, high-flow water cooling channels and enhanced high-voltage insulation margin to match rated operating conditions of 7MV units |
| S-073L | 3BHB009884R serial suffix codes | 9MVA / 11MVA high-power heavy-duty units | Expanded configuration for heavy-duty operation, featuring high-withstand power semiconductors, dual-circuit water cooling systems and thickened insulation structures for continuous operation under high-power heavy loads |
3. Core Technical Reasons Preventing Interchange Within the Same Series
Many users assume modules from the shared 3BHB009884 family can be replaced interchangeably. In fact, ABB implements full differentiated design across four dimensions: power semiconductors, mechanical structures, cooling systems and firmware parameters. Cross-capacity mixing will directly trigger equipment abnormalities and protective interlocks, rendering the drive inoperable.
3.1 Power semiconductor parameters are precisely matched to exclusive operating conditions
IGCT chips integrated into different module models carry fundamental differences in rated current, voltage withstand level and surge tolerance. The chips built into 7MV-specific S-073H deliver larger power margins tailored for medium-high power operation, while S-073N for 3/5MV units adopts lower-capacity power devices.
If low-capacity modules are installed on 7MV units, operating current will exceed the device’s withstand threshold and activate core equipment protection. If high-power S-073H modules are fitted onto small-capacity 3/5MV cabinets, mismatched DC bus voltage and cooling margin will trigger frequent overvoltage and overtemperature alarms, drastically reducing operational stability. S-073L for 9/11MV units boasts higher technical specifications incompatible with 7MV systems; mixed installation leads to distorted output waveforms and abnormal operating parameters.
3.2 Differentiated mechanical mounting and water cooling structures block physical assembly

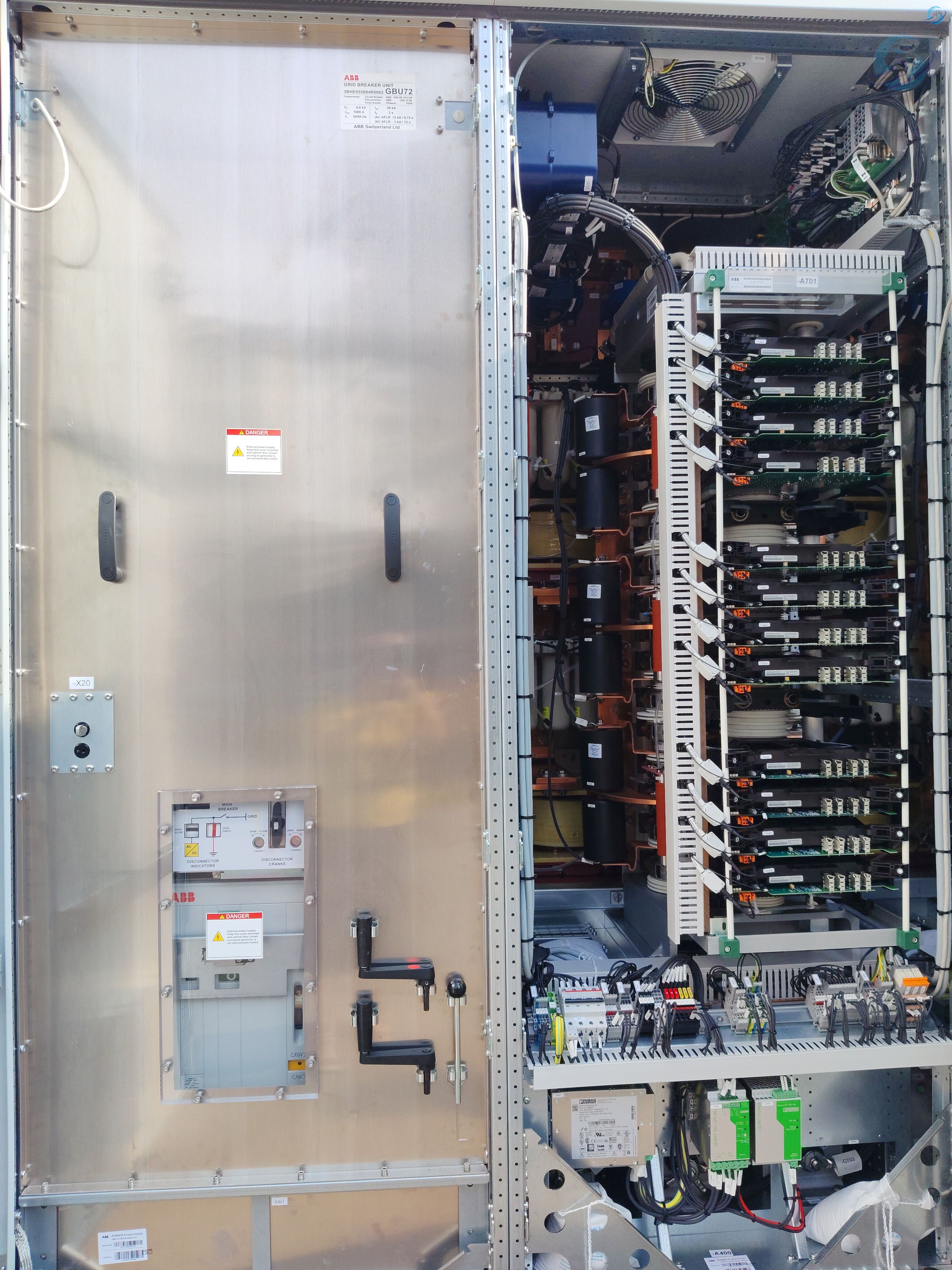

Power unit cabinets for ACS6000 drives of different ratings are custom-built with exclusive designs. Module mounting dimensions, busbar spacing and water cooling interfaces are non-interchangeable. Cabinet compartment sizes, fixing hole positions and conductive busbar clearances of 7MV units are exclusively sized for S-073H, making physical alignment impossible for smaller or larger capacity modules.
Furthermore, water cooling pipe diameters, interface heights and flow standards correspond strictly to designated unit models. Cross-model assembly causes incompatible pipe connections, insufficient cooling water flow and failed sealing performance, lowering heat dissipation efficiency and compromising long-term unit stability.
3.3 Pre-programmed drive board parameters enable built-in error prevention interlocks
ABB pre-flashes exclusive capacity-specific firmware onto the drive control board of every 3BHB009884 series module during production. Core fixed parameters include overvoltage/overcurrent protection thresholds, temperature protection settings, current sampling coefficients and IGCT gate trigger controls, none of which can be modified or overwritten on-site.
When the module model fails to match the drive’s rated capacity, the VFD will detect parameter inconsistencies during power-on self-test and activate hardware interlock protection to lock the entire unit from startup. This firmware-level mechanism eliminates cross-capacity mixing risks and safeguards equipment operational safety.
3.4 Graded insulation voltage ratings match distinct high-voltage operating environments
ACS6000 units of different power ratings operate under different DC bus peak voltages and electric field conditions, requiring graded insulation materials, isolation frames and partial discharge control standards for corresponding modules. The insulation voltage margin of S-073H is precisely calibrated for 7MV high-voltage operation. Small-capacity modules carry insufficient insulation tolerance, while high-capacity S-073L features excessive insulation redundancy. Any cross-model mixing undermines the insulation stability of high-voltage systems and creates hidden long-term operational risks.
4. Zero Compatibility Across Different VFD Series
The S-073H phase module is exclusively developed for the ACS6000 series and cannot be adapted to any ABB high voltage VFDs including ACS1000, ACS5000 and ACS8000, due to completely isolated underlying topological architectures.
The ACS6000 series adopts a proprietary two-level IGCT power unit topology, whereas ACS5000 and ACS8000 apply three-level and multi-level topologies, and ACS1000 utilizes a diode-clamped topology. All series differ fundamentally in power circuit layout, voltage control logic, cooling solutions and hardware interface standards. In addition, fiber-optic communication protocols between main controllers and drive boards, drive signal definitions and fault logic are non-interoperable across series. Even with manual hardware interface modifications, the main control system cannot recognize module signals, leaving the drive unable to start.
5. Standardized Specifications for Spare Parts Procurement & On-site Replacement
To maintain long-term stable operation of ABB ACS6000 drives and eliminate equipment faults caused by mismatched models, follow the standardized rules below during spare parts purchasing and module replacement:
5.1 Accurate Model Selection for Procurement
- For ACS6000 7MVA units: Only S-073H modules (3BHB009884R0002 / 3BHB009884R0004) are acceptable; the two part numbers are fully interchangeable.
- For 3MVA / 5MVA units: Original S-073N (3BHB009884R0001) is mandatory.
- For 9MVA / 11MVA units: Exclusive S-073L modules must be used.
Inter-model substitution across power ratings is strictly prohibited. Brand-new genuine spare parts are recommended to avoid latent risks such as degraded parameters and insulation failure on refurbished modules.
5.2 Standard Calibration & Commissioning After Replacement
Direct load operation is forbidden immediately after module replacement. Complete mandatory unit performance inspection and parameter calibration procedures, including unit insulation withstand testing, IGCT pulse timing calibration, sampling sensor zero-point calibration and no-load joint commissioning. These steps ensure full parameter matching between the module and the drive system, and prevent recurring faults under light or heavy load conditions.
6. Summary of Model Selection Pitfall Avoidance
The core design principle of IGCT phase modules under ABB ACS6000 3BHB009884 family follows "one exclusive model for one power rating". S-073H serves as the dedicated core component for 7MVA units, with zero interchangeability for either other capacity models within the ACS6000 series or cross-series high voltage VFDs.
During routine equipment maintenance, fault troubleshooting and spare parts procurement, triple verification of unit power rating, module model and part number is required. Discard empirical cross-model substitution habits to fundamentally reduce equipment faults, unscheduled shutdowns and unnecessary spare part losses, and guarantee safe, stable and efficient long-term operation of medium voltage variable frequency drives.
