ABB AC800PEC Series Controller Module Complete Selection Guide
High-Speed Power Electronics Real-Time Control System | Full Hardware Module Classification, Parameter & Application Matching Manual
Table of Contents
- System Overview & Application Scope of AC800PEC
- 1. Core CPU Processor Module Selection
- 2. Backplane & Power Supply Module Series
- 3. Dedicated High-Speed Power Electronic I/O Modules
- 4. PEBB IGBT & Thyristor Drive Interface Modules
- 5. Communication & Bus Expansion Modules
- 6. Standard S800 Distributed General I/O Modules
- 7. System Architecture Matching Selection Rules
- 8. Environmental & Redundancy Selection Criteria
9. Typical Complete Configuration Case Reference
1. System Overview & Application Scope
AC800PEC is ABB flagship high-performance real-time controller dedicated to power electronic closed-loop control, integrating ultra-fast FPGA hardware acceleration and PowerPC floating-point CPU, supporting control cycles down to 100μs for converter, energy storage, wind power, rail traction, SVG, UPS and medium-voltage drive systems. Three scalable system architectures for selection:
- Compact Architecture: Single CPU with integrated fast I/O, small cabinet, limited space mini converters
- Standard Architecture: Independent CPU + local high-speed I/O backplane, medium-power single converter unit
- Modular Distributed Architecture: Multi-CPU redundant + fiber optic remote I/O, large energy storage power station, multi-parallel converters
2. Core CPU Processor Module Selection

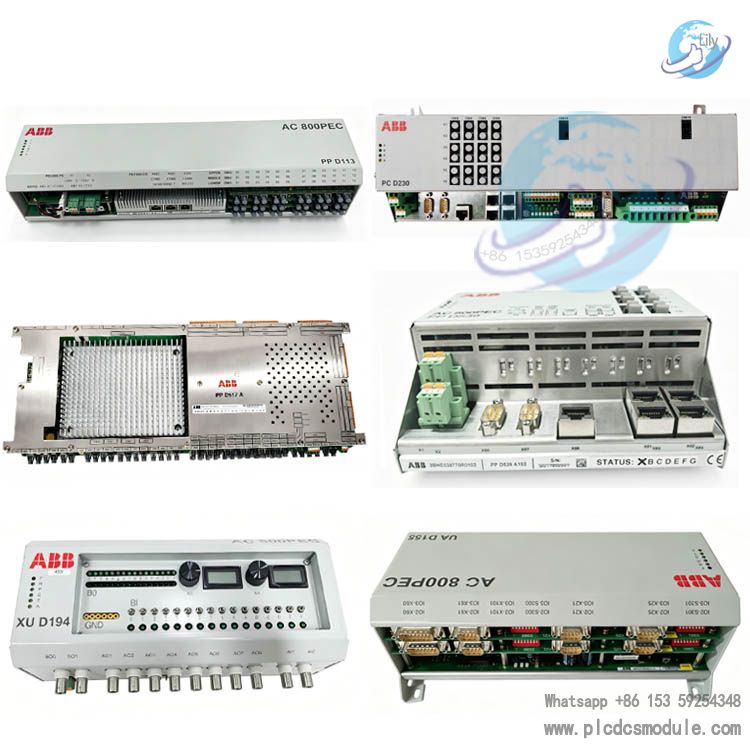

| Module Model | Order Code | Core Hardware Spec | Applicable Scenario |
|---|---|---|---|
| PPD113 | 3BHE023584R2634 | 750MHz PowerPC,64MB SDRAM/16MB Flash,6 fiber optic PowerLink slots,2×Ethernet,RS232/422 | Standard universal model, wind turbine, single energy storage unit, non-redundant control |
| PPD115A01 | 3BHE017628R0001 | Enhanced CPU, expanded memory, redundant fiber bus support, SIL2 compliance | Redundant control, medium-high power converter, grid-connected energy storage station |
| XUD194 | 3BHE018137R0001 | High-end multi-task processor, max 36 bidirectional fiber links, Matlab/Simulink auto-code supported | Large multi-parallel converter, rail traction, 100MVA+ static var generator |
| PCD231 | 3BHE025541R0101 | Compact integrated CPU, built-in partial fast I/O, small cabinet limited space | Mini UPS, small single-phase converter, cabinet space restricted equipment |
Selection Tip: Redundant control system must match dual PPD115A01 or XUD194 with dual backplane and redundant power supply; PPD113 is only for single non-redundant control systems.
3. Backplane & Power Supply Module Series
3.1 BP Series Backplane Carrier
- BP08 Backplane:8-slot standard backplane, mount CPU +4 fast I/O modules, compact single cabinet
- BP16 Backplane:16-slot extended backplane, support full CPU + multi-channel measurement/drive modules, medium power converter main cabinet
- BP-R Redundant Backplane:Dual power bus redundant slot design, for PPD115/XUD194 redundant CPU hot standby system
3.2 System Power Supply Modules
- 24VDC Standard Power Module:Single output 10A, non-redundant small system matching
- QUINT-DC-UPS 24DC/10:Redundant UPS power supply, 10A output, power failure hold-up function, redundant control mandatory
- Low Noise Power Unit:Low ripple output, laboratory high-precision converter test bench application
4. Dedicated High-Speed Power Electronic I/O Modules
| Module Model | Core Function | Channel Configuration | Matching Equipment |
|---|---|---|---|
| UA D149 Combi IO | High-speed mixed analog/digital closed-loop control | 16DI/8DO,6AI/2AO, support LVD/HVD voltage divider sub-board | All types of IGBT converters, SVG, energy storage PCS |
| UA D140 PECMI | High precision current/voltage fast sampling measurement | 4 scalable current inputs, CT/VT signal direct access | Grid-connected converters, power quality compensation equipment |

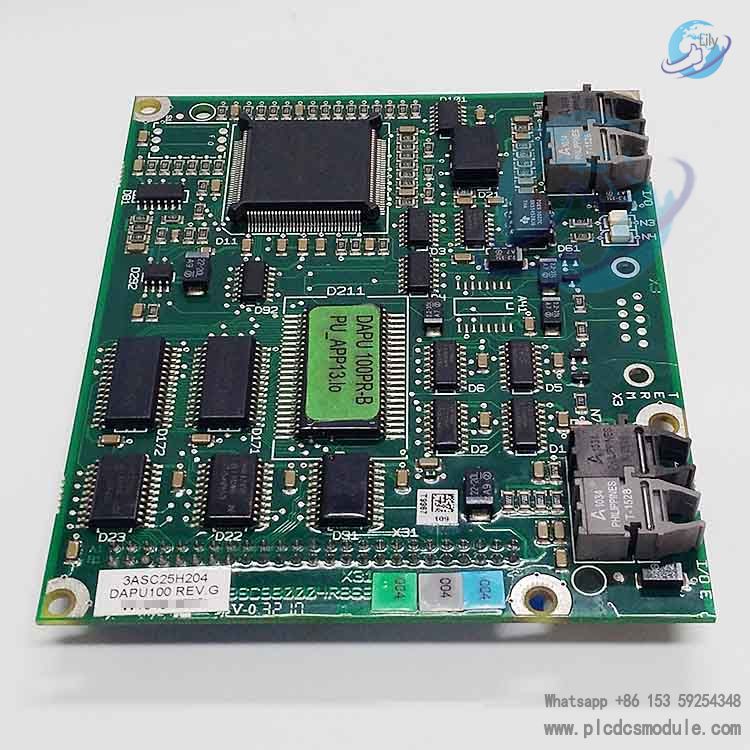

| DAPU100 3ASC25H204 | General industrial analog/digital signal collection | Universal AI/AO/DI/DO, hot-swap supported | Auxiliary cabinet conventional process signal acquisition |
5. PEBB IGBT & Thyristor Drive Interface Modules
GD D160 PEBB Drive Module
Direct drive for 2×6 pulse IGBT converter arms, expandable to 6 parallel converter units, built-in drive signal monitoring & fault detection
Application: Medium power two-level/three-level IGBT energy storage converters, wind full-power converters
GD D165 PEBB Drive Module
4×6 pulse high-power IGBT arm drive, dedicated for large PEBB power electronic building blocks
Application: 50MVA+ large energy storage station, medium voltage traction converter
PINT DD C779 Thyristor Pulse Interface
Special pulse generation interface for SCR thyristor rectifier/inverter, phase shift trigger output, anti-interference optical isolation
Application: Thyristor static var compensator SVC, electrolysis rectifier, DC motor speed regulation system
6. Communication & Bus Expansion Modules
- UF D128 Anybus Communication Card: Multi-protocol fieldbus expansion slot module, optional Profibus-DP, Modbus TCP, CANopen, IEC61850 MMS, connect third-party PLC, protection devices, upper SCADA
- CEX Bus Expansion Interface: TK850V007 fiber cable matched, extend remote S800 distributed I/O cabinets, maximum transmission distance 2000m full optical isolation
- PowerLink Optical Fiber Interface: Native high-speed real-time bus between CPU and fast I/O, 100Mbps bandwidth, eliminate EMI interference in high-power converter cabinet
- RS422 Serial Extension Module: Connect local operation panel, HMI, test terminal, industrial serial measurement instruments
7. Standard S800 Distributed General I/O Modules
For auxiliary non-high-speed process signal collection, connected via CEX bus, hot-swap, G3 harsh environment grade:
Digital Input Modules
DI810:16CH 24VDC Sink
DI811:16CH 48VDC Sink
DI814:16CH 24VDC Source
Digital Output Modules
DO810:16CH transistor output
DO814:Relay contact output 250VAC/2A
Analog Input Modules
AI893:8CH thermocouple temperature sampling
AI810:8CH 4-20mA voltage/current signal
8. System Architecture Matching Selection Rules
- Step1 CPU Confirmation: Small mini cabinet → PCD231; standard single converter → PPD113; redundant/medium-high power → PPD115A01; large multi-parallel high-speed control → XUD194
- Step2 Fast I/O Matching: Main converter sampling & closed-loop control mandatory UA D149 + UA D140; thyristor equipment add PINT DD C779; IGBT high-power PEBB match GD D160/D165
- Step3 Communication Expansion: Upper system interconnection configure UF D128 Anybus card; remote field signal add CEX bus + S800 I/O modules
- Step4 Redundancy Configuration: Zero power-off critical system select dual redundant CPU, BP-R redundant backplane, QUINT UPS redundant power supply, dual fiber PowerLink bus
- Step5 Environmental Adaptation: High temperature, dust, vibration power plant cabinet select G3 grade S800 I/O and convection cooling modules (no fan required)
9. Typical Complete Configuration Case Reference
Case 1: 500kW Single Energy Storage PCS Non-Redundant Cabinet
1× PPD113 CPU + BP08 8-slot backplane + standard 24VDC power supply
1× UA D149 Combi IO + 1× UA D140 PECMI measurement module + 1× GD D160 IGBT drive board
1× UF D128 Modbus TCP communication card + auxiliary DI810/DO814 S800 I/O via CEX bus
Case 2: 10MW Redundant Grid-Connected Energy Storage Station Main Control Cabinet
2× PPD115A01 redundant CPU + BP-R redundant backplane + QUINT-DC-UPS redundant power supply
2× UA D149 dual-channel redundant control I/O + multiple UA D140 sampling modules + GD D165 high-power PEBB drive modules
Dual UF D128 IEC61850 communication cards, multi-group remote S800 I/O cabinets via fiber CEX bus expansion
