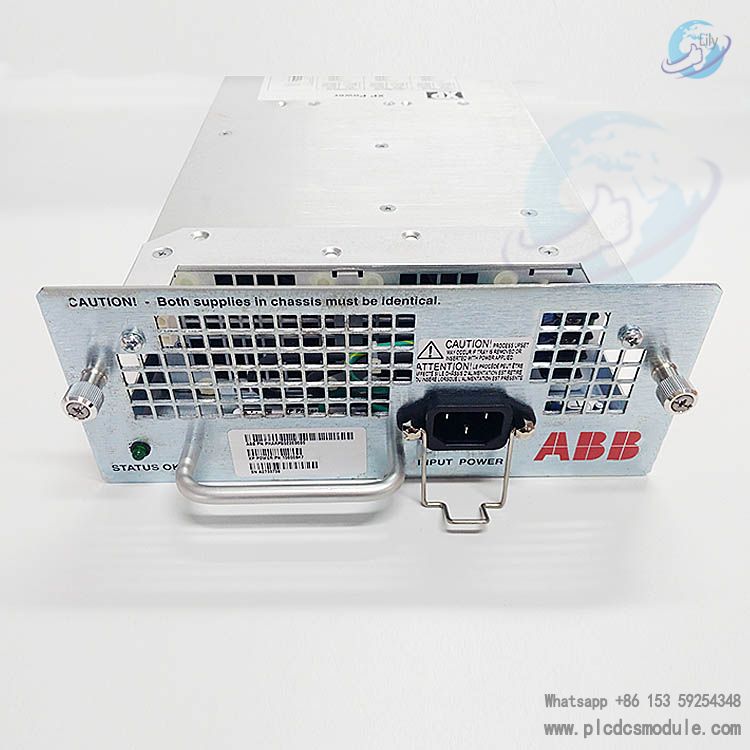

Featuring high reliability, high efficiency and strong anti-interference capability, it can stably output precise voltage to ensure the continuous and safe operation of control systems. Meanwhile, its modular design and comprehensive protection mechanisms facilitate easy installation and maintenance, and can effectively handle faults including overvoltage, overcurrent and short circuit, thus providing solid power support for the continuity of industrial production.
Main Functions
Signal Conversion: It can convert analog signals of 4 - 20mA or 0 - 10V into corresponding standard current or voltage signals for output.
Signal Isolation: Through the built - in isolation circuit, the input signal is isolated from the output signal to ensure the safety and stability of the system.
Signal Amplification/Attenuation: It can amplify or attenuate the input signal as required to adapt to different application scenarios.
Main Parameters

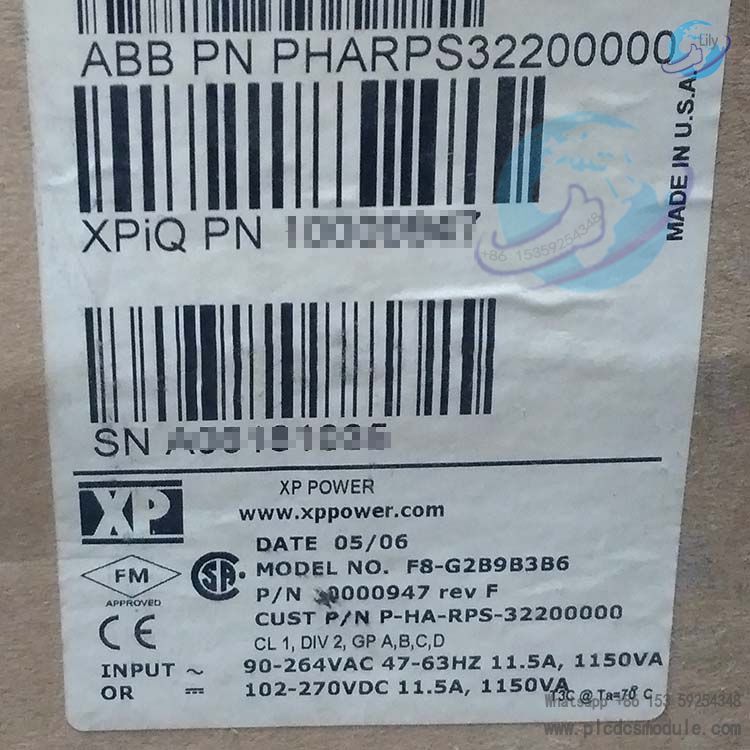

Input Voltage: 100 - 240VAC.
Input Current: 10A.

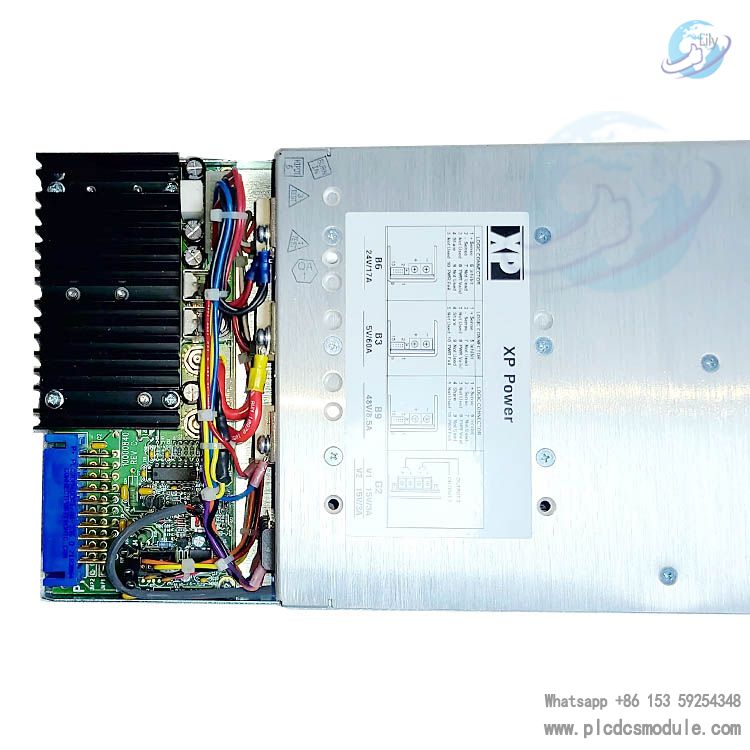

Output Voltages: It provides multiple output voltages including 5V, +15V, - 15V, 24V, and 48V.
Output Currents: They are 60A, 3A, 3A, 17A, and 8.5A respectively.
Output Powers: They are 300W, 45W, 45W, 408W, and 412.5W respectively.
Efficiency: Up to 90%.
Operating Temperature: From - 40°C to +70°C.
Dimensions: 127×254×508mm.
Weight: 1kg.
related documents
Product Features
High Reliability: Designed for operation in continuous industrial environments, it is equipped with short - circuit and overload protection functions.
Wide Input Voltage Range: It supports multiple voltage inputs, facilitating flexible integration into different systems.
Compact and Lightweight: With small dimensions and light weight, it is easy to install and maintain, and can effectively utilize space.
Application Fields
It is mainly used in fields such as industrial automation control and instrumentation.
