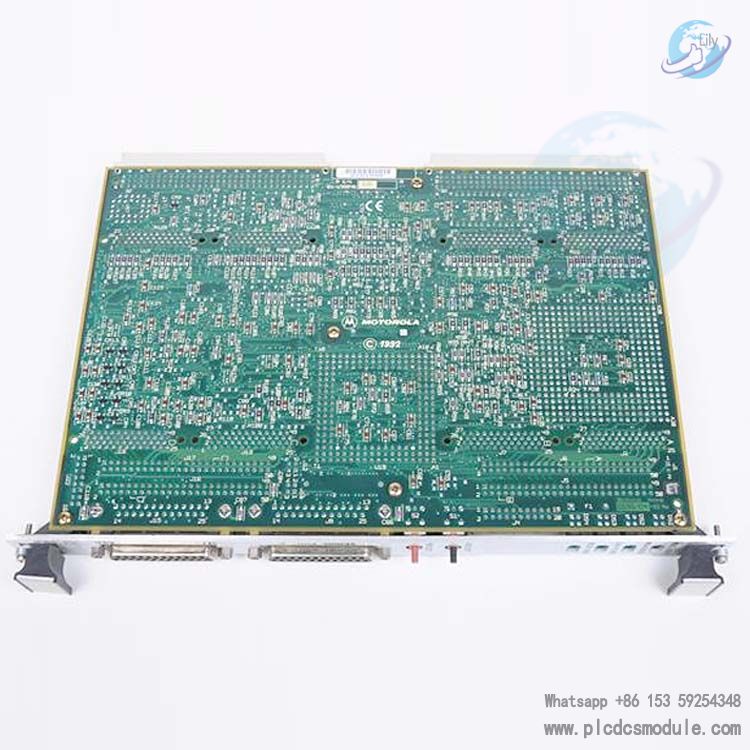

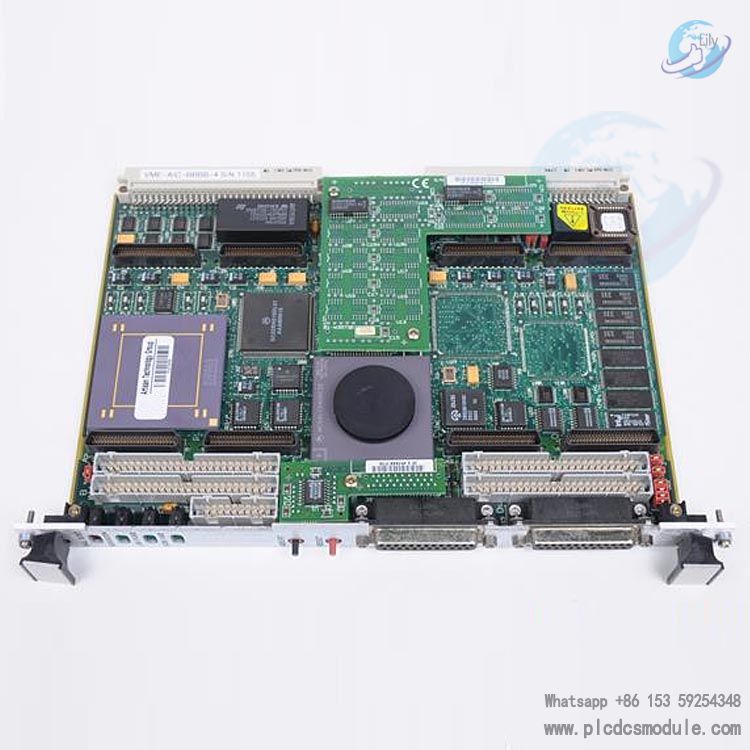

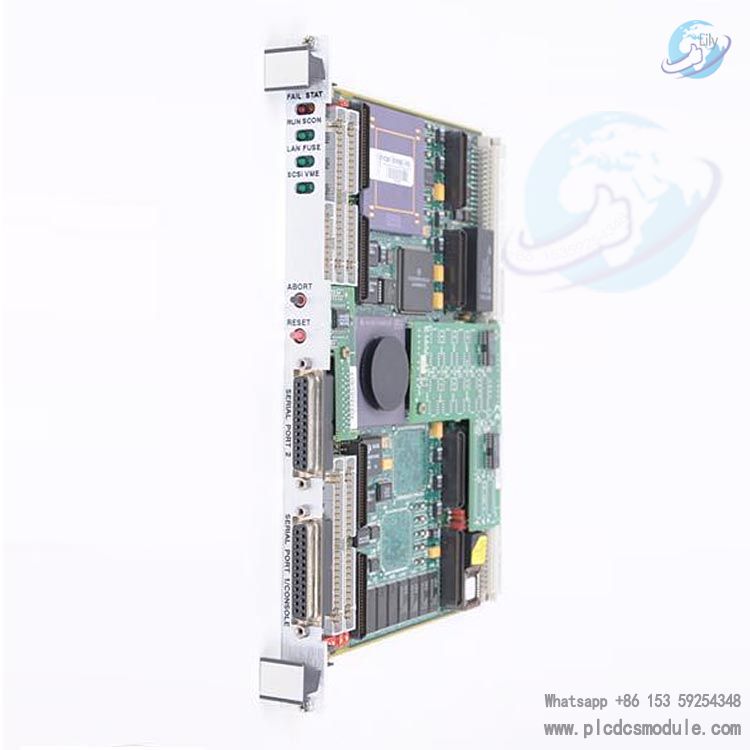

Motorola MVME162-010A double-high VME module.The Motorola MVME162-010A is an embedded controller based on the MC68040 or MC68LC040 microprocessor. It has multiple storage configurations and a rich set of interfaces, such as Ethernet, serial ports, SCSI, etc. This controller realizes various functions through specific ASICs and supports multiple transition boards, which can meet different application requirements. Its front panel is equipped with switches and indicators that can be used for control and status display. The data bus is a 32-bit synchronous bus, which supports multiple transfer modes and communication between devices. The processor has strong performance, with cache and floating-point processing capabilities. Additionally, it offers an option without the VMEbus interface.
Data Sheet:
Motorola MVME162-010A double-high VME module.pdf
Memory Options: The DRAM has options of 1MB, 4MB, and 8MB. Different capacities have different architectures and support parity checking. The SRAM is 512KB and has a battery backup function, with detailed designs for the battery and backup mechanism. There are also EPROM, Flash, and related memory chips to meet storage requirements.
Interface Description: The VMEbus interface is provided by VMEchip2 and has multiple functions. The I/O interfaces are rich, and the serial ports, IndustryPack interfaces, optional LAN Ethernet interfaces, and SCSI interfaces each have their own characteristics and usage requirements.
Local Resources: It includes various timing and interrupt functions, such as programmable tick timers, watchdog timers, software - programmable hardware interrupts. There are also local bus arbitration and timeout functions to ensure the stable operation of the system.
Connectors and Memory Maps: There are multiple connectors for connecting different devices. The memory maps are viewed from the perspectives of the local bus and the VMEbus, with a clear division of address spaces, which is convenient for resource management and access.
When preparing and installing the hardware of the Motorola MVME162-010A, the preparatory work is of great significance. When unpacking, it is necessary to carefully check the integrity of the equipment. At the same time, attention should be paid to avoiding damage to the equipment caused by static electricity. Before installation, it is often necessary to modify the configuration according to actual requirements, such as selecting a suitable SIM module, setting up the system controller, configuring the clock and power supply. These operations can be achieved through jumpers or interface modules. During the installation process, special attention should be paid to the orientation and connection when installing the IndustryPacks module. When installing the MVME162 module into the VME chassis, it is essential to cut off the power supply first. Also, pay attention to the slot position and connection sequence. After the installation is completed, system connection and configuration are still required to ensure the normal operation of the system.
Regarding the debugger information, the 162Bug debugger is a powerful evaluation and debugging tool. It integrates a command - driven debugger, a diagnostic package, and a user interface, and can perform a variety of debugging operations, such as memory display and modification, breakpoint setting, program loading and execution. When installing and starting the 162Bug debugger, the operations should be carried out strictly in accordance with the steps, including setting jumpers, configuring ports, and so on. When starting, the debugger can perform a self - check and provides multiple startup modes, such as Autoboot, ROMboot, Network Boot, etc. Users can flexibly choose according to their own needs. In addition, the 162Bug debugger also supports a variety of practical functions, including restarting the system (through Reset, Abort, Break operations), SYSFAIL* assertion/negation, MPU clock speed calculation, disk and network I/O support, multiprocessor support, etc. It also has a hardware diagnostic function, which provides strong support for the stable operation of the system and problem-solving.
