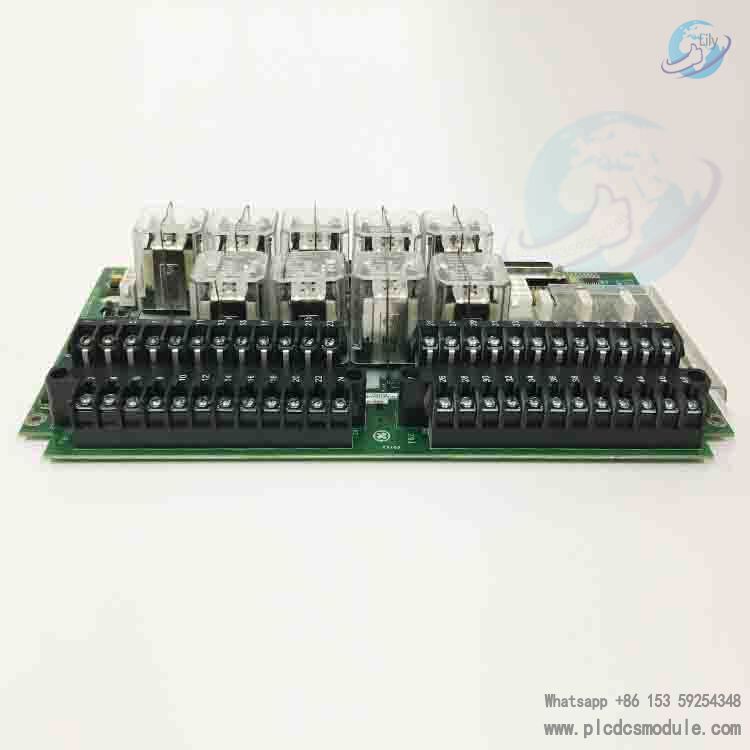

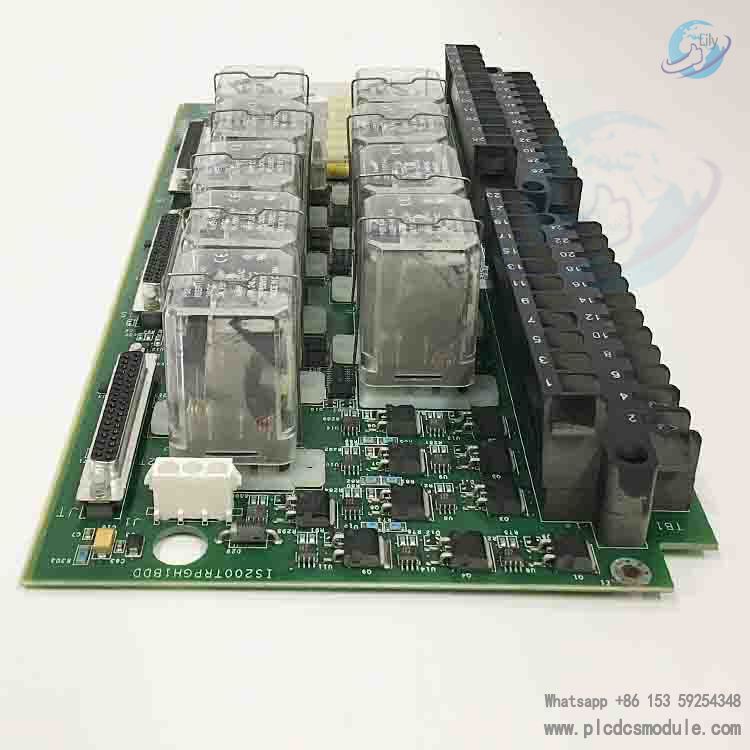

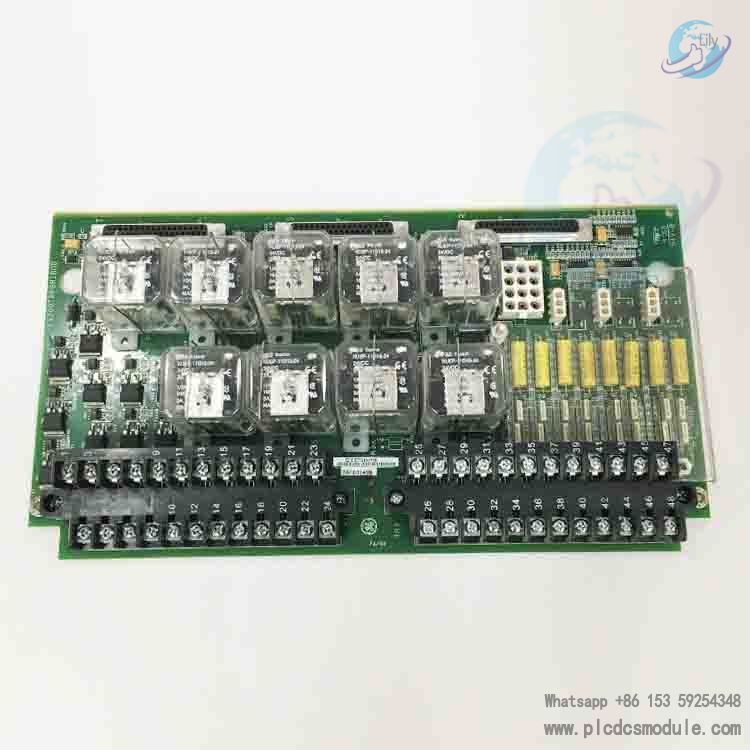

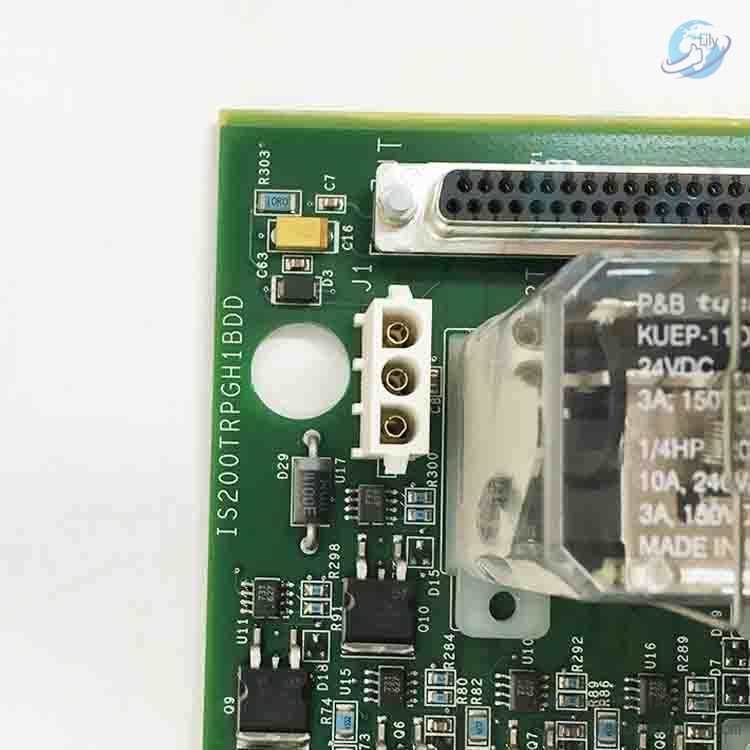

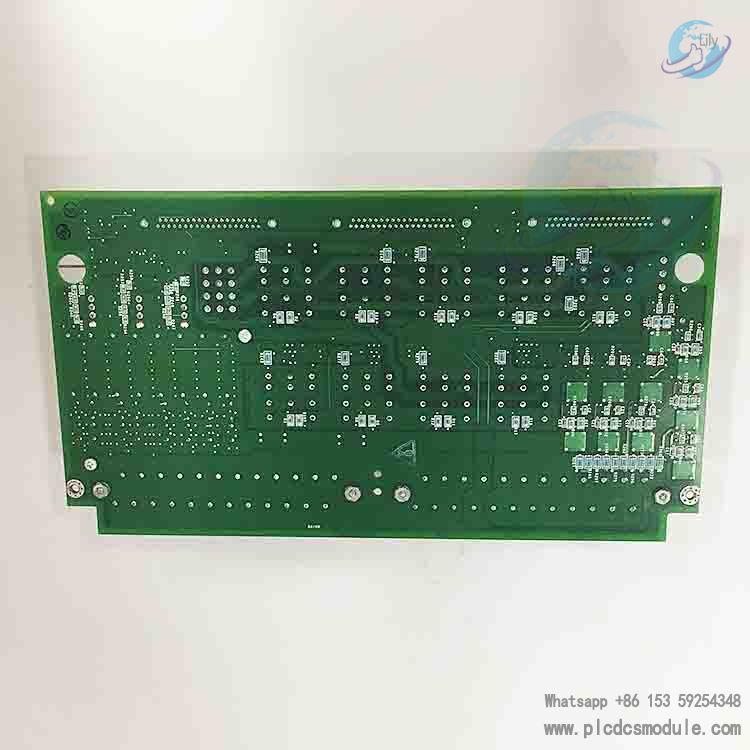

The GE IS200TRPGH1BDD MRPB01499 Mark VI Trip Solenoid Control Board is a critical component of the Mark VI control system. Equipped with 9 magnetic relays and 3 voting circuits, it connects to three trip solenoids for precise control of equipment shutdowns. It accepts inputs from 8 Geiger-Müller detectors, making it suitable for applications like gas turbines. Supporting Triple Modular Redundancy (TMR), it collaborates with I/O controllers to ensure system safety and is widely used for protective control of industrial equipment.
Functional Purpose: This board is primarily designed to control trip solenoids in industrial control systems. By managing the solenoid's on/off states, it enables protective tripping of associated equipment, ensuring prompt shutdown during abnormal conditions to safeguard system integrity. For example, in power systems, it protects critical components like generators and transformers by triggering trips when operating parameters exceed normal limits, preventing equipment damage and accident escalation.
System Compatibility: Part of GE's Mark VI control system, which is widely used for controlling and protecting large turbines, generators, and other equipment in industries such as power generation and chemical processing.
Electrical Characteristics: Features excellent electrical isolation to enhance anti-interference capability and ensure stable operation in complex industrial electromagnetic environments. Operates on industrial-standard power supplies, typically 24V DC (refer to product documentation for specific voltage ratings).
Communication Interfaces: May include Ethernet and/or RS-485 interfaces for data exchange with other control devices or systems. Supports common industrial protocols like Modbus, facilitating integration into automation networks for remote monitoring and control.
Self-Diagnostic Function: Capable of real-time self-monitoring to detect issues such as channel failures or power supply faults. Provides feedback via indicator lights or communication interfaces, enabling maintenance personnel to quickly identify and resolve problems, thus improving system reliability and maintainability.
Operating Environment: Designed to withstand temperature ranges from -20°C to +60°C and relative humidity from 5% to 95% (non-condensing), making it suitable for most industrial field conditions.
Application Industries
The GE IS200TRPGH1BDD MRPB01499 Mark VI Trip Solenoid Control Board is widely applied in critical industrial sectors that require high-reliability safety control, including:
1. Power Generation
Applications: Gas turbines, steam turbines, generators, and transformer protection systems.
Function: Triggers emergency shutdowns during overvoltage, overcurrent, or abnormal temperature conditions to prevent power system failures.
2. Oil & Gas
Applications: Offshore platforms, refineries, and pipeline control systems.
Function: Controls solenoids for emergency shutdown (ESD) valves, preventing leaks or explosions in hazardous environments.
3. Chemical & Petrochemical
Applications: Reactor systems, distillation columns, and processing plants.
Function: Monitors parameters like pressure and temperature, activating trips to avoid chemical process accidents.
4. Manufacturing & Heavy Industry
Applications: Steel mills, cement plants, and large mechanical equipment.
Function: Protects heavy machinery (e.g., rolling mills, crushers) from damage due to overload or mechanical failures.
5. Aerospace & Marine
Applications: Aircraft engine test systems, marine propulsion control.
Function: Ensures safety in high-precision environments by enabling rapid shutdowns during critical failures.
6. Water & Wastewater Treatment
Applications: Pump stations, treatment plants with high-power equipment.
