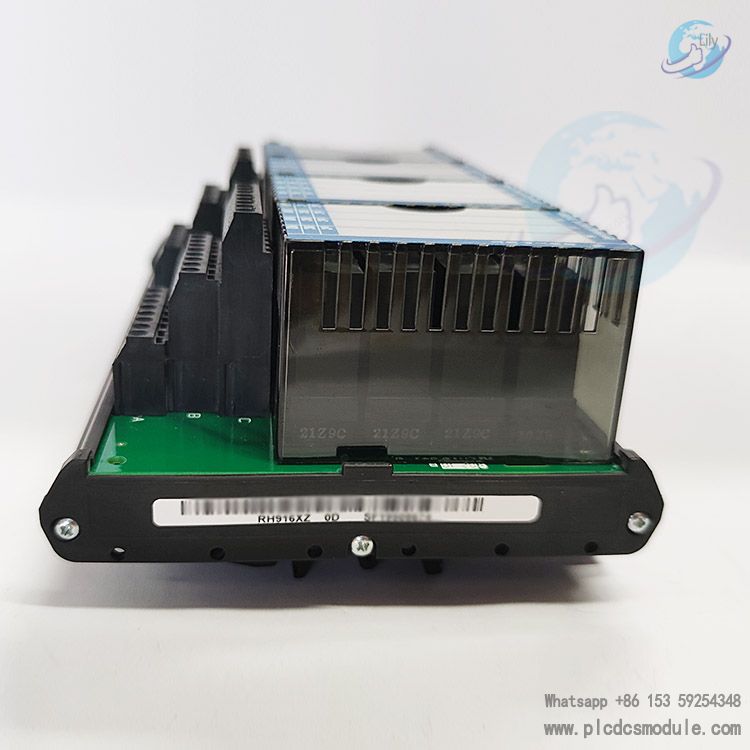

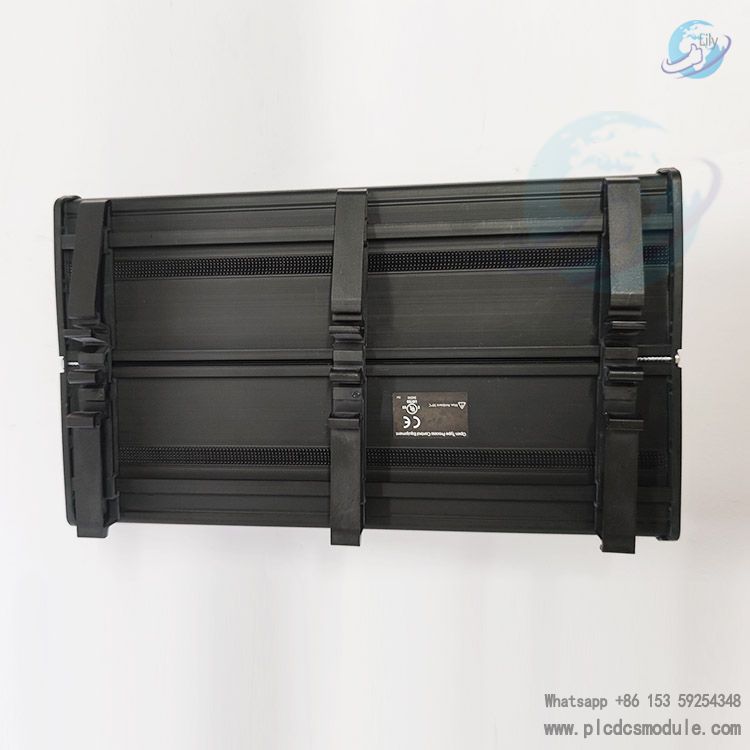

Note; All products on this site are special products, the market price has been fluctuating, the specific customer service offer shall prevail, because the product is a new product, the picture is not a real shot, please confirm with customer service before placing an order model and product, price and other details, the site used, new are for sale, please contact customer service communication. RH916XZ is a supporting termination assembly for the FBM217 discrete input module in the Foxboro Evo process automation system. It plays a key role in signal switching and processing in the system architecture. It works in conjunction with the FBM217 module through a specific connection method, providing a stable physical interface for 32-channel contact sense inputs and ensuring the accuracy of signal transmission between field devices and the module. Its design fully takes into account the complexity of the industrial environment, and the combination with the FBM217 module can adapt to the signal requirements in various industrial scenarios. It is an important link for the effective access of discrete input signals to the automation control system, providing basic hardware support for the stable operation of the entire system.
DATA SHEET
RH916XZ.pdf
Replacement Relationship: RH916XZ replaces P0916XZ and P0916PW.
Material and Temperature Range: Made of polyamide (PA) material, with an operating temperature range of -20 to +70°C (-4 to +158°F). It should be noted that its polyamide RL replaces PVC RL, and this component does not comply with the RoHS standard.
Compatible Modules: Suitable for FBM217 discrete input modules.
Input Signal Type: 32-channel contact-sensing input, with 24V DC contact wetting provided by FBM. It is a passive through-type, and achieves group isolation when combined with FBM217.
Logic State Voltage
- Logic zero (Off-State): 0 to 5V DC.
- Logic one (On-State): 15 to 30V DC.
Isolation Characteristics: As one of the terminal components providing group isolation, the input channels are group-isolated from earth (ground). The combination of the module and this terminal component can withstand 600V AC voltage applied between the group-isolated channels and earth for 1 minute without damage.
Mounting Method: Installed on DIN rails, compatible with various DIN rail types such as 32mm (1.26 inches) and 35mm (1.38 inches).
Dimensions: Overall width is 216mm (8.51 inches), height is 125mm (4.93 inches), height above the DIN rail is 72mm (2.83 inches), and depth is 80mm (3.13 inches).
Weight: Approximately 420g (0.93 pounds).

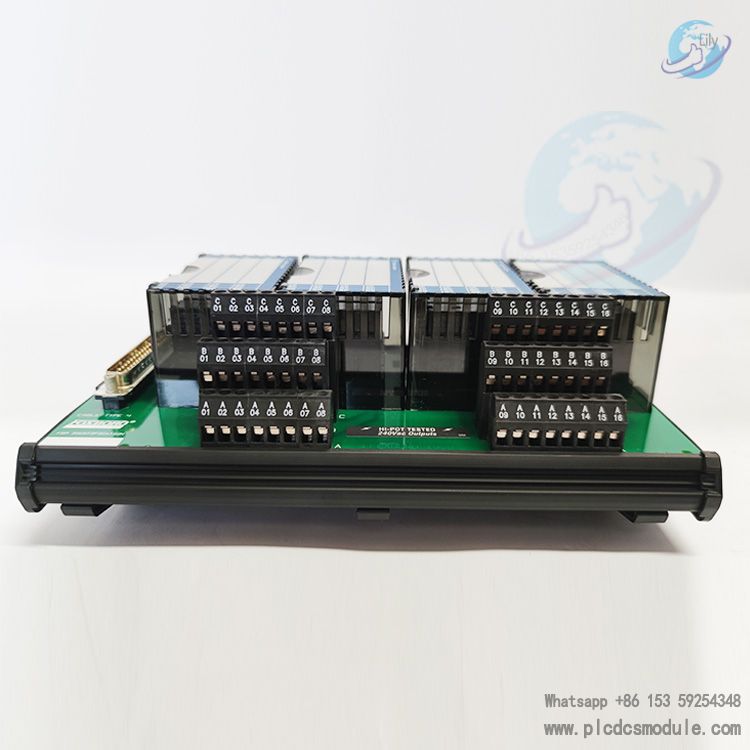

Terminal Type: Uses compression terminals (termination type C).
Supported Cable Types: Type 4 cables are used from the backplane to the main terminal component.

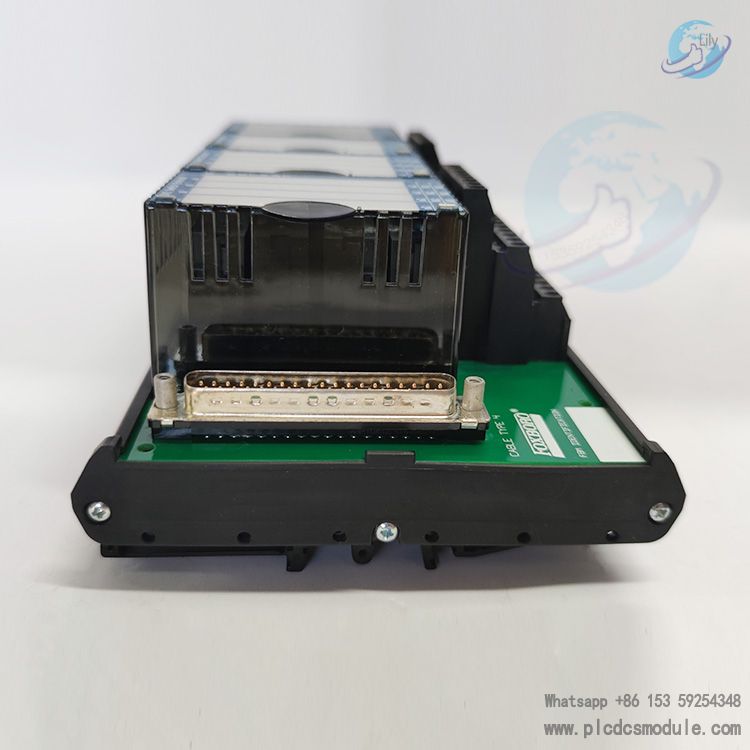

Cable Connection Method: The backplane end is a 37-pin D-subminiature plug, and the terminal component end is a 37-pin D-subminiature socket.
Cable Length: Up to 30m (98 feet).
Cable Material: Polyurethane or low-smoke zero-halogen (LSZH) materials can be used.
It is mainly used with the FBM217 module to realize the connection and processing of 32-channel contact-sensing input signals. It plays a role in signal transmission and isolation in industrial automation control, and is especially suitable for occasions requiring group isolation and a specific voltage range.
