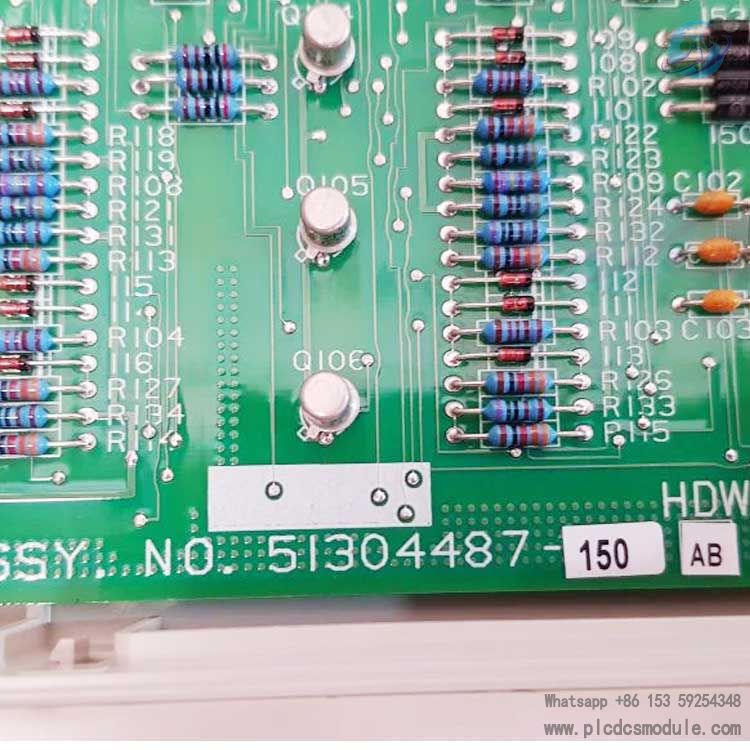

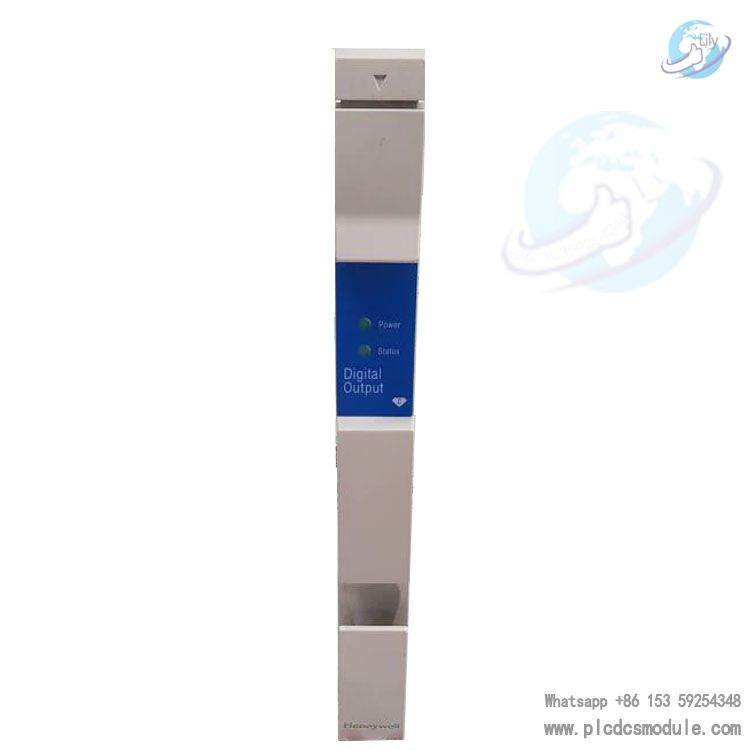

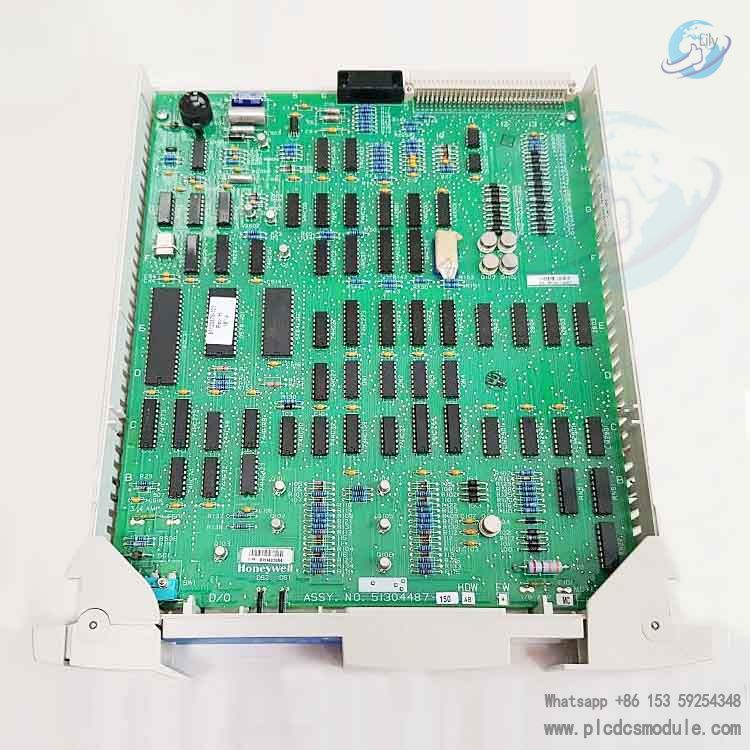

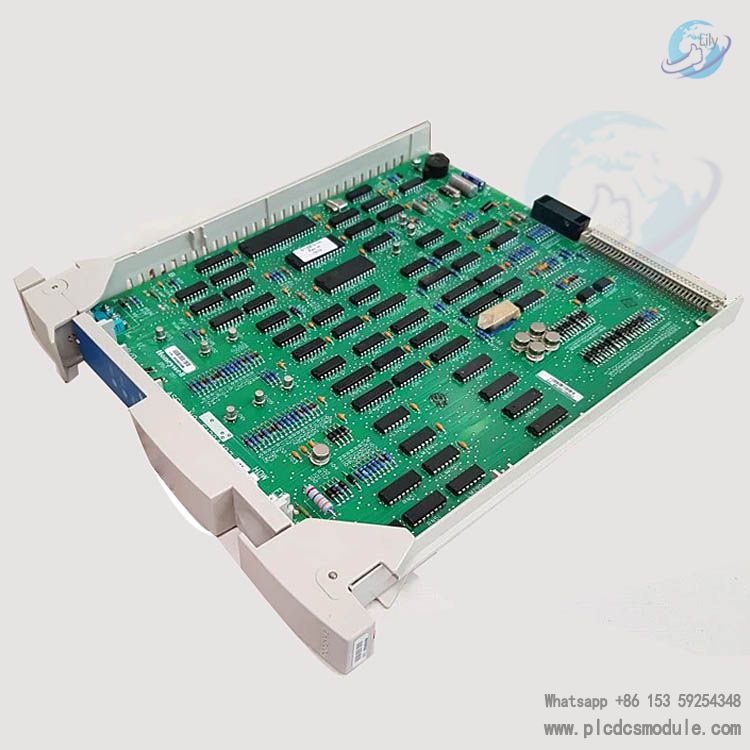

Note; All products on this site are special products, the market price has been fluctuating, the specific customer service offer shall prevail, because the product is a new product, the picture is not a real shot, please confirm with customer service before placing an order model and product, price and other details, the site used, new are for sale, please contact customer service communication. The Honeywell MC-PDOX02 51304487-150 16-point digital output module belongs to the TotalPlant Solution (TPS) system and is suitable for Process Manager (PM), Advanced Process Manager (APM), and High Performance Process Manager (HPM). It is a conformal coated version, which can resist corrosion from humidity and certain gases, making it applicable to harsh environments. This module realizes connection with the process through Field Termination Assemblies (FTAs), supports various output types and different voltage ranges, and can be matched with multiple FTA models, providing digital output functions for industrial process control.
DATA SHEET
Honeywell MC-PDOX02 51304487-150.pdf
Basic Information
Type: 16-point digital output processor

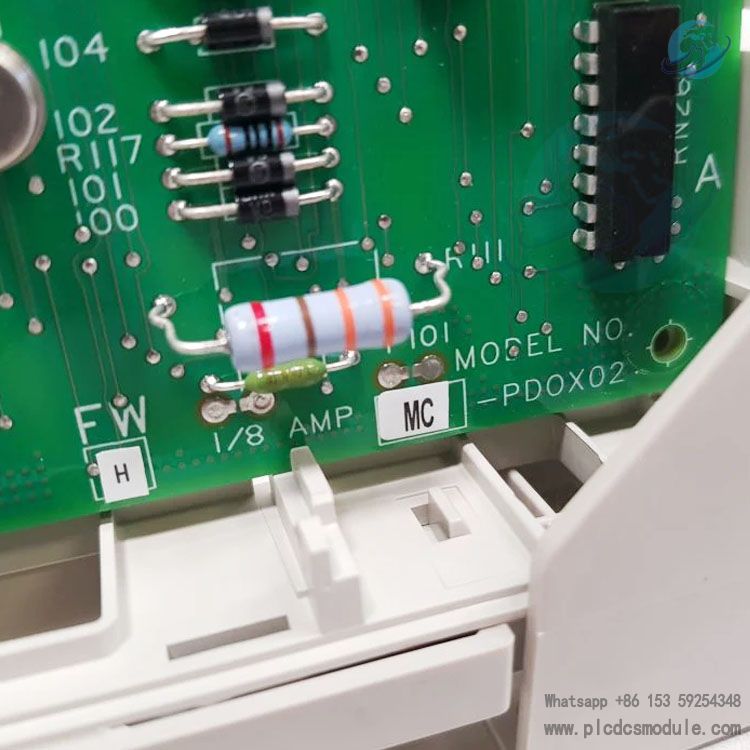

Coating Status: The "MC" model indicates it is conformal coated. (Conformal coating is a thin plastic film covering that resists corrosion from humidity and certain gases, making it suitable for harsh (G3) atmospheric environments.)
Affiliated System: Honeywell's TotalPlant Solution (TPS) system, applicable to Process Manager (PM), Advanced Process Manager (APM), and High Performance Process Manager (HPM).
Output Channels and Types
Number of Channels: 16 output channels, with outputs being independent of each other and capable of using separate load power supplies.
Output Types:
- Solid-state switches: Including solid-state switch outputs with different voltage ranges such as 3-30 Vdc, 31-200 Vdc, and 120/240 Vac, using normally open power transistors or triac switches.
- Electromechanical relays: Relay outputs with voltage ranges like 120 Vac/125 Vdc and 240 Vac/125 Vdc, featuring silver alloy contacts, available in normally open (Form A) or normally closed (Form B) configurations.
- 24 Vdc non-isolated output: Using open-collector (current sinking) NPN transistors.
Load Parameters
Load Voltage Ranges:
- 3-30 Vdc (some models support 5-30 Vdc)
- 31-200 Vdc
- 120/240 Vac
- 24 Vdc (non-isolated)
- 120 Vac/125 Vdc, 240 Vac/125 Vdc (relays)
Maximum Continuous Load Current:
- Solid-state switches: 1.25 Adc (0.5 Adc for some models)
- Relays: 5 A rms @ 120 Vac (resistive), 2.5 A (rms) @ 240 Vac (resistive), etc.
- 24 Vdc non-isolated: 100 mA per output
Minimum Load Current:
- Solid-state switches: 10 mAdc
- Relays: 100 mA
- 24 Vdc non-isolated: 1 mA per output
Isolation and Protection
Isolation:
- 1500 V (rms) (field terminals to system power common)
- Isolation between relay output channels and between channels and PM/APM/HPM common.
Overcurrent Protection: Each output channel is equipped with a fuse, with specifications varying by model, such as 2.5 A 125 V slow-blow fuses and 1 A 125 V slow-blow fuses.
Surge Withstand Capability: Complies with the ANSI/IEEE C37.90.1-1978 standard.
Switching Characteristics
On-State Voltage Drop:
- Solid-state switches: 1.6 V max. (3.0 V max. for some models) @ maximum load current
- Relays: Varies by specific model
- 24 Vdc non-isolated: 2 V max. @ maximum load current
Off-State Leakage Current:
- Solid-state switches: 10 µAdc max. (100 µAdc max. for some models)
- Relays: Varies by specific model
- 24 Vdc non-isolated: 100 µA max. @ maximum output voltage
Switching Time:
- Solid-state switches: 1 ms max. (turn-on / turn-off)
- Relays: 10 ms typical, 15 ms maximum (turn-on / turn-off)
- 24 Vdc non-isolated: 10 µs (turn-on / turn-off)
Fault Status and Redundancy
Output Status in Fault: Configurable as hold or unpowered.
Redundancy: Redundant configuration is not supported.
Compatible FTA Models
Including MU-TDON12, MU-TDON52, MU-TDOD13, MU-TDOD53, MU-TDOD14, MU-TDOD54, MU-TDOD23, MU-TDOD63, MU-TDOA13, MU-TDOA53, MU-TDOR12, MU-TDOR52, MU-TDOR22, MU-TDOR62, etc. Different FTAs support different output types and parameters.
Other Features
Contact Suppression (Shunting): Depending on the output type, methods such as diode clamping, resistor/capacitor snubbers with varistors are adopted.
Output Readback Check: Supported, which can detect whether the output is correctly transmitted to the field.
Installation: Connected to the IOP via FTA. The size and terminal type of FTA vary by model, with terminal types including compression type, screw type, etc.
Honeywell MC-PDOX02 51304487-150 Digital Output Module
