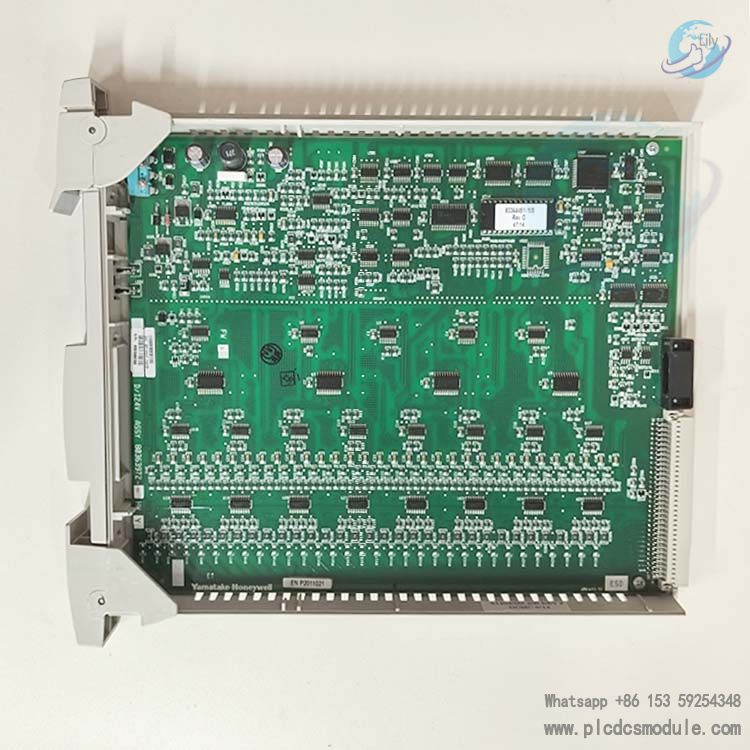

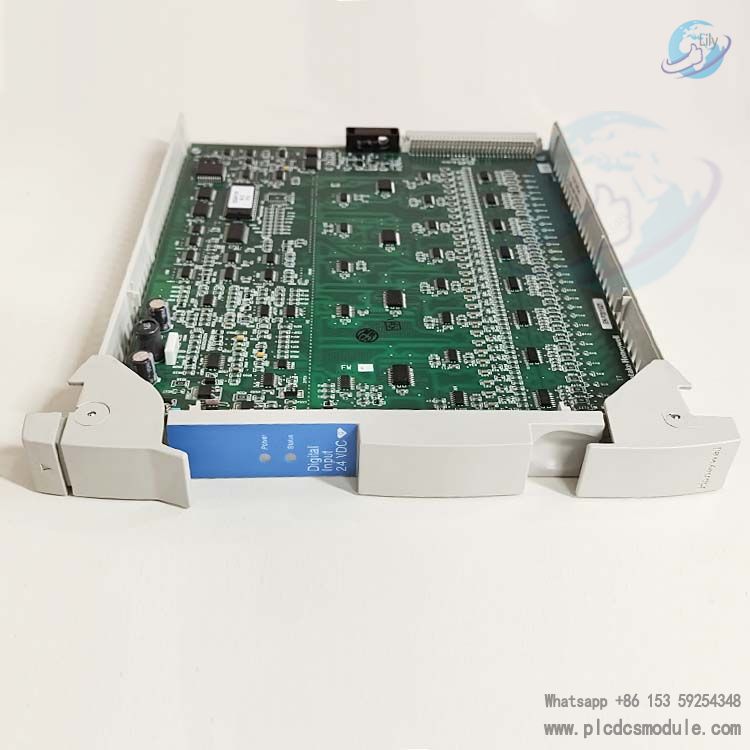

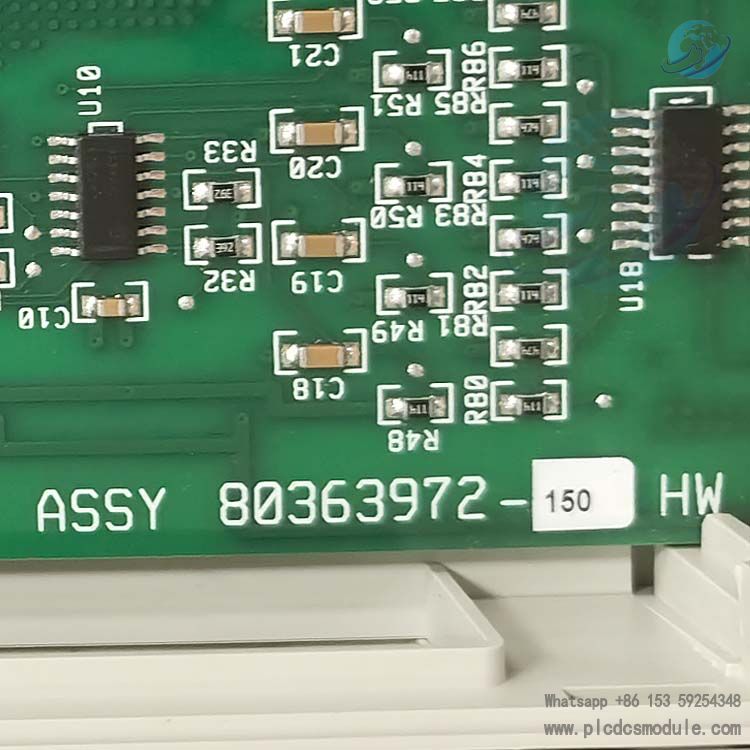

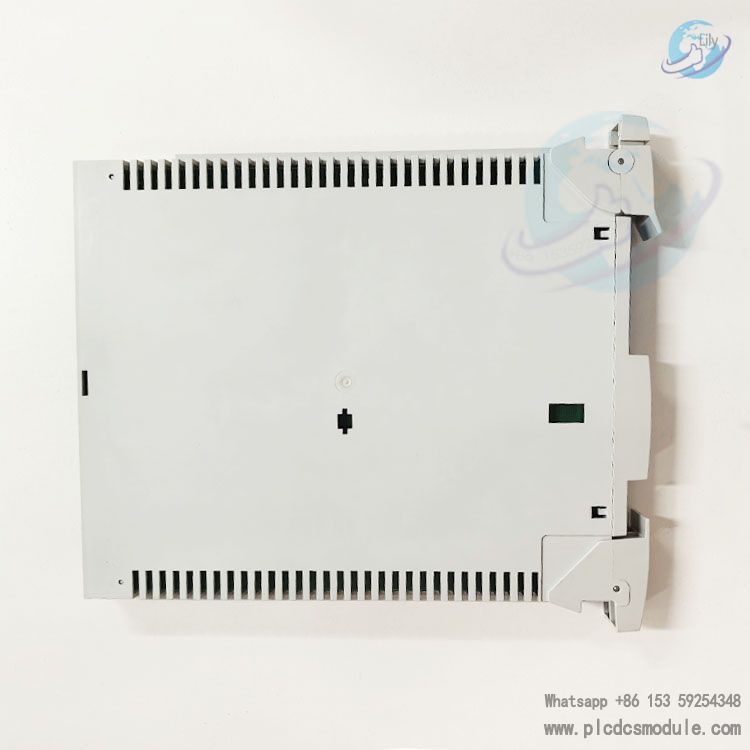

HONEYWELL MC-PDIY22 ASSY 80363972-150 Digital Input 24 Vdc Processor (32 Inputs) Module.The HONEYWELL MC-PDIY22 ASSY 80363972-150 Digital Input Module integrates advanced signal processing algorithms, which can ensure reliable data acquisition and transmission in harsh industrial environments. It can efficiently process the 24 Vdc signals input by sensors or switches, convert them into digital signals recognizable by the control system, and transmit them to the upper-level control unit for further processing and analysis.
Technical Specifications
Input Signal Types:
Dry Contact: Supports passive contact inputs (such as mechanical switches, relays).
Wet Contact: Supports active 24V DC signal inputs (such as PLC outputs, proximity switches).
Input Voltage Range: Typically 10-30V DC (compatible with the 24V industrial standard, subject to the manual for specific details).
Input Current: The typical value is about 3-10mA per channel (depending on the input configuration).
Isolation Protection:
Isolation between Channels: Optoelectronic isolation (to prevent signal interference and ground loop issues).
Isolation between the Module and the System: Achieved through the backplane or communication interface for electrical isolation.
Mechanical and Installation
Installation Method: DIN rail installation (in line with industrial cabinet standards).
Wiring Method: Screw terminals or plug-in terminals (depending on the model version).
Indicator Lights: Independent LED for each channel (indicating the input status, for example, green = activated, off = not activated).
Environmental Adaptability
Operating Temperature: -40°C to +70°C (wide industrial temperature design).
Protection Level: Usually IP20 (suitable for the interior of control cabinets, dust-proof but not waterproof).
Certifications: Complies with CE, UL, ATEX (explosion-proof certification may be available depending on the application environment).
Weight: 0.51 kilograms
