Note; All products on this site are special products, the market price has been fluctuating, the specific customer service offer shall prevail, because the product is a new product, the picture is not a real shot, please confirm with customer service before placing an order model and product, price and other details, the site used, new are for sale, please contact customer service communication. XVS-440-10MPI-1-10 is a touch screen product under Eaton, used in the field of industrial automation. Belonging to the XVS-440 series, it features a 10.4-inch display screen and creates an intuitive touch interaction interface for users. Operators can conveniently operate the control system and obtain real-time data and information through it.
XVS-440-10MPI-1-10 is equipped with various operating functions, which can meet different work requirements such as equipment control, parameter setting, data input, and alarm handling. In addition, it can present data in diverse visual forms, helping users intuitively understand the operating status of the equipment.
DATA SHEET
EATON XVS-440-10MPI-1-10.pdf

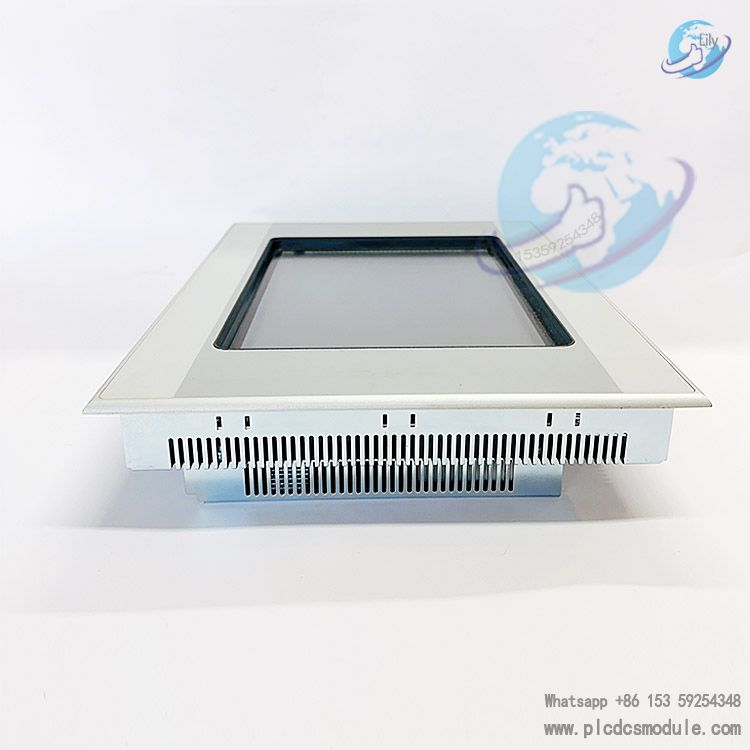

The EATON XVS-440-10MPI-1-10 features a metal anodized casing, which is robust and durable, effectively resisting collisions and wear in industrial environments. Its standard front panel is paired with a standard film, resulting in an overall simple and elegant design. The front dimensions of the device are 345 mm in width, 260 mm in height, and 62 mm in installation depth, with a weight of 3.7 kg. This size and weight design not only ensures the stability of the device but also makes it easy to install and integrate into various industrial control cabinets.
Display Screen: The device is equipped with a 10.4-inch TFT color display with a resolution of VGA (640×480 pixels) and a visible area of 211×158 mm. The screen can be adjusted to display 65,536 colors or 256 colors, with a contrast ratio of 350:1 and a brightness of 350 cd/m². The LED backlight not only provides clear and vivid display effects but also supports software dimming, with a service life of up to 50,000 hours, offering users a long-lasting and stable visual experience.
Touch Technology: It adopts infrared touch technology with 79×59 logical channels, combined with laminated safety glass (non-reflective). This not only ensures sensitive touch response but also provides excellent scratch resistance, ensuring accurate operation even in complex industrial environments.
Memory Configuration: The internal memory includes 64 MB DRAM, which supports the operation of the operating system, programs, and data; approximately 1.5 MB Flash for data backup to ensure the security of important data; and approximately 32 KB NVRAM for retaining critical data. In addition, the device is equipped with 2 CompactFlash card slots (supporting Type I/II) for expanding external storage, meeting different users' needs for data storage capacity.
Clock Backup: The real-time clock backup uses a non-replaceable soldered CR2032 battery. Even in the event of a power outage, it can ensure accurate recording of clock data, typically achieving up to 10 years of power-off backup.
Operating System and Software: The operating system is Windows CE, but a license and a CompactFlash card are required for normal operation. In terms of engineering software, it supports various visualization and PLC programming software such as GALILEO EPAM, XSOFT-CODESYS-2, and XSOFT-CODESYS-3, providing strong support for users in system development and function customization.

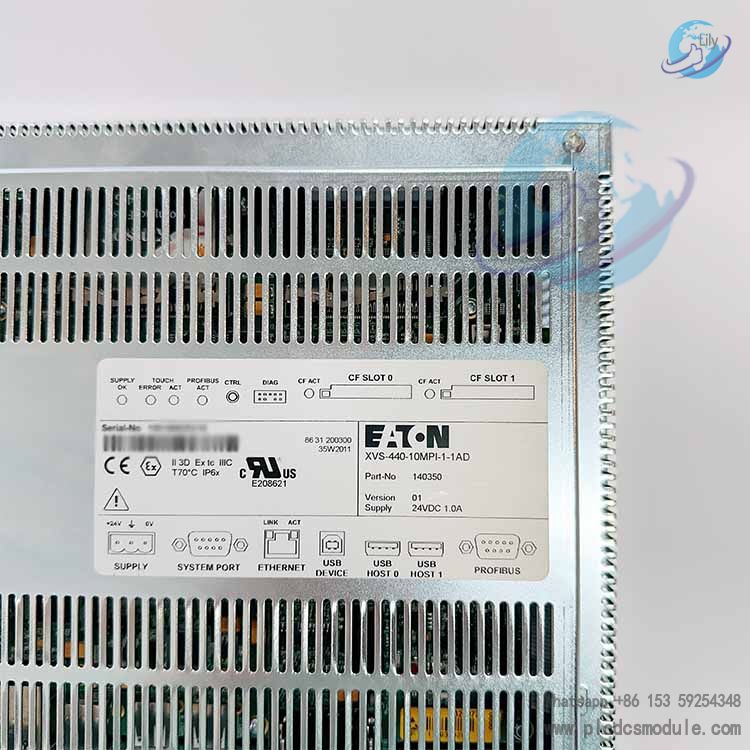

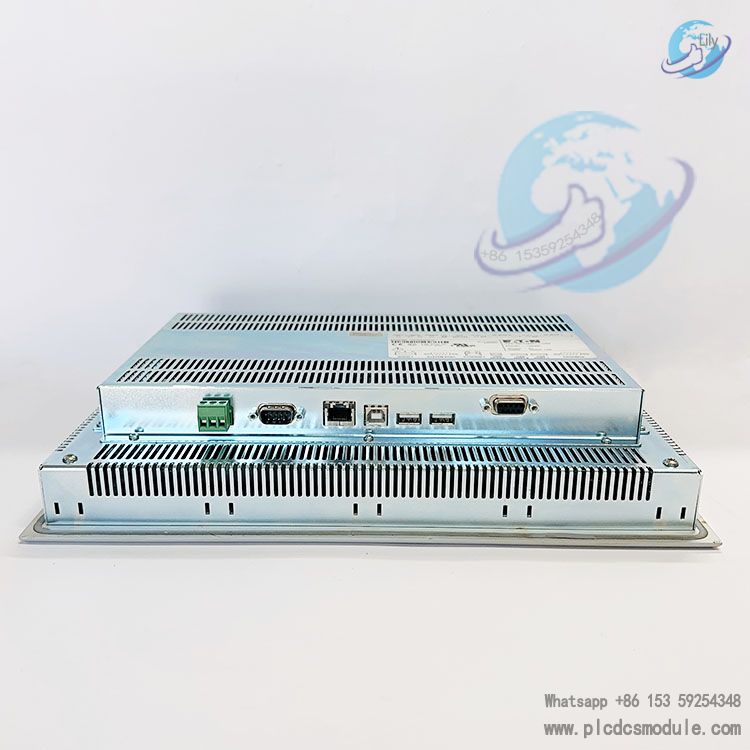

Rich Built-in Interfaces: The device is equipped with 1 Ethernet interface (100Base-TX/10Base-T) for high-speed data transmission with network devices; 1 RS232 interface (9-pin SUB-D plug, non-galvanically isolated) for connecting various serial devices; 1 PROFIBUS/MPI interface to meet the needs of industrial fieldbus communication; 2 USB host interfaces (USB 2.0, 1.5 - 12 Mbit/s, non-galvanically isolated) for external USB devices such as U disks and printers; and 1 USB device interface (USB 1.1, non-galvanically isolated) for convenient data interaction with other devices.
Flexible Function Expansion: Users can install a PLC license via part number 140390 (LIC-PLC-MXP-MEDIUM) to achieve more powerful logic control functions. Meanwhile, the device supports multiple communication protocols such as PROFIBUS, MODBUS, and EtherNet/IP, enabling easy communication with industrial equipment of different brands and types to build complex industrial automation systems.
Power Supply Requirements: The rated supply voltage is 24 V DC SELV (Safety Extra-Low Voltage), with an allowable voltage fluctuation range of 20.4 - 28.8 V DC (the absolute range with ripple is 19.2 - 30.0 V DC). It can also work normally under 35 V DC (duration < 100 ms). For voltage dips, it allows ≤10 ms at the rated voltage (24 V DC) and ≤5 ms at undervoltage (20.4 V DC). This wide voltage adaptation range ensures stable operation of the device in different power environments.
Power Consumption and Protection: The device typically consumes 14 W of power, with a maximum of 24 W, and the heat dissipation is 24 W. It is equipped with reverse polarity protection to effectively prevent damage caused by incorrect power connection. There is also a built-in inaccessible fuse to further ensure the electrical safety of the device. However, it should be noted that the device has no potential isolation, and 0 V is connected to the housing potential.
Protection Rating: The front of the device has an IP65 protection rating, which can effectively prevent dust and water, and resist low-pressure water jets from all directions; the rear has an IP20 protection rating, which can prevent the intrusion of solid foreign objects larger than 12mm, meeting the requirements of industrial environments.
Environmental Adaptability: The operating temperature range is 0 - 50°C, the storage/transportation temperature range is -20 - 60°C, and the relative humidity is 10 - 95% (non-condensing). It can operate stably whether in high-temperature industrial workshops or cold outdoor environments. In addition, the device's mechanical resistance complies with IEC 60068-2-27 (mechanical shock) and IEC 68-2-6 (vibration) standards, enabling it to withstand a certain degree of mechanical vibration and shock.
Installation and Functions
Installation Method: Only embedded installation is supported, allowing for tight integration into industrial control cabinets or operation panels. DIN rail mounting, wall mounting, or direct mounting are not supported.
Other Functions: Supports message indication and a messaging system, including buffering and confirmation functions, to help users stay informed of system status and event information in a timely manner. It can display process values, input default process values, and support recipe management, facilitating parameter setting and adjustment according to different production needs. Equipped with 200-level password protection, it effectively ensures system security. Printer output is supported for convenient data recording and report generation. Up to 100 online languages are available, meeting the needs of users in different regions. In addition, additional software components can be loaded to further expand the device's functions. However, it should be noted that this device is not suitable for use in safety-related applications.
The EATON XVS-440-10MPI-1-10 is mainly used in industries such as machinery manufacturing, food and beverage, energy and power, as well as water treatment, chemical engineering, and pharmaceuticals. It provides users with efficient and stable solutions, helping enterprises improve production efficiency and achieve intelligent production.
