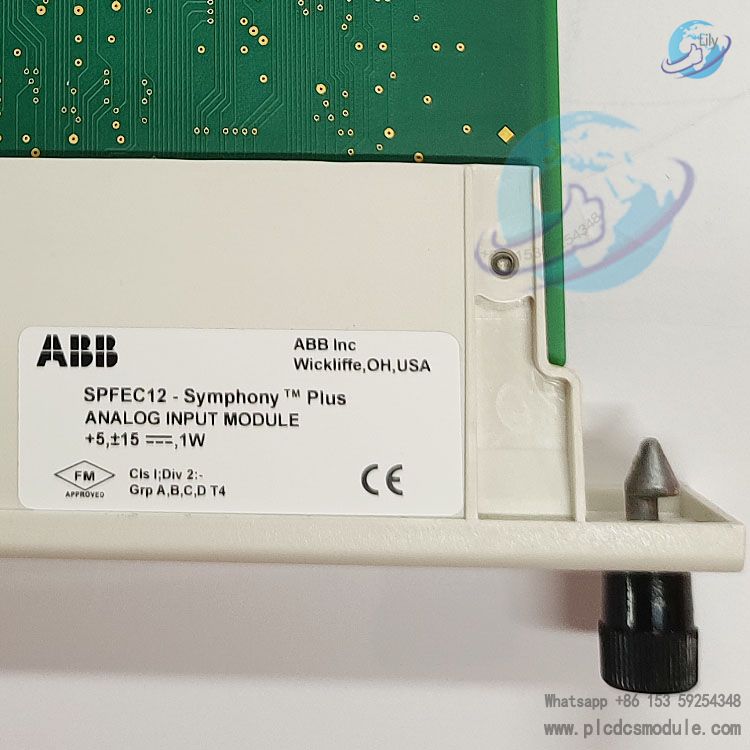

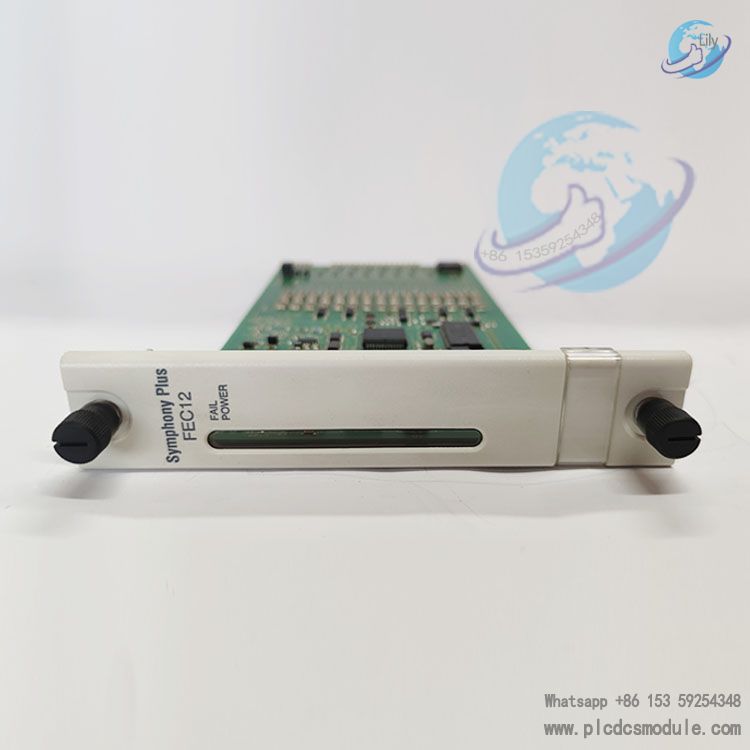

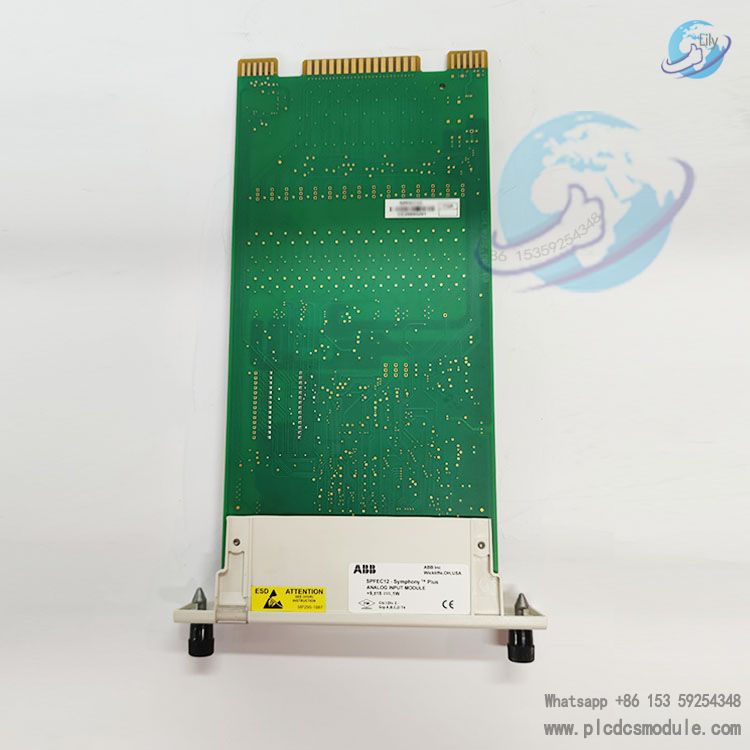

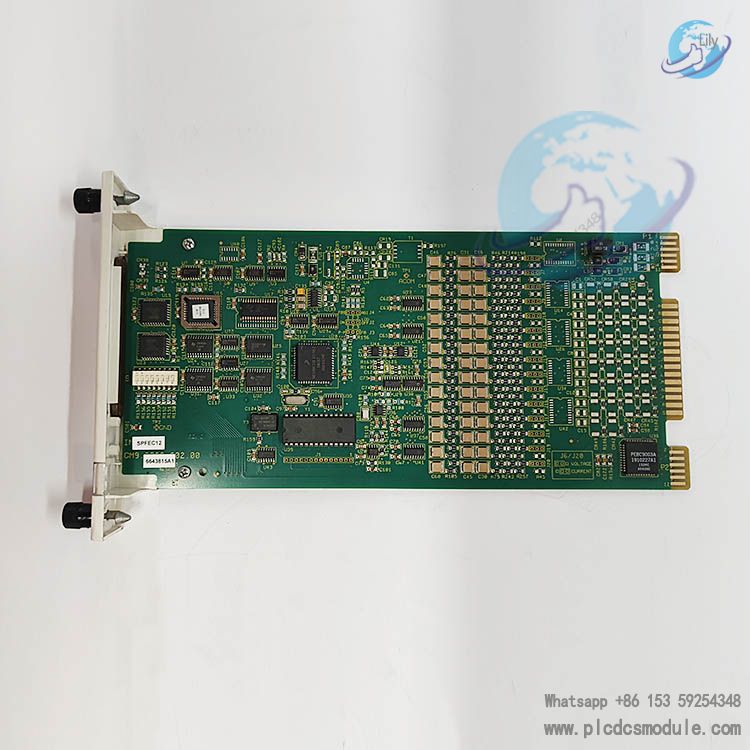

The Bailey SPFEC12 15-channel analog input module is part of the HR Series (Harmony Rack) I/O module family for the ABB Ability Symphony Plus control system. Serving as a critical signal interface between the Symphony Plus Distributed Control System (DCS) and field devices, this module accurately acquires standard industrial analog signals such as 4-20mA current signals and 1-5V voltage signals. It is widely used in process industry scenarios including power generation, petrochemicals, metallurgy, and water treatment, providing stable and reliable on-site data input to the controller and supporting precise monitoring and closed-loop control of industrial processes.

As a classic analog input module in the HR Series, the SPFEC12 features high compatibility and mature stability. It can be directly integrated into the existing Symphony Plus HR Series control system without large-scale hardware architecture modifications. Meanwhile, it supports pairing with ABB's dedicated termination units (e.g., NTAI05 analog input termination unit) to achieve safe switching of on-site wiring and signal protection, meeting the reliability requirements for long-term continuous operation in industrial environments.

data sheet

ABB-SPFEC12-Analog-Input-Module.pdf

ABB Symphony_Plus_Product.pdf

Performance Specifications

1. Core Electrical Parameters

• Number of Channels: 15 independent analog input channels, supporting channel grouping configuration.
• Input Signal Types:
• Current signals: 4-20 mA
• Voltage signals: 1-5 VDC, 0-1 VDC, 0-5 VDC, 0-10 VDC, -10 to +10 VDC
• Resolution: 14-bit A/D conversion resolution, ensuring signal acquisition accuracy.
• Input Impedance:
• Current input mode: 250 Ω (standard matching impedance)
• Voltage input mode: ≥10 MΩ
• Linear Error: ±0.1% full scale (typical value, @25°C).
• Temperature Drift Coefficient: ±0.005% full scale/°C (within the range of -10°C to +60°C).
• Sampling Rate:
• Single-channel sampling period ≤100 ms
• 15-channel polling period ≤1.5 s (typical value)

2. Power Supply and Power Consumption

• Operating Voltage: +5 VDC (±5%), +15 VDC (±5%), -15 VDC (±5%).
• Typical Power Consumption:
• +5 VDC: 85 mA
• +15 VDC: 25 mA
• -15 VDC: 20 mA
• Total power consumption: approximately 1.1 W
• Auxiliary Power Supply: No external auxiliary power supply required; power is directly obtained from the HR Series Module Mounting Unit (MMU).

3. Environmental and Protection Parameters

• Operating Temperature Range: 0°C to 70°C (32°F to 158°F).
• Storage Temperature Range: -40°C to 85°C (-40°F to 185°F).
• Relative Humidity:
• 5% - 90% (non-condensing, below @55°C)
• 5% - 40% (non-condensing, @55°C - 70°C)
• Vibration Protection: 0.137 mm amplitude at 5-60 Hz; 1.0 G acceleration at 60-150 Hz (compliant with IEC/EN 60068-2-6).
• Electromagnetic Compatibility (EMC): Compliant with EN 61000-6-2 industrial environment immunity standard; radiation interference resistance: 10 V/m (EN 61000-4-3).
• Dimensions and Weight: Width: 35.56 mm × Height: 177.80 mm × Depth: 298.45 mm; Net weight: approximately 0.5 kg.

Advantages and Features

1. High Reliability and Signal Stability

• Multi-voltage Adaptation: Supports a wide range of voltage signals from -10 to +10 VDC and standard 4-20 mA current signals, compatible with most industrial analog sensors without the need for additional signal converters.
• Low Temperature Drift Design: With a temperature drift coefficient of ±0.005% full scale/°C, it ensures acquisition accuracy even in industrial on-site environments with temperature fluctuations (such as high temperatures in cabinets in summer and low temperatures in winter).
• EMC Interference Resistance: Complies with industrial-grade electromagnetic interference resistance standards, capable of withstanding electromagnetic radiation and conducted interference generated by on-site equipment like motors and frequency converters to avoid signal distortion.

2. Convenient System Integration and Compatibility

• Seamless Adaptation to HR Series: Directly installed on the Symphony Plus HR Series Module Mounting Unit (MMU), it is perfectly compatible with HR Series controllers such as BRC410 and SPC810ev, without the need to modify system communication protocols.
• Matching with Standardized Termination Units: Used in conjunction with the NTAI05 analog input termination unit, it enables safe switching of on-site wiring while facilitating fault diagnosis and cable maintenance.

3. Low Maintenance and Long Service Life

• No On-site Calibration Required: Precise calibration is completed before leaving the factory, and no frequent adjustment is needed during on-site use, reducing operation and maintenance workload.
• Mature Hardware Design: Adopts industrial-grade components and an enhanced PCB layout, with a Mean Time Between Failures (MTBF) of over 100,000 hours, meeting the long-term operation requirements of process industries.

FAQ (Frequently Asked Questions)

Q: Why is there no signal on a specific channel of the SPFEC12?

A: ① Check the wiring and sensor power supply;

② Measure the sensor signal. If the signal is normal, inspect the connecting cable;

③ Test with a normal signal source. If there is still no data, the channel may be damaged and the module needs to be replaced.

Q: Why does the collected signal fluctuate frequently?

A: ① Ensure the cable shielding layer is grounded at one end;

② Maintain a wiring distance of ≥30 cm between the module cables and interference sources;

③ Increase the channel filtering time through software.

Q: Can the SPFEC12 directly collect thermocouple mV-level signals?

A: No. It is necessary to use a transmitter to convert the signal to 4-20mA/1-5V. For direct collection, the ABB SPASI23 module is recommended.
