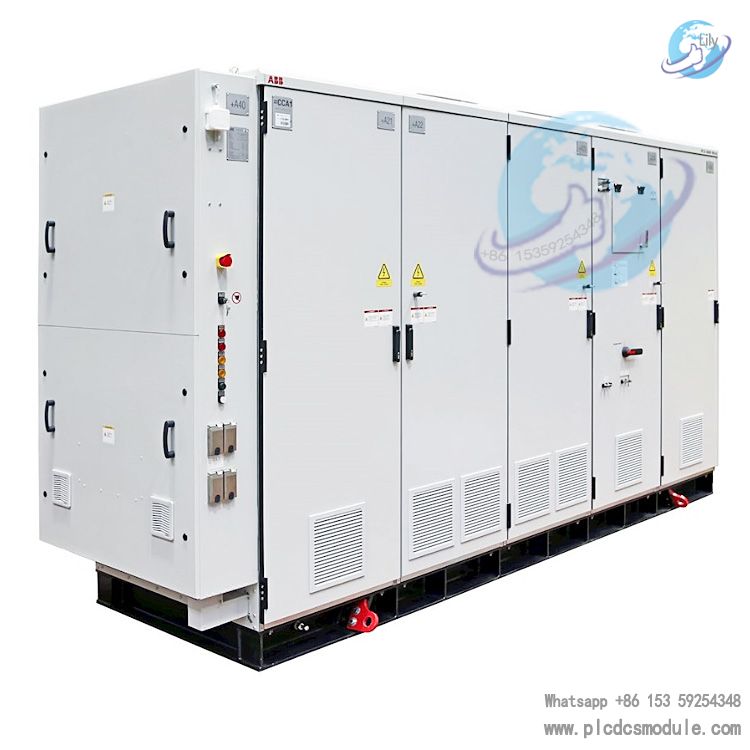

ABB PCS6000 Voltage Converters

Overview

As a high-performance medium-voltage solution tailored for large-scale wind power applications, the ABB PCS6000 Voltage Converters stand out in the global wind power market with advanced technology, excellent adaptability, and reliable performance. Designed specifically for large and extra-large wind turbines—including offshore models—it supports a power range of 4-15 MW (with up to 12 MW for dedicated offshore scenarios) and features a 3.3 kV voltage level. By integrating innovative hardware and intelligent control systems, it not only meets the rigorous demands of high-power wind energy conversion but also helps wind farm operators minimize costs, maximize return on investment, and achieve compliance with global grid standards, making it a core driver for the efficient development of the wind power industry.

Core Advantages: Empowering Efficient Wind Energy Utilization

1. High Efficiency & Low Energy Loss

• Advanced IGCT Technology: Adopting Integrated Gate-Commutated Thyristor (IGCT) semiconductor technology and a 3.3 kV, four-quadrant, 3-level NPC (Neutral Point Clamped) topology, the converter achieves an efficiency of approximately 98%. This configuration significantly reduces power loss during energy conversion, ensuring more wind energy is converted into usable electrical energy and lowering long-term operational costs 3.
• Intelligent Control Algorithm: Equipped with the PCS6000 advanced control algorithm, which uses a maximum torque strategy (measured in amperes). The algorithm optimizes the generator’s operating point in real time based on wind speed changes while minimizing generator winding losses, further enhancing the overall energy efficiency of the wind turbine system.

2. Compact Design & Flexible Installation

• Space-Saving & Lightweight: Leveraging the advantages of medium-voltage technology, higher voltage levels reduce the current in the electrical drivetrain. This allows the use of smaller cables, shrinks the converter’s surface area, and reduces its weight—resulting in a compact installation footprint. Whether mounted in the wind turbine nacelle or tower base, it fits seamlessly without requiring excessive space 4.
• Modular Customization: The converter features a modular design that enables easy customization to match the specific requirements of different wind turbine models and project scenarios. This flexibility simplifies the integration process with the turbine, shortens installation time, and adapts to diverse onshore and offshore application environments.

3. High Reliability & Low Maintenance Costs

• Low Component Count & Fuse-Free Design: With a streamlined component layout and no fuses, the PCS6000 minimizes the risk of equipment failure and improves overall availability. The fuse-free design also supports remote restart functionality, reducing unplanned downtime and eliminating the need for on-site fuse replacement—cutting maintenance workload and costs.

• Harsh Environment Adaptability: Aligned with ABB’s consistent high standards for wind power products, the PCS6000 is engineered to operate stably in tough conditions such as offshore salt mist, onshore dust, and sand. It meets strict environmental resilience requirements, ensuring long-term reliable performance even in extreme wind power operating environments 5.

Technical Specifications: Precision Engineered for Performance

Grid Code Compliance: Stable Integration with Global Power Grids

1. Strong Fault Ride-Through Capability

The PCS6000 Voltage Converters are designed to meet the fault ride-through requirements of global grid codes. When grid faults occur (e.g., voltage dips), the converter can maintain continuous operation at reduced voltage without tripping offline. It also provides reactive power support to the grid during faults, helping stabilize the power system and avoid large-scale blackouts caused by wind farm disconnections—critical for ensuring grid stability 2.

2. Global Grid Adaptability

The converter complies with grid code requirements in major markets, including the United States, key European countries, and China. This eliminates the need for costly retrofits to newly installed turbines due to grid code changes, ensuring seamless integration with local power grids for wind farms worldwide 1. ABB’s active participation in global grid code and power quality working groups further ensures the PCS6000 remains compatible with current and future grid standards, providing long-term compliance assurance.

Rigorous Certifications: Ensuring Quality & Safety Globally

The ABB PCS6000 Voltage Converters have obtained a series of international authoritative certifications, verifying their quality, safety, and compliance with regional standards—giving customers confidence in product selection and application:

• UL 6141 Certification: This certification confirms compliance with U.S. safety and performance standards, making the converter highly attractive for the growing U.S. offshore wind market. It assures manufacturers that the converter can deliver the high power required by large offshore turbines 10.
• DNV Certification: Certified by DNV (Det Norske Veritas), a leading global certification body, the converter meets strict offshore wind turbine guidelines. This certification covers safety, functionality, and quality requirements for harsh offshore environments, while also simplifying the overall certification process for new wind turbines—manufacturers only need to provide documentation for converter integration 10.
• CGC Certification: Approved by the China General Certification Center (CGC), the converter adheres to Chinese wind power product technical standards, facilitating its application in China’s large-scale wind power projects.
• IEC & UL Certification: Compliant with International Electrotechnical Commission (IEC) standards and UL safety norms, ensuring global applicability and reliability across diverse markets.

Application Cases: Proven Performance in Real-World Scenarios

1. Offshore Wind Power Projects

The PCS6000 Voltage Converters are specifically developed for offshore wind turbines, with over 250 units currently in stable operation across offshore wind farms in the North Sea, Baltic Sea, and China. These units have demonstrated excellent resilience to harsh offshore conditions—such as high humidity, salt mist, and strong winds—providing consistent, reliable power conversion for offshore wind energy systems 3.

2. Matching Large-Scale Wind Turbines

The converter is perfectly matched with high-power wind turbine models, including the 13 MW GE Haliade-X (with a 220-meter rotor diameter). Its high power capacity, compact design, and efficient energy conversion fully meet the technical demands of large turbines, helping maximize turbine output and reduce the Levelized Cost of Energy (LCOE) for wind farms.

Why Choose ABB PCS6000 Voltage Converters?

• Proven Industry Expertise: Backed by ABB’s over 30 years of experience in the wind power sector and a track record of delivering over 50,000 converters and generators globally, the PCS6000 benefits from deep technical accumulation and real-world application insights.
• Future-Proof Design: With support for high-power turbines (up to 15 MW) and compliance with evolving global grid codes, the converter provides a long-term, scalable solution for wind power projects.
• Customer-Centric Value: By reducing downtime, lowering LCOE, and simplifying certification and integration, the PCS6000 helps customers—from turbine manufacturers to wind farm operators—achieve their economic and operational goals while contributing to a more sustainable energy future.
