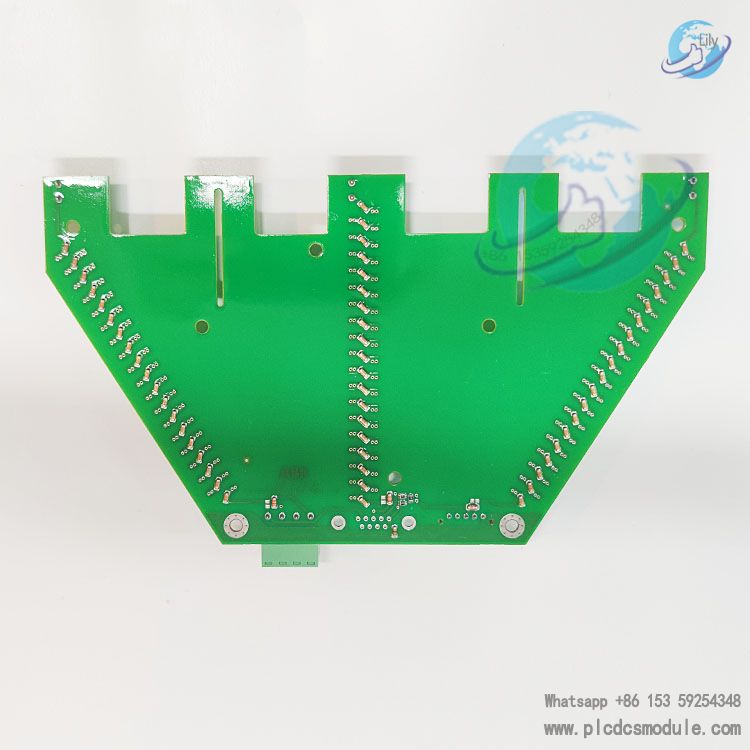

Whether integrated into power generation units, industrial drives, or complex control panels, the ABB XV C772 HVD Board provides real-time voltage data, enabling quick response to voltage fluctuations and preventing potential equipment damage or operational downtime.
1. High-Precision Voltage Detection
- Offers accurate voltage measurement with a tolerance range of ±0.5%, ensuring reliable data for critical system decisions.
- Supports a wide input voltage range (100V-1000V AC/DC), adapting to diverse industrial power environments.
2. Robust Industrial Design
- Constructed with high-quality, industrial-grade materials that resist vibration, temperature variations (-40°C to +85°C), and electromagnetic interference (EMI).
- Complies with international safety standards (IEC 61010-1, EN 60204-1) to meet strict industrial safety requirements.
3. Seamless Compatibility
- Specifically designed to integrate with ABB’s XV Series control systems, ensuring plug-and-play functionality and minimal setup time.
- Compatible with other ABB industrial components (e.g., drives, controllers) for a unified system experience.
4. Enhanced Safety & Protection
- Built-in overvoltage and undervoltage protection mechanisms to safeguard connected equipment from voltage anomalies.
Fault detection and alarm output capabilities, enabling proactive maintenance and reducing system downtime.
Technical Specifications
| Parameter | Details |
| Model Number | XV C772 A101 3BHE032285R0101 |
| Product Type | High-Voltage Detection (HVD) Board |
| Input Voltage Range | 100V-1000V AC/DC |
| Voltage Measurement Accuracy | ±0.5% Full Scale |
| Operating Temperature Range | -40°C to +85°C |
| Storage Temperature Range | -55°C to +100°C |
| Humidity Resistance | 5% - 95% RH (non-condensing) |
| Compliance Standards | IEC 61010-1, EN 60204-1, CE |
| Dimensions (W x H x D) | 120mm x 80mm x 30mm (approx.) |
| Weight | 150g (approx.) |
| Mounting Type | DIN Rail or Panel Mount |
| Interface | Analog Output (4-20mA), Digital Alarm Output (NO/NC) |
Application ScenariosThe ABB XV C772 A101 3BHE032285R0101 HVD Board is widely used in various industrial sectors, including:
- Power Generation: Monitoring voltage in generators, transformers, and power distribution systems.
- Industrial Drives: Ensuring stable voltage supply for ABB AC/DC drives in manufacturing and processing plants.
- Oil & Gas: Voltage detection in offshore and onshore drilling equipment, pipeline control systems.
- Renewable Energy: Integrating with solar inverters and wind turbine control systems for voltage regulation.
- Heavy Industry: Protecting critical machinery (e.g., steel mills, mining equipment) from voltage fluctuations.
