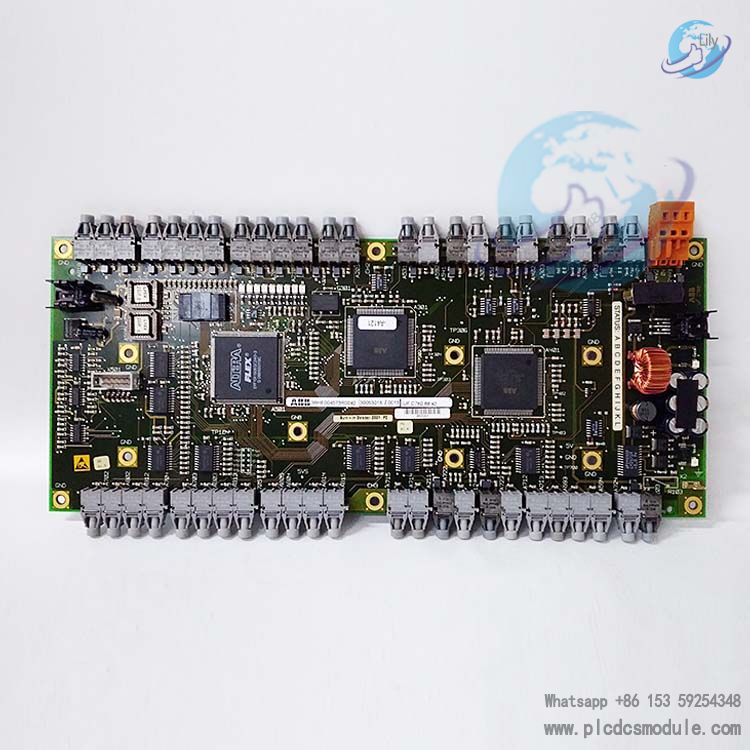

I. Core Product Information and Overview

• Product Number: 3BHE004573R0042 (replaces old number HE004573R0042; new replacement number: 3BHE004573R0142)

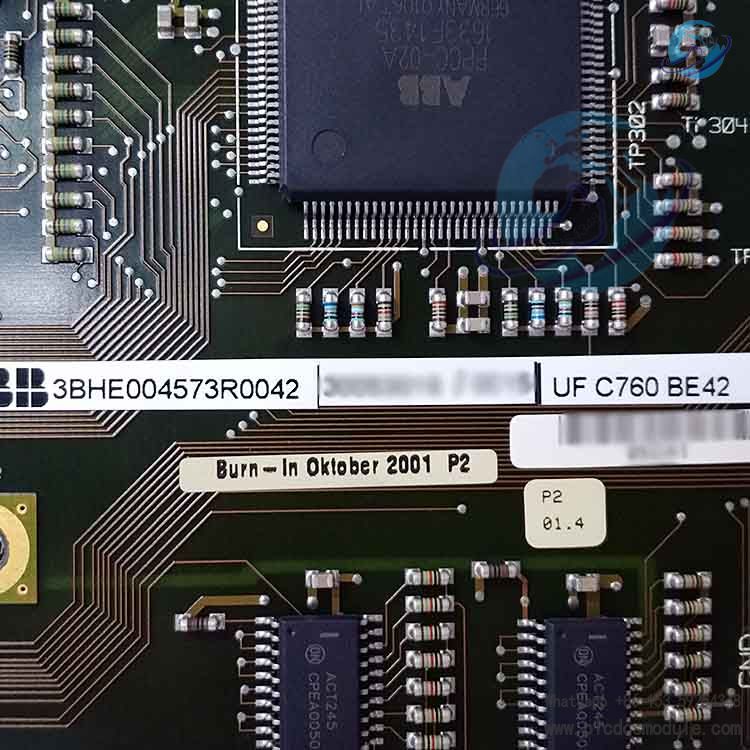

• ABB Model Designation: INT, UF C760 BE42
• Catalog Description: MAIN CIRC. INTER. (Main Circuit Interface)
• Physical Specifications: Net weight is 0.41 kg, conforming to industrial standard board dimensions for easy installation in control cabinets/racks.
• Place of Origin: Switzerland (CH)

Core Application

The ABB UFC760BE42 3BHE004573R0042 interface board enables seamless data interaction between devices such as sensors, actuators, and upper-level controllers. Fully compatible with ABB full range of industrial control equipment, this product also supports the access of standard signals from third-party devices (e.g., 4-20mA DC, 24V DC digital signals), making it an ideal choice for automation system upgrades or replacement of old interface components.

II. Technical Specifications

To meet the performance requirements of industrial scenarios, the 3BHE004573R0042 interface board features reliable signal processing and communication capabilities, with specific parameters as follows:

• Core Functions: Analog/digital bidirectional conversion, multi-protocol adaptation (Modbus RTU/TCP, Profinet), data buffering (prevents data loss during communication interruptions).
• Signal Interfaces:
• 4-channel Analog Input (AI): Supports 0-10V DC / 4-20mA DC signals with an accuracy of ±0.1% to ensure data acquisition precision.
• 2-channel Analog Output (AO): Supports 0-10V DC / 4-20mA DC signals with a maximum load of 500Ω, capable of driving industrial actuators.
• 8-channel Digital Input (DI): Compatible with PNP/NPN signal types, powered by 24V DC, used for collecting sensor status signals (e.g., limit switch, alarm signals).
• 4-channel Digital Output (DO): Relay output, supporting 250V AC / 30V DC with a maximum current of 5A per channel, suitable for controlling small and medium-sized actuators.
• Communication Ports:
• 1 RJ45 Ethernet port (10/100Mbps auto-negotiation, supports Profinet IRT protocol for real-time data transmission).
• 1 RS485 serial port (supports Modbus RTU protocol, baud rate adjustable within 1200-115200bps), suitable for long-distance communication scenarios.
• Power Supply Requirements: 24V DC (allowing ±15% voltage fluctuation), typical power consumption ≤8W, maximum power consumption ≤10W. Low load facilitates integration into existing systems.
• Environmental Adaptability:
• Operating Temperature: -20℃~+60℃; Storage Temperature: -40℃~+85℃.
• Humidity: 5%-95% (non-condensing), compliant with IEC 60068-2-30 standard.
• Electromagnetic Compatibility (EMC): Compliant with EN 61000-6-2 (industrial environment immunity) and EN 61000-6-4 (industrial environment emission limits) standards, capable of resisting electromagnetic interference.

• Response Speed: Analog signal conversion ≤5ms, digital signal response ≤1ms, communication delay ≤10ms, suitable for high-precision and real-time control scenarios.

III. Application Fields

The ABB UFC760BE42 3BHE004573R0042 interface board performs excellently in scenarios requiring seamless device integration, with typical applications including:

1. ABB ACS880 Variable Frequency Drive SystemAs a dedicated interface for ABB ACS880 frequency converters, this product can collect converter operating parameters (speed, current, temperature) and transmit control commands (start/stop, speed regulation), ensuring stable operation of equipment such as fans, pumps, conveyors, and machine tool spindles.
2. Power Equipment MonitoringIn substation and power distribution room scenarios, it can connect low-voltage equipment (circuit breakers, contactors) to SCADA systems, upload equipment status signals (on/off, overload alarm), and receive remote control commands (remote switching on/off), enabling unmanned monitoring.
3. Smart Manufacturing Production LinesIn production lines for auto parts and electronic components, it can integrate sensors (position sensors, pressure sensors, vision sensors) and actuators (servo motors, air cylinders), and connect to MES (Manufacturing Execution System) to realize real-time upload of production data and collaborative control of equipment, improving automation levels and production efficiency.
4. HVAC (Heating, Ventilation, and Air Conditioning) SystemsIn HVAC systems of commercial buildings and industrial workshops, it can connect temperature and humidity sensors to air conditioning units and frequency converters. After signal conversion, it achieves precise temperature control and uploads equipment status to BMS (Building Management System), contributing to energy-saving operation.
5. Water Treatment FieldIn sewage treatment plants and waterworks, it can resolve protocol differences between pump controllers, valves, and central control systems, realizing control of processes such as chemical dosing, aeration, and filtration. At the same time, it collects water quality data (pH value, turbidity) to ensure compliance with treatment process standards.

IV. Core Advantages (SEO-Optimized Differentiated Highlights)

Compared with ordinary industrial interface boards, the ABB 3BHE004573R0042 interface board has the following unique advantages:

• Full ABB Compatibility: Seamlessly compatible with ABB's full range of systems such as ABB ACS880 and AC 800M, no custom adapters required; meanwhile, it supports third-party standard signals to reduce integration costs.
• Industrial-Grade Reliability: Adopts industrial-grade PCBs and components, undergoes 1000-hour high-low temperature cycle testing and operation testing, with built-in overvoltage, overcurrent, and short-circuit protection functions. Its Mean Time Between Failures (MTBF) is far higher than the industry average.
• High Integration: A single board integrates analog/digital processing and multi-protocol communication functions, saving control cabinet space and reducing procurement and installation costs.
• High Precision and Fast Response: ±0.1% analog accuracy and fast response speed can meet high-precision control needs such as servo motor speed regulation.

• Easy Maintainability: Equipped with LED indicators (power, communication, fault), supports online diagnosis via ABB Control Builder software, enabling quick troubleshooting without disassembling the board.

V. Working Principle

The ABB UFC760BE42 interface board follows a closed-loop working logic of "signal acquisition → processing → transmission", with the specific process as follows:

1. Signal Acquisition: Collects analog/digital signals from sensors via AI/DI ports; receives commands from upper-level controllers via Ethernet/RS485 ports.
2. Signal Processing: Performs protocol conversion (e.g., converting Profinet protocol to Modbus protocol), noise filtering, and logical judgment (e.g., threshold alarm) to achieve signal standardization.
3. Transmission and Feedback: Sends control signals to actuators via AO/DO ports; uploads equipment status data to upper-level controllers; if issues such as short circuits or communication interruptions occur, triggers LED indicator alarms or fault signals.

VI. Installation Steps (Practical SEO-Optimized Guide)

Please follow ABB's official guidelines for safe installation (operation by certified engineers is recommended):

1. Pre-Installation Inspection: Ensure the control cabinet temperature is within the range of -20℃~+60℃, with no electromagnetic interference sources. Prepare tools such as screwdrivers, wire strippers, and multimeters; check if the board appearance is intact.
2. Fixed Installation: Fix using 35mm DIN rails (push-to-lock) or M3 screws (torque ≤0.8N・m); attach the "3BHE004573R0042" label for easy subsequent identification.
3. Wiring (Power-off operation is mandatory!):
• Power Wiring: Use 0.5-1.0mm² wires, connect the positive pole of 24V DC to the "+24V" terminal, and the negative pole to the "0V" terminal.
• Signal Wiring: Connect AI/AO/DI/DO ports to sensors/actuators; connect Ethernet/RS485 ports to controllers (RS485 must correspond to "A/B" terminals).
4. Testing and Verification: After power-on, check the LED indicators (a steady green power light indicates normal operation); set parameters (IP address, baud rate) via ABB Control Builder software, and test whether signal transmission is normal.
