With its multi-tasking capability and high-performance computing power, this CPU can accurately meet the core demands of process control while minimizing resource usage, making it widely applicable to various industrial automation systems.

Data table download:

PM 783F.pdf

High-performance Computing and Flexible Expansion

• 96 MHz clock frequency, with 1000 Boolean operations taking only 0.71 ms, ensuring fast instruction execution.
• 10 MB total memory combined with 2 MB application-available RAM provides stable and stable operating space for control programs.
• Supports 8 cyclic priority tasks with adjustable cycles and 1 high-speed PLC-like task, optimizing CPU load distribution.

Comprehensive Communication and Connectivity Capabilities

• Onboard Ethernet interface (IEEE 802.3 standard, 100/10 Mbit/s) with an RJ-45 female connector design, ensuring efficient system communication.
• 2 RS-232C serial interfaces, adapted to general scenarios and service tools respectively, enabling parallel operation of Modbus communication and device diagnostics.
• Supports Modbus TCP protocol and can be expanded with Profibus interface modules, compatible with mainstream industrial communication specifications.

Safety Protection and Status Monitoring

• Equipped with a physical key lock function, which can prohibit application program and firmware downloads, enhancing the operational safety of the device.

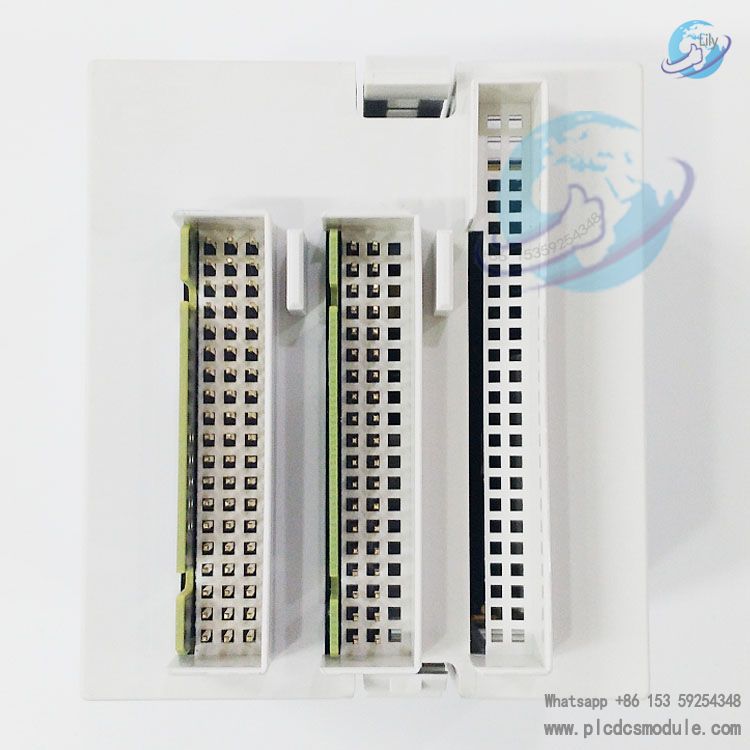

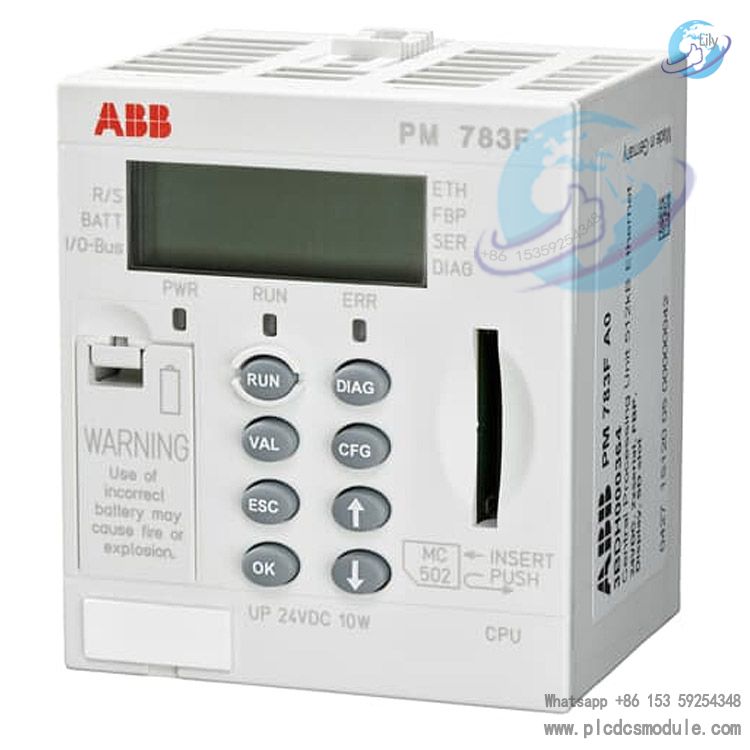

• A small front-mounted display screen shows device status and diagnostic information in real-time, facilitating quick on-site troubleshooting.
• Built-in lithium battery (TA 521F) ensures stable storage of critical data in case of power failure.

Industrial-grade Environmental Adaptability

• Operating temperature range of 0°C to 60°C and storage temperature range of -20°C to 75°C, adapting to harsh industrial environments.
• Protection class IP20, compliant with ISA 71.04 G3 anti-corrosion standards, with a relative humidity tolerance of up to 95% (non-condensing).
• Anti-vibration performance up to 1 g (2 Hz-150 Hz) and altitude adaptability below 2000 m, ensuring stable operation in various industrial scenarios.

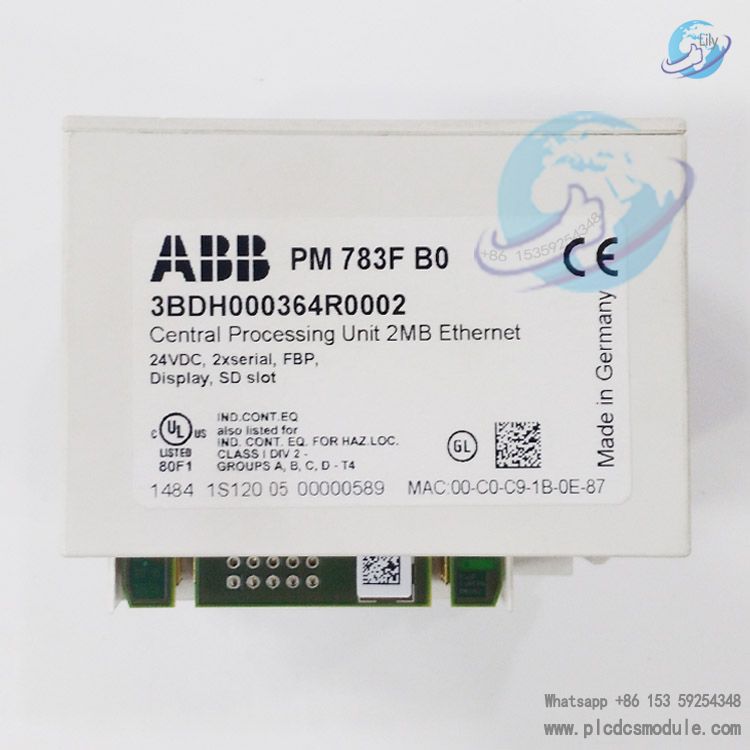

Technical Specifications

• Basic Information: Product Number: 3BDH000364R0005; Lifecycle Status: Active; Redundancy Support: None
• Processor & Performance: Processor Type: PowerQUICC; Clock Frequency: 96 MHz; Boolean Operation Performance: 0.71 ms per 1000 operations
• Memory Configuration: Total Memory: 10 MB; Application-Available RAM: 2 MB
• Task Configuration: Maximum Number of Tasks: 9 (8 priority cyclic tasks + 1 PLC-like task)
• Power Supply Parameters: Supply Voltage: 24 V DC; Typical/Maximum Power Consumption: 24 W; Power Loss: 10 W
• Communication Interfaces: Ethernet Ports: 1; RS-232C Interfaces: 2 (1 for general use + 1 dedicated for service tools)
• Environmental Parameters: Operating Temperature: 0°C-60°C; Storage Temperature: -20°C-75°C; Relative Humidity: ≤95% (non-condensing)

• Physical Dimensions: Width: 67.5 mm; Height: 76 mm; Depth: 54 mm; Weight (including base): 0.4 kg

Application Scenarios

• It serves as the core control unit for small and medium-sized process control systems, such as modular equipment control in industries like chemical engineering, pharmaceuticals, and water treatment.
• It is suitable for industrial automation scenarios that require flexible expansion of I/O and communication interfaces, supporting seamless connection with various sensors, actuators, and upper-level systems.
• It applies to compact control cabinet installation scenarios with strict requirements on equipment size and power consumption, and is adaptable to harsh industrial operating environments.
