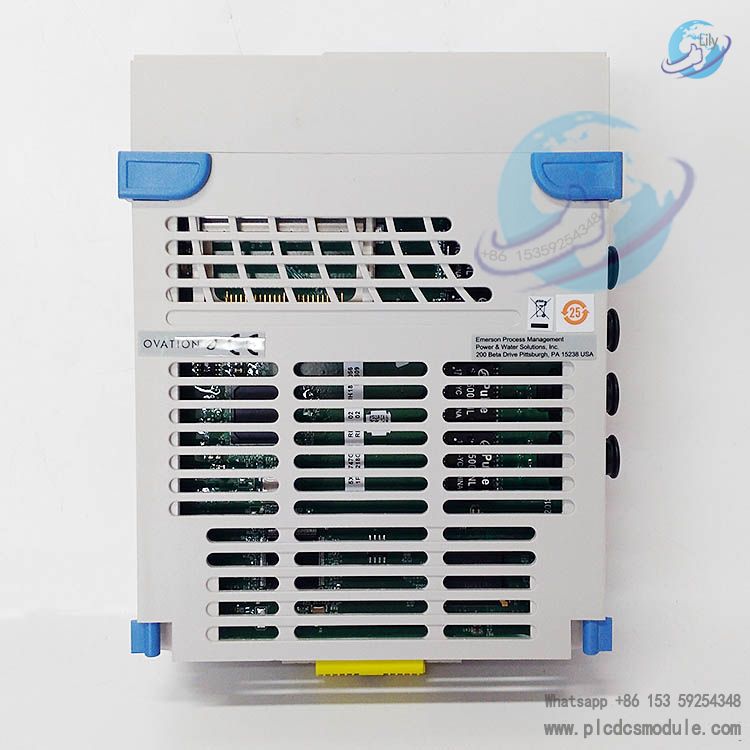

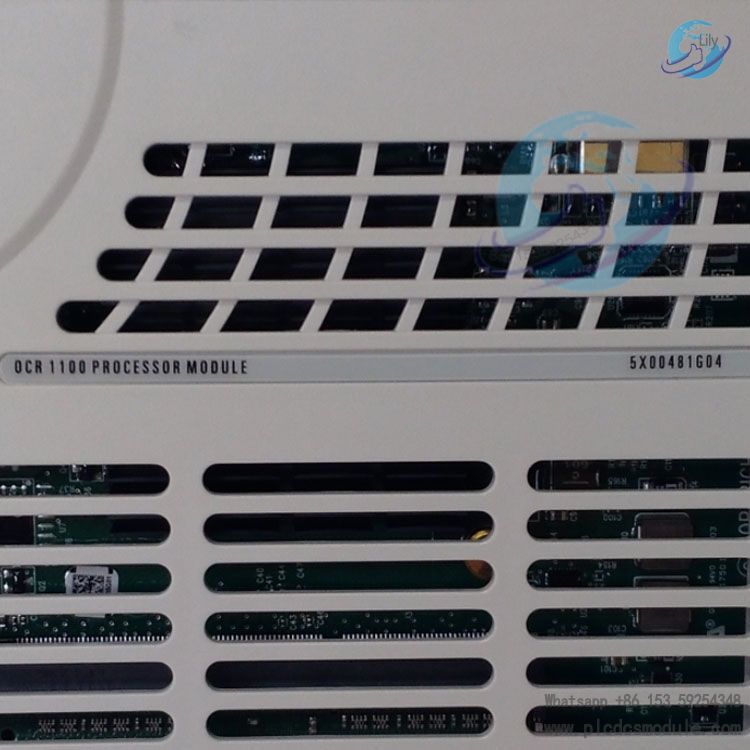

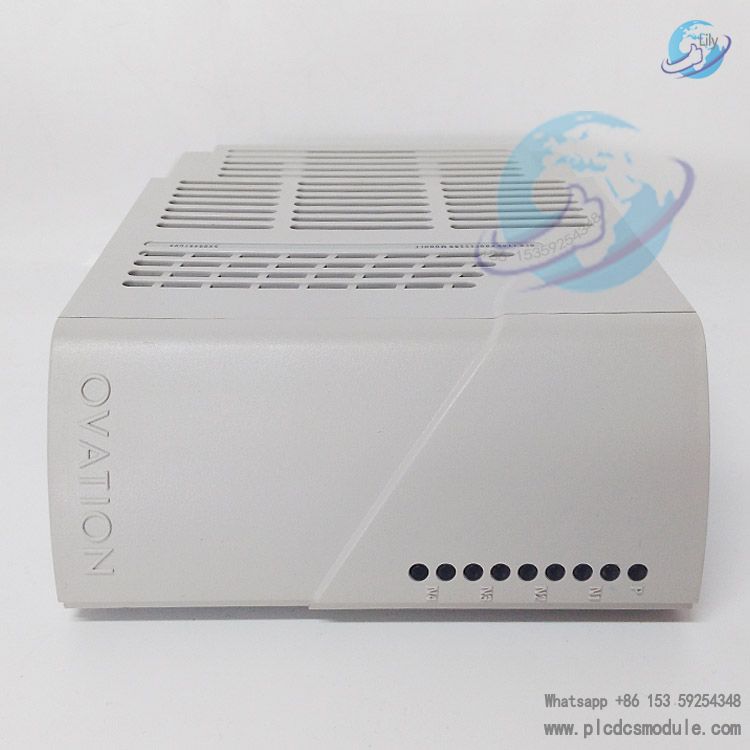

EMERSON Ovation 5X00481G04 OCR 1100 PROCESSOR MODULE is the core computing component of Emerson Ovation distributed control system. It undertakes key tasks such as data processing, logic operation, and system resource management, providing stable and efficient computing support for industrial automation control processes. This module is designed in line with industrial-grade reliability standards, which can adapt to complex and harsh on-site environments and ensure the continuous and stable operation of the Ovation control system.
related documents
Technical Parameters
Product Model: EMERSON Ovation 5X00481G04
Product Type: OCR 1100 Processor Module
Processor Core: High-performance industrial-grade processor with strong data processing capability
Operating Frequency: 1.2 GHz, ensuring efficient execution of complex logic and data operations
Memory Capacity: 1 GB RAM, 4 GB Flash, providing sufficient space for program storage and data caching
Operating Voltage: 24V DC, consistent with standard industrial power supply specifications
Operating Temperature Range: -20°C to 65°C, adapting to extreme temperature changes in industrial sites

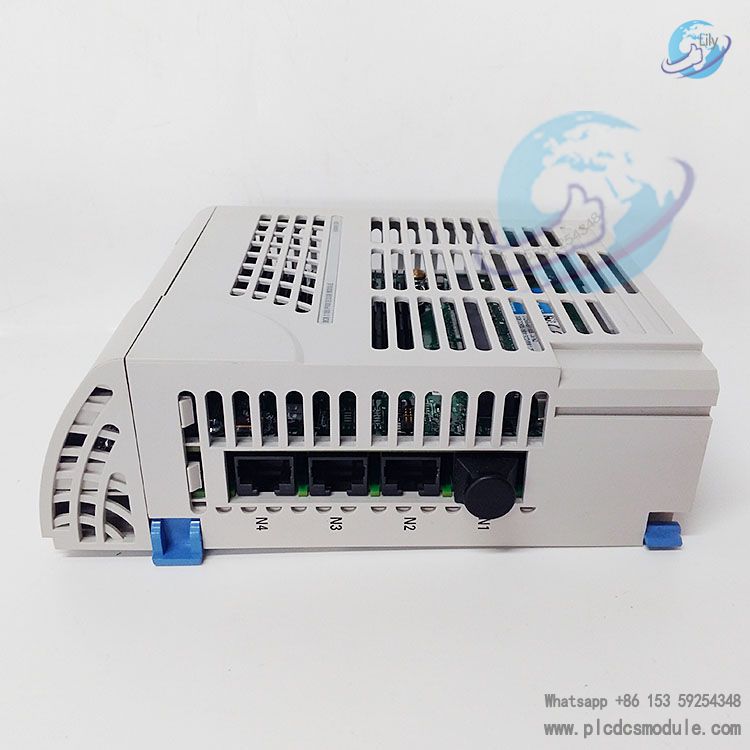

Communication Interfaces: 2 Ethernet ports, 4 serial ports, supporting multi-protocol data transmission
Compatible Protocols: Modbus, Profibus DP, Ethernet/IP, ensuring seamless connection with peripheral devices and upper systems
Dimensions: 120 mm × 180 mm × 45 mm, compact structure suitable for standard cabinet installation
MTBF (Mean Time Between Failures): ≥ 100,000 hours, reflecting high reliability and long service life
Key Features
High Reliability: Adopts industrial-grade component selection and strict quality control, with anti-interference, anti-vibration and anti-static capabilities, which can stably operate in harsh environments such as strong electromagnetic interference and large temperature fluctuations.
Efficient Computing: Equipped with a high-performance processor and large-capacity memory, it can quickly process a large amount of on-site data, execute complex control logic, and ensure the real-time and accuracy of the control system.
Seamless Compatibility: It is fully compatible with Emerson Ovation series control system components, including input/output modules, communication modules and human-machine interface, which is convenient for system expansion and upgrading.
Easy Maintenance: With self-diagnosis function, it can timely detect module faults and output fault signals, which is convenient for maintenance personnel to locate and handle problems quickly; the modular design is easy to disassemble and replace.
Secure Data Transmission: Supports multiple secure communication protocols, with data encryption and anti-leakage functions, ensuring the security and integrity of data in the transmission process.
Application Areas
EMERSON Ovation 5X00481G04 OCR 1100 PROCESSOR MODULE is widely used in key fields such as power generation (thermal power, hydropower, nuclear power), oil and gas exploitation and processing, chemical industry, metallurgy, and water treatment. It is the core component of the Ovation distributed control system, which provides reliable computing and control support for the stable operation of industrial processes, improves production efficiency, reduces operational risks, and helps enterprises achieve refined management.
