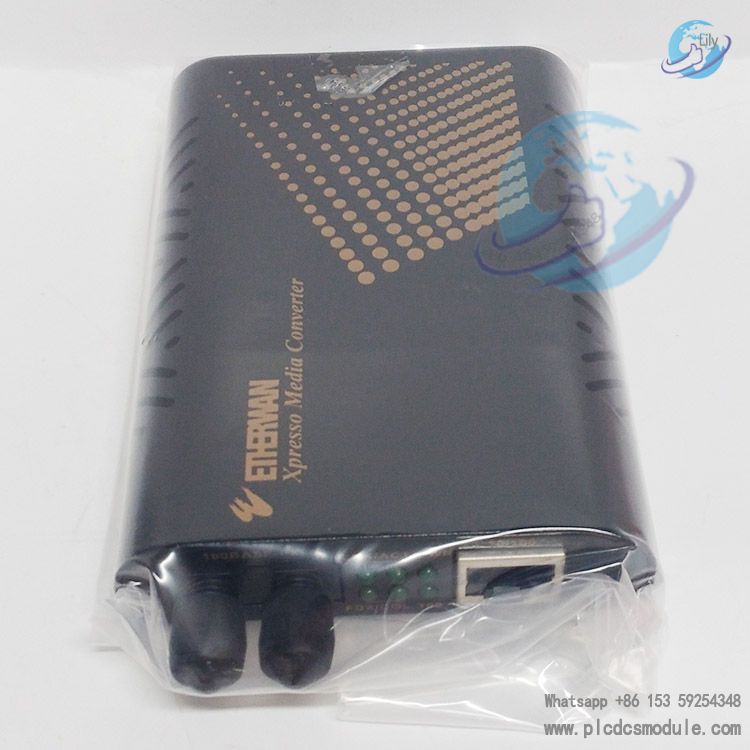

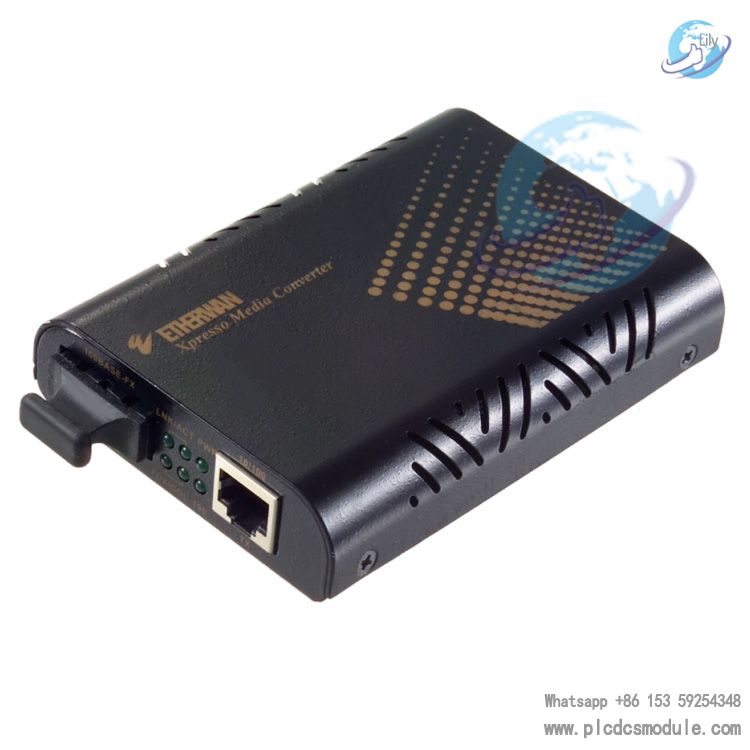

Adopting a multi-mode fiber (ST interface) design with an operating wavelength of 1310 nm, this product supports two fiber specifications (62.5/125 µm and 50/125 µm) and achieves a transmission distance of up to 2 km, perfectly meeting the connectivity requirements of enterprise-grade network environments.Via the DIP switches on the device body, users can flexibly select either store-and-forward mode or converter mode (store-and-forward mode is enabled by default). They can also enable or disable the Link Fault Pass-Through (LFPT) function, and customize the full-duplex/half-duplex mode for both Ethernet and fiber ports, delivering exceptional operational flexibility.In addition, it is compatible with EtherWAN’s proprietary EMC1600 19-inch rack system, which can accommodate up to 16 units of EL100 Series converters simultaneously. This facilitates centralized installation and management for users, making the EL100T an ideal choice for realizing electrical-to-optical signal conversion in enterprise networks.
related documents
- Flexible Fiber Optic Adaptation & ConnectivitySupports multi-mode fiber transmission and is equipped with a standard ST interface, compatible with two common fiber specifications (62.5/125 µm and 50/125 µm). It maintains a stable operating wavelength of 1310 nm, ensuring reliable data transmission within a 2 km range and meeting the fiber uplink requirements of short-to-medium distance networks.
- Customizable Operating Mode ConfigurationMultiple mode switches can be implemented via DIP switches:
- Operating Modes: Supports selection between store-and-forward mode (default) and converter mode.
- Link Management: The Link Fault Pass-Through (LFPT) function can be enabled or disabled. In the event of a link failure, this function promptly notifies connected devices and disconnects the link, helping network operation and maintenance personnel monitor network connection status in real time.
- Transmission Modes: Both Ethernet and fiber ports can be independently configured for full-duplex or half-duplex mode, adapting to the transmission requirements of different network environments.
- Comprehensive Standard Compliance & High-Efficiency TransmissionStrictly complies with IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX/FX, and IEEE 802.3x full-duplex and flow control standards, ensuring compatibility with various network devices. It delivers excellent transmission performance: the forwarding/filtering rate reaches 14,880 pps at 10 Mbps and 148,810 pps at 100 Mbps. Equipped with 128 Kbit packet buffer memory, it supports half-duplex backpressure mechanism and full-duplex flow control. It also features automatic MDI/MDIX functionality, eliminating the need for manual cable type adjustment and further enhancing user-friendliness.
- Hardware Specifications
- Interfaces & Indicators
- Interface Configuration: 1× 10/100BASE-TX Ethernet port and 1× 100BASE-FX fiber port, meeting the bidirectional conversion requirements of electrical and optical signals.
- LED Indicators: A device-level power indicator is provided; at the port level, the 10/100TX port is equipped with link/activity, full-duplex/collision, and speed indicators, while the 100FX port is fitted with link/activity and full-duplex/collision indicators. Users can quickly determine the operating status of the device and ports through intuitive LED status.
- Power Supply ParametersThe input voltage is 12 VDC, with a dedicated 12 VDC power adapter provided. The maximum power consumption is only 1.92 W (0.16 A at 12 VDC), featuring low energy consumption and complying with the energy-saving requirements of commercial-grade equipment.
- Physical Characteristics
- Housing Material: Constructed with aluminum alloy, it balances light weight and durability, effectively protecting internal components.
- Dimensions: 80.3 × 109.2 × 23.8 mm (W × D × H), equivalent to 3.16" × 4.30" × 0.94" in imperial units, featuring a compact size that saves installation space.
- Weight: Only 0.15 kg (0.33 lbs), facilitating easy carrying and installation.
Mounting Options: Supports wall mounting or integration into the EMC1600 rack system for centralized installation, adapting to different deployment scenarios.
Environmental & Compliance Requirements
- Environmental Adaptability
- Operating Temperature: 0°C to 45°C (32°F to 113°F), enabling stable operation in regular office and equipment room environments.
- Storage Temperature: -10°C to 70°C (-14°F to 158°F), meeting temperature requirements during warehousing and transportation.
- Relative Humidity: 5% to 95% (non-condensing), adapting to different humidity environments without requiring additional moisture-proof measures.
- Compliance Certifications
- Production Standard: Manufactured in an ISO 9001 certified factory, ensuring product quality complies with international standards.
- Safety Certification: Certified to UL 62368-1 safety standard, guaranteeing safe operation.
- Electromagnetic Compatibility: Complies with CE Mark Class A, FCC Part 15B Class A, and VCCI Class A emission requirements, minimizing electromagnetic interference to surrounding equipment.
Typical Application Scenarios
By converting the RJ45 electrical signals from terminal devices such as IP cameras into optical signals for long-distance transmission, and then connecting to control centers or core switches (e.g., EX42300), it enables stable and efficient transmission of video data and network data. Meanwhile, with the help of the LFPT function, it facilitates rapid troubleshooting of network faults and improves the efficiency of network operation and maintenance.
