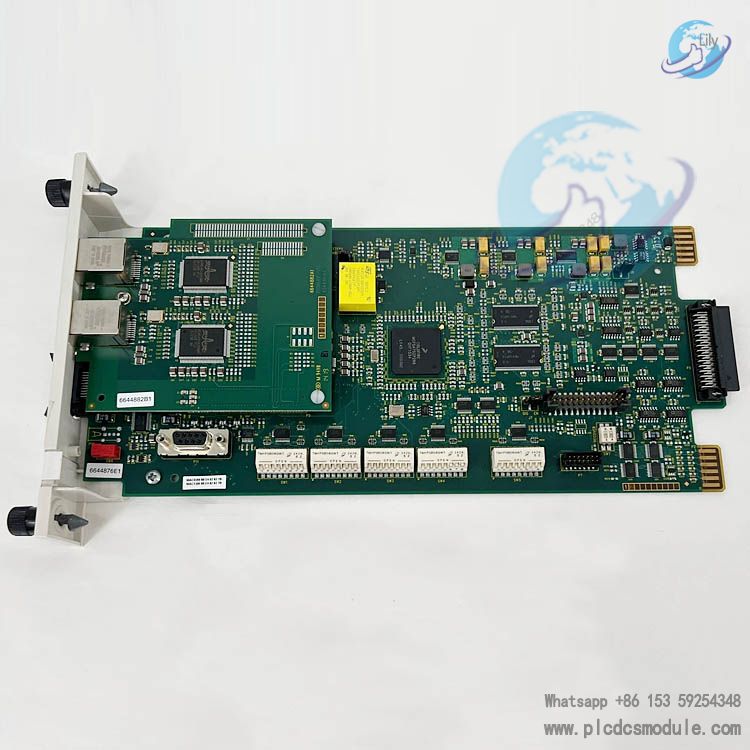

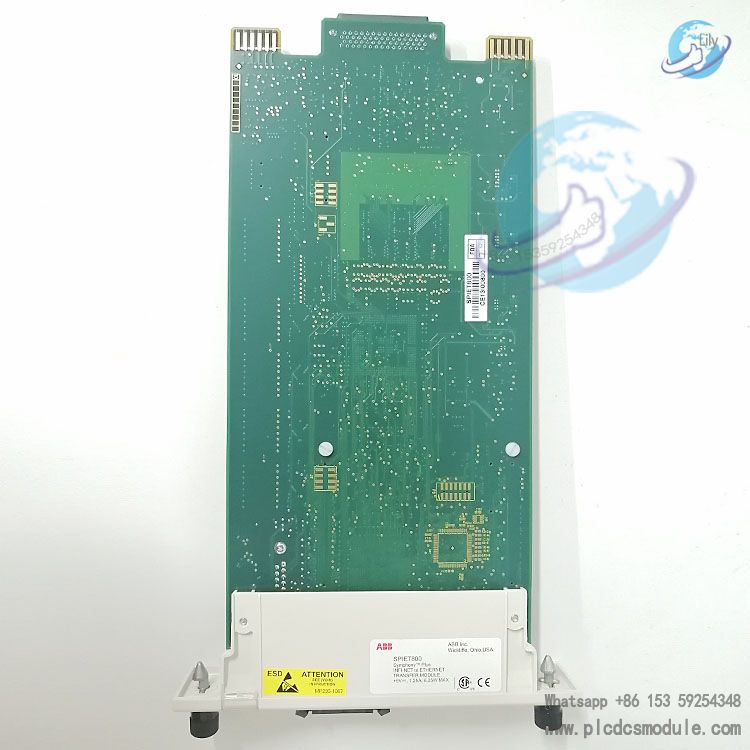

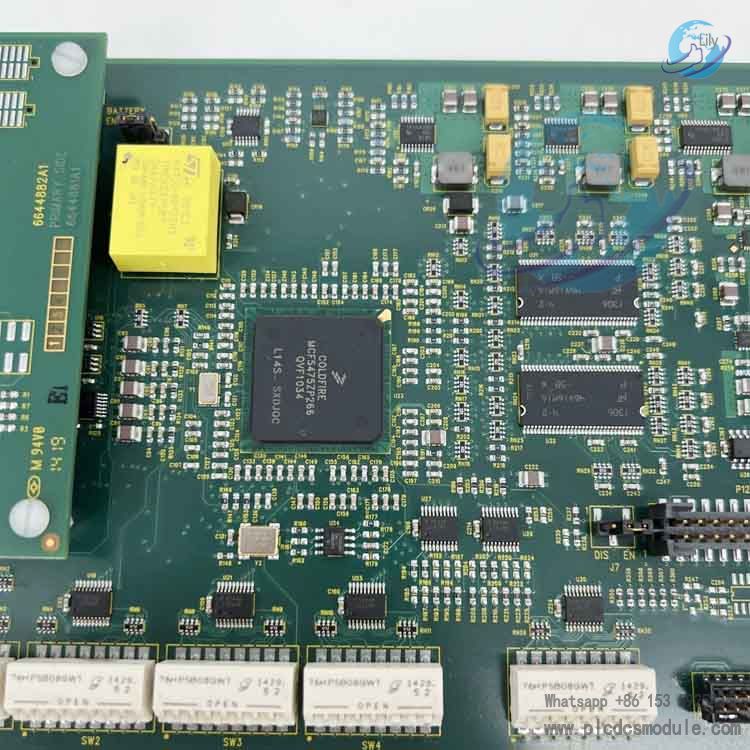

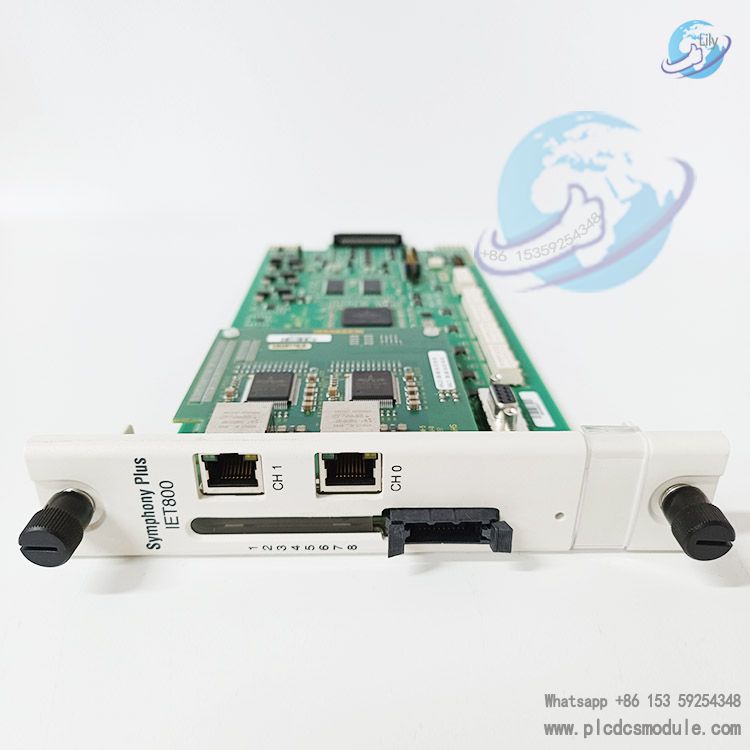

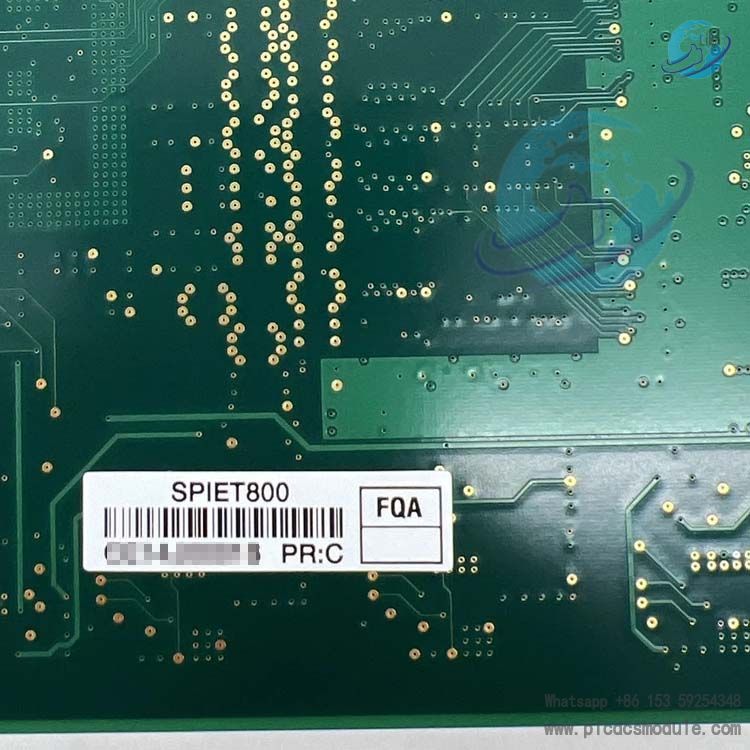

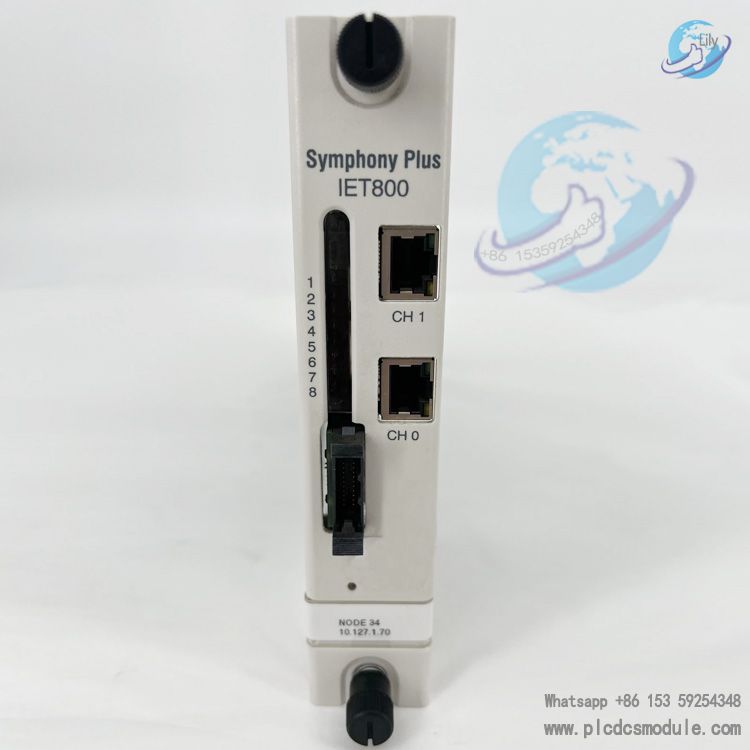

Note; All products on this site are special products, the market price has been fluctuating, the specific customer service offer shall prevail, because the product is a new product, the picture is not a real shot, please confirm with customer service before placing an order model and product, price and other details, the site used, new are for sale, please contact customer service communication. SPIET800 Ethernet CIU (Communication Interface Unit) Transfer Module is a dedicated INFI-NET to Ethernet transfer module designed for the ABB Symphony Plus control system. Acting as a communication bridge between the INFI-NET control network and Ethernet hosts, it enables seamless and reliable data exchange and monitoring between INFI-NET controllers and host computers via the TCP/IP protocol, providing core communication support for real-time data transmission, remote access and network integration in industrial automation systems. It is also equipped with embedded security functions to ensure secure access to INFI-NET network data, with only ABB-authorized applications permitted to access its communication channels.
Relevant documents are available for download via the link below
SPIET800.pdf
Core Functions
Network Communication Conversion: Its core function is to realize bidirectional data transmission between the INFI-NET control network and Ethernet. It can efficiently forward data from INFI-NET controllers to Ethernet and send instructions from host computers to INFI-NET controllers, resolving communication compatibility issues between different network architectures.
Data Management Optimization: It can effectively classify and organize the data received from INFI-NET controllers to ensure the data is presented to host computers in a standardized format. It is also equipped with data storage and retrieval capabilities, caching data before it is requested by the host computer to prevent data loss and guarantee the timeliness of data access.
Secure Access Control: Built-in security mechanisms can fend off unauthorized access to INFI-NET data. Only officially licensed ABB applications are allowed to access the communication, including Symphony Plus Operations, 800xA for Harmony (SV5.1 Rev A and higher versions), Harmony OPC Server (5.0 and higher versions), etc. Third-party applications need to access system data via the Harmony OPC Server.
Network Integration Adaptation: It facilitates the integration of the INFI-NET network into the Ethernet infrastructure, streamlines the management process of complex industrial networks and improves the overall network connectivity of the system, enabling users to achieve centralized monitoring and management of the control system via Ethernet.
Technical Specifications
Communication Parameters: The network interface adopts Ethernet 10Base-T, supports the TCP/IP protocol, and is compatible with industrial communication protocols such as IEC 61158, adapting to the common network communication requirements in the industrial automation field.

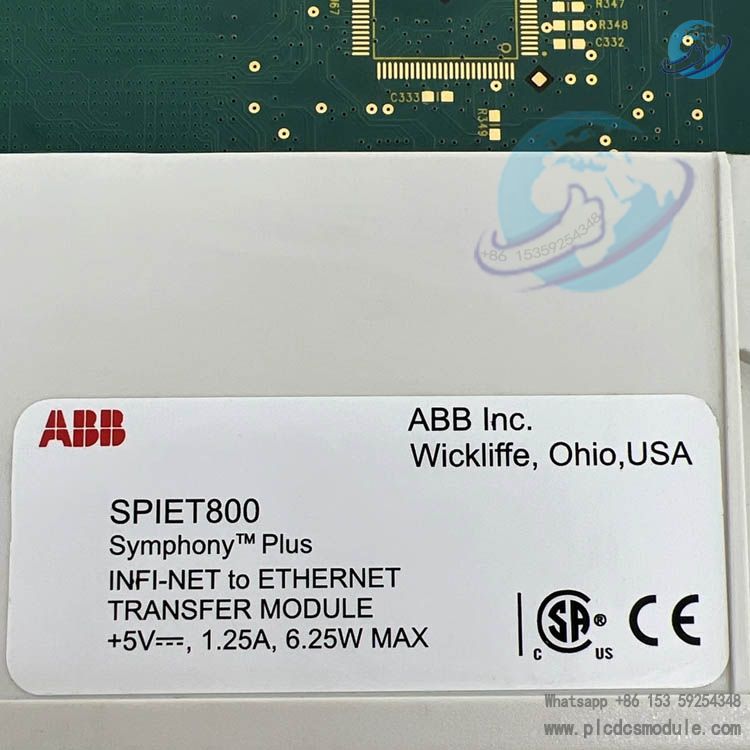

Power Supply and Power Consumption: The power supply is 24VDC with a power consumption of approximately 20W, complying with the power supply adaptation standards for industrial-grade equipment and enabling stable adaptation to the power supply environment of industrial sites.
Physical Dimensions and Weight: The dimensions are 88.9×215.9×139.7 mm (Length × Height × Width) with a net weight of only 0.1 kg. The compact and lightweight design facilitates installation in standard control cabinets and saves installation space.
Environmental Adaptability: The operating temperature range is 0 to 55°C, and the storage temperature range is -25 to 85°C. It can operate stably in a humidity environment of 5% - 95% non-condensing, meeting the requirements of harsh working environments at industrial sites.
Ordering Information: This module does not include a license key (SSBIET80000000 or SSBIET800A0000), which needs to be purchased separately. For relevant ordering details, please refer to Price List 2VAA006089. For redundant module configuration, it must be matched with the SPK800-RCL1 redundant cable.
Application Scenarios
Process Industrial Control: Widely applied in the Symphony Plus control systems of the power, chemical, papermaking and other industries, it enables real-time data interaction between the control system and upper monitoring systems (e.g., SCADA), ensuring stable monitoring and precise control of production processes.
System Upgrading and Renovation: Suitable for the upgrading projects of traditional INFI-NET networks. It allows access to Ethernet without large-scale replacement of the original control equipment, improving the system's communication capability and data sharing efficiency.
Remote Monitoring and Management: Supports remote access and parameter configuration of decentralized INFI-NET controllers via Ethernet, reducing on-site operation and maintenance costs and improving the efficiency of fault diagnosis and system maintenance.
Advantages and Features
High Reliability: Adopting industrial-grade design standards, it features excellent anti-interference capability and stability, enabling long-term continuous operation in harsh industrial environments and ensuring the continuity and accuracy of data transmission.
Flexible Configuration: It offers a wealth of configuration options, allowing users to flexibly set communication parameters according to actual application requirements. It is adaptable to different industrial automation scenarios and reduces the difficulty of system integration.
Authorized Security Assurance: Through the authorized access mechanism and embedded security functions, it avoids the risks of data leakage and unauthorized access from the source, safeguarding the network security of industrial control systems.
