XYCOM 9487‑47B1319020000 (713332‑A) is a 12.1-inch industrial color flat-panel HMI programmable operator interface developed by Pro-face, belonging to the high-performance 9487 series industrial operator terminals.Designed for harsh industrial environments such as factory floors and production lines, it integrates highly reliable TFT color display, touch control, and industrial-grade computing performance. It supports front-panel flush mounting and features a NEMA 4/12 (IP65) rated front panel.It stably connects to industrial control systems including PLCs and DCS, enabling core functions such as equipment monitoring, parameter configuration, data acquisition, and alarm management. It serves as a reliable core human-machine interface device for industrial automation applications.
Technical Specifications
1. Display & Interaction
- Screen: 12.1-inch TFT color LCD, active matrix backlight
- Resolution: 800×600 (SVGA), supports 256 colors and above
- Touch Type: Analog resistive touchscreen, supports operation with gloves, high responsiveness
- Backlight Life: ≥50,000 hours; field-replaceable backlight module
2. Hardware Configuration
- Processor: Intel Pentium 233 MHz with MMX technology, for industrial real-time computing
- Memory: 64 MB DRAM for stable operation of system and configuration software
- Storage: 10 GB internal IDE hard drive; pre-installable with MS-DOS, Windows 95, or Windows NT
- Expansion: Supports PCI video, PCI EIDE controller, and PC/104 expansion modules
3. Electrical & Environmental

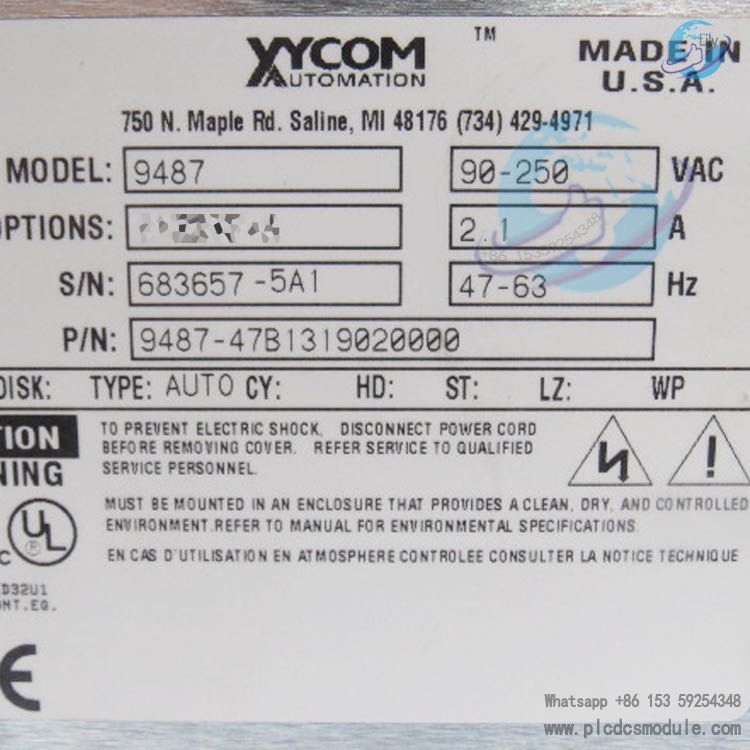

- Power Supply: 90–250 VAC wide-range input, 47–63 Hz, rated current 2.1 A
- Operating Temperature: -10°C to +50°C
- Storage Temperature: -20°C to +60°C
- Relative Humidity: 10%–95% RH (non-condensing)
- Protection Rating: Front panel NEMA 4/12 (IP65), dustproof and splash-proof for oily, dusty workshop environments
4. Physical Specifications
- Dimensions: Approx. 19.00 × 12.25 × 6.75 inches (482.6 × 311.15 × 171.45 mm)
- Weight: Approx. 24.40 lbs (11.07 kg)
- Mounting: Panel mount, suitable for standard industrial control cabinet cutouts
Features & Benefits
- Industrial-Grade ReliabilityReinforced all-metal chassis, wide-temperature and wide-voltage design, industrial EMC tested.Operates stably 24/7 under vibration, dust, and oil contamination; MTBF far exceeds commercial-grade devices.
- Modular & Easy MaintenanceSlide-out computer module for quick removal and service.Backlight, hard drive, and other wear parts are field-replaceable, minimizing downtime and maintenance costs.
- Strong CompatibilityCompatible with IBM PC/AT standards, supports mainstream industrial configuration software.Seamlessly connects to PLCs and control systems from Rockwell, Siemens, GE, and other brands with excellent protocol support.
- Flexible User Experience12.1-inch large screen with high-sensitivity resistive touch.Supports custom user interfaces, configurable function keys, and alarm pop-ups to match various production line workflows.
- Abundant ExpansionReserved PCI and PC/104 expansion slots.Supports Ethernet, multiple serial ports (RS‑232/422/485), USB, and other interfaces for data acquisition and remote monitoring.
Applications
- Manufacturing Automation: Equipment monitoring and parameter adjustment for automotive component lines, electronic assembly lines, food packaging machinery
- Process Control Systems: Local operator terminals for DCS systems in chemical, power, and metallurgical industries
- Logistics & Warehousing: AGV scheduling, sorting line status monitoring in smart warehouses
- Machine Integration: Embedded HMI for CNC machine tools, injection molding machines, printing machinery
Related Model Recommendations
The 9487 series includes multiple variants for different industrial requirements:
- 9487‑27B2118050000: Basic touch version, 10.4-inch display
- 9487‑47C2319011‑000: High-end version with dual Ethernet and extended serial ports
- 9487‑5762319010000: Version with physical keys, suitable for high-risk operating environments
