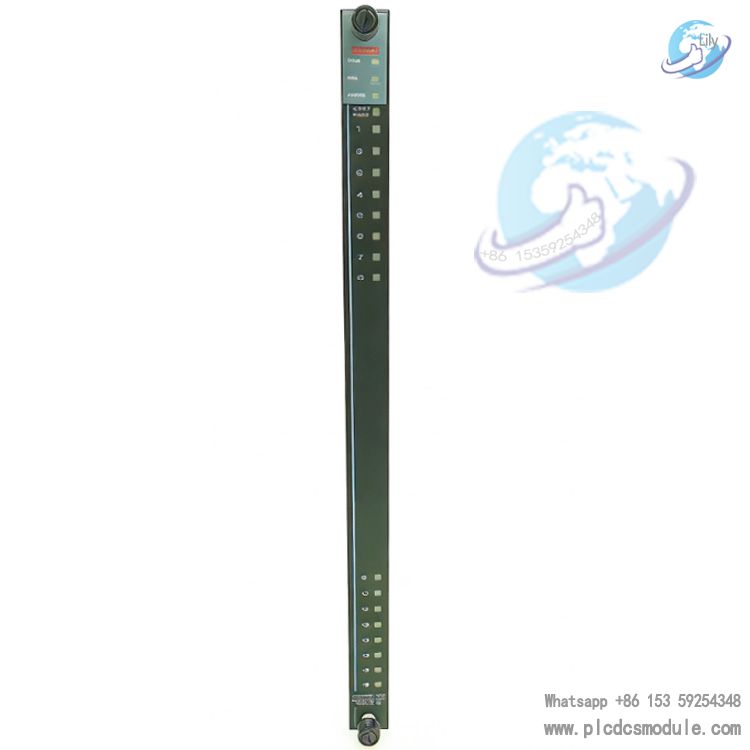

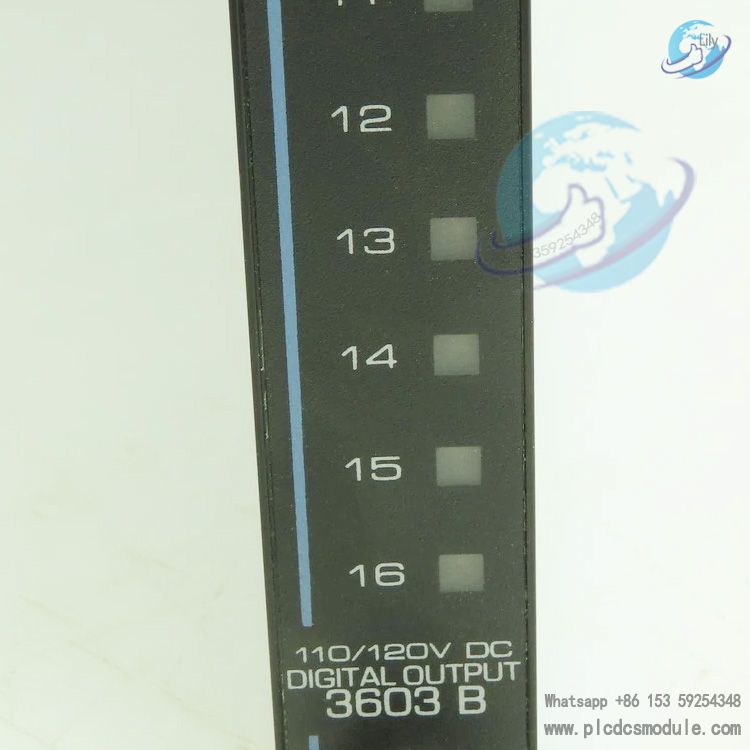

Triconex 3603B (Part Number 7400045-230) is a 16-channel, 120VDC, Triple Modular Redundant (TMR) digital output module for the Invensys Tricon Safety Instrumented System (SIS), owned by Schneider Electric. Designed for safety-critical applications, it is certified to IEC 61508 SIL 3, the highest safety integrity level. Using Triconex patented TMR architecture, the module employs three independent circuits for parallel processing and real-time voting, effectively preventing single-point failures from affecting system output and achieving fail-safe control. It is mainly used in Emergency Shutdown Systems (ESD), Burner Management Systems (BMS), Fire & Gas protection (F&G), and other scenarios. It can directly drive high-voltage DC loads such as solenoid valves, relays, and indicator lights. Equipped with output readback, line monitoring, overcurrent and short-circuit protection, it is a core I/O component for high-reliability control systems in petroleum, chemical, power and other industries.
Technical Specifications
- Model: 3603B
- Part Number: 7400045-230
- Number of Channels: 16 independent digital output channels
- Output Type: 120VDC non-isolated sourcing output
- Rated Load: Max. 2A per channel, peak 12A (10ms)
- Redundancy Architecture: Full TMR triple redundancy with real-time voting
- Safety Certifications: IEC 61508 SIL 3, TÜV certified
- Monitoring Functions: Channel-level output readback, load line monitoring, fault diagnostics
- Protection Functions: Overcurrent protection, short-circuit protection, reverse polarity protection
- Operating Voltage: Logic 5VDC (backplane power), field 120VDC
- Operating Temperature: -40℃ ~ 70℃
- Physical Format: Standard Tricon single-slot I/O module
- Compatible Systems: Tricon series safety systems, programmable via TriStation 1131
Features
1. High-Reliability TMR Architecture
The module integrates three fully independent I/O circuits. Each channel is processed in parallel by three sets of circuits with real-time voting. If any one circuit fails, the other two continue to operate normally and automatically compensate, eliminating control interruptions caused by single-point failures and meeting high-availability requirements for continuous production and safety interlocking.
2. Safety-Rated Output Control
16 independently controllable channels support both normal output and safety shutdown modes. Under hazardous conditions, it can quickly cut power to loads to execute safety interlock actions such as emergency shutdown and valve closure. Electrical isolation between channels prevents single-channel faults from spreading to the entire module.
3. End-to-End Diagnostics and Monitoring
Supports output readback to compare command signals with actual output voltage in real time. Built-in load line monitoring detects short circuits, open circuits, load abnormalities and other faults, with diagnostic data uploaded to the controller for accurate fault location and predictive maintenance, reducing unplanned downtime.
4. Industrial-Grade Protection
Constructed with high-durability industrial components to withstand wide temperature, high humidity, dust and strong electromagnetic interference. Each channel includes a 3A fast-blow fuse and overcurrent suppression circuit to protect the module and system from field wiring faults.
5. Flexible Engineering Compatibility
Compatible with standard Tricon main and expansion chassis and supports hot swapping, allowing installation and replacement without system shutdown. Channel parameters and diagnostic thresholds can be configured via TriStation software to adapt to various field loads and control logic.
Installation and Maintenance
(I) Installation Procedure
Environmental Preparation
Install in a standard NEMA 4/4X industrial enclosure with adequate ventilation, leaving a 50mm clearance around the module for heat dissipation. Ambient temperature must be maintained between -40℃ and 70℃, away from direct sunlight and corrosive gases.
Chassis Installation
Confirm hot-swap support or power off the system. Align the 3603B with an available I/O slot and slide it firmly along the guide until the backplane connector is fully engaged. Tighten the module mounting screws. Install blank faceplate (model 8105) in empty slots to maintain chassis airflow.
Field Wiring
Power field loads using a dedicated 120VDC power supply, following the principle: connect load first, then power; disconnect power first, then remove wiring. Observe correct polarity for each channel (OUT positive, GND negative) to avoid reverse connection. Use 1.5–2.5mm² shielded cable with single-ended grounding to minimize electromagnetic interference.
Power-Up and Commissioning
After verifying correct wiring, apply system power and field load power sequentially. Check module status via TriStation software to confirm output, readback and alarm functions. Test each channel for consistency between command and actuation, and record test data.
Routine Maintenance
- Regular Inspection: Check module status indicators weekly (steady green = normal, flashing red = fault) to ensure no alarms. Inspect terminal tightness monthly to prevent loose connections.
- Diagnostic Analysis: Periodically export module diagnostic logs to analyze channel fault rates and load anomalies for early fault prediction.
- Module Replacement: Hot-swappable on Tricon V7 and above. After removing the faulty module, insert a new one immediately; the system automatically recognizes and configures it without reprogramming. Verify all channel functions after replacement.
- Storage: Store spare modules in a dry, dust-free, room-temperature environment to avoid electrostatic and vibration damage. For storage exceeding 6 months, power on and test functionality once.
Applications
With its SIL 3 safety rating and TMR reliability, the 3603B is widely used in high-risk, high-safety industrial sectors:
- Oil & Gas: Wellhead emergency shutdown, pipeline safety interlocks, ESD systems in gas processing plants, valve / actuator control
- Refining & Chemicals: Reactor safety control, distillation unit emergency shutdown, flare system interlocks, compressor protection
- Power & Energy: Boiler BMS, steam turbine safety protection, power plant auxiliary interlocks, non-nuclear safety controls in nuclear power plants
- Metallurgy & Building Materials: Blast furnace safety systems, cement kiln emergency shutdown, kiln valve control
- Aerospace: Test stand safety control, fuel supply interlocks, ground equipment protection
- Others: Offshore platform safety systems, pharmaceutical reactor protection, fire & gas interlocks in high-risk warehouses
FAQ
Q1: What is the difference between 3603B and 3603E/3603T?A: All three are 16-channel 120VDC TMR output modules. The core difference lies in isolation:
- 3603B: Non-isolated, common ground, suitable for standard applications with high cost-performance
- 3603E/3603T: Galvanically isolated between channels, ideal for harsh environments with strong interference, at higher cost and wiring complexity
Q2: How to troubleshoot a flashing red fault light?A: Flashing red usually indicates a channel fault.
- View diagnostic logs in TriStation to identify the faulty channel (short circuit, open circuit, overcurrent)
- Inspect wiring for looseness, short circuit or abnormal load
- Measure load resistance to rule out short circuit or low impedance
- If the fault persists after replacing wiring or load, replace the module
Q3: Can it be used for 24VDC or 115VAC loads?A: No. The 3603B is designed exclusively for 120VDC.
- For 24VDC, select model 3604E
- For 115VAC, select model 3611E
Q4: Does it support hot swapping?A: Hot swapping is supported on Tricon systems with firmware V7 and above. Only the local module channels are affected during insertion/removal; the TMR architecture automatically masks the faulty module while others operate normally. Outputs default to safe shutdown on removal; the system auto-detects and syncs configuration after insertion without downtime or reprogramming.
Q5: Can channels be paralleled to drive loads larger than 2A per channel?A: Parallel connection is not recommended. TMR voting may lose synchronization, causing misoperation or faults.Recommended solution: Use 3603B to drive an intermediate relay, with relay contacts controlling high-current loads.
Q6: What is the service life and how to extend it?A: Industrial service life is 10–15 years (environment-dependent).To extend lifespan:
- Control cabinet temperature ≤60℃ with proper ventilation
- Limit per-channel load to within 1.5A
- Regularly tighten terminals to avoid overheating
- Power on and test spare modules periodically
Q7: No output but status light is normal?A: Common causes:
- Field 120VDC power not applied or undervoltage (<100VDC)
- Output channel forced to “safety shutdown” via software (release in TriStation)
- Open circuit in load wiring or internal load failure
- Output readback detected an anomaly and locked the output (reset module after checking wiring)
Q8: Can it be used with other brands of PLC/DCS systems?A: The 3603B is a Tricon-specific module and only fits Tricon safety system chassis and controllers. Integration with other systems (e.g., Allen‑Bradley, Siemens PLCs) is possible via Tricon communication modules (TCM) supporting Modbus TCP, OPC and other protocols. The 3603B cannot be directly mounted on non-Tricon backplanes.
