ABB PM877 (Order No.: 3BDH000777R1) is a high-performance modular controller and the core component of the ABB Ability Symphony Plus MR Series (Melody Rack). It provides a highly reliable, scalable and available distributed control core for industrial processes such as power generation and water treatment. Supporting redundant hot standby, multi-protocol communication and SIL3 safety-rated applications, it is the primary controller for upgrading the Melody Rack architecture.
It replaces earlier models including CMC50/60/70 and PM875/PM876, offering battery-free operation, lower power consumption, and enhanced networking and cybersecurity capabilities, while remaining compatible with existing I/O and system topologies to protect customer assets and engineering investments.
Download
Technical Specifications
- Model: PM877, Material No.: 3BDH000777R1
- Position: Main control unit of MR Series (Melody Rack), DIN rail mountable
- I/O Capacity: Up to 2000 local analog/digital I/O points; up to 6000 points via PROFIBUS DP expansion
- Control Cycle: 16 adjustable levels supported, real-time multitasking operating system

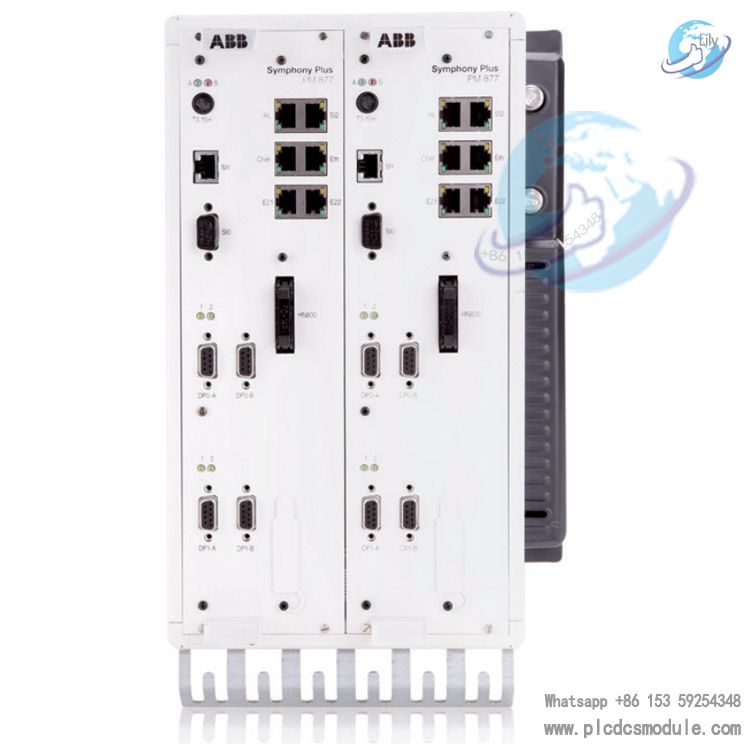

- Redundancy: 1:1 hot standby redundancy, bumpless switchover, no extra configuration or wiring required
- Clock Synchronization: Accuracy ±0.5ms, supports SOE events with 1ms station resolution
- Power Consumption: Approximately 50% lower than PM875/PM876
- Power Supply: Battery-free, maintenance-free design
- Safety Compliance: Supports SIL3 2oo3 boiler protection and other safety applications; meets DSAC cybersecurity standards
- Firmware: Supports bumpless online download; program and firmware updates without shutdown

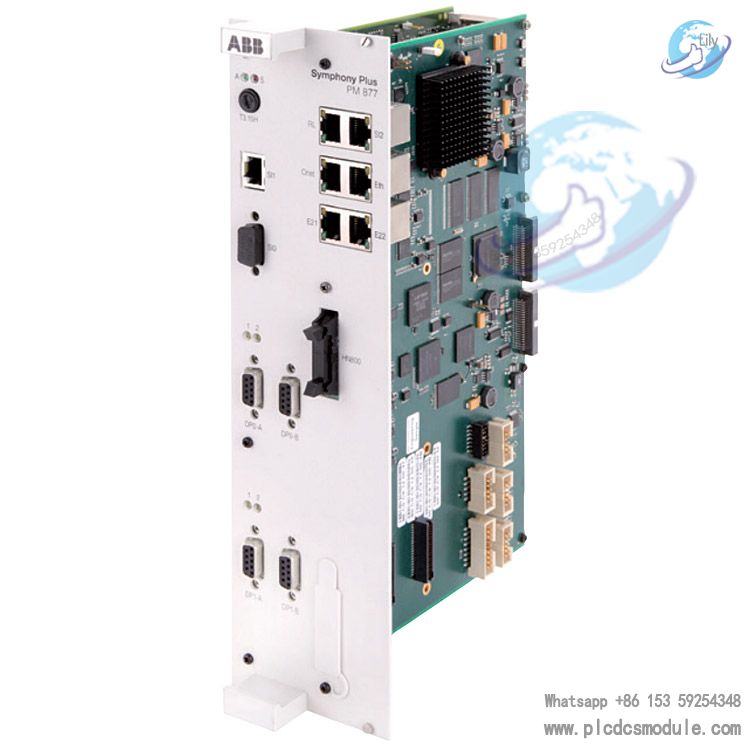

Hardware Structure & Installation
Mounting
- Standard DIN rail mounting, supports cabinet / 19-inch rack hybrid deployment
- Module height: 7U, front panel width: 8/16 rack units
- Front-mounted LED status and fault indicators for easy on-site diagnostics
- Supports expansion housing, up to 8 additional local I/O interfaces; remote I/O expandable via repeaters
Wiring & Deployment
- Local I/O connected via high-speed redundant Fnet fieldbus
- Field signals connected through front-end terminal units, supporting online module replacement without wiring disconnection or production interruption
- Full support for redundant power supply, redundant control network and redundant PROFIBUS to improve system availability
Maintenance Features
- Battery-free design: Eliminates battery replacement and leakage risks entirely, significantly reducing operation and maintenance costs.
- Comprehensive self-diagnostics: Periodic hardware and firmware self-tests; abnormalities are automatically sent to HMI and alarm systems.
- Online expansion and reconfiguration: I/O modules can be added or replaced during operation without affecting processes.
- Unified engineering tool: S+ Engineering for Melody supports one-stop configuration, commissioning, version management and rollback.
- Long-term compatibility: New modules are compatible with legacy systems in size, interface and function, enabling smooth evolution without obsolescence.
Communication & Interface Capabilities
- Built-in dual redundant PROFIBUS DP (DPV0/DPV1/DPV2), with adjustable baud rate from 9.6 kbps to 12 Mbps.
- Onboard Modbus TCP, supporting 128 servers / 16 slaves.
- Supports Modbus RTU, HART, and IEC 61850 (for electrical IED integration).
- Control network: redundant high-speed serial network with strong remote communication, no routing configuration, and easy expansion.
- Compatible with S800/S900 remote I/O and third-party Modbus/PROFIBUS devices.
Functions & Control Capabilities
- Supports closed-loop control, logic control, sequential control, batch control and advanced regulation algorithms.
- Built-in IEC 61131-3 standard function block library, supporting S88 and NAMUR recipes.
- SOE (Sequence of Events) recording with 1 ms resolution, including built-in filtering, monitoring and event identification.
- Supports FDT/DTM for plug-and-play integration of field devices.
- Output can be set to hold or preset values on fault to ensure safe operating states.
Application Areas
- Thermal power / combined cycle power / cogeneration (boiler protection, steam turbine control, auxiliary machinery control)
- Water treatment / wastewater treatment plants (pump and valve control, dosing, filter beds, SCADA integration)
- Industrial boilers, heating systems and district energy stations
- Petrochemical / utility distributed control and safety interlock systems
- Modernization and upgrade of legacy Melody/Contronic systems
Frequently Asked Questions (FAQ)
Q1: Can PM877 directly replace CMC50/CMC60/CMC70?
A: Yes. S+ Engineering for Melody provides full replacement support. Existing I/O modules (375k/2M baud rate) can be retained, and CCO30 series communication modules are compatible, with no need to reconfigure logic or topology.
Q2: Does PM877 require regular battery replacement?
A: No. PM877 features a battery-free design, which is the most critical maintenance improvement over previous generations, completely eliminating battery maintenance.
Q3: What is the maximum supported I/O points?
A: Up to 2000 local I/O points; up to an additional 6000 points via PROFIBUS DP remote expansion. In total, a single controller can manage approximately 8000 points.
Q4: How is redundancy configured? Is extra software or hardware required?
A: Plug-and-play redundancy. Hardware is configured 1:1, with automatic redundancy on the control network and Fnet. No programming or routing configuration is needed. The standby controller takes over bumplessly if the primary controller fails.
Q5: Which fieldbuses and third-party devices are supported?
A: PROFIBUS DP/PA, Modbus RTU/TCP, HART, IEC 61850. It can connect to S800/S900 I/O, inverters, instruments, PLCs, electrical protection devices, etc.
Q6: What is the SOE time accuracy?
A: SOE resolution at the controller and local I/O layer is 1 ms; system clock synchronization accuracy is ±0.5 ms.
Q7: Does it support online program and firmware download?
A: Yes. Bumpless download is supported without process interruption, switching or triggering shutdowns, making it suitable for continuous production industries.
Q8: What are the main energy-saving and safety improvements?
A: 50% lower power consumption; battery-free operation; compliance with DSAC cybersecurity standards; added Modbus TCP/IEC 61850 support; and support for SIL3 safety loops.
