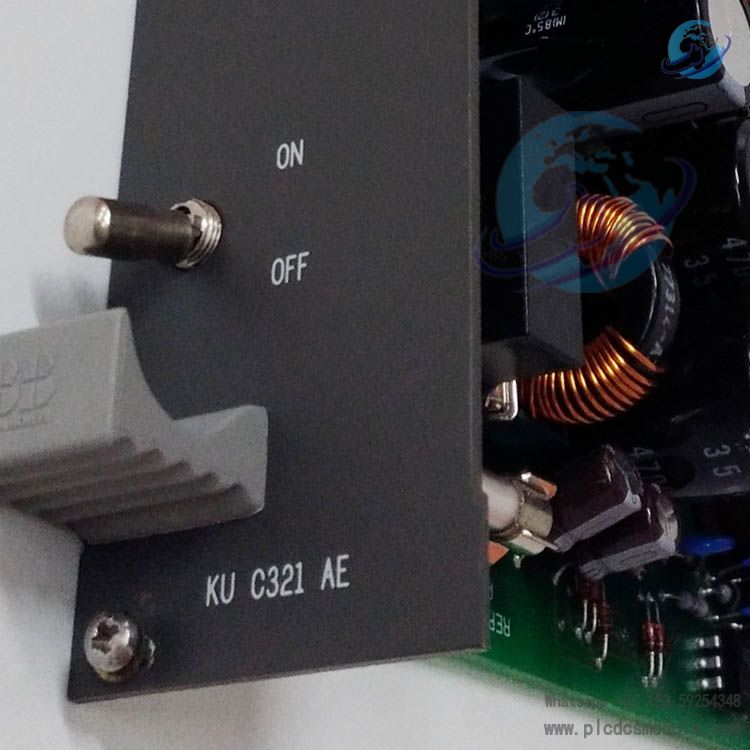

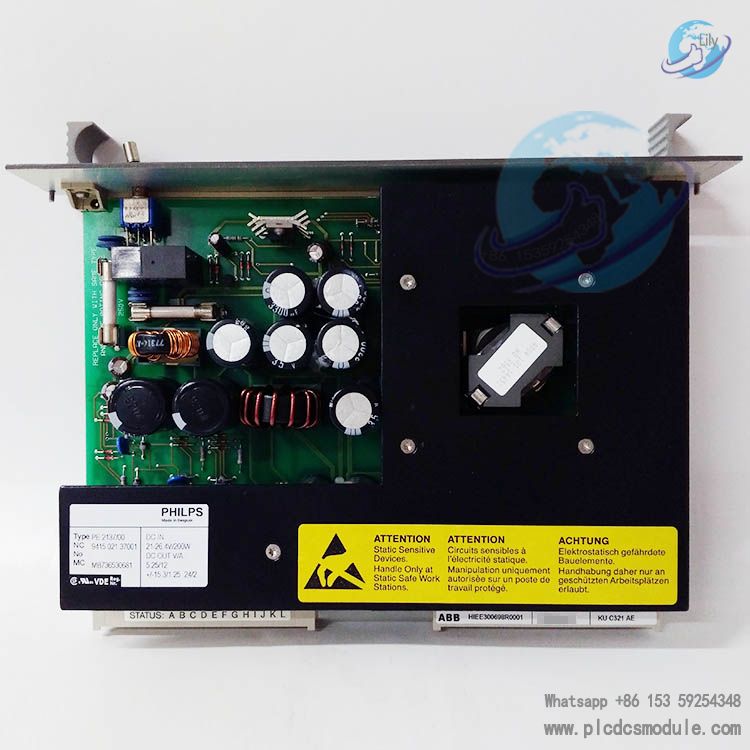

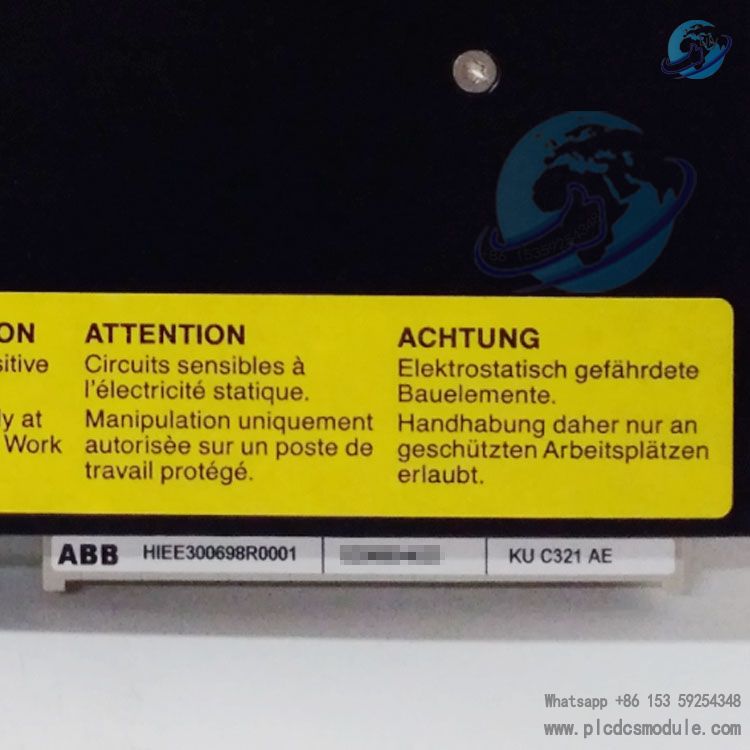

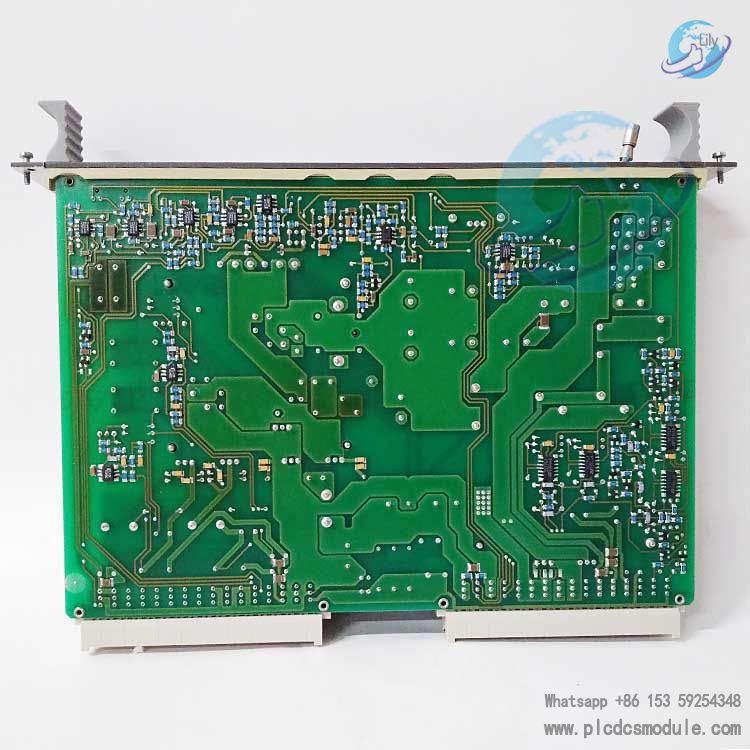

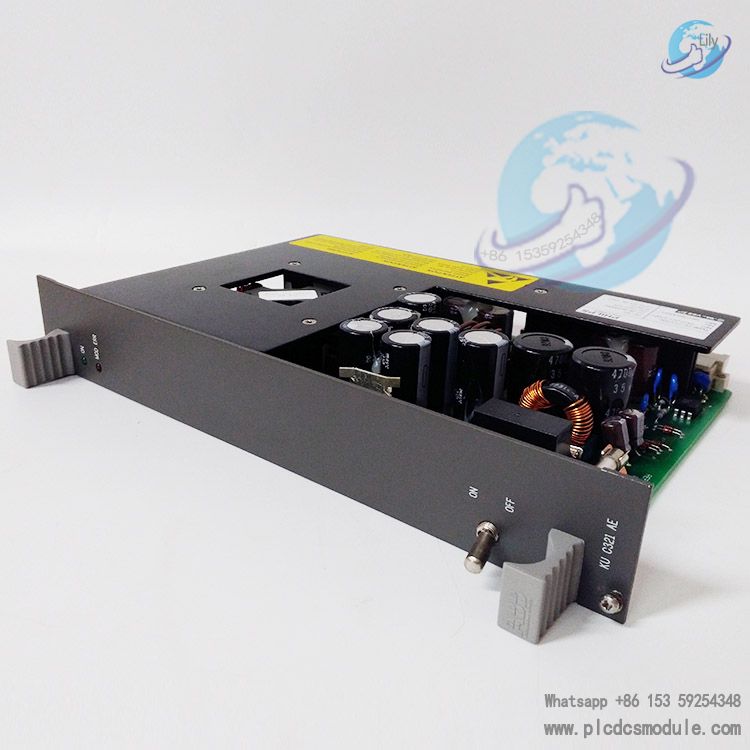

ABB KU C321 AE01, Order No. HIEE300698R0001, is a rack-mounted high-performance regulated DC power supply module developed by ABB specifically for high-end DCS distributed control systems and industrial automation platforms such as Symphony and Advant. Serving as the core power hub of the system, it efficiently converts a wide-range AC input from industrial sites into a stable and isolated 24V DC standard power supply. It provides continuous, clean, and interference-free power to all core electronic components of the control system, including CPU processors, analog/digital I/O modules, communication interface cards, and monitoring units.
Designed in strict accordance with rigorous industrial standards, the module integrates high-efficiency topology circuits, multi-stage EMI filtering, full-condition protection mechanisms, and a hot-swappable architecture. It can operate stably for long periods in extreme industrial environments ranging from -20°C to +60°C. Featuring high conversion efficiency, precise output voltage, strong anti-interference performance, and easy maintenance, it is widely applied in process control scenarios demanding high reliability, such as power generation, petrochemicals, metallurgy, water treatment, and papermaking.
Technical Specifications
1. Electrical Parameters
- Model Identification: KU C321 AE01 / HIEE300698R0001 / PSR2-Power Supply
- Input Voltage: 100–240V AC single-phase, 50/60Hz (wide-range adaptive)
- Input Current: Max. 8A @ 100V AC, 4A @ 240V AC
- Output Voltage: 24V DC, accuracy ±1%
- Output Current: Rated 6A, peak 8A
- Ripple & Noise: ≤50mVpp (20MHz bandwidth)
- Conversion Efficiency: ≥90% at full load
- Power Consumption: Approx. 150W at full load
- Isolation Voltage: Input‑output 2.5kV AC, Input‑ground 1.5kV AC
2. Physical & Environmental Parameters
- Mounting: Standard VME rack / backplane mounting (hot‑swap compatible)
- Dimensions: Approx. 300mm × 150mm × 40mm (L × W × D)
- Weight: Approx. 1.2kg
- Operating Temperature: -20℃ ～ +60℃
- Storage Temperature: -40℃ ～ +85℃
- Relative Humidity: 5–95% RH (non‑condensing)
- Protection Class: IP20 (cabinet installation)
- Certifications: CE, UL 508, IEC 61010, CSA C22.2 No.142.3
Features & Characteristics
Wide-Range Input Compatibility
Supports universal global 100–240V AC single-phase mains input with built-in PFC power factor correction circuit. Adapts to industrial grid environments with severe voltage fluctuations and harmonic interference without requiring an external transformer.
High-Precision Stable Output
Utilizes PWM high-frequency switching regulation technology, keeping 24V DC output accuracy within ±1% with excellent ripple suppression. Provides clean power for control modules, sensors, and actuators, preventing system malfunctions or component damage caused by voltage instability.
Comprehensive Protection Mechanism
Integrates overcurrent, overvoltage, overtemperature, short-circuit, reverse polarity, and surge protection. Cuts off output within milliseconds under abnormal conditions and automatically recovers after fault elimination. Supports output current limiting and overtemperature derating to safeguard the module and downstream loads.
Hot-Swappable & Redundant Design
Supports hot swapping without system shutdown. Allows N+1 redundancy via parallel connection of multiple modules with current sharing for balanced load distribution. A single module failure does not disrupt system power supply, meeting continuous operation requirements for critical processes.
High-Efficiency Heat Dissipation & Reliability
Features an open-frame metal housing and surface-mount power device layout with forced air cooling via backplane ducts. Fanless design reduces potential failure points. Equipped with industrial-grade long-life capacitors and semiconductors, delivering MTBF ≥ 500,000 hours for 24/7 continuous operation.
Status Monitoring & Diagnostics

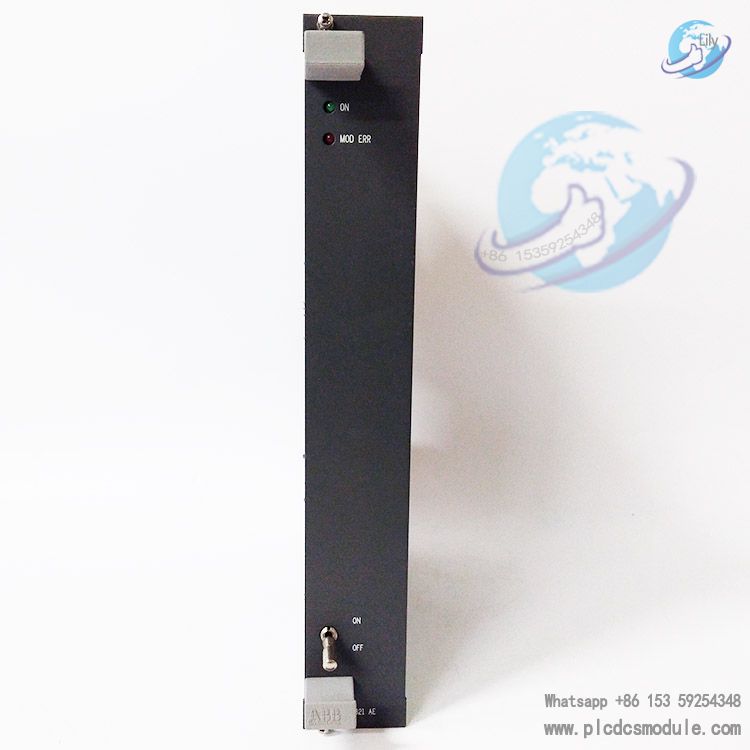

Integrated front-panel LED indicators (power OK / fault / overload). Supports uploading operating data including voltage, current, temperature, and fault codes via the system bus for convenient remote monitoring and rapid troubleshooting.
Installation & Maintenance Specifications
1. Installation Procedure
With power disconnected, align the module with the rack slot and push it firmly in until the backplane connector is fully engaged, then tighten the mounting screws on both sides.Connect AC input (L/N/PE) and DC output (24V+/24V-) according to the labeling, ensuring secure wiring, correct polarity, and reliable connection of the grounding terminal to the cabinet earth grid.Verify secure module installation, unobstructed heat dissipation channels, and that the load does not exceed rated current before applying power gradually for testing.For redundant configuration, ensure all modules share the same input source and common output bus, connect current-sharing lines properly, and enable system redundancy function.
2. Maintenance Guidelines
Routine inspection: Check LED status monthly, record output voltage and current values, and inspect terminal connections for looseness, overheating or oxidation.Periodic maintenance: Blow dust off the module surface and heat dissipation channels using compressed air quarterly to prevent heat reduction caused by dust buildup; inspect capacitors, relays and other consumable components every 2 years.Fault replacement: In case of module failure, replace the spare unit directly via hot swap. The new module automatically synchronizes parameters upon power-on without additional configuration.Storage requirements: For long-term storage, keep in a dry, dust-free environment at -20℃～+40℃, and power on for 2 hours every 6 months to recondition capacitors.
Frequently Asked Questions (FAQ)
Q1: What should I do if there is no output and the LED does not light up after power‑on?A: ① Check if the input AC power is normal, wiring secure, and circuit breaker closed.② Verify input voltage is within 100–240V AC and frequency 50/60Hz.③ Ensure the power module is fully inserted into the slot with good backplane connector contact.④ Check for short circuit on the load side; test the module output separately with load disconnected.
Q2: What causes low or unstable output voltage?A: ① Load current exceeds rated 6A causing overload derating – reduce load or add parallel modules.② Input voltage too low (<100V AC) or severe grid fluctuation – improve power quality.③ Voltage drop due to excessively long or thin output cables – replace with properly sized cables.④ Internal filter capacitors degraded – replace the module.
Q3: How to resolve frequent overload/short‑circuit protection tripping?A: ① Disconnect loads one by one to locate shorted or overloaded branch and repair faulty circuits/devices.② Check for large inrush current; add buffer circuits or use higher‑capacity modules.③ Ensure protection thresholds are not incorrectly modified; restore factory settings.④ Internal protection circuit fault – contact ABB after‑sales service for repair.
Q4: Is it normal for the module to run hot with a warm casing?A: Casing temperature below 60℃ at full load is normal. If exceeding 70℃, check blocked cooling channels, poor cabinet ventilation, or excessive ambient temperature. Reduce load or add cabinet cooling fans. Persistently high temperature may indicate internal power device failure – shut down for inspection.
Q5: Can it be used mixed with other ABB power supply models?A: Only parallel redundancy with identical models (KU C321 AE01 / HIEE300698R0001) is supported. Mixing different models is prohibited due to differences in output characteristics and current‑sharing protocols, which may cause unstable output or module damage.
Q6: Can I repair the module myself after failure?A: Disassembly by non‑professionals is not recommended. Internal high‑voltage energy storage components and precision circuits pose electric shock risks or may worsen damage. Replace with a spare module directly and return faulty units to ABB authorized service centers for repair.
Q7: Which ABB control systems is this module compatible with?A: Mainly designed for ABB DCS systems including Symphony, Symphony Plus, Advant OCS, and Master Series, as well as selected industrial PLC rack architectures. Not suitable for non‑ABB proprietary backplane systems.
