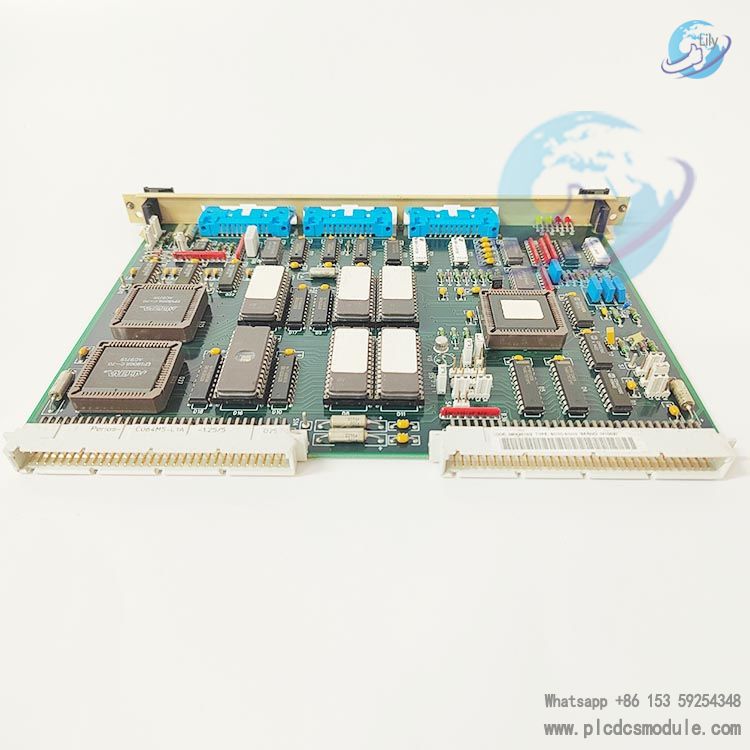

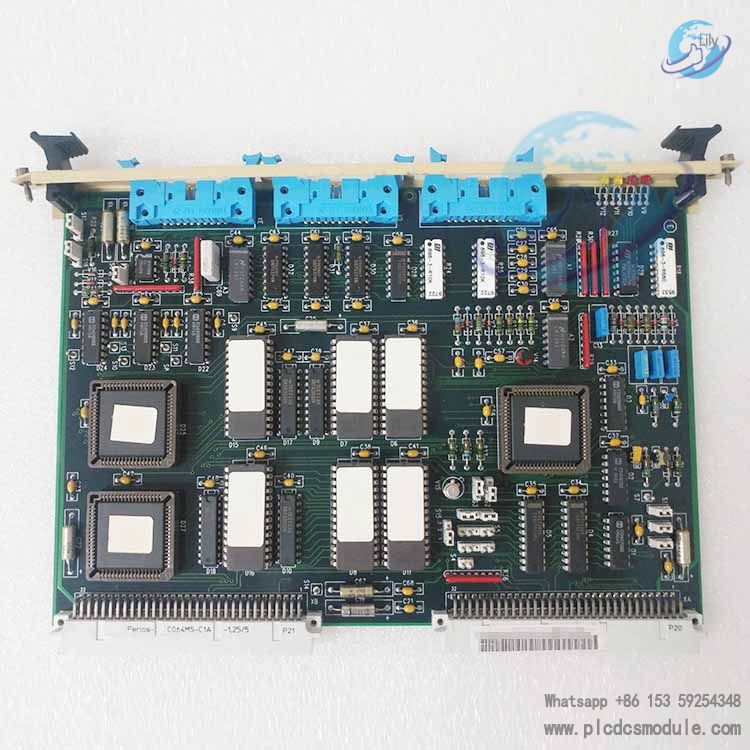

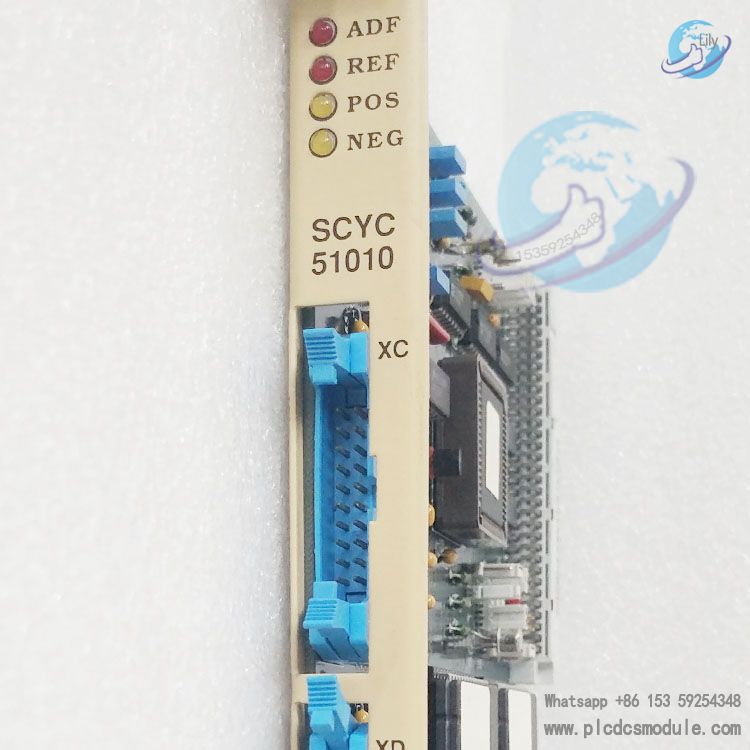

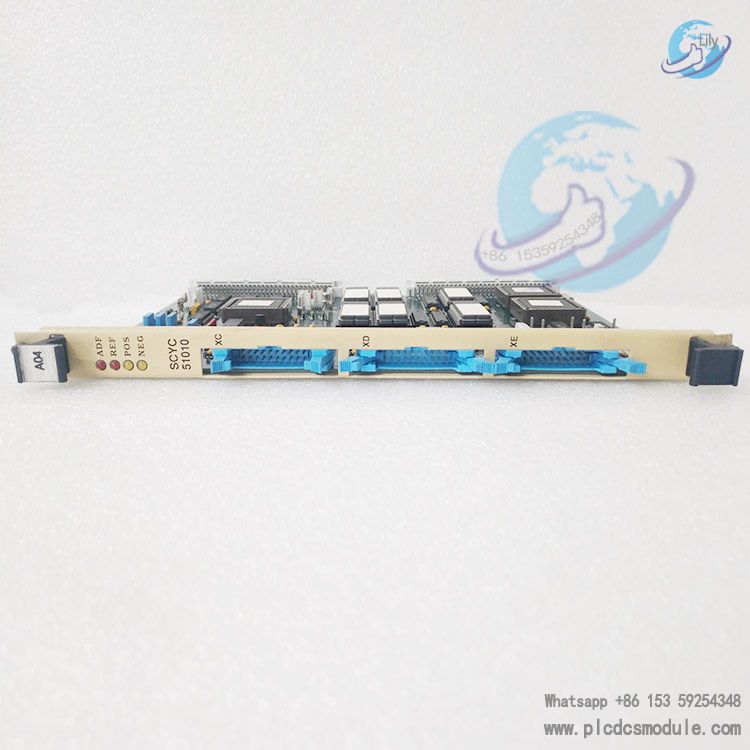

The ABB SCYC51010 58052515G high-performance transmitter unit card belongs to the ABB SCYC5100 series. It is corely used for the precise triggering and control of electrical equipment in industrial automation and control systems. Particularly, it is suitable for scenarios such as high-voltage drives and excitation systems, and serves as a key component to ensure the stable operation of power electronic equipment. With core advantages of high reliability and high compatibility, the SCYC51010 58052515G can be seamlessly integrated into ABB DCS/PLC systems (such as AC800F, Advant OCS, etc.) and also collaborate with third-party control equipment. It is widely applied in fields with strict requirements on control accuracy and environmental adaptability, including power generation, petrochemical industry, metallurgy, and rail transit.
Specifications & Features
| Item | Details |
|---|---|
| Model/Part No. | SCYC51010 / 58052515G |
| Function | Trigger signal, power drive, monitoring & fault feedback |
| Power | 24V DC |
| Operating Temp. | -20~+60℃ (-40~85℃ optional) |
| Storage Temp. | -40~+85℃ |
| Interface | Ethernet, RS485, Modbus, PROFIBUS DP |
| Protection | Industrial-grade |
| Dim./Wt. | 230×135×60mm / 0.5kg |
Functions & Applications
Precision Trigger ControlGenerates high-precision, fast-response trigger pulses to drive thyristors, IGCTs and other power devices, ensuring stable operation of power converters, inverters and other equipment. Control accuracy reaches 0.1% FS, meeting stringent requirements for high-voltage drives and excitation systems.
Multi-Protocol CommunicationSupports high-speed data exchange with ABB AC800F, Advant OCS controllers and host systems via Ethernet, RS485, PROFIBUS DP and other interfaces. Enables remote configuration, status monitoring and fault diagnosis.
Status Monitoring & ProtectionCollects real-time operating current, voltage, temperature and other key parameters. Built-in overcurrent, overvoltage, short-circuit and other protection mechanisms provide fast fault feedback and actuation to prevent equipment damage.
Application Areas
- Power unit trigger control for high-voltage inverters and DC drive systems
- Excitation regulation for generator excitation systems and synchronous motor control systems
- Drive control for traction converters in electric locomotives and rail transit
- High-power motor speed control and energy conversion systems in petrochemical and metallurgical industries
FAQ
Q: What is the difference between SCYC51010 58052515G and other ABB transmitter unit cards?A: This model features high compatibility and reliability, suitable for all scenarios in the ABB SCYC5100 series, supports multi-protocol communication and wide-temperature operation, and can directly replace older models. Unlike general I/O modules, it focuses on electrical triggering and driving rather than simple signal acquisition, making it more suitable for control requirements of high-voltage and high-power equipment.
Q: Does this card support redundant configuration? How to implement it?A: Redundant configuration is supported. System reliability can be improved through dual-card parallel operation or active-standby switching. It needs to be used with the ABB CEX-Bus communication expansion bus and redundant controllers (such as PM891). Status synchronization and failover are realized via system software, with a switching time ≤10ms to ensure business continuity.
Q: What key points should be noted during installation and wiring?A: ① Strictly follow the 24V DC power supply specification to avoid reverse polarity connection.② The trigger signal output must be directly matched with the power device driver; overload wiring is prohibited.③ Shielded cables must be used for communication interfaces, kept away from strong electrical interference sources.④ Ensure good contact between the card, the rail and the backplane during installation, with sufficient heat dissipation space to avoid high-temperature heat accumulation.
Q: How to troubleshoot common faults?A: ① No trigger signal: First check whether the 24V power supply is normal, then read the card status code through the communication interface to troubleshoot driver module faults.② Communication abnormality: Verify protocol configuration (baud rate, IP address), check proper grounding of shielded cables, and test by replacing the communication interface.③ Abnormal trigger pulse: Focus on checking the wiring of the power device driver, inspect for damage to the internal trigger circuit of the card, and contact ABB after-sales service for repair if necessary.
