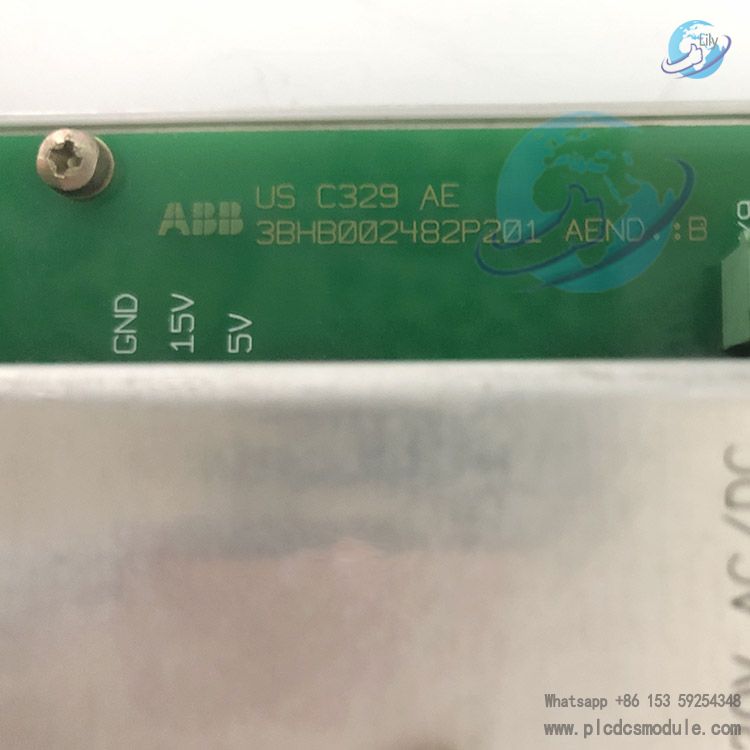

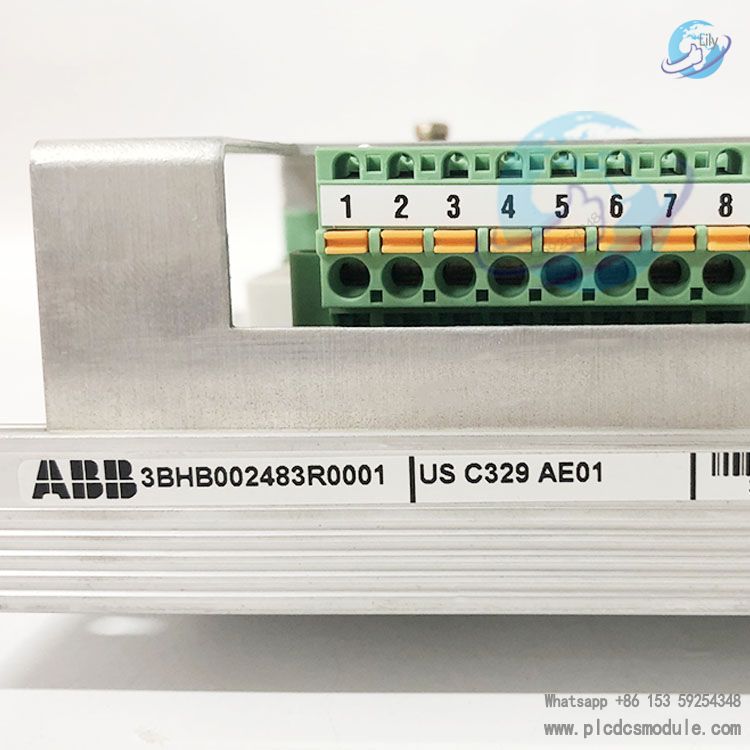

The USC329AE01 (Order No.: 3BHB002483R0001) interface extension module is mainly compatible with ABB AC 800M, 800xA and related DCS/PLC control systems. It is used for system I/O expansion, communication interface extension, field signal conditioning and auxiliary processing of control logic.
Featuring an industrial-grade PCB and highly reliable components, the USC329AE01 3BHB002483R0001 supports multi-protocol communication, multi-type signal access and redundant configuration. It boasts strong electromagnetic compatibility, a wide operating temperature range and long-term stable operation.This module is widely applied in power generation, power transmission, petrochemical, metallurgy, large-scale manufacturing and other industries with stringent requirements for control reliability, serving as a critical interface and expansion unit between control systems and field devices.
Basic Information
- Model: USC329AE01
- Order No.: 3BHB002483R0001
- Brand: ABB
- Product Type: Control / Interface Expansion Module
- Applicable Systems: ABB AC 800M, 800xA DCS and related series control systems
- Weight: Approx. 1.0 kg
- Dimensions: Approx. 17.8 cm × 10.2 cm × 7.8 cm
- Protection Class: IP20 (for standard cabinet mounting)
- Operating Environment:
- Temperature: -10℃ ~ +60℃
- Humidity: 5% ~ 95% RH (non-condensing)
- Vibration / Shock Resistance: Compliant with IEC 60068 industrial standards
Functions & Technical Features
Interface & Signal Expansion Capabilities
Integrates multi-channel signal conditioning and isolation circuits for analog (AI/AO) and digital (DI/DO) signals, supporting input and output of industrial standard signals including 4–20mA, 0–10V, TTL, and relay contacts.
Equipped with a dedicated local bus interface for high-speed communication with main controllers (such as the PM86x series), enabling real-time signal acquisition and rapid issuance of control commands.
Supports multi-module cascading expansion; a single system can mount multiple USC329AE01 units to expand I/O capacity and interface types.
Supported Communication Protocols
- Built-in Ethernet ports: 2×10/100/1000 Mbps, supporting TCP/IP, Modbus TCP, Profinet, etc., with redundant ring network capability and fault switchover time < 50 ms.
- Serial communication: RS232, RS485, supporting Modbus RTU, Profibus DP and other protocols for networking with traditional instruments and PLCs.
- Dedicated control bus: Compatible with ABB proprietary internal bus protocols, ensuring stable cooperation between the module, controllers and other I/O modules.
Hardware & Reliability Design
Industrial-grade processor with 256MB RAM + 512MB Flash memory, supporting real-time data buffering, parameter storage and diagnostic log recording.
Full electrical isolation design: galvanic isolation between signal, power and communication circuits, with withstand voltage ≥ 2kV, effectively suppressing on-site interference and protecting the controller and host system.
Supports hot-swap (Revision CA and above), allowing online replacement without system interruption.
Redundancy configuration: redundant power supply and communication ports, eliminating single points of failure in critical applications.
Diagnostics & Maintenance
Module self-test, channel status monitoring, and fault alarm (LED indicators + host system alarms).
Supports online firmware upgrade via WinLoader or Web tools without disassembly.
Channel-level fault localization for quick troubleshooting and maintenance.
Application Areas
- Power Systems: Generator unit control, substation automation, high-voltage transmission protection and monitoring.
- Process Industries: DCS system I/O expansion and signal interfacing for petrochemical, metallurgical and paper manufacturing.
- Energy & Infrastructure: Control for hydropower / thermal power / wind power, and monitoring systems for large-scale compressors and pump units.
- Smart Manufacturing: Signal interfacing for high-end equipment, production line control and robotic systems.
Frequently Asked Questions (FAQ)
Q1: Is the USC329AE01 an I/O module or a communication module?A: It is a comprehensive control/interface expansion module that integrates I/O signal conditioning, local expansion, and multi-protocol communication. It expands the system I/O capacity while providing external communication interfaces.
Q2: Is hot-swap supported? Which revisions support it?A: Hot-swap is supported in Revision CA and later. Revision BA and earlier versions do not support hot-swap and require power-off for replacement.
Q3: Which ABB main controllers is it compatible with?A: It is mainly designed for ABB AC 800M series (such as PM861/864/865/866) and 800xA DCS systems. It can also be adapted to some ABB robot and drive control systems via protocol conversion.
Q4: How to quickly locate module faults?A: 1) Check the RUN/ALARM indicators on the panel; 2) Read module diagnostic codes via the controller host software; 3) Inspect power supply, bus, wiring terminals and grounding; 4) Perform single-channel testing to determine channel damage.
Q5: Does it support communication with third-party devices?A: Yes. It can communicate with third-party PLCs, instruments and HMIs via standard protocols such as Modbus RTU/TCP and Profibus DP. Corresponding protocols and address mapping must be configured in the controller.
Q6: What are the power supply specifications and wiring requirements?A: Typical operating voltage is 24V DC (range 18–32V DC). Dual redundant power input is used. Wiring requires wire cross-section ≥ 0.5mm², reliable crimping, and proper grounding (system ground and field ground separated).
Q7: How to upgrade the firmware?A: 1) Use the WinLoader tool via the controller USB/serial port; 2) Upgrade via the web interface over Ethernet; 3) Firmware packages and procedures are available from the ABB official website.
Q8: What is the maximum number of USC329AE01 modules that can be mounted in a single system?A: It depends on the main controller model and bus load. AC 800M typically supports 8–16 expansion modules. Calculation must be made based on total I/O points, communication bandwidth and power capacity.
