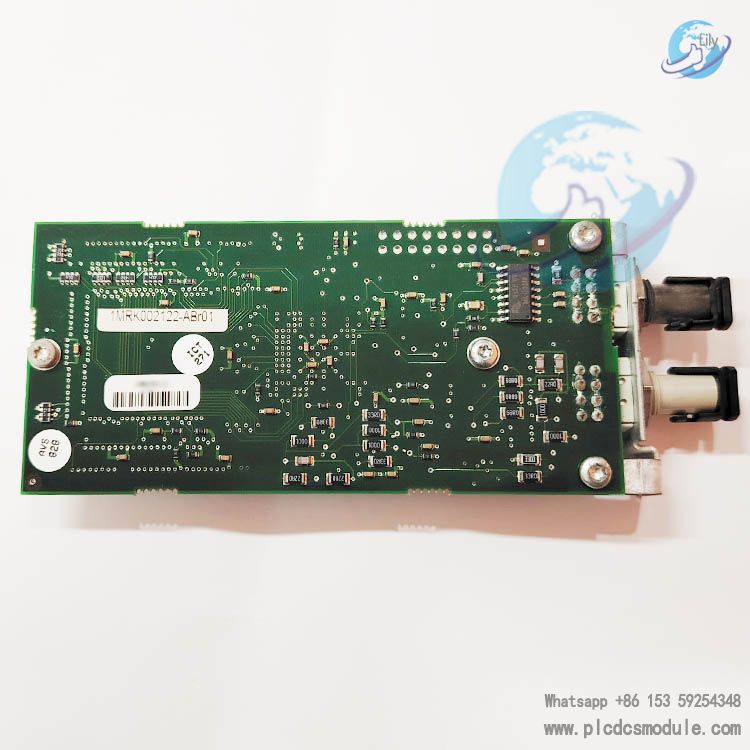

ABB 1MRK002122-ABr01 is a precisely positioned 24V DC output module belonging to the ABB 1MRK series of industrial control components. It is mainly used for isolated output of discrete signals and actuator driving in industrial automation systems. Suitable for dense installation in control cabinets, it can be seamlessly integrated into mainstream control systems such as ABB Symphony, providing stable and efficient control signal transmission and actuation support for production lines, power protection, rail transit and other fields.
Features & Technical Specifications
| Item | Details |
|---|---|
| Product Type | 24V DC Output Module |
| Rated Voltage | 24V DC (industrial standard power supply) |
| Operating Temperature | -20℃ to +60℃ |
| Ingress Protection | IP20 (dust protection for cabinet interior) |
| Mounting | Standard DIN rail mounting |
| Communication Compatibility | Supports Modbus RTU/ASCII protocol, compatible with mainstream industrial fieldbuses |
| Physical Dimensions | 120 x 80 x 50 mm (compact design) |
| Weight | Approx. 0.3 kg (lightweight for installation) |
| Core Functions | 24V DC isolated signal output, actuator driving, electromagnetic interference resistance, system expansion |
Application Scenarios
- Industrial Automation Production Lines: Drives actuators such as solenoid valves, small motors, and indicator lights to realize logical control of workstations.
- Power Protection Systems: Works with relay protection devices to accurately execute tripping, alarm and other commands.
- Rail Transit Signal Control: Ensures stable transmission of signal system commands and improves redundancy for traffic safety.
- Building Automation: Supports zone control of air conditioning, lighting and other systems to achieve energy saving and automated management.
Frequently Asked Questions (FAQ)
Is this module compatible with the ABB AC800M control system?Yes, it is compatible. The 1MRK002122-ABr01 supports mainstream ABB control systems including Symphony and AC800M, and can be directly connected via standard bus protocols without additional adapter modules.
What is the maximum load current for the 24V DC output?The maximum output current per channel is 0.5 A, which can drive conventional small actuators (such as solenoid valves and indicator lights). For driving heavy-load equipment, an intermediate relay is recommended to avoid overloading and damaging the module.
What electrical isolation points should be noted during installation?Proper electrical isolation between the module and high-voltage circuits must be ensured. Both input and output circuits support optical isolation. Good earthing during wiring can effectively resist electromagnetic interference on industrial sites and guarantee stable signal transmission.
How to troubleshoot the module’s no-output fault?First, check whether the 24V DC power supply is normal and ensure the wiring terminals are tight and secure. Next, use diagnostic tools to read the module status and check for interruptions in protocol communication. If both are normal, inspect whether the output channels are damaged due to overload and replace the module if necessary.
Does this module support hot-plugging?Hot-plugging is not supported. After power-off, wait 5–10 minutes for the internal capacitors of the module to fully discharge before installation or removal, to prevent component damage from electrical surges.
