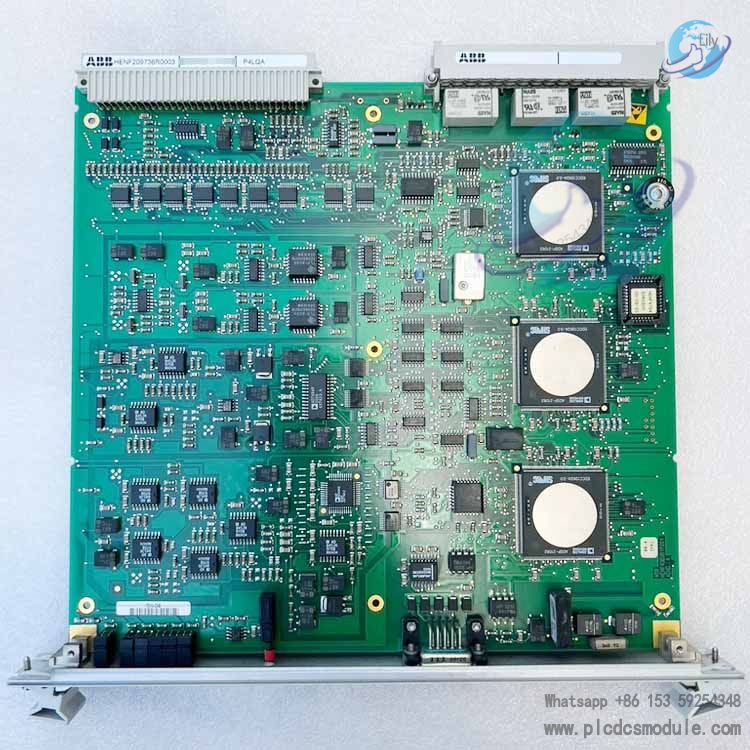

The ABB P4LQA HENF209736R0003 is a high-performance digital trigger control board (DSP Pulse Transformer/Digital Trigger Control Board) designed specifically for the P7LC control system. As a core component of the ABB Advant OCS and MOD 300 DCS distributed control systems, it is mainly used in high-power converters, power electronic equipment and industrial automation applications. It provides high-precision pulse triggering, signal isolation and fault protection functions, serving as a critical hardware module for achieving accurate and stable control.
Specifications
Model Information
- Product Model: P4LQA

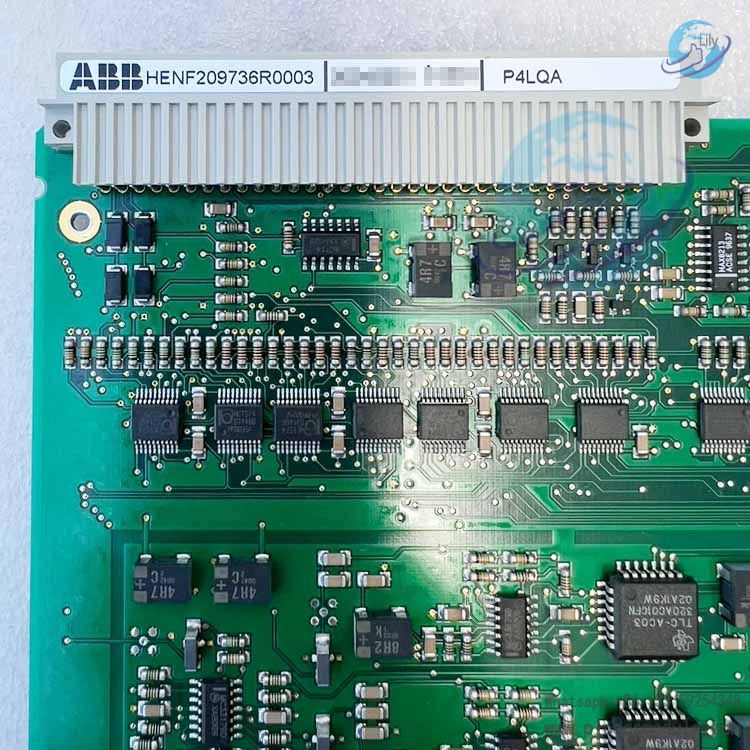

- Spare Part No.: HENF209736R0003
- Applicable System: ABB P7LC Control System / Advant MOD 300 DCS
- Product Type: DSP Digital Trigger Control Board / Controller Processor Card
Physical Characteristics
- Dimensions: 278 mm × 195 mm × 60 mm (27.8 cm × 19.5 cm × 6.0 cm)
- Weight: Approx. 1.5 kg
- Protection Class: IP20 (board-level, for cabinet mounting only)
Environmental Parameters
- Operating Temperature: 0°C ~ +60°C
- Storage Temperature: -40°C ~ +85°C
- Humidity: 5% ~ 95% (non-condensing)
Functions & Interfaces
- Core Functions: Digital triggering for high‑power converters, pulse signal isolation, system fault protection

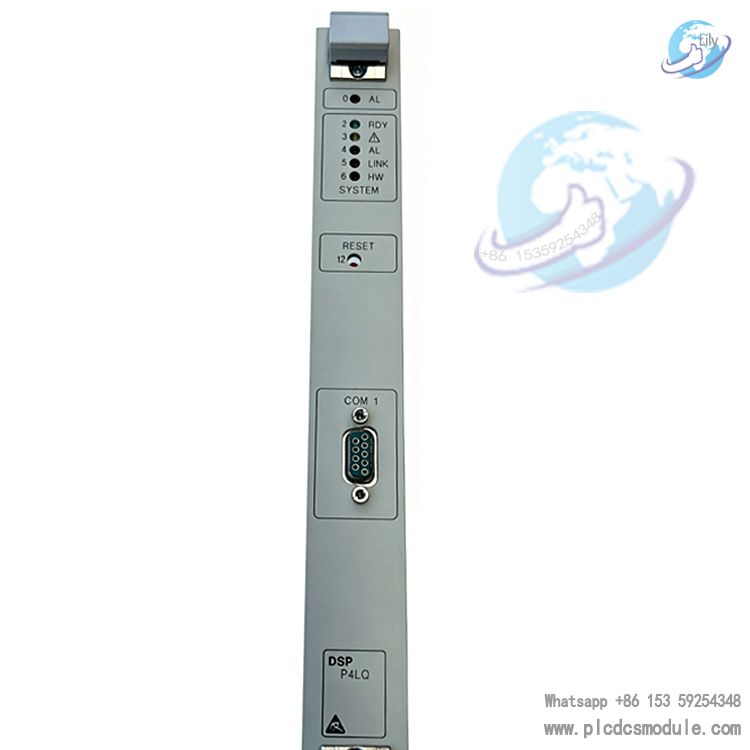

- Diagnostic Indicators: Onboard LED status indicators (power, trigger status, fault, communication)
- Communication Interface: Compatible with ABB AC800M/DCS system backplane bus
- Compatible Equipment: ABB ACS series inverters and various industrial control systems
Functions & Features

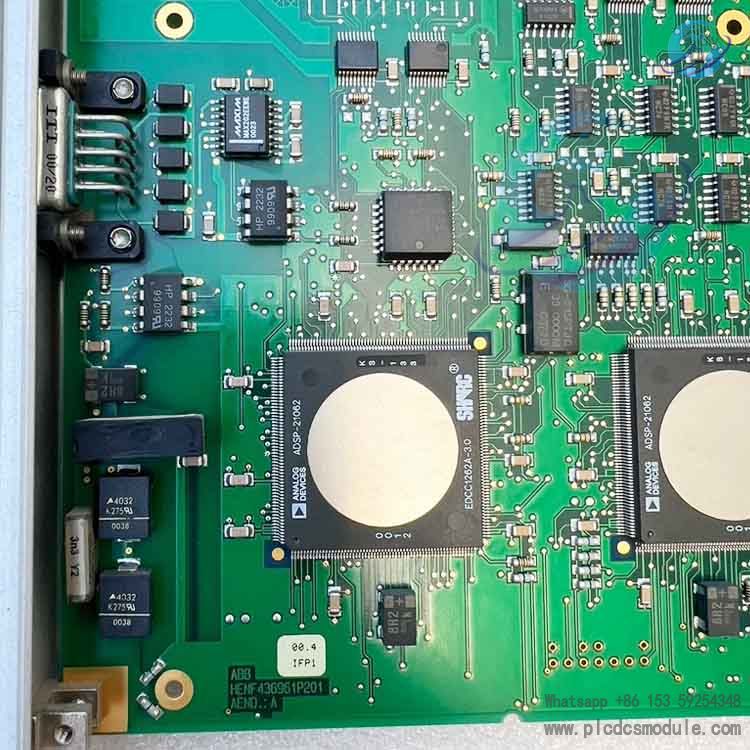

- High‑precision Trigger ControlEquipped with a dedicated DSP processor with an output frequency of up to 30 kHz, it provides accurate and synchronized trigger pulses for power devices such as thyristors and IGBTs, ensuring efficient and stable operation of the converter system.
- Strong Signal Isolation & Anti‑interferenceIntegrates pulse transformers to achieve electrical isolation between the control circuit and high‑voltage power circuit, effectively suppressing electromagnetic interference (EMI) in industrial sites and safeguarding signal integrity and operational safety.
- Real‑time Fault Diagnosis & ProtectionBuilt‑in comprehensive fault monitoring logic continuously monitors abnormal conditions including overcurrent, overvoltage and trigger failure. Faults can be quickly located via LED indicators, and the protection mechanism is activated to cut off outputs and prevent equipment damage.
- High‑reliability Industrial‑grade DesignAdopts industrial‑grade components and surface‑mount technology with wide temperature and humidity adaptability to meet harsh heavy‑industry environments. Featuring a long mean time between failures (MTBF), it ensures long‑term stable operation of the control system.
- Seamless System IntegrationOptimized specifically for the P7LC control system, it cooperates with the system CPU, I/O modules and communication modules via the standard backplane bus. It supports plug‑and‑play, facilitating system expansion and spare part replacement.
Frequently Asked Questions (FAQ)
Q1: What is the main function of the P4LQA (HENF209736R0003) control board?A1: It is a dedicated digital trigger board for the P7LC control system. Its core function is to generate high-precision trigger pulses for high-power converters (such as rectifiers and inverters), provide electrical isolation between low-voltage control and high-power circuits, and offer fault protection. It serves as a key interface connecting the control system and the power drive unit.
Q2: Can this board directly replace other ABB control board models?A2: No. The P4LQA (HENF209736R0003) is designed exclusively for the P7LC control system, with its hardware interface, communication protocol and firmware deeply matched to this system. Replacement must use the exact same spare part number; it cannot be mixed with control boards from other series such as AC800M or Bailey INFI 90.
Q3: How to determine if the P4LQA control board has failed?A3: Faults can be identified using the onboard LED indicators:
- PWR LED off: Module not powered or power circuit fault
- TRIG LED not flashing / abnormal: No trigger pulse output or trigger failure
- FAULT LED continuously lit: Overcurrent, overvoltage or other faults detected, system protection activated
- COMM LED abnormal: Communication interrupted with the P7LC system CPU
Q4: Does this control board support hot swapping?A4: No. The P4LQA is designed as a passive backplane card. Power to the P7LC chassis must be disconnected before installation, removal or replacement, otherwise module burnout, short circuit or system downtime may occur.
Q5: What are the requirements for storage and transportation of the P4LQA control board?A5: It should be stored in a dry, dust-free environment within -40°C ~ +85°C. During transportation, anti-static packaging and cushioning materials must be used to avoid severe vibration, impact and electrostatic discharge (ESD) damage to the onboard precision circuits.
