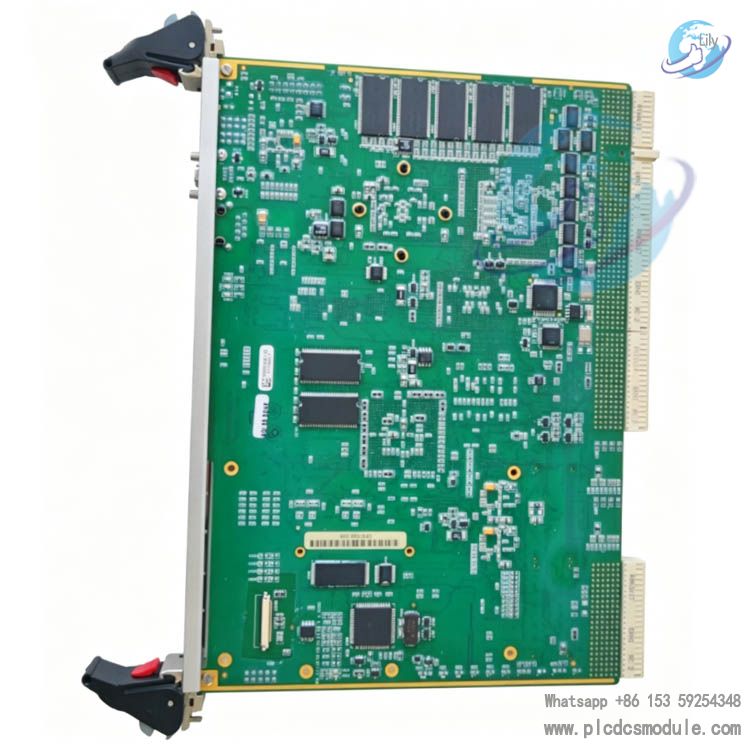

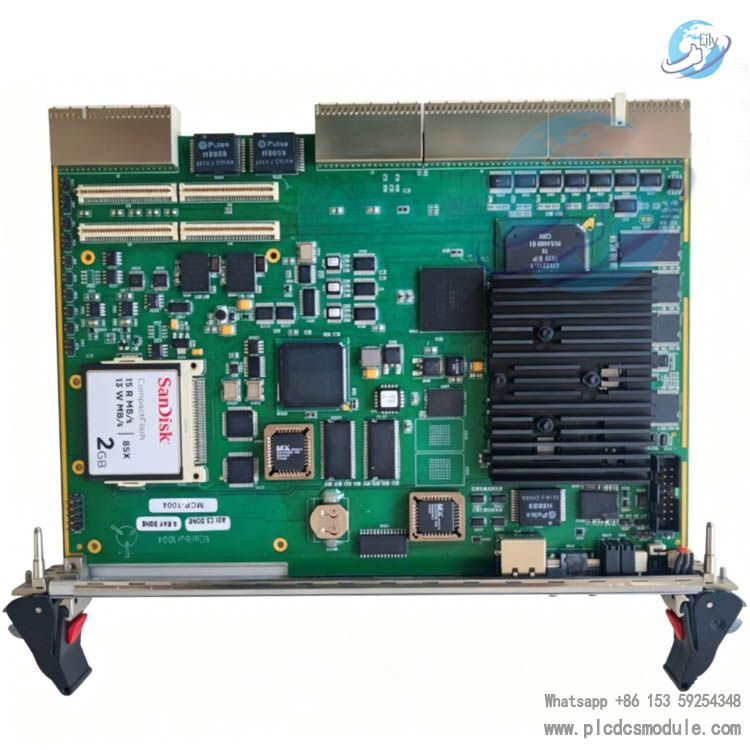

The CCC (Compressor Controls Corporation) MCP-1004 is an industrial-grade circuit control board (CPU module) specially designed for centrifugal and axial compressors. Serving as the core arithmetic and logic control unit of the compressor control system, it is widely applied in the oil & gas, chemical, power and other industries. It undertakes critical functions including compressor anti-surge control, performance regulation, start-stop interlock and fault diagnosis, featuring high computing power, superior environmental adaptability and multi-protocol compatibility.
Core Functions
Compressor Core Control: Performs adaptive anti-surge control (real-time flow/pressure monitoring and dynamic anti-surge valve regulation), closed-loop pressure and flow regulation, start-stop sequence control, and load balancing distribution to ensure efficient and stable compressor operation.
Multi-parameter Monitoring and Protection: Collects real-time signals of temperature, pressure, vibration, rotational speed and other data. Built-in protection logic for over-temperature, over-pressure, surge and excessive vibration triggers alarms or interlock shutdowns to secure equipment safety.
High-speed Logic and Timing Control: Integrated with a TPU timing processor and equipped with 16 independent high-speed timing channels to execute complex interlocks and timing tasks, with a control command delay of ≤1ms.
Data Interaction and System Integration: Features multi-channel communication interfaces (MCCI), including SPI, SCI (UART) and QADC (10-bit analog-to-digital conversion). Compatible with Modbus RTU, Profibus, Ethernet/IP and other protocols, enabling seamless connection to DCS/PLC systems.
Fault Diagnosis and Maintenance: Embedded fault code library enables real-time hardware and software fault diagnosis and event log recording. It supports remote monitoring and debugging to reduce downtime.
Technical Specifications
(1) System Core
Model: MCP-1004CPU: 1GHz Extreme Engineering industrial-grade processorMemory: 128MB RAM, 256MB FlashComputing Performance: Supports parallel operation of 3 sets of compressor closed-loop algorithms with single instruction delay ≤1ms
(2) Electrical Parameters
Power Supply: 10–30V DC (standard 24V DC±10%)Power Consumption: ＜110mA at 24V DC (approx. 2.6W)Protection: Overvoltage, overcurrent and reverse polarity protection, compliant with UL508 standards
(3) I/O & Interfaces
Digital I/O: 24 channels (configurable for input/output)Analog I/O: 4 channels (4–20mA/0–10V optional)High-speed Pulse: 2 channels (max. 200kHz)Communication: Modbus RTU, Ethernet/IP (gateway optional), RS-232/485
(4) Physical & Environmental Characteristics
Dimensions: 178mm (W) × 102mm (H) × 254mm (D)Weight: Approx. 1.8kgMounting: 35mm standard DIN rail / panel screw mountingOperating Temperature: -40°C to +70°CIngress Protection: IP20 (electric shock protection); UL94 V-0 flame-retardant housingVibration Resistance: 5–500Hz, 2g (compliant with IEC 60068-2-6)
Design Features
Industrial High-Reliability Design: Fully ruggedized hardware, wide-voltage power supply, and stable operation in extreme environments from -40°C to +70°C. It adapts to high-temperature, humid and dusty conditions in petrochemical, natural gas and other industrial scenarios.
Modular Architecture: Supports I/O expansion and stacked communication modules. Compatible with single-stage/multi-stage, parallel/series compressor systems, flexibly matching units of different capacities.
Dedicated Control Algorithm: Equipped with CCC self-developed adaptive anti-surge algorithm. Compared with traditional PID control, it predicts surge in advance and optimizes valve position dynamically, improving compressor operational efficiency and safety.
Convenient Configuration & Debugging: Matched with EZ-XCALIBER configuration software with a graphical programming interface. It simplifies control logic setup, parameter tuning and troubleshooting procedures.
Application Scenarios
Oil & Gas: Control of natural gas transmission compressors and liquefied natural gas (LNG) compressors.
Chemical Industry: Anti-surge protection and performance control for centrifugal compressors in ammonia synthesis, urea and ethylene plants.
Power Industry: Monitoring and protection of compressors supporting gas turbines and steam turbines.
Air Separation Industry: High-efficiency control of air compressors and nitrogen compressors for large-scale air separation units.
FAQ
Q1: What is the difference between the MCP-1004 and ordinary PLCs?A1: The MCP-1004 is a compressor-dedicated CPU module with built-in patented CCC anti-surge algorithms. It is optimized for compressor-specific conditions such as surge, vibration and pressure fluctuation. General-purpose PLCs require customized secondary programming for complex anti-surge control, and lack sufficient computing power and real-time performance.
Q2: What is the operating temperature range? Can it start at -30°C?A2: The official operating temperature range is -40°C to +70°C. It supports low-temperature startup at -40°C without preheating, suitable for outdoor compressor stations and cold high-altitude regions.
Q3: How to communicate with a DCS system? What protocols are supported?A3: Modbus RTU is standard; Ethernet/IP and Profibus-DP gateway modules are optional. It connects to DCS via RS-485 or Ethernet for seamless data exchange, enabling remote monitoring and parameter modification.
Q4: Does it support redundant configuration?A4: It supports dual hot standby redundancy. Master/slave MCP-1004 modules can be configured for bumpless automatic switchover upon main module failure, ensuring continuous and uninterrupted compressor operation in compliance with industrial safety standards.
