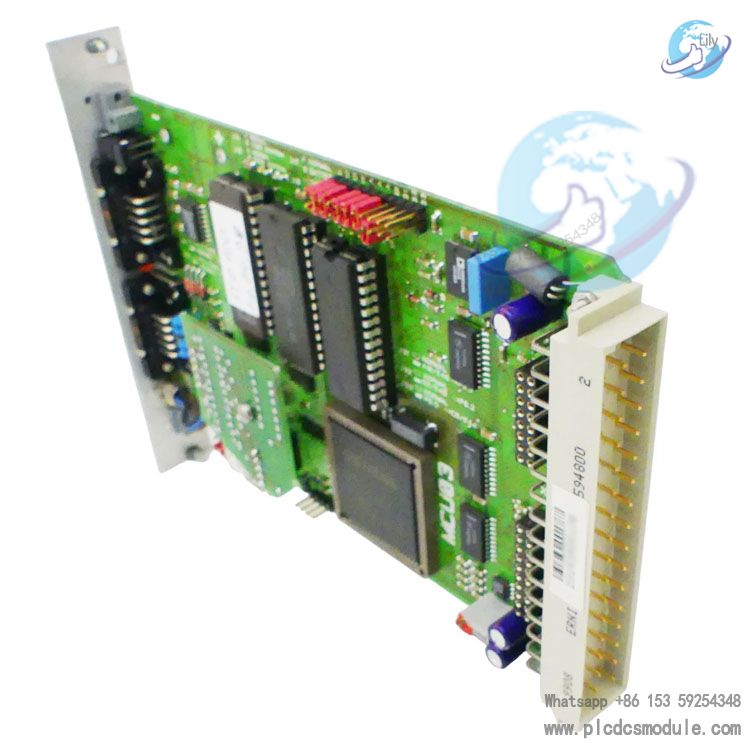

The EMG MCU03-12 (also designated MCU3-1.2) is a 3U-format microcontroller mainboard from Germany-based EMG Automation, belonging to its iCON control system series. Specially engineered for industrial automation scenarios such as web guiding and tension control, it serves as the core processing unit of the system. It undertakes signal acquisition, logical operation, motion control and network communication, featuring high stability, strong anti-interference performance and modular expandability. It is widely deployed in continuous production lines across industries including iron and steel, papermaking, printing and plastic film manufacturing.
Basic Information & Structural Design

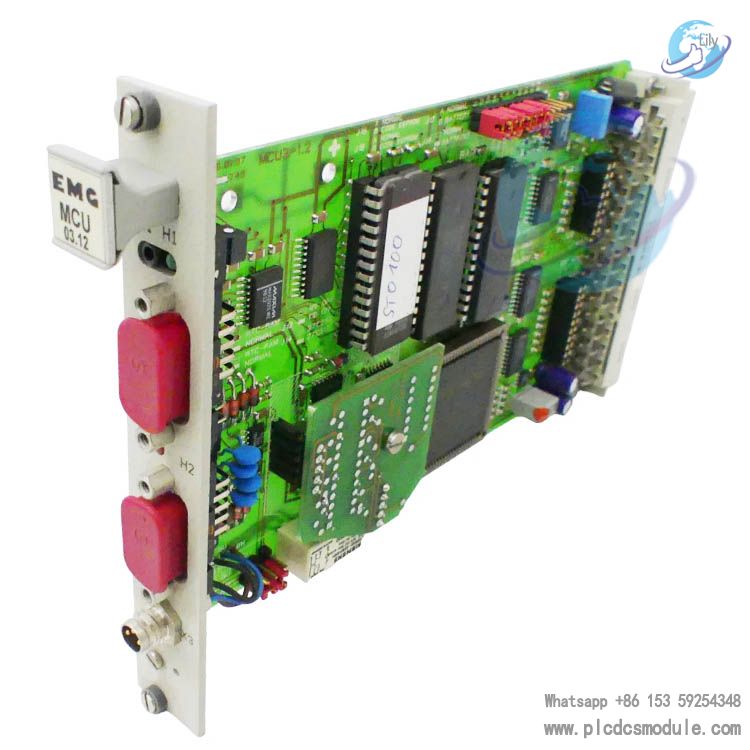

Full Model Designation: MCU03-12 (MCU3-1.2)Brand: EMG Automation (Germany)System Affiliation: iCON® Web Control SeriesStructural Specifications: Adopting standard Eurocard design, with a 3U height (approx. 128.5 mm) and 4TE/HP width (approx. 20.3 mm). Equipped with an aluminum alloy front panel, the module is vertically inserted into the rack slot and fixed with screws at the top and bottom.Weight: Approximately 0.15–0.25 kg

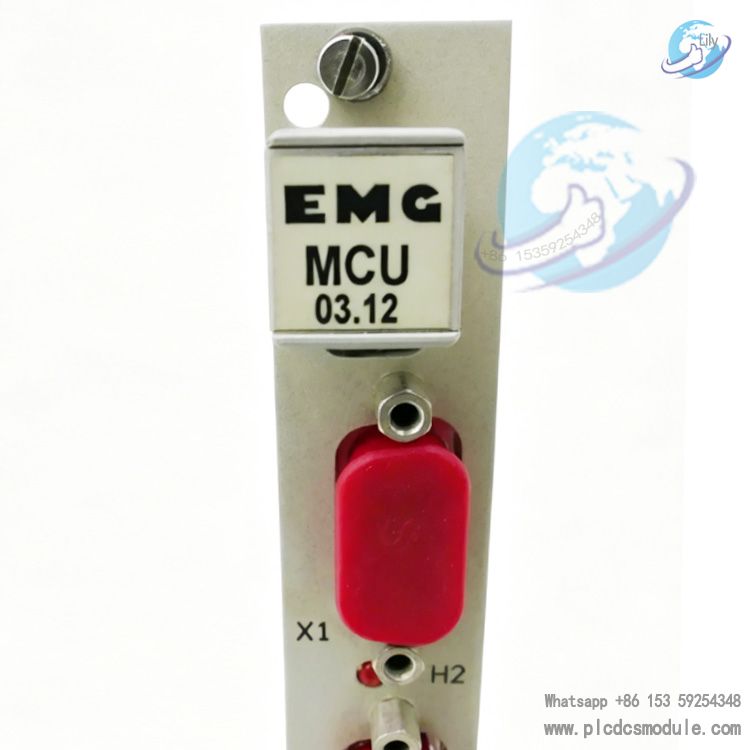

Interface Configuration:Front Panel: 9-pin D-Sub female connector, multi-status LED indicators (Power, Run, Fault, Communication).Backplane: DIN 41612 standard connector for power supply and data exchange with the rack backplane.
Technical Parameters
1. Electrical Characteristics
Supply Voltage: DC 24V (±10%)Power Consumption: No load ≤ 150mA, Full load ≤ 300mADielectric Strength: 500V AC/1min (between input/output and ground)Anti-interference Performance: Compliant with EN 61000-6-2/4 standards; contact electrostatic discharge ±4kV, air electrostatic discharge ±8kV, electrical fast transient burst ±2kV.
2. Processor and Memory

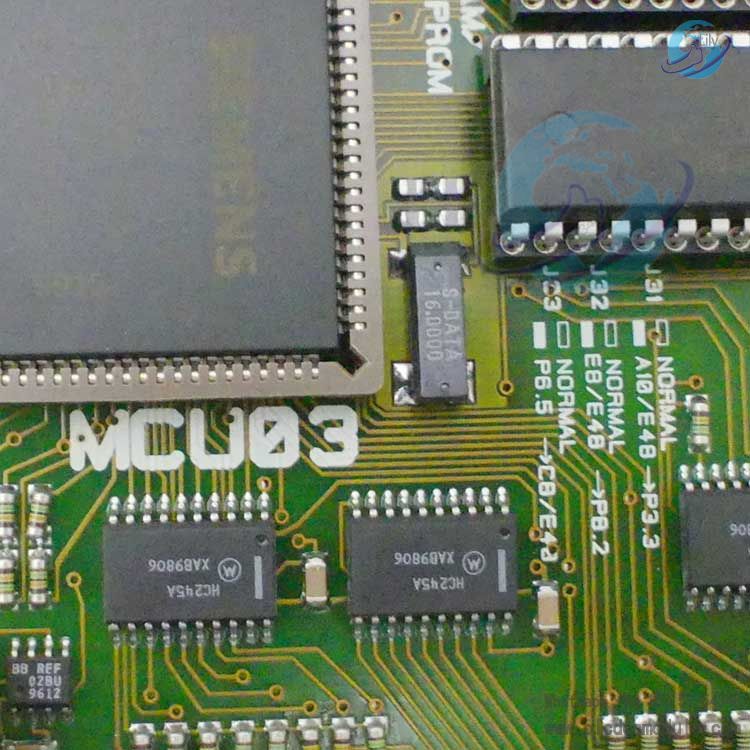

Main Control Chip: Industrial-grade 32-bit MCU, main frequency 40MHzProgram Memory: 128KB Flash (power-off retention)Data Memory: 32KB RAM, supporting data retention upon power failureSystem Firmware: Pre-installed with EMG dedicated real-time operating system, supporting online upgrade
3. I/O and Communication
Digital Input: 8 channels, 24V DC, optocoupler isolation, response time ≤ 1msDigital Output: 4 channels, transistor output, 24V DC/0.5A, short-circuit protectionAnalog Input: 2 channels, ±10V/0–20mA, 12-bit resolution, sampling cycle 10ms
Communication Interfaces:
- 1 × RS-485 (supports Modbus RTU and EMG proprietary protocol)
- 1 × CANopen (optional, requires expansion module)
- Backplane bus (high-speed internal communication for iCON system)
4. Environmental Conditions
Operating Temperature: 0℃～+55℃Storage Temperature: -20℃～+70℃Relative Humidity: 10%～90% RH (non-condensing)Vibration Resistance: 10～25Hz, 2G in X/Y/Z directions for 30 minutes
Functional Features
Real-time Motion ControlBuilt-in PID algorithm, supports web guiding and tension closed-loop control, featuring fast response speed and high steady-state accuracy.
Flexible ExpansionI/O modules, communication modules and analog modules can be expanded via the iCON rack backplane to adapt to systems of different scales.
Multi-protocol CommunicationCompatible with mainstream PLC brands such as Siemens S7 and ABB to realize data exchange and remote monitoring.
Self-diagnosis FunctionMonitors the status of power supply, communication and I/O in real time. In case of faults, LED indicators will trigger an alarm and fault codes will be recorded for quick troubleshooting.
Long-term Operational StabilityAdopts industrial-grade components and undergoes strict aging tests, suitable for industrial scenarios with 24-hour continuous operation.
Convenient ProgrammingSupports dedicated EMG engineering software, provides ladder diagram and function block diagram programming languages, and complies with the IEC 61131-3 standard.
Application Scenarios
Iron and Steel IndustryWeb centering and tension control for pickling lines, cold rolling mills and coating lines.
Papermaking & Printing IndustryWeb correction and tension stabilization for high-speed paper machines, gravure printing machines and laminating machines.
Plastic Film IndustryEdge position control and tension adjustment for film blow molding machines, casting film machines and slitting machines.
Other IndustriesMotion control and automation integration for continuous production lines in textile, rubber, metal processing and other fields.
FAQ
1. Module fails to power on
Troubleshooting:① Verify normal DC 24V power supply (voltage range: 21.6–26.4V);② Check for loose or poor contact at module power terminals;③ Inspect whether the backplane fuse of the rack is blown;④ Replace the module in case of hardware damage.
2. RUN indicator flashes and FAULT indicator keeps steady on
Troubleshooting:① Read fault codes via software or combined panel indicator status;② Check I/O wiring for short circuit or overload;③ Abnormal communication bus (incorrect RS-485/CAN wiring, missing terminating resistor);④ Logic program error; re-download the backup program.
3. Analog input signal fluctuates greatly with unstable readings
Troubleshooting:① Use shielded twisted-pair cables for analog signal wiring and keep away from power cables (spacing ≥ 30cm);② Ensure reliable signal single-point grounding to prevent ground loop current;③ Adjust software filtering parameters to enhance filtering intensity;④ Test the sensor output independently to rule out sensor or signal source failure.
4. Failure to communicate with host equipment (PLC / HMI)
Troubleshooting:① Confirm consistent settings of communication protocol (Modbus RTU / proprietary protocol), baud rate and station address;② Check RS-485 wiring for reversed A/B lines;③ Measure bus terminating resistors (120Ω at both ends of the bus);④ Replace the module if the communication interface is damaged.
5. Program download failure or offline online monitoring
Troubleshooting:① Ensure firm connection of programming cable and intact ports;② Keep the PC IP address in the same network segment as the module;③ Disable firewall or antivirus software to prevent communication interception;④ Clear old programs when module Flash memory is insufficient, then retry.
