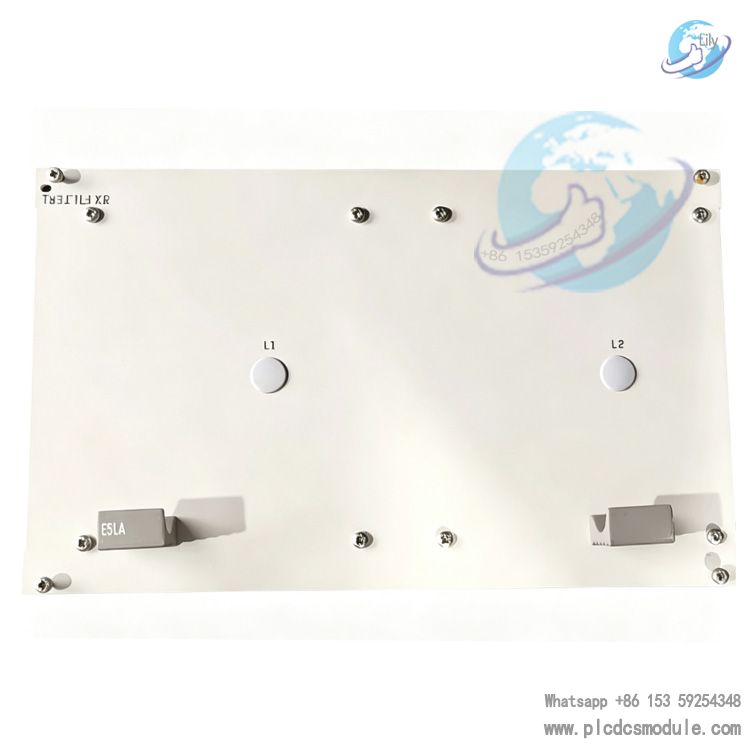

E5LA HENF105296R0001 is a high-performance industrial control board of ABB E5LA series, associated with the HC800 system. Designed for complex industrial automation scenarios, it integrates control, communication, filtering and power management functions. Featuring high precision, high reliability and strong environmental adaptability, it can seamlessly connect to automation control systems in power, metallurgy, chemical and other industries, realizing precise equipment control, data transmission and status monitoring.
Basic Information

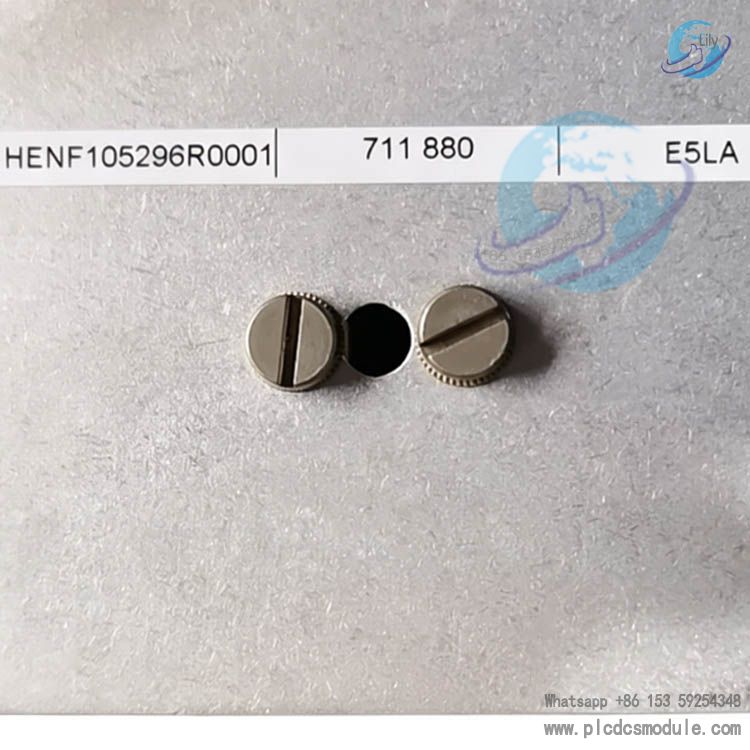

Model: E5LA HENF105296R0001Brand: ABBSeries: E5LA (Affiliated to HC800 Series)Type: Industrial automation control module / Filter / Power control boardStructure: Standard card-type design, suitable for industrial cabinet installation
Technical Parameters
Power Supply ParametersInput Voltage: 115V AC/230V ACOutput Voltage: 48V DCRated Power: 1060WRated Output Current: 22.1AEfficiency: Up to 96%
Processing & StorageProcessor: 1GHzMemory: 1GB RAM, 8GB Flash
Communication CapabilitySupports MODBUS RTU, CANopen and EtherCAT protocols, compatible with networking of multi-brand industrial equipment
Environmental ParametersOperating Temperature: -20℃ ~ +60℃Storage Temperature: -40℃ ~ +85℃Humidity: 5%-95% RH (Non-condensing)Ingress Protection: IP20
Physical SpecificationsDimensions: 230mm×125mm×61mmWeight: Approx. 2.9kg
Electrical OutputControl Output: 5VDC/25mA, 24VDC/0.5A
Response Time: ≤2ms
Core Features
High-precision ControlAdopts high-precision arithmetic chip with control accuracy up to ±0.1%, meeting the requirements for precise regulation of parameters such as temperature, pressure and flow in industrial processes.
Multi-protocol CompatibilityIntegrates mainstream industrial communication protocols including MODBUS, CANopen and EtherCAT. It can quickly network with PLCs, inverters, sensors and other equipment, reducing the difficulty of system integration.
Strong Anti-interference CapabilityBuilt-in EMI/RFI filter circuit effectively suppresses electromagnetic and radio frequency interference, ensuring stable signal transmission in complex industrial electromagnetic environments.
Stable Operation in Wide Temperature RangeThe operating temperature ranges from -20℃ to +60℃, adapting to harsh working conditions such as high and low temperatures, and applicable to special scenarios including outdoor environments and beside metallurgical furnaces.
Modular & Easy MaintenanceCard-type modular design supports hot swapping. Modules can be replaced quickly without shutdown, lowering equipment maintenance costs and downtime.
Fault Self-diagnosisEquipped with a real-time diagnostic system to monitor the status of power supply, communication and output circuits. It automatically triggers alarms and records logs upon faults, supporting remote diagnosis and predictive maintenance.
Application Scenarios
This control board is widely used in industrial fields requiring strict control accuracy and stability:
- Power Industry: Power plant DCS systems, substation automatic control, power grid monitoring equipment
- Metallurgical Industry: Iron and steel production lines, rolling mill control systems, precise furnace temperature control
- Chemical Industry: Chemical reactor control, process automatic monitoring, control equipment for explosion-proof environments
- Other Fields: Mine hoisting equipment, port machinery, sewage treatment systems, papermaking and textile automatic production lines
FAQ
The control board has no response after power-on and the indicator light is off. How to troubleshoot?
- Check power input: Confirm normal 115V/230V AC power supply; ensure no looseness, oxidation or ablation at the power interface.
- Inspect fuse components: Check if on-board fuse resistors and fuses are blown. Replace with components of the same specification if damaged, and troubleshoot short circuits in the circuit.
- Environmental and hardware inspection: Ensure the control board is free from dampness and water ingress. If the above checks are normal, the power management chip may be damaged; contact ABB after-sales service for maintenance.
Communication connection fails and data interaction with PLC/host computer is unavailable. What are the causes?
- Verify protocol and parameters: Ensure the communication protocol (MODBUS/CANopen/EtherCAT), baud rate and address code are consistent with the connected equipment.
- Check wiring: Inspect communication network/bus cables for damage and loose terminal wiring; confirm terminal resistors are configured in accordance with specifications.
- Interference and module inspection: Keep away from strong interference equipment such as inverters and high-power motors. If wiring is normal, the communication chip may be faulty; replace the control board or repair the communication module.
Unstable output signal of the control board causes frequent start-stop of load equipment. How to solve it?
- Load matching check: Confirm the load voltage and current match the control board output parameters (5VDC/24VDC) without overload or short circuit.
- Filtering and grounding optimization: Check the normal operation of the EMI filter circuit; ensure reliable grounding of the control board and equipment to reduce signal fluctuation caused by electromagnetic interference.
- Program and firmware troubleshooting: Inspect for abnormal control program logic; update to the latest firmware version to fix potential program bugs.
The control board frequently alarms when the ambient operating temperature is high. How to handle it?
- Heat dissipation improvement: Check if the cabinet cooling fan works normally, clean dust on the control board surface, ensure good cabinet ventilation, and keep the ambient temperature within +60℃.
- Load and power supply optimization: Reduce the load of the control board and avoid long-term full-load operation; maintain stable supply voltage to prevent high-temperature alarms caused by voltage fluctuation.
- Hardware inspection: If alarms persist with normal heat dissipation, the temperature sensor may be faulty or the chip aging occurs; contact ABB after-sales service for inspection and replacement.
Is reprogramming required when replacing a new module after the control board fails?
If the original program is backed up, directly import the backup program after replacing with the same model E5LA control board. No reprogramming is needed; only communication parameters and control logic need verification.
If no backup is available, rewrite the control program according to system requirements, configure communication protocols, I/O ports and control parameters, then download to the control board and complete commissioning and operation.
