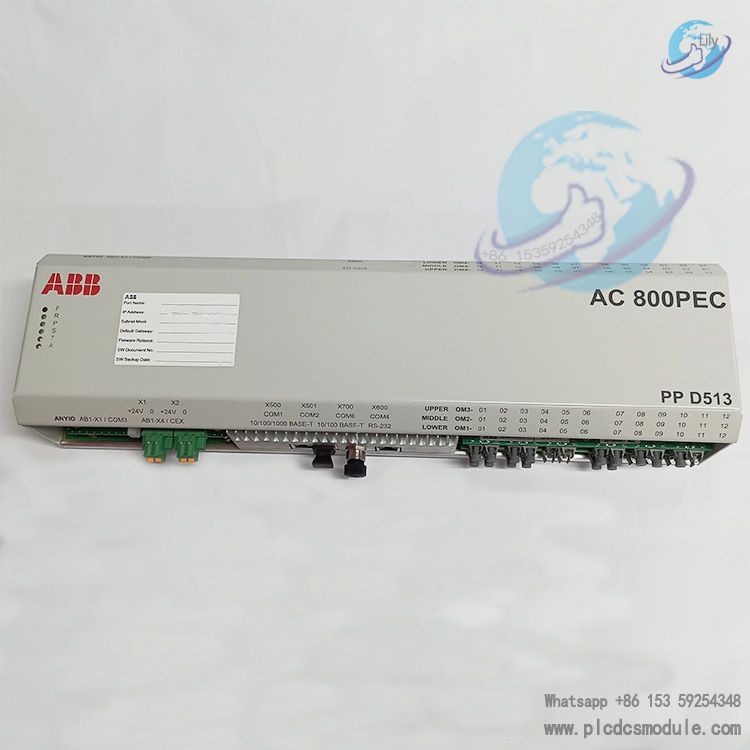

ABB PPD513 A23-111615（Order No. 3BHE039724R2365）is a high-performance power electronic controller of the AC 800PEC series and a core member of the ABB AC 800M control family. It is specially designed for high-speed and complex power electronic and motion control applications. It is capable of synchronously completing high-speed control at the hundred-microsecond level and process control at the millisecond level, and is widely applied in fields such as synchronous generator excitation, SVC static var compensation, variable-frequency drive, and power quality management.
Specifications & Model Interpretation
Model: PPD513 A23-111615Order No.: 3BHE039724R2365Product Series: AC 800PEC (Power Electronic Controller)
Hardware Architecture: Adopts CPU+FPGA heterogeneous design; CPU main frequency 1GHz, equipped with 1GB RAM + 2GB flash memory, fanless industrial-grade hardware.
Control Cycle:
- High-speed task: 100μs (MATLAB/Simulink algorithm)
- Ultra-high-speed task: 25ns (FPGA hard logic)
- Conventional task: ≥1ms (IEC 61131-3 logic)
Power Supply & Environment: 24VDC power supply; operating temperature -20℃~60℃, suitable for harsh industrial environments.
Functional Features
High-Performance Real-Time Control
A single controller integrates high-speed power electronic control and low-speed process control, replacing the traditional separated architecture of "PLC + dedicated controller".FPGA undertakes high-speed I/O and protocol processing, while the CPU focuses on complex algorithms, ensuring closed-loop control accuracy at the 100μs level.
Flexible Programming & Engineering Tools
Supports model-based development with MATLAB/Simulink, enabling automatic code generation and downloading, seamlessly connecting simulation and on-site operation.Compatible with IEC 61131-3 standard languages (Ladder Diagram, Function Block Diagram, etc.); system configuration can be completed via ABB Control Builder.
High-Speed Communication & I/O
Comes standard with Ethernet and optical fiber communication interfaces, supporting protocols such as PROFIBUS and Modbus. Optical fiber I/O transmission delay <25μs with strong anti-electromagnetic interference capability.Expandable with S800 I/O and Combi I/O modules to directly connect analog and digital signals, ideal for high-voltage and strong electromagnetic interference scenarios.
System Integration & Reliability
Deeply integrated with ABB Ability™ System 800xA to realize plant-wide unified monitoring and data interaction.No moving parts design ensures long service life; supports online upgrade and redundant configuration to guarantee continuous operation of critical equipment.
Application Scenarios
- Synchronous Generator Excitation Control: Replaces traditional excitation regulators, provides fast and high-precision excitation regulation to ensure power grid stability.
- Power Quality Management: Controls SVC, SVG and active power filters for fast reactive power compensation and harmonic suppression.
- Industrial Drive Control: Applied to high-voltage frequency conversion, rolling mill and traction converter control, achieving high-precision speed/torque closed-loop control.
- Renewable Energy Grid Connection: Controls wind power and photovoltaic converters to comply with power grid grid connection guidelines.
FAQ
Q: What is the core difference between this controller and ordinary PLCs?A: Ordinary PLCs mostly operate at millisecond-level control cycles and cannot meet the high-speed control requirements of power electronics. The AC 800PEC supports 100μs-level high-speed closed-loop control and integrates FPGA hard logic for nanosecond-level ultra-high-speed tasks. Meanwhile, it retains conventional PLC process control functions, serving as an integrated platform combining high-speed dedicated control and general process control.
Q: Is MATLAB/Simulink mandatory for programming?A: Not mandatory. Simple logic can be developed with IEC 61131-3 languages in ABB Control Builder. For complex high-speed algorithms, modeling with MATLAB/Simulink is recommended, which supports automatic code generation and greatly reduces development difficulty and cycle time.
Q: Can it directly replace older AC 800PEC modules?A: Model and order part number verification is required. 3BHE039724R2365 is a standard model of the PPD513 series, with compatible hardware pins and communication protocols with older models of the same series. The firmware version needs software matching; it is recommended to upgrade to the latest firmware for new function compatibility.
Q: Can it operate when the ambient temperature exceeds 60℃?A: No. The official rated operating temperature range is -20℃~60℃. Operation beyond the rated temperature will accelerate hardware aging, reduce computing accuracy, and even trigger protective shutdown. Heat dissipation devices or installation position adjustment are required in high-temperature environments.
Q: Does it support redundant configuration?A: Yes. It supports dual-unit hot standby redundancy with data synchronization via optical fiber, enabling seamless switchover during faults, meeting high reliability requirements in power, energy and other critical industries.
