The product adopts object-oriented operation logic and integrates core functions such as text display and control, dynamic indication, time channels, alarm handling, and recipe management. Personalized configuration can be completed via the Panel Builder 800 configuration tool, and projects can be downloaded to the panel for storage and operation.It complies with international standards including EMC Directive 89/336/EEC and Low Voltage Directive 72/23/EEC, and is widely used in various fields of industrial automation control.
Version and Evolution History

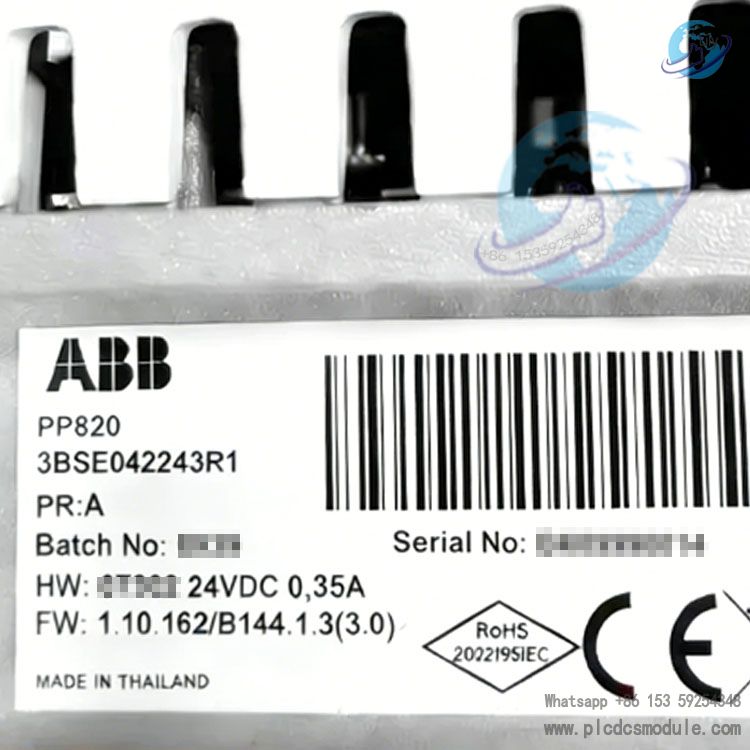

The PP820 series has undergone multiple iterations and optimizations. Version 5.1, supported by 3BSE042243R1, is a mature commercial version. The subsequent PP820A is its upgraded model with further improved hardware compatibility.
| Version | Key Description | Associated User Document Number |
|---|---|---|
| 5.0/1 | Initial version of PP820, firmware version 3.0 | 3BSE049347R101 (MA00923) |
| 5.1 | Firmware upgraded to version 4.0; main supported version for 3BSE042243R1 | 3BSE049347R201 (MA00923A) |
| 5.1/3 | PP820A upgraded model released with optimized hardware performance | 3BSE049347R301 |
Hardware Parameters and Mechanical Design
(I) Basic Physical Parameters
- Front panel protection: IP66 (dust‑tight and resistant to high‑pressure water jets)
- Rear panel protection: IP20
- Front panel dimensions: 202 × 187 × 6 mm
- Installation depth: 57 mm (157 mm including clearance)
- Compatible mounting plate thickness: 1.5–7.5 mm
- Net weight: only 0.95 kg, suitable for embedded installation.

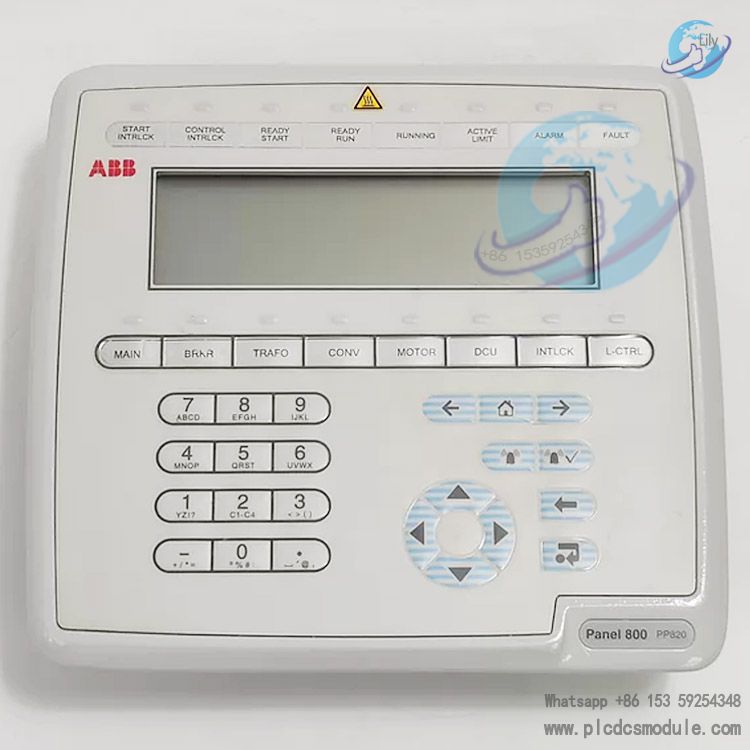

(II) Display and Operating Components
Display
- Type: FSTN‑LCD monochrome transflective display
- Resolution: 240 × 64 pixels
- Effective display area: 127.0 × 33.8 mm
- Backlight: LED backlight, lifetime exceeding 35,000 hours at 25°C
- Designed for long‑term continuous industrial operation.

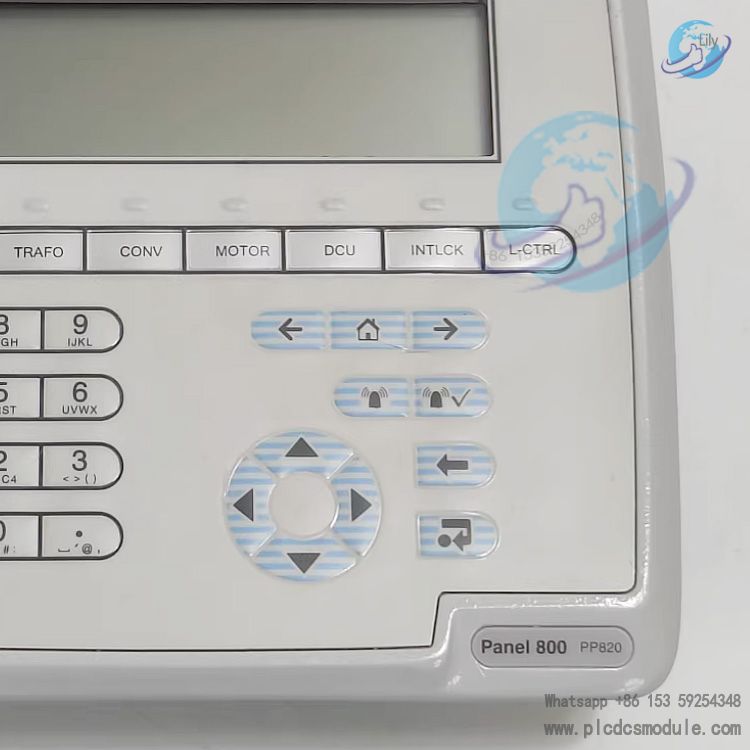

Keypad
- Membrane switch keyboard with metal domes
- Front overlay: Autotex F157 reverse‑printed film
Key operating life: 1,000,000 presses per key, suitable for high‑frequency industrial use.

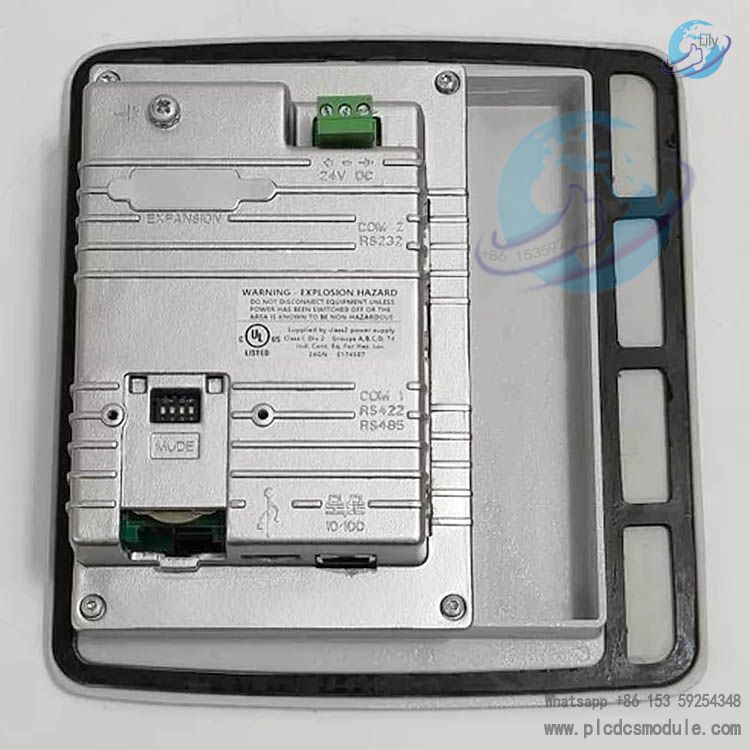

(III) Interface Configuration
- RS422/RS485: 25‑pin D‑sub female connector with 4‑40 UNC locking screws
- RS232C: 9‑pin D‑sub male connector with 4‑40 UNC locking screws
- Ethernet: Shielded RJ45 port for industrial Ethernet communication
- USB: USB 1.1 Host Type‑A, max output current 500 mA, for project transfer and peripheral connection
- Expansion port: Supports Profibus DP expansion module
- Module dimensions: 87 × 70 × 30 mm
- Weight: 0.1 kg
- Enhances fieldbus communication capability.
(IV) Power Supply and Storage
Power Supply
- Input: +24 V DC (wide range: 20–30 V DC)
- Terminals: 3‑pin screw terminal block
- Operating current: 0.15 A at rated voltage; max 0.35 A
- Overcurrent protection: built‑in 2.0 AT/5×20 mm DC fuse.
Storage and RTC
- Application flash memory: 12 MB (including font files)
- Built‑in real‑time clock (RTC)
- Accuracy: ≤ 1 minute/month at 25°C
- RTC battery: CR2450 (UL/cUL certified, Sanyo / Panasonic only)
- Minimum battery lifetime: 3 years
- Temperature coefficient: −0.034 ± 0.006 ppm/°C²
- Basic error affected by temperature and voltage: ±20 PPM.
(V) Environmental Requirements
- Operating temperature:
- Vertical mounting: 0 ~ +50°C
- Horizontal mounting: 0 ~ +40°C
- Storage temperature: −20 ~ +70°C
- Relative humidity: 5–85% RH, non‑condensing.
