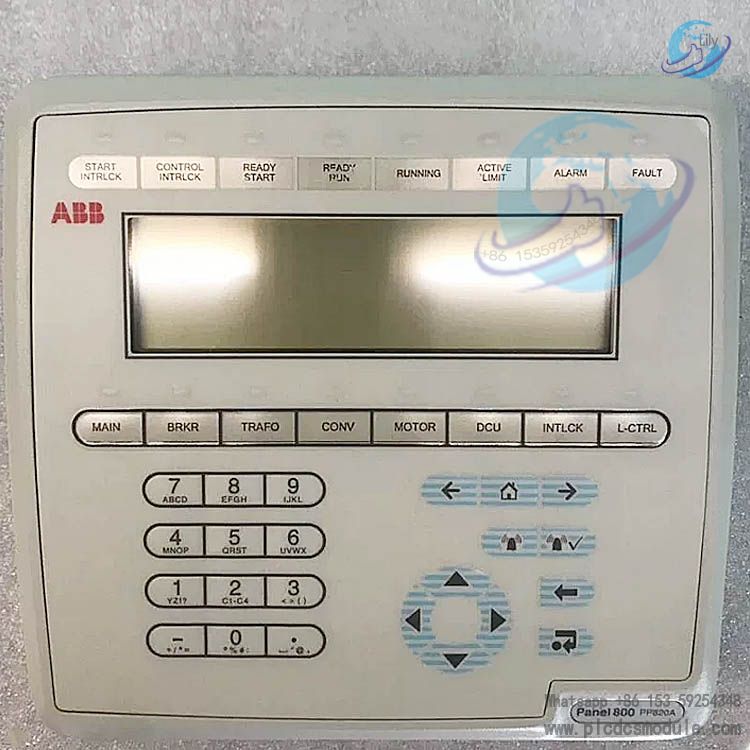

ABB PP820A 3BSE042243R2 is a keypad operator panel in Version 5.1 of the ABB Panel 800 series. It belongs to the keypad product line of the series together with PP826A, PP836A, and PP846A, distinguishing it from touch panels in the same series (such as PP815A, PP825A, etc.).
Its core advantage lies in enabling accurate and fast command input via physical function keys, making it suitable for industrial applications with high requirements for operation response speed and stability.The product is originally manufactured in Sweden, supplied in brand-new original packaging with a 12-month warranty.It is positioned as an industrial-grade function-key operator panel, not a standalone PLC device. Instead, it serves as a human-machine interaction terminal used in conjunction with PLC controllers. Its core function is to realize command transmission and status feedback between operators and automation systems. It is widely used in various industrial automation, process control, and equipment operation applications.
Technical Specifications
1. Electrical Parameters
- Supply Voltage: Industrial standard 24V DC input, compatible with most industrial control systems to ensure stable power supply and high compatibility.
- Processor & Memory: Equipped with a 32-bit 400MHz processor and 64MB RAM, enabling fast response to key commands, smooth data transmission and processing, and meeting real‑time operation requirements in industrial environments.
- Communication Protocols: Supports mainstream industrial protocols including Ethernet, MODBUS, PROFIBUS, and Profinet, allowing seamless integration with existing industrial infrastructure and reliable data exchange with control systems.
2. Physical & Environmental Parameters
- Dimensions: Approximate overall dimensions 45mm × 120mm × 150mm; front panel dimensions 202mm × 187mm × 6mm. Compact design saves installation space and fits various control cabinets.
- Weight: Approx. 0.95–1.4kg (varies slightly by configuration), easy to install and handle.
- Protection Rating: IP65/IP66 rated, providing excellent dustproof and waterproof performance for harsh, humid, and dusty industrial environments.
- Temperature Range:
- Operating: -20°C ~ +60°C (some specifications indicate -10°C ~ +60°C, refer to actual product datasheet)
- Storage: -40°C ~ +85°C
- Humidity: 10% ~ 95% RH, non‑condensing, stable operation without additional moisture protection.
- Housing Material: Metal enclosure (aluminum or stainless steel) with die‑casting and powder coating, providing shock resistance and corrosion resistance for long service life in harsh industrial environments.
3. Display Parameters
Built‑in FSTN LCD display with 260 × 64 pixel resolution, clearly showing system status, operation feedback, alarm messages, and other critical information. Supports alarm handling, recipe management, and dynamic indication to help operators monitor processes in real time and improve operational efficiency and accuracy.
Core Features
1. Customizable Function Keys
The panel features configurable function keys including standard options such as Emergency Stop (ES), START, STOP, RESET. Users can define key functions via dedicated configuration software to match specific industrial processes, enabling direct process control and improving operational flexibility.
2. Strong System Compatibility
Fully compatible with ABB mainstream controllers such as AC800M and AC500, and supports integration with third‑party PLCs. Can connect to existing automation systems without modification, reducing upgrade and expansion costs.
3. Easy Configuration & Commissioning
Configured and programmed using ABB’s dedicated Panel Builder 800 and Control Builder software. User‑friendly interface allows simple function key definition and display setup without advanced expertise, simplifying on‑site commissioning and maintenance and shortening project implementation time.
4. High Reliability & Stability
Tested rigorously for industrial environments. Metal housing and high protection rating effectively resist dust, moisture, and physical impact. Stable electrical design and high‑quality components ensure long‑term continuous operation, minimizing downtime and meeting strict industrial reliability requirements.
5. Flexible Installation
Embedded panel mounting with standard cutout dimensions. Simple installation suitable for control cabinets, equipment consoles, and other locations. Compact footprint optimizes space usage and on‑site layout.
Applications
As a general‑purpose industrial function key panel, ABB PP820A 3BSE042243R2 is widely used in various industrial automation scenarios requiring fast operation and real‑time monitoring:
- Machine Building: Operation and monitoring of machine tools, production lines, robots, etc., for start/stop/reset commands and real‑time status feedback.
- Process Control: Chemical, metallurgical, power, and other process industries for regulating process parameters, monitoring key indicators, and managing alarms.
- General Industry: HMI terminal for industrial control cabinets, bridging operators and control systems for efficient command and status exchange.
- Harsh Environments: Suitable for humid, dusty, and wide‑temperature applications such as outdoor equipment and mining machinery due to high IP rating and wide temperature tolerance.
